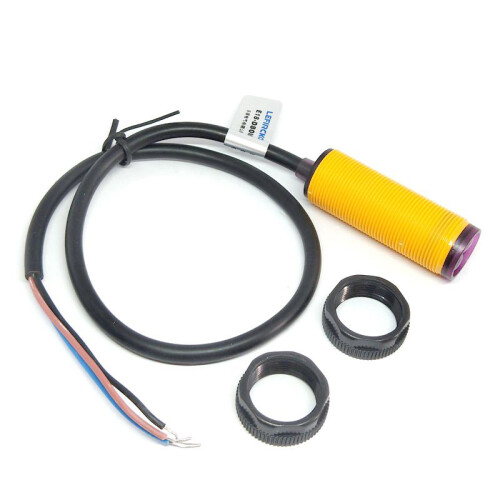

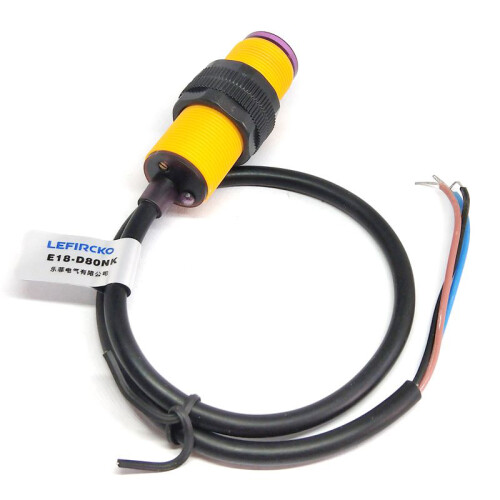

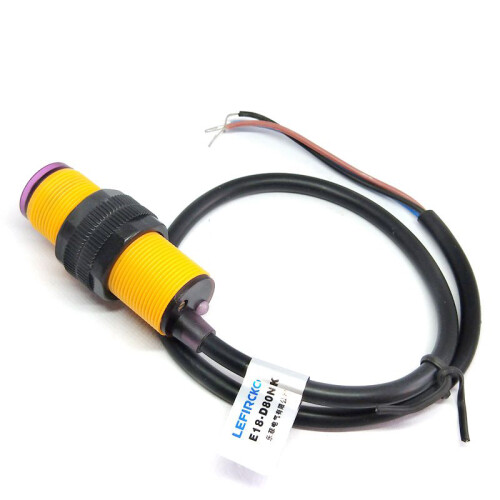

Smart Car Robot E18-D80NK Infrared Obstacle Avoidance Photoelectric Sensor Proximity Switch 3-80cm Detection Range Adjustable

Smart Car Robot E18-D80NK Infrared Obstacle Avoidance Photoelectric Sensor Proximity Switch 3-80cm Detection Range Adjustable Description

Feature:
This is a set of transmitter and receiver in one of the photoelectric sensor. Detection distance can be adjusted according to the requirements. The sensor has the characteristics of less interferece by visible light, low price, easy assembly, convenient use, and can be widely used in many automation products such as robot obstacle avoidance and pipe piece counting.

Electrical Characteristics:
U: 5VDC
I: 100mA
Sn :3-80cm

Size(approx.):
Diameter: 17mm
Sensor length: 45MM
Lead Length: 45CM

Applications:
1. The production line goods automatic counting device.
2. Multi-functional reminder.
3. Maze Robot.
4. Kitchen Automation system.
5. Security anti-theft system.

Photoelectric sensor (photoelectric switch) NPN normally open.
Model: E18-D80NK.

Photoelectric switch E18 Technical parameters:
1. The output current DC / SCR / Relay Control output: 100mA/5V supply
2. The consumption of current: DC <25mA
3. Tthe response time: <2ms
4. Point angle: ?? 15??, the effective distance of 3-80CM adjustable.
5. Object detection: transparent or opaque
6. The working environment temperature: -25??C to +55??C
7. The standard sensing object: sunlight below 10000LX, incandescent 3000LX
8. Case Material: Plastic

Package included:
1 x E18-D80NK Photoelectric Sensor
