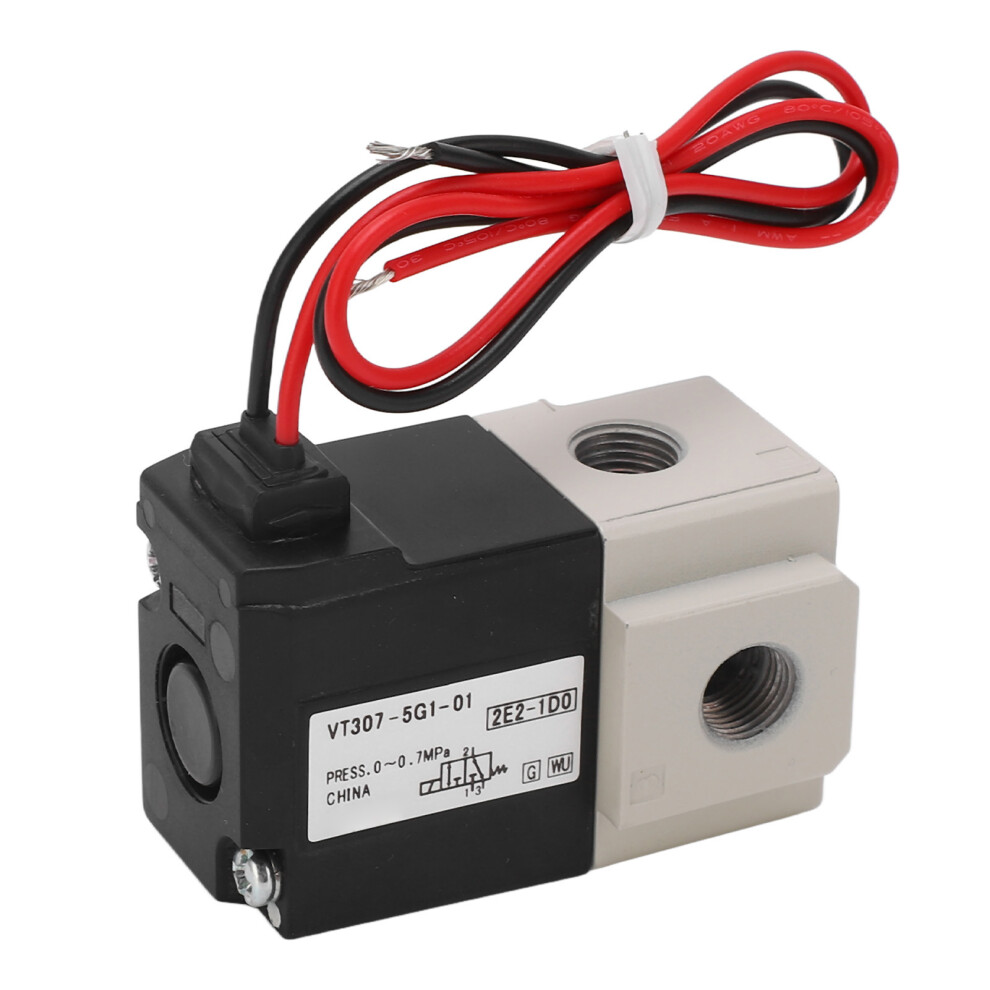

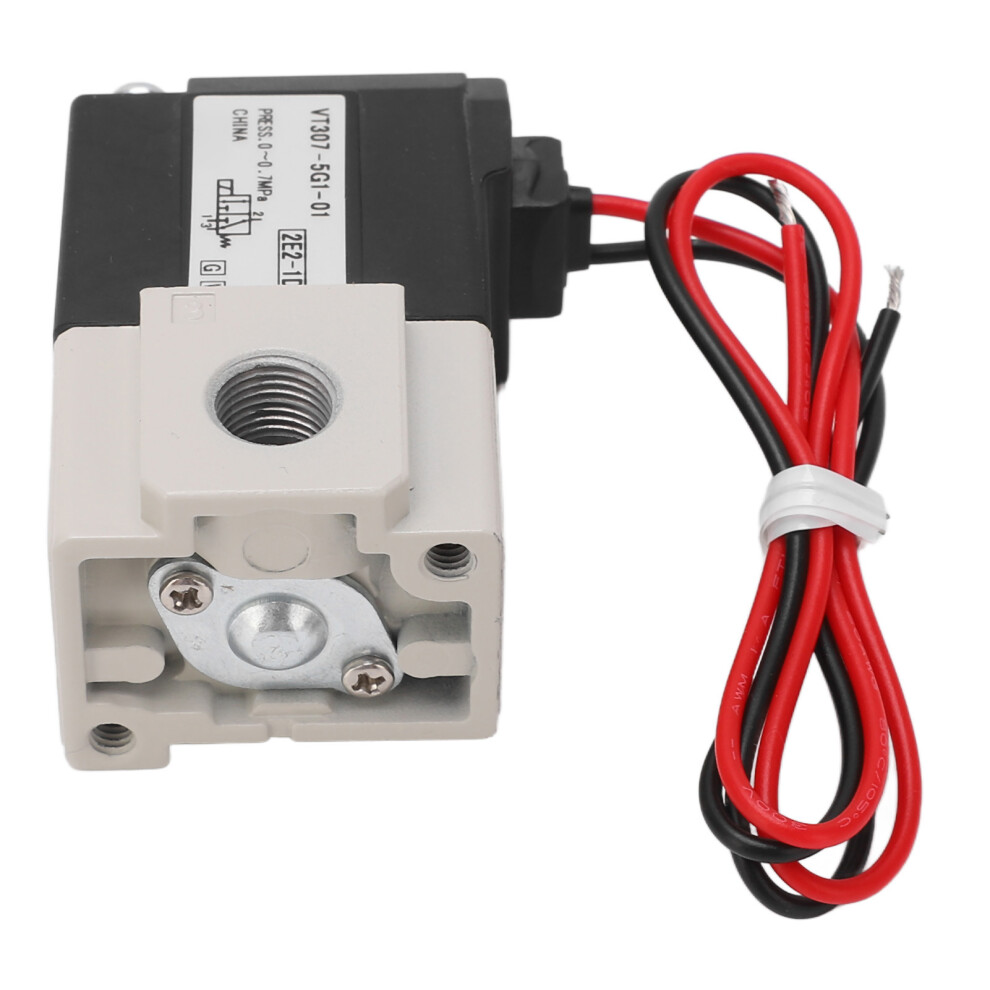

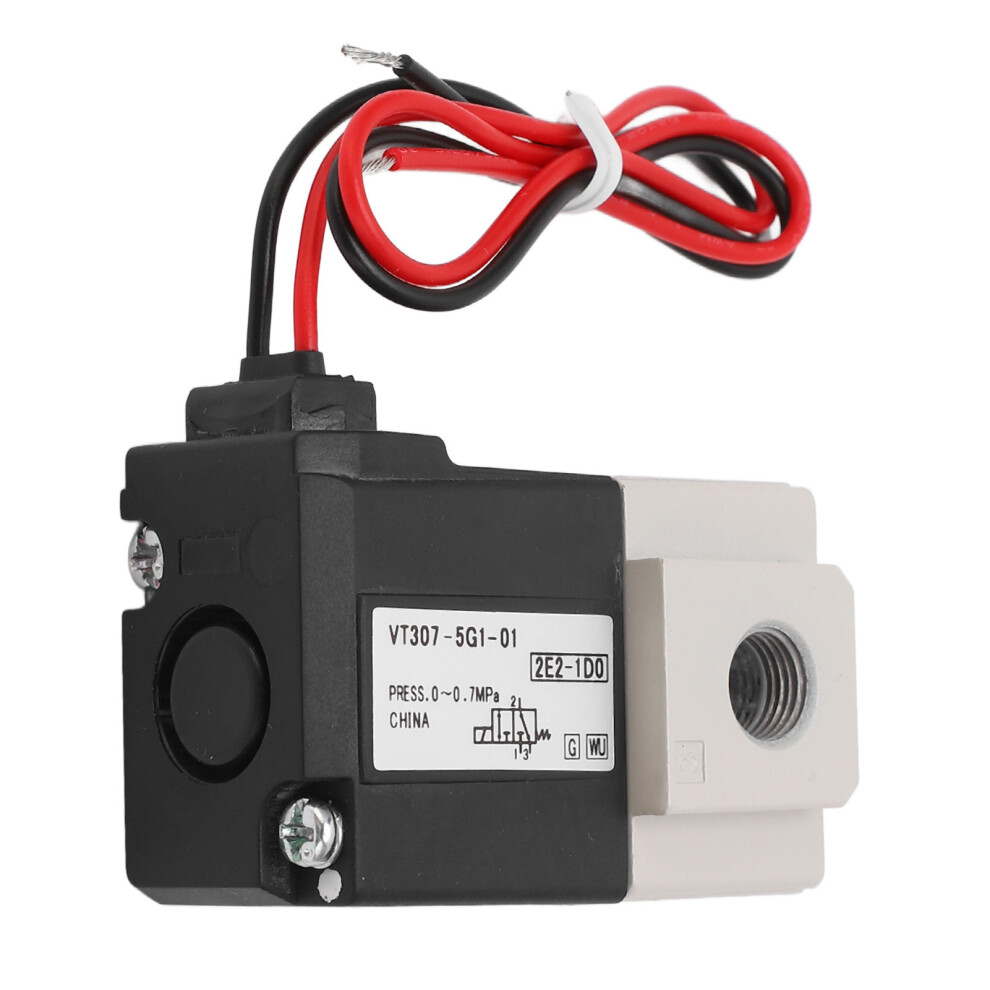

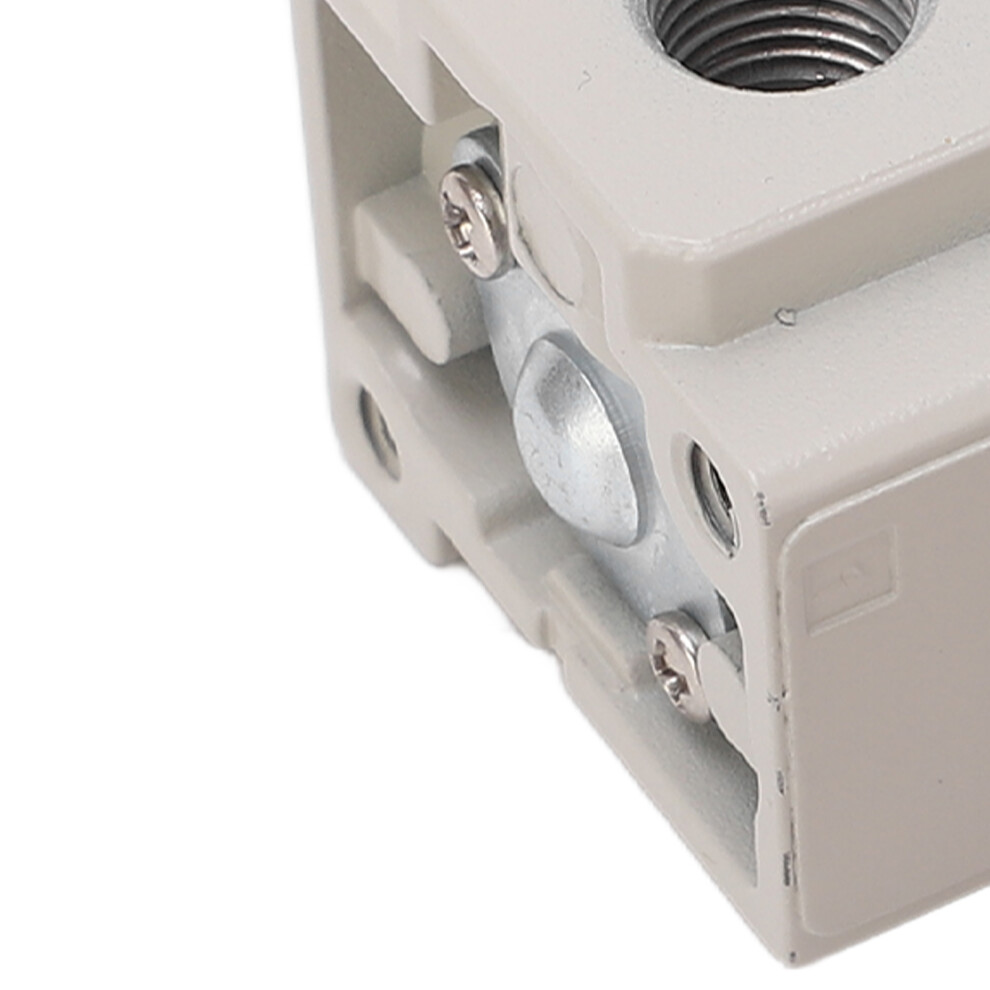

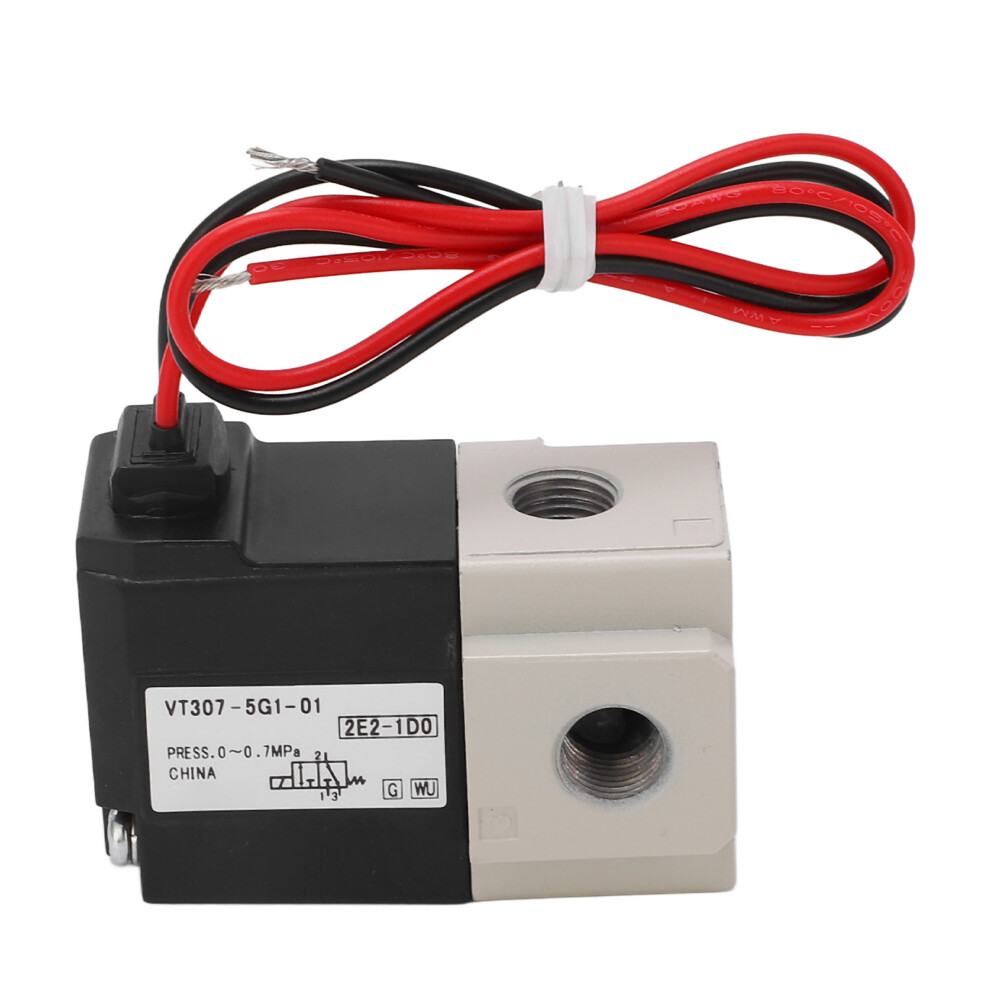

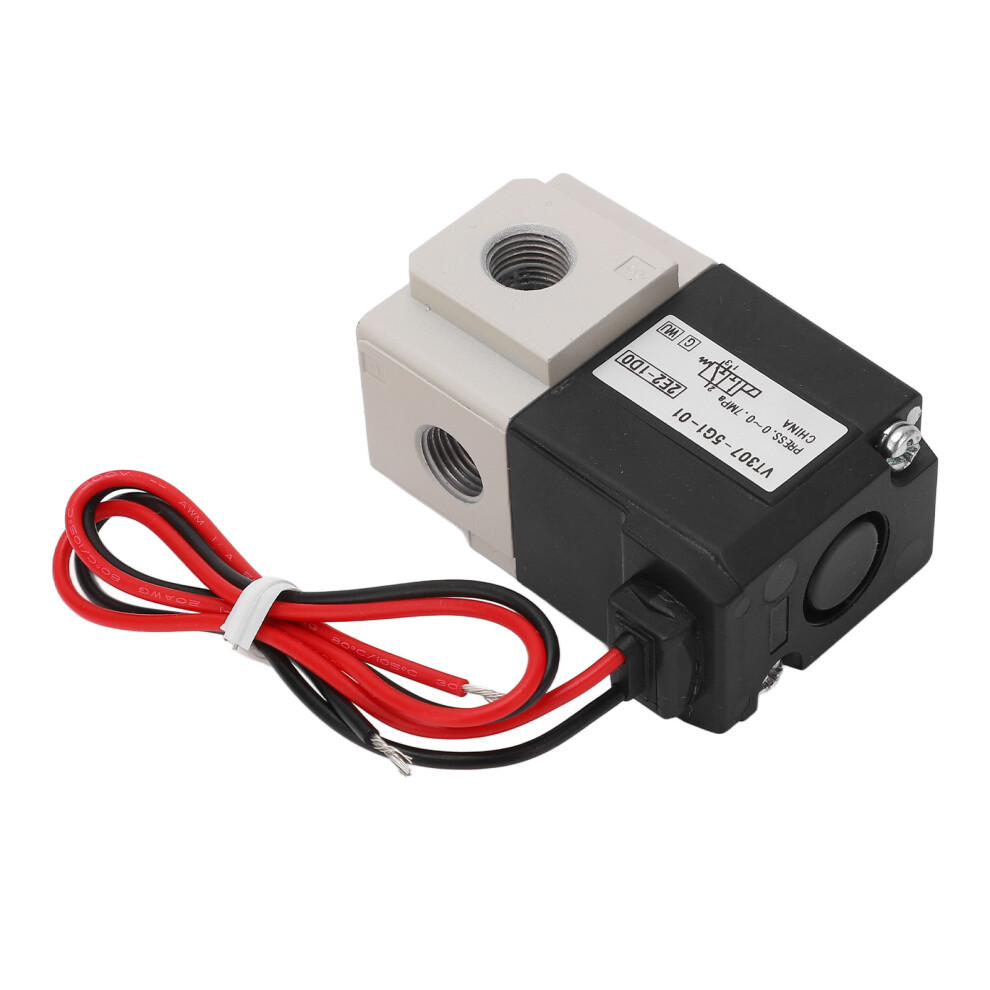

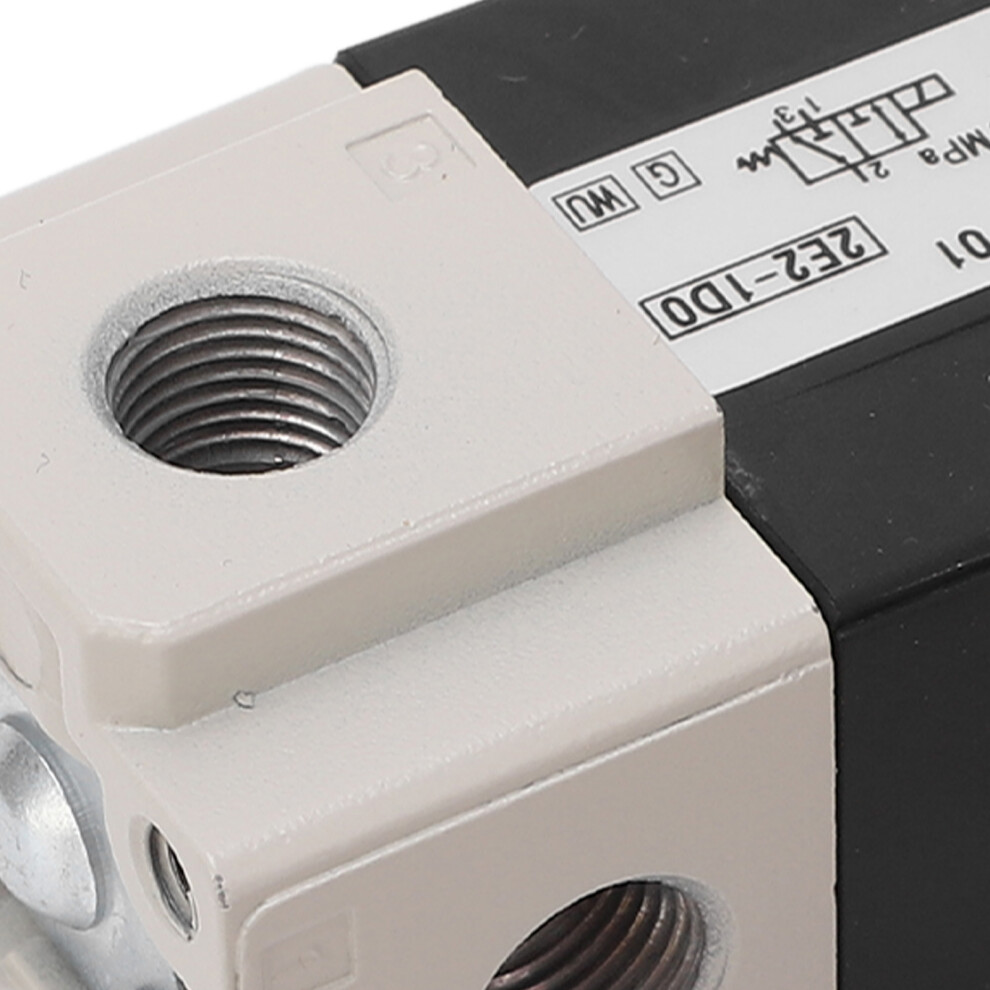

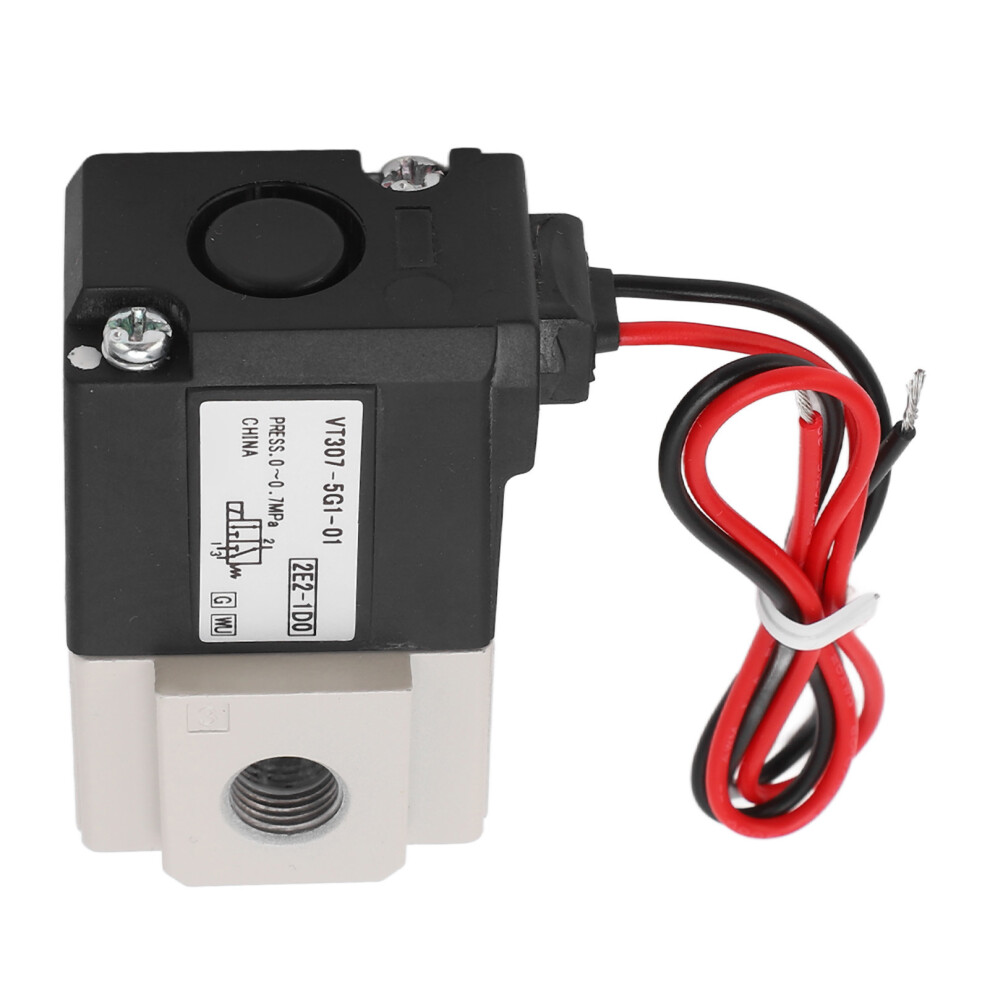

SMC Type G1/8 Vacuum Electric Solenoid Valve 2

SMC Type G1/8 Vacuum Electric Solenoid Valve 2 Description

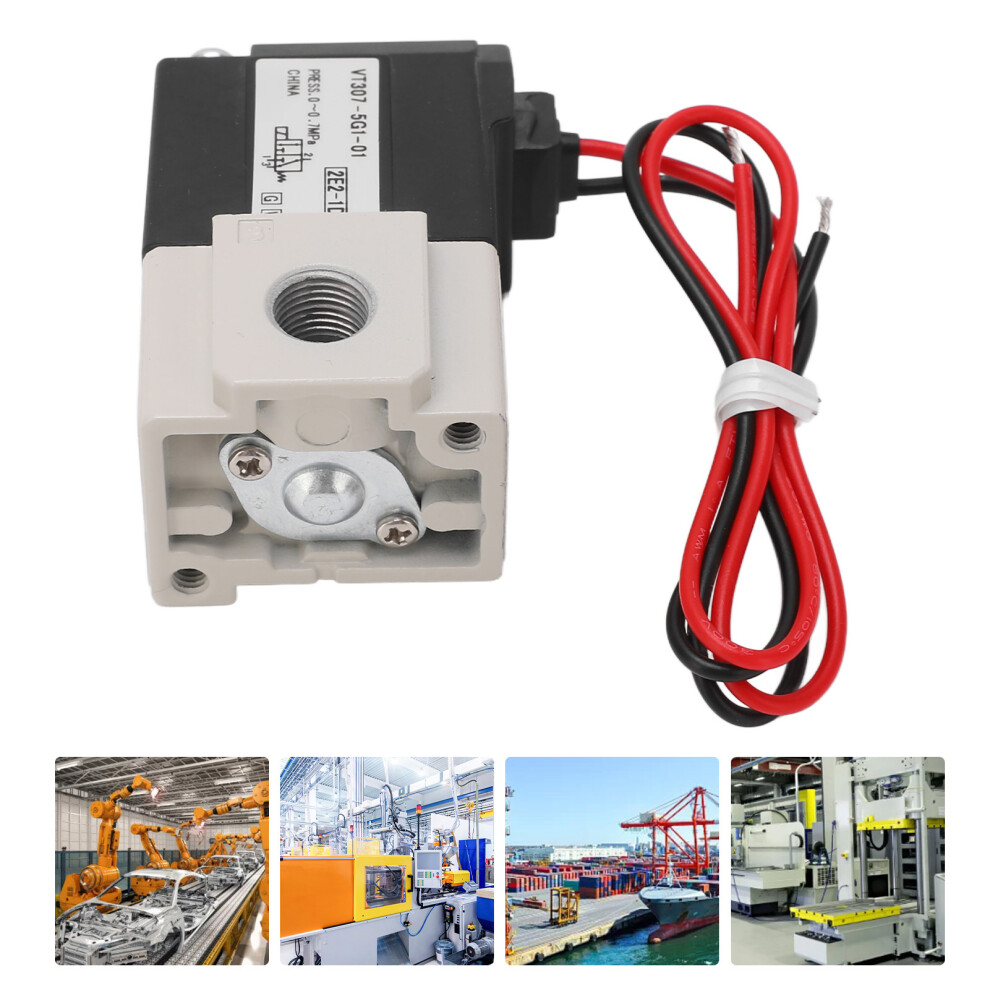

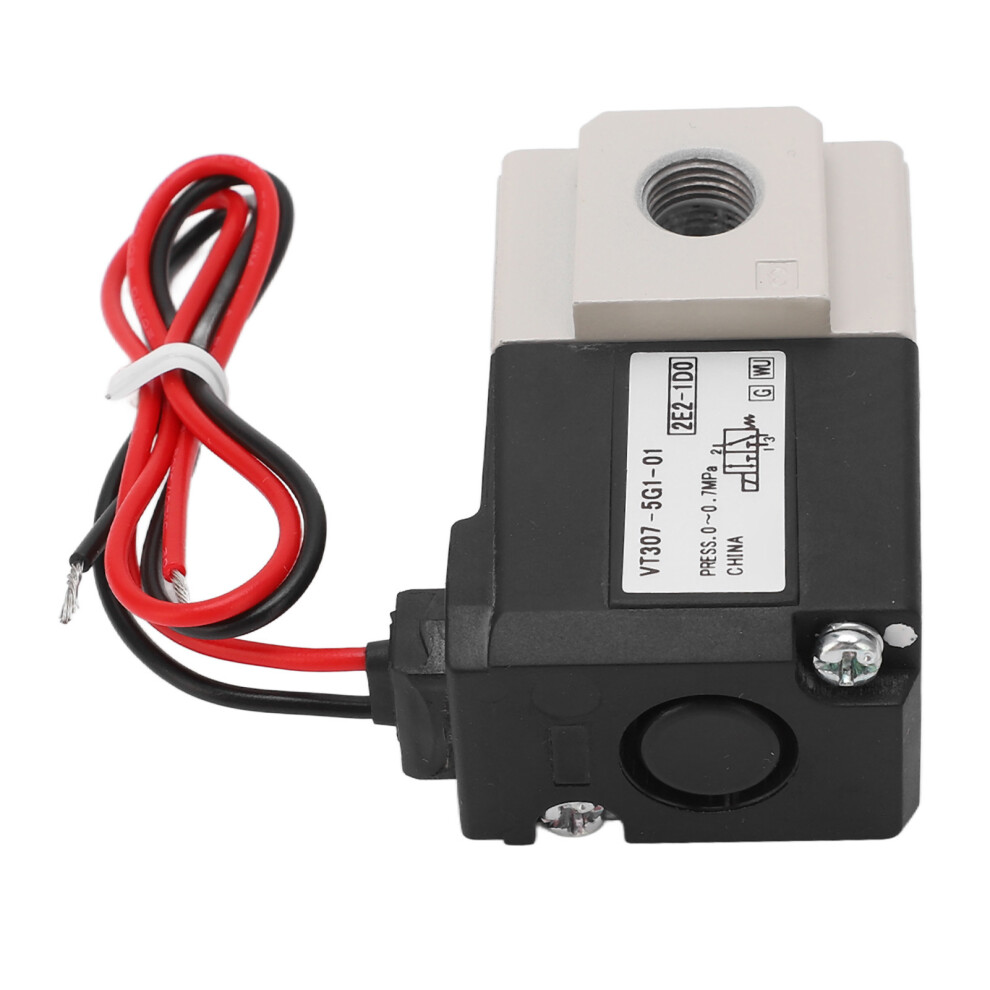

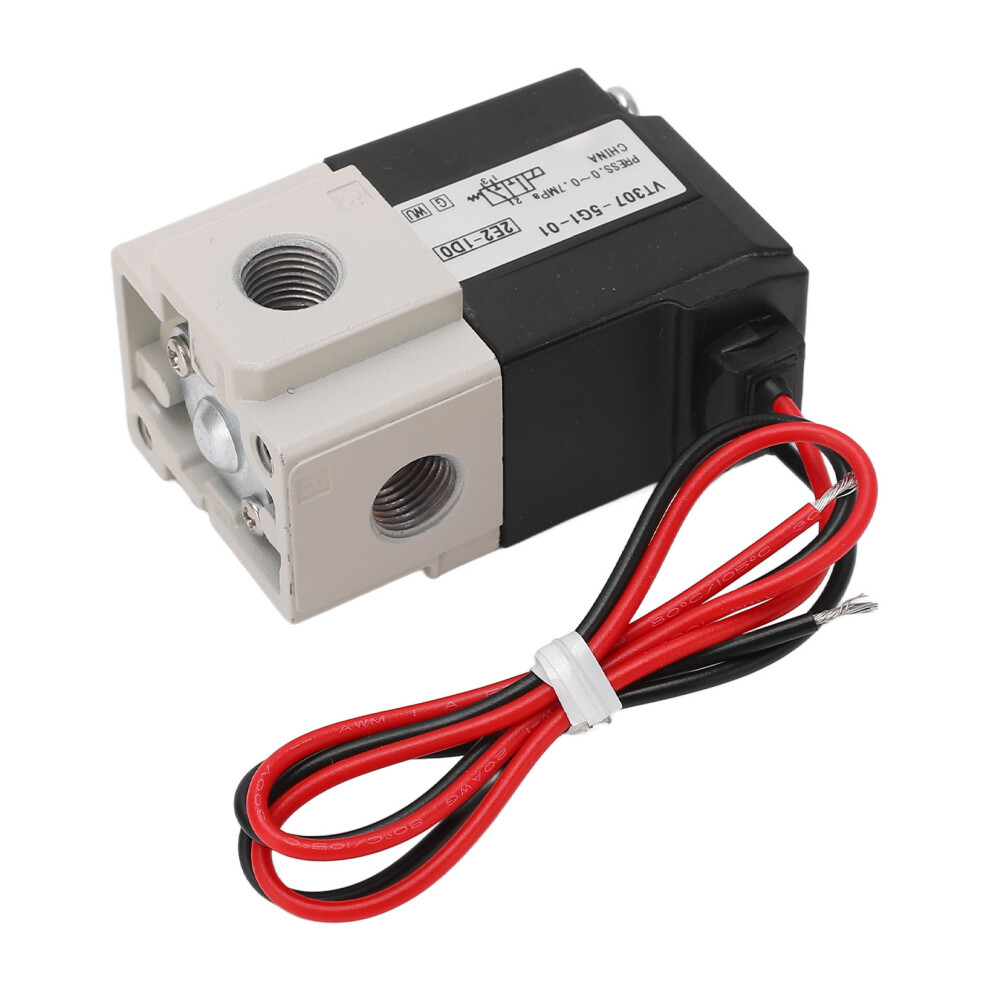

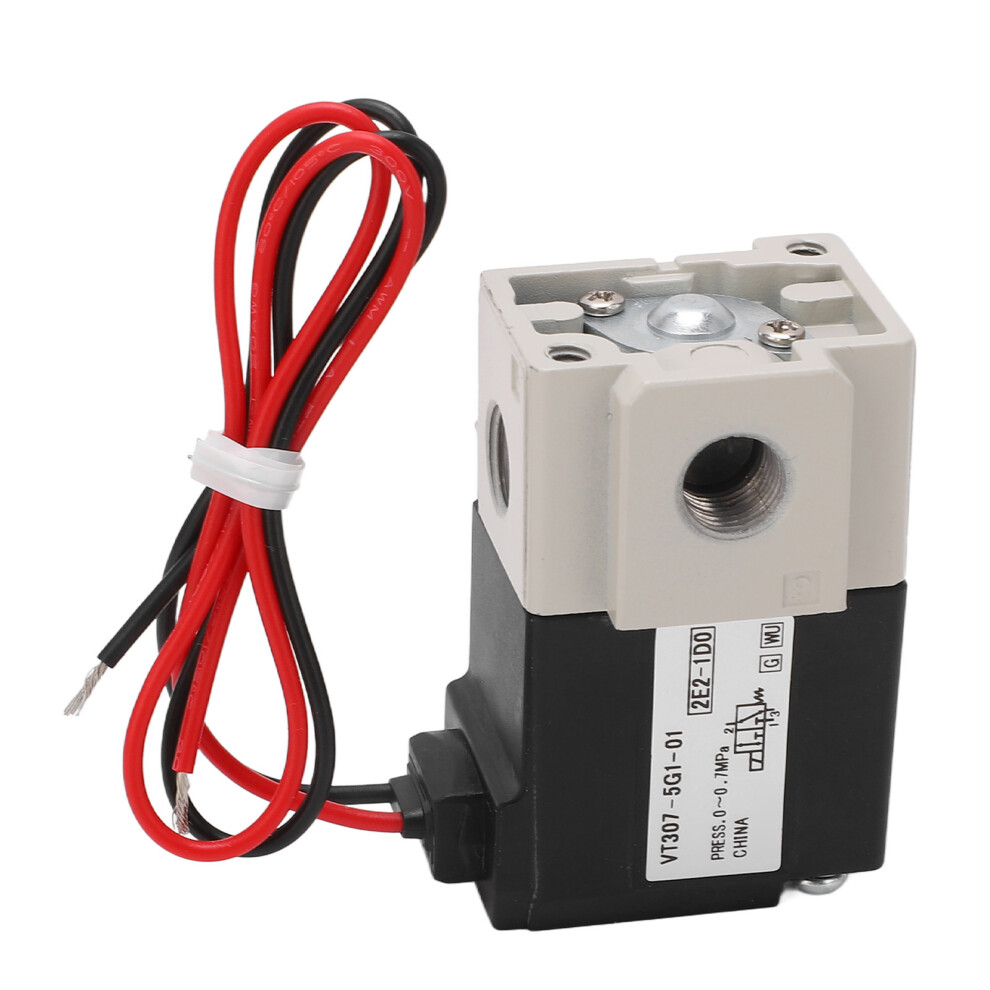

SMC Type G1/8 Vacuum Electric Solenoid Valve 2 Position 3 Way Direct Action Pneumatic Solenoid Valve



1、SPECIFICATIONS: SMC type vacuum electric solenoid valve, 2 position 3 way design, with direct acting 2 position single coil switching mode. 2、COPPER COIL: The solenoid valve adopts sufficient copper coils, which have good conductivity, not easy to burn, greatly extend the service life. 3、FINE PROCESSING: With fine polishing, the solenoid valve is glossy without burrs, the inner wall is finely polished to ensure no air leakage. 4、DIE CAST ALUMINUM: The valve body is made of die casting aluminum material, which is resistant to corrosion and impact, not easy to deform or wear. 5、GOOD SEALING: The pneumatic solenoid valve adopts excellent sealing ring to provide good dust protection, ensure stable and reliable in operation. 6、LOW FRICTION: There is softened oil between the moving parts inside the solenoid valve, effectively reducing the wear between the parts, work smoothly.

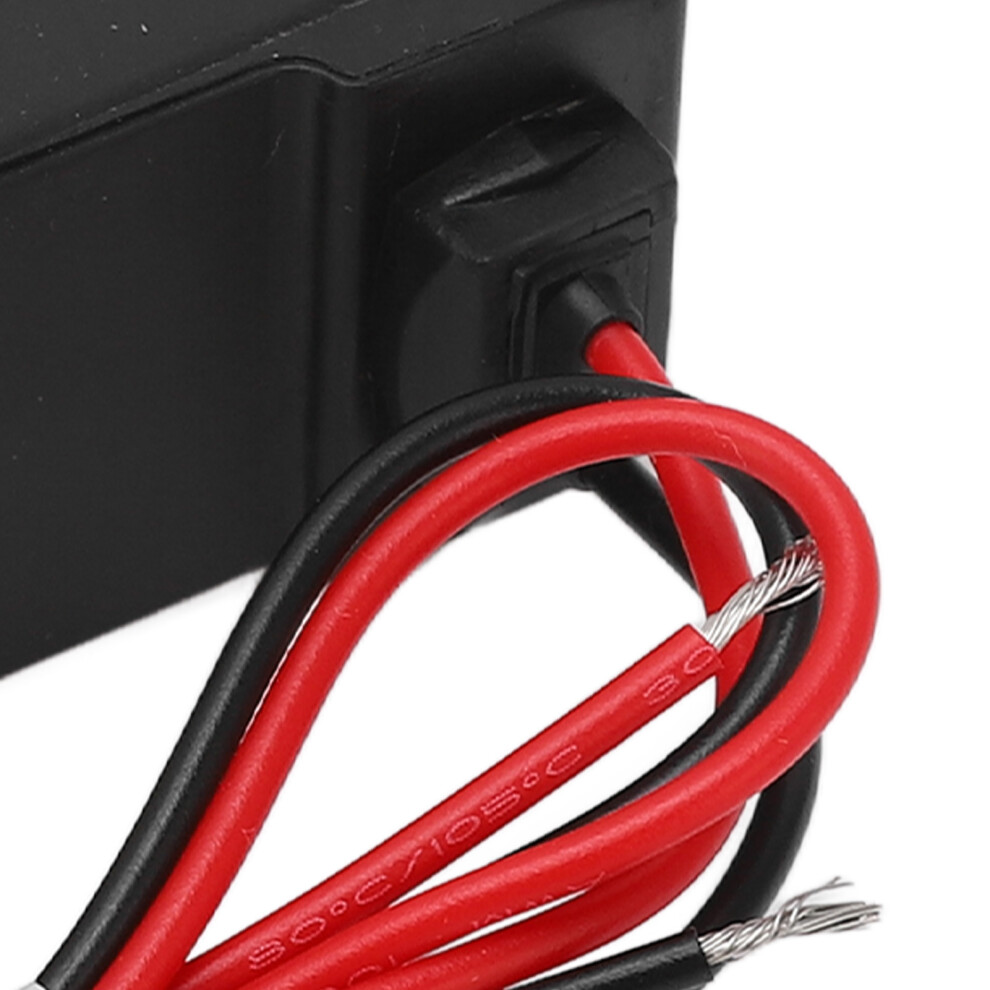

Item Type: Solenoid Valve Switching Mode: Direct Action 2 Position Single Coil Working with Fluids: Air Operating Pressure Range: 0-0.7MPa Ambient and Fluid Temperature: -10-50 (unfrozen) Response Time: Below 20ms (0.5MPa) Maximum Action Frequency: 10Hz Oil Feeding: Not required (if necessary, one type of turbine oil ISOVG32 is used for oil feeding) Manual Operation: Non Locking Push Type Installation Method: Free Impact Resistance: 150m/s² Vibration Resistance: 50m/s² Protection Class: Dustproof Lead Out Method: Direct lead out, DIN socket type Power Consumption: 4W



1 x Solenoid Valve
