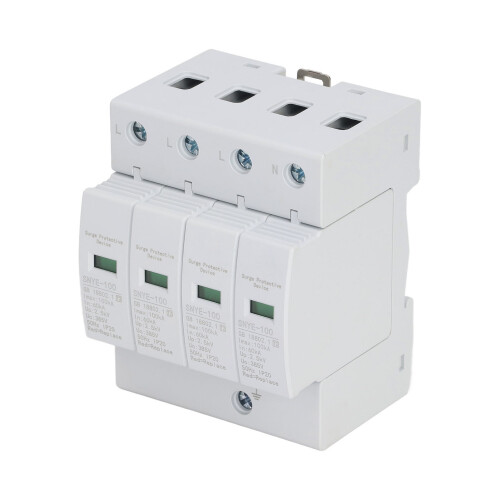

SNYE 100KA Surge Protector 385V 4P for Distribution Box, IP20
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 130,000 Trustpilot reviews and an 'Excellent' rating
£20.72
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Fri 14th - Wed 19th Aug
Sold by: WHWW
Returns: 30 days
180-day payment protection
You might also like
Description & Details
Summary

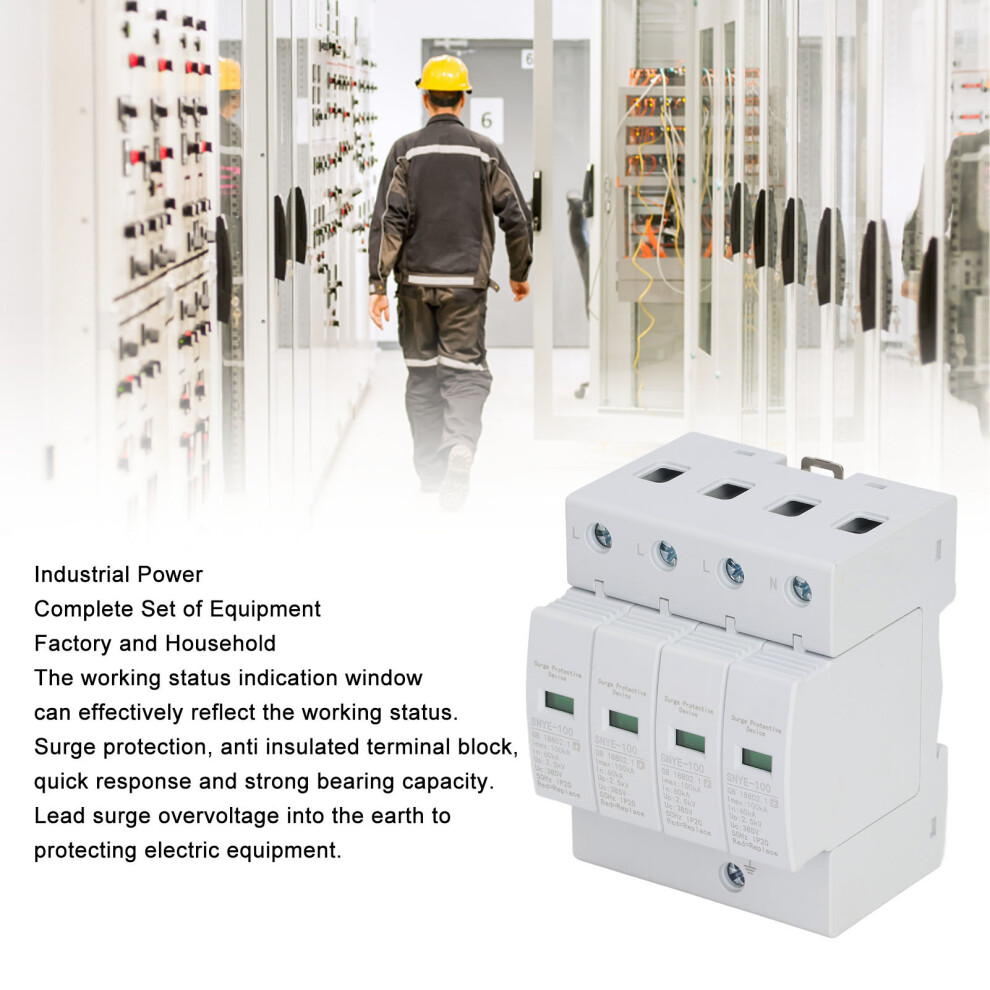

- Surge Protection: When surge over voltage occurs in the system due to lightning stroke or other reasons, the protector will be quickly opened within nanoseconds, and the surge over voltage will be introduced to the ground to protecting the electrical equipment.

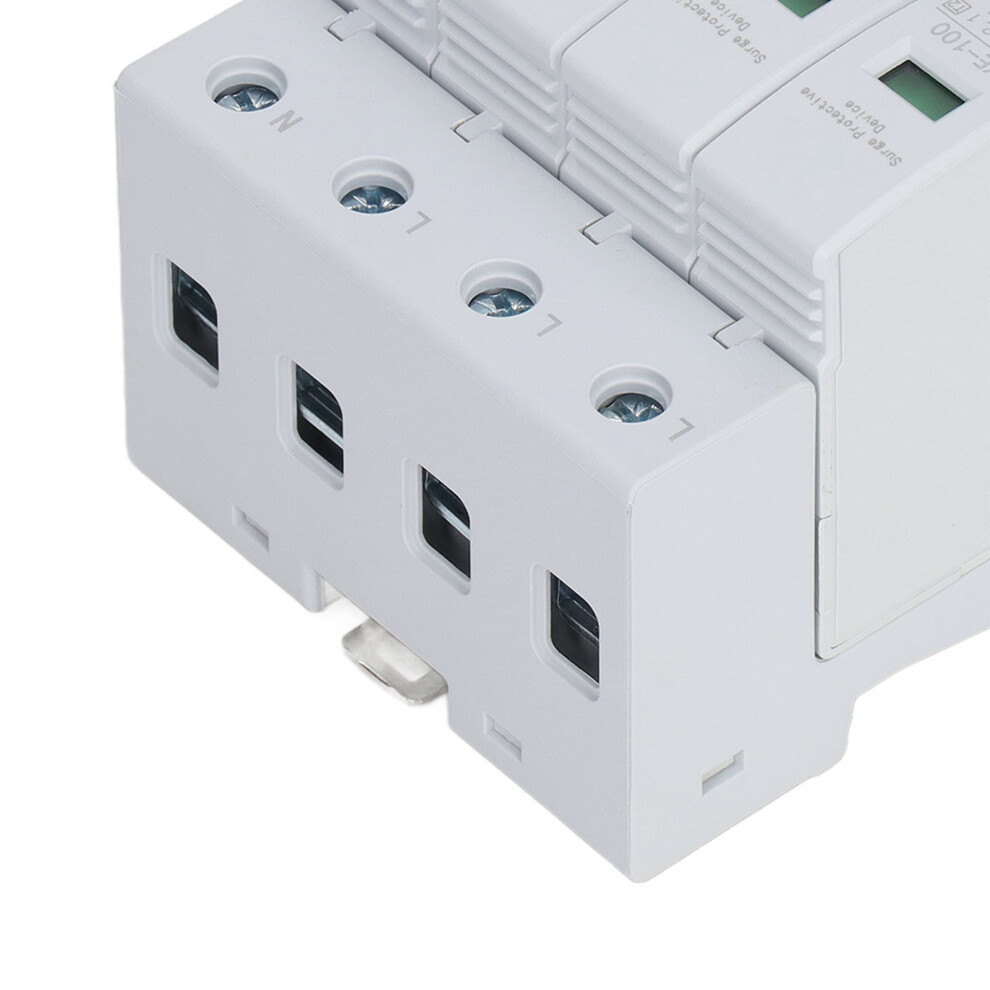

- Reliable Working: With insulated terminals, the surge arrester ensures quick response and good bearing capacity for surge protection.

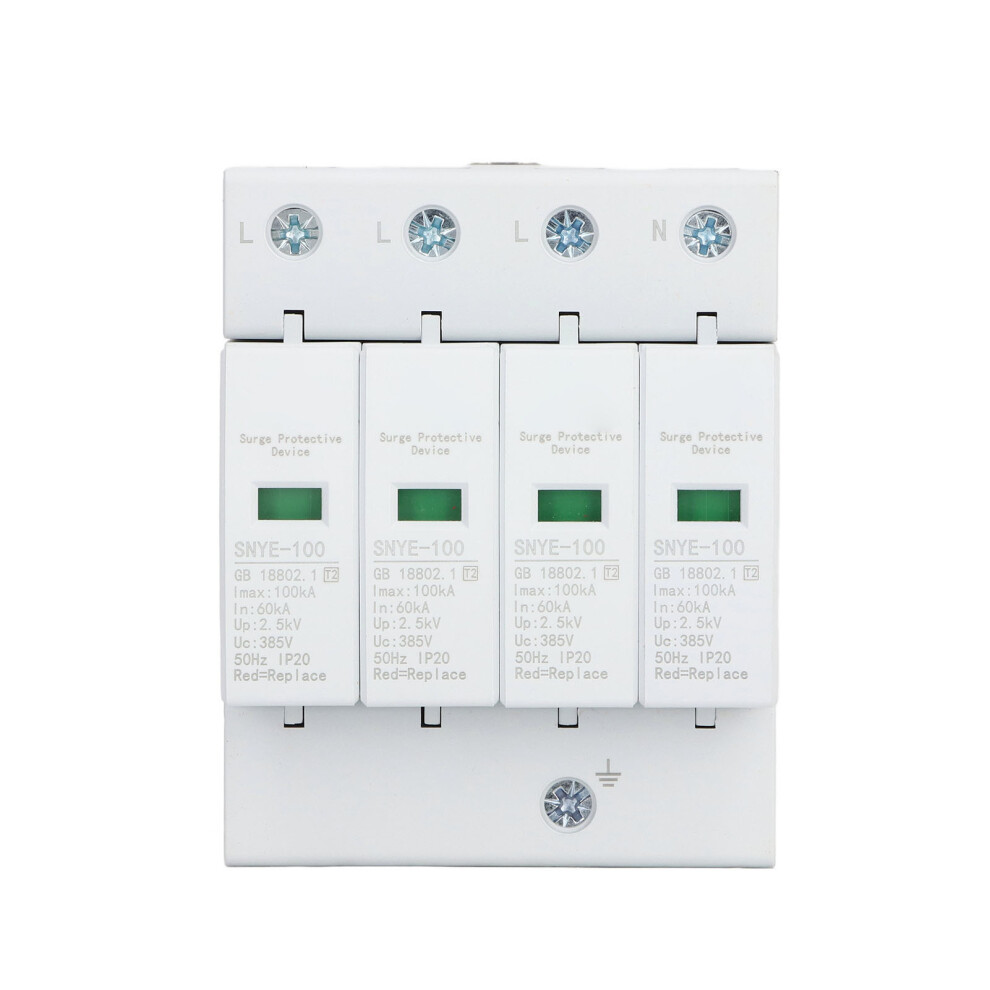

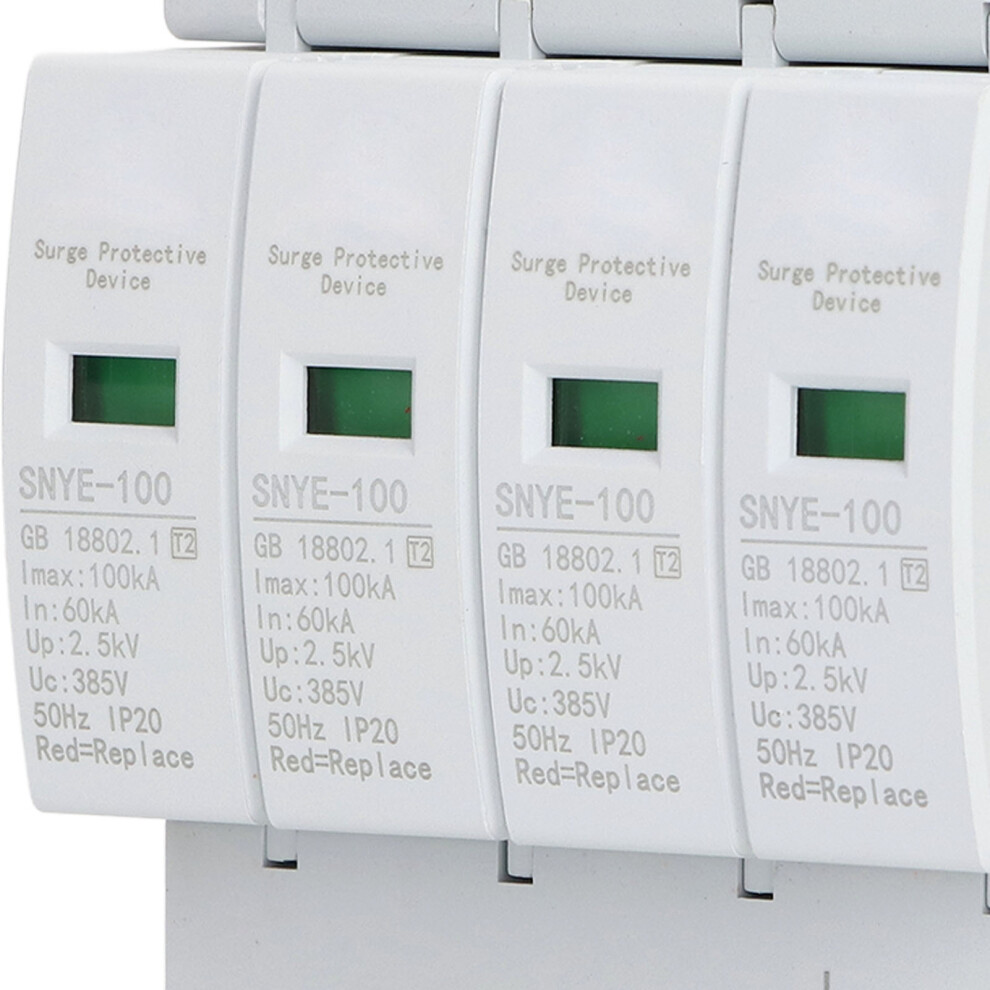

- Clear in Display: Working status indication window, green indicates normal, red indicates fault, clearly showing the working status.
- Premium Material: Adopting premium PC material that is flame retardant and very sturdy with corrosion, also very durable for long use.
- Easy to Install: Comes with light weight and compact size as well, the 35mm electrical guide rail installation is simple to complete.
SNYE 100KA Surge Protector 385V 4P for Distribution Box, IP20 Description

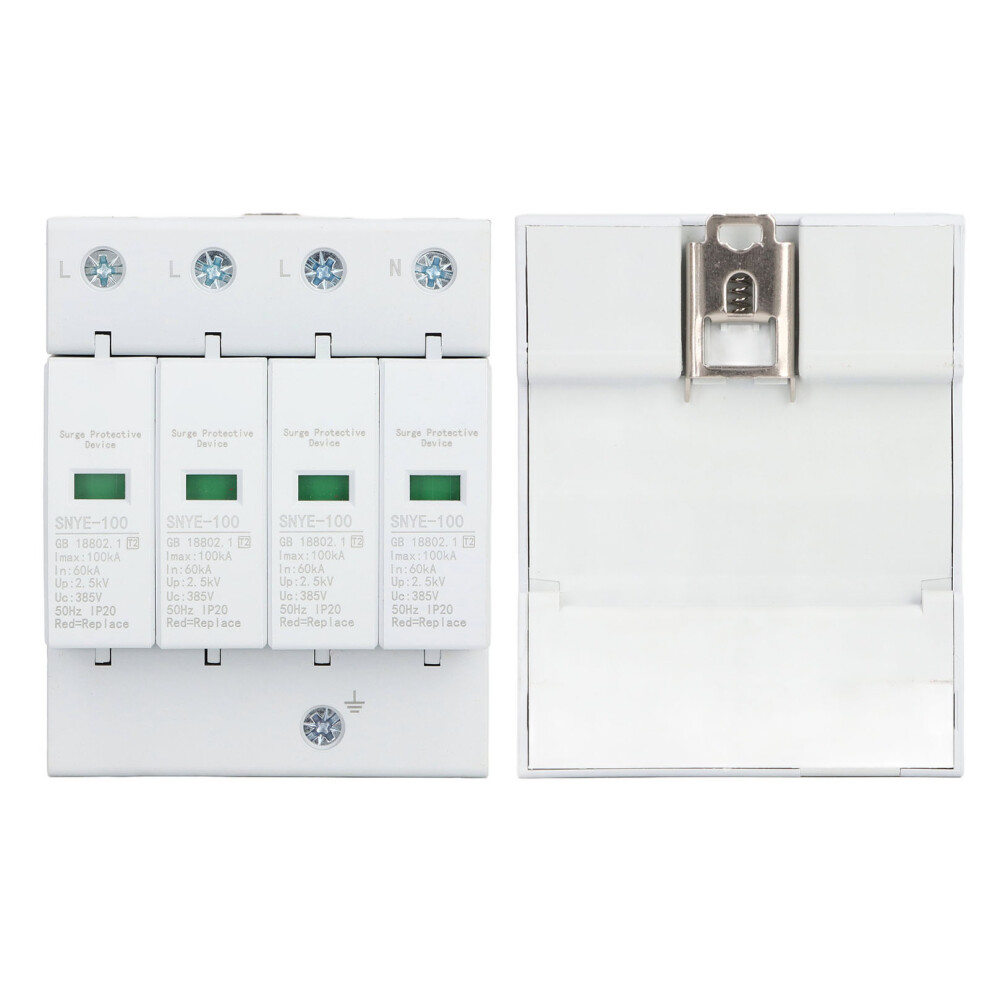

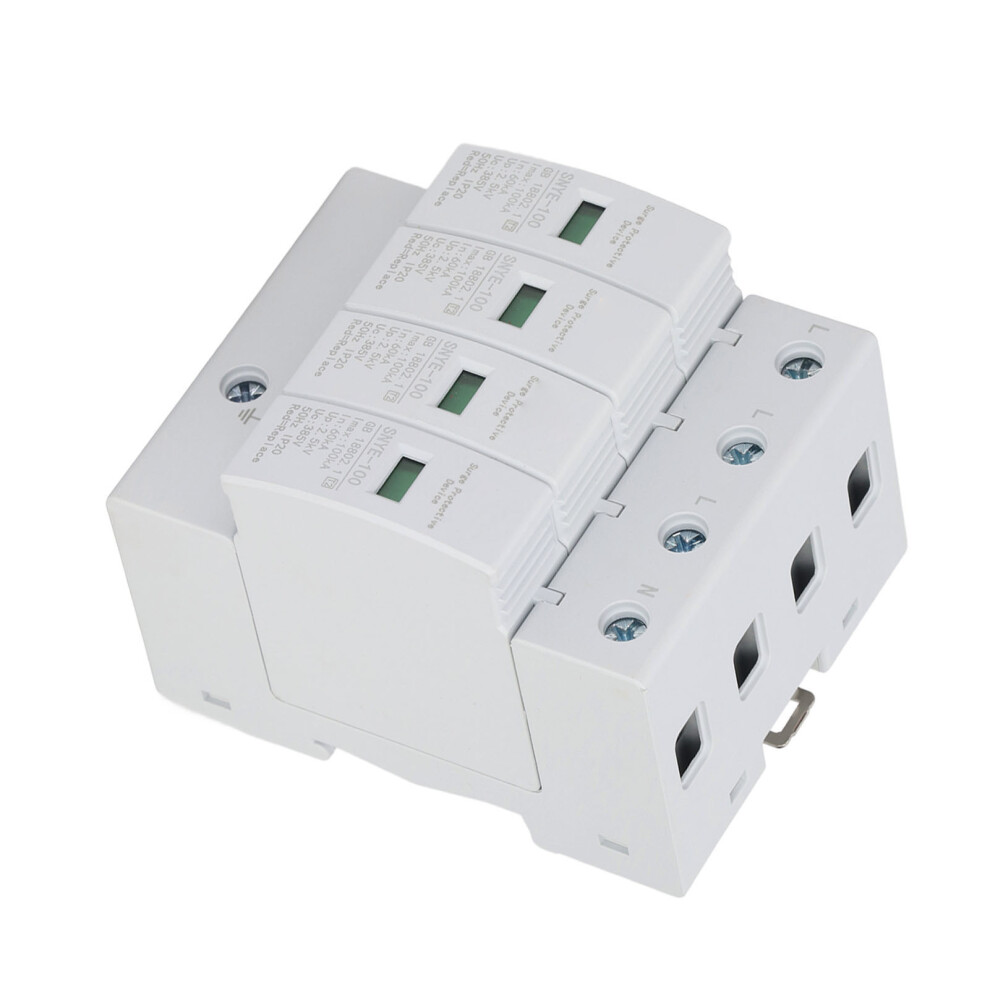

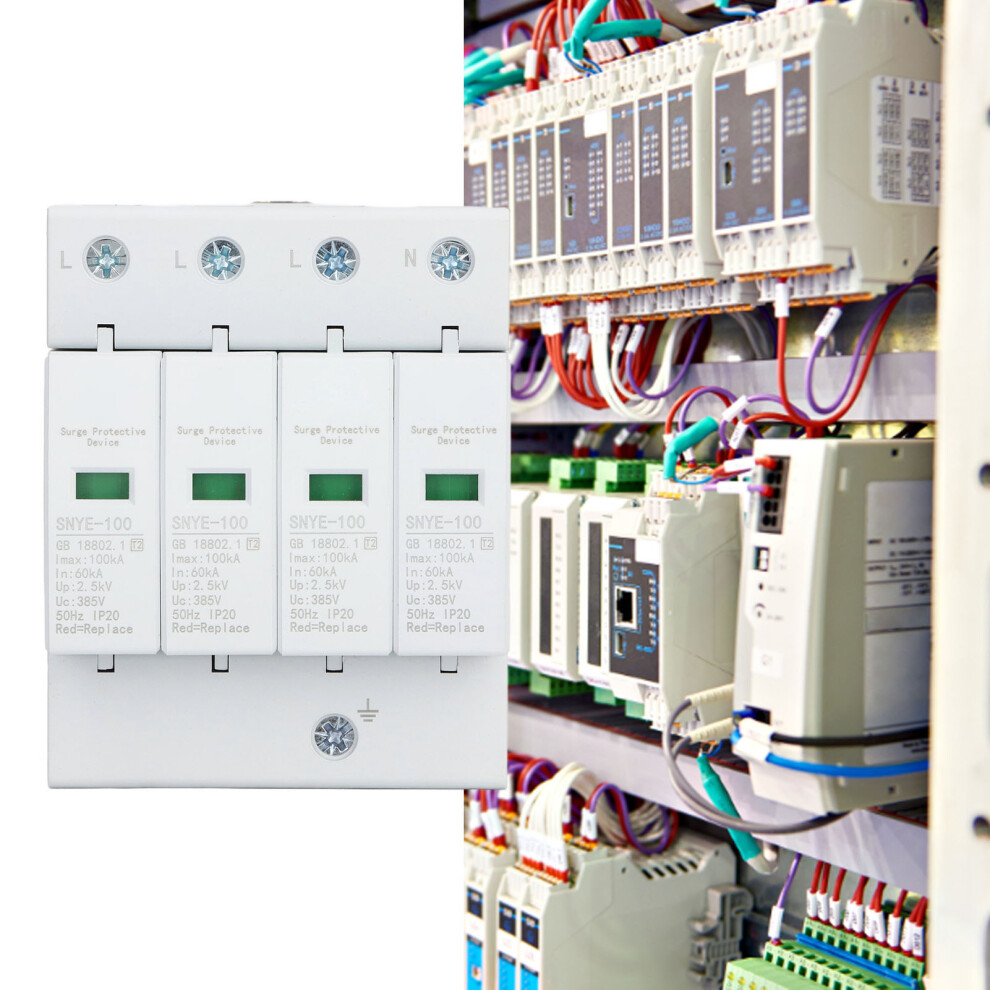

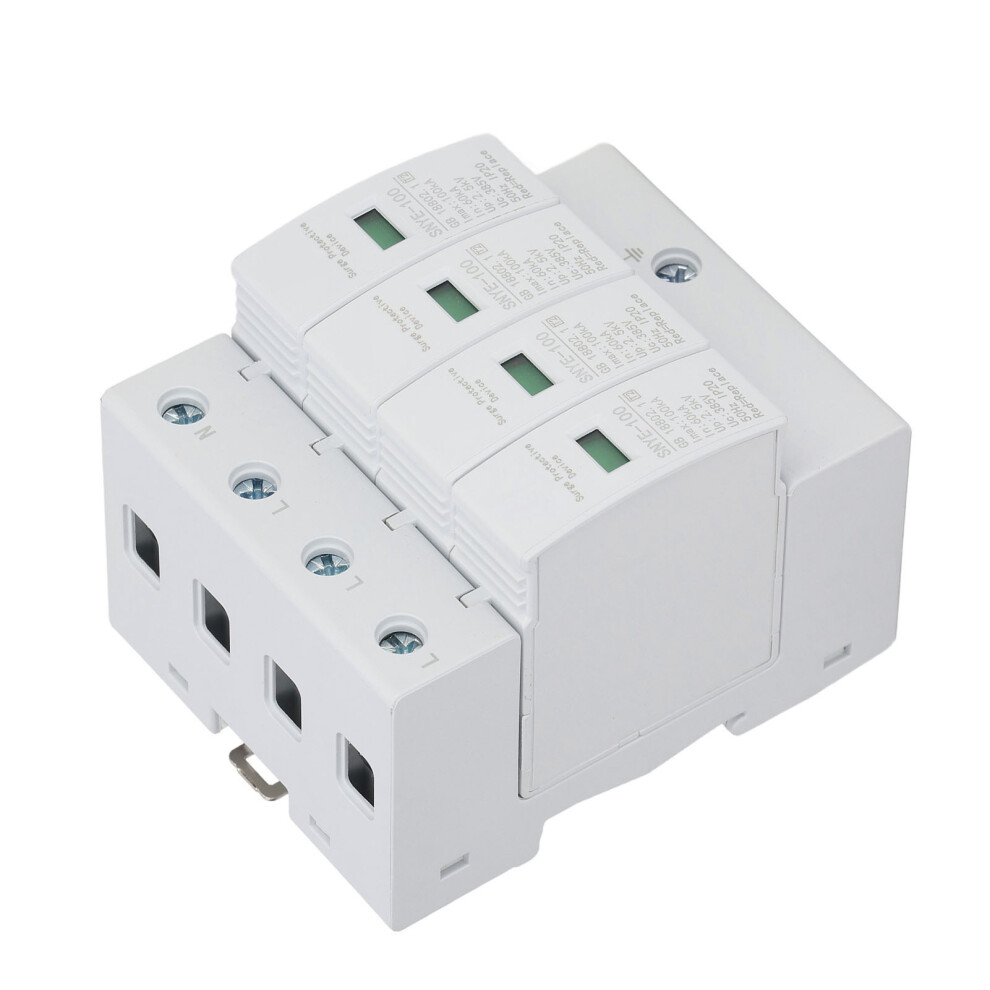

Surge Protective Device 100KA Voltage Protection Arrester Protector for Distribution Box 4P 385V
Item Type: Surge Protective Device
Model: SNYE 100
Colour: White
Material: PC
Maximum Discharge Current Imax: 100KA
Nominal Discharge Current In: 60KA
Protection Level Up: 2.5KV
Protection Grade: IP20
Response Time: 25ns
Maximum Wire Diameter: 35mm² hard wire or stranded wire.
Recommended Connection: 4-25mm²

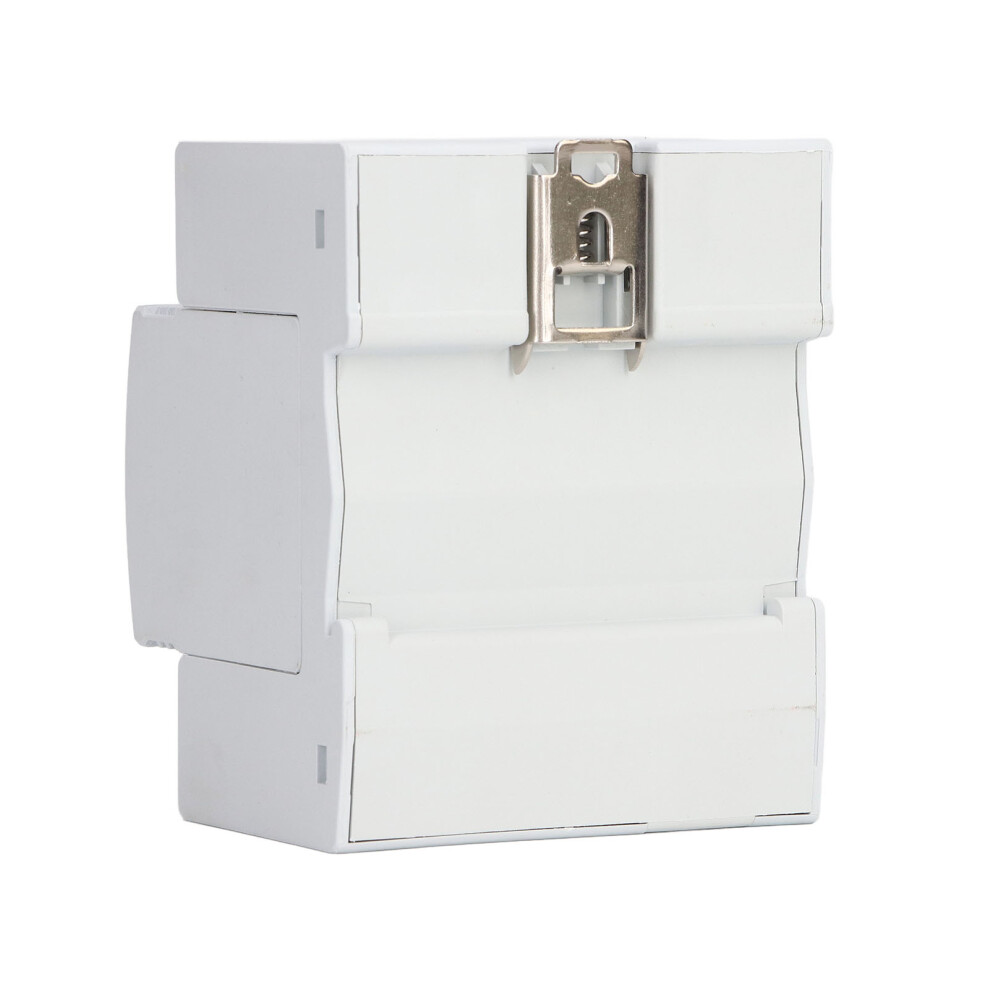

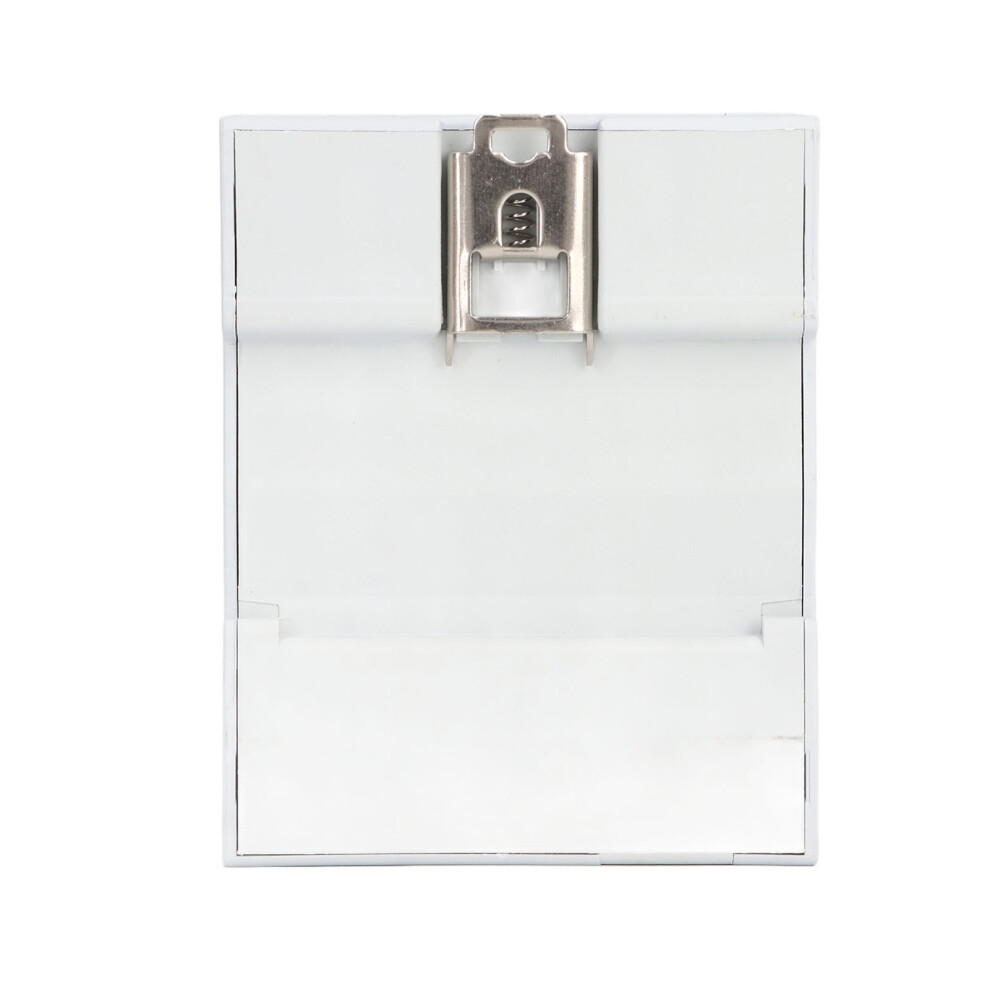

Installation Method: 35mm electrical guide rail installation.
Ambient Temperature: - 40~+80
Main Structure and Working Principle:

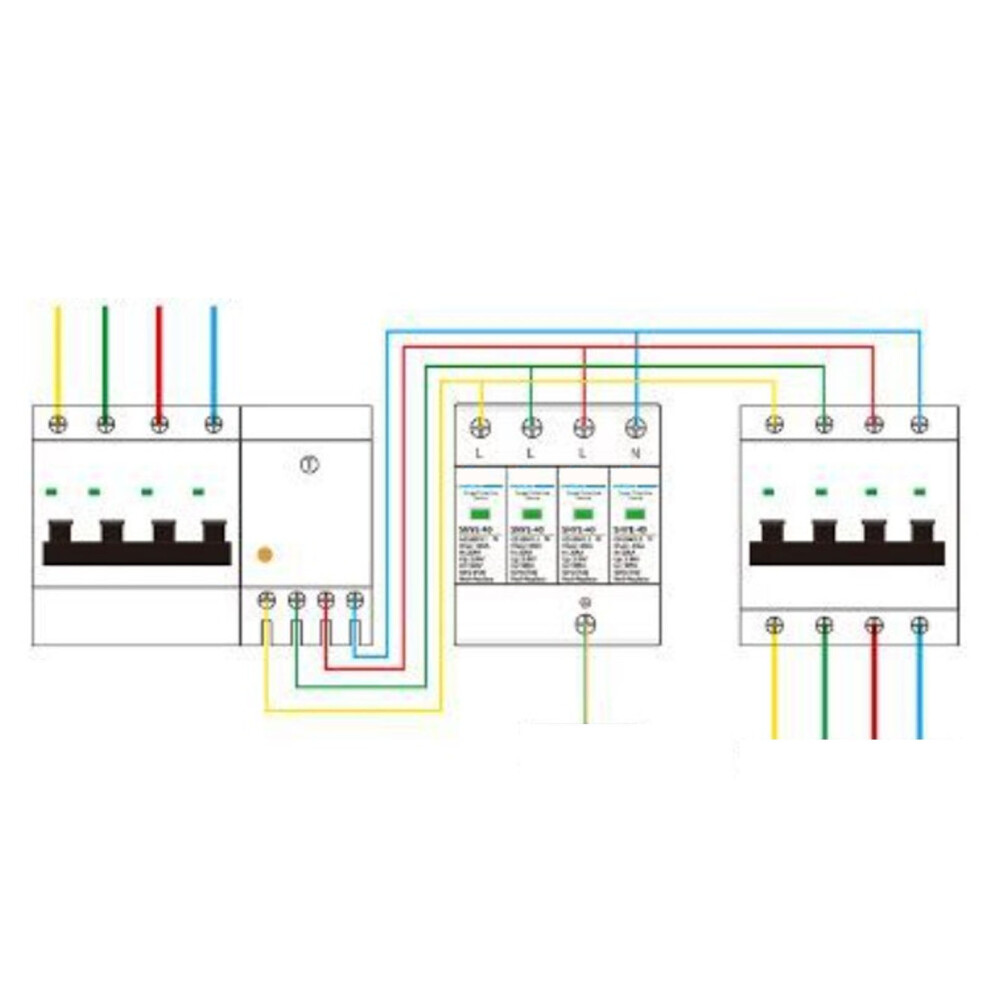

In three phase four wire system, three phase lines and one neutral wire are connected to the ground with protectors. Under normal conditions, the protector is in the state of high resistance. When the power grid suffers from surge over voltage due to lightning stroke or other reasons, the protector will immediately be turned on within nanoseconds, introducing the voltage over voltage to the ground, thus protecting the electrical equipment on the power grid. When the surge voltage passes through the protector and disappears, the protector will change to a high resistance state again, so as not to affect the normal operation of the power grid.
Details
| OPC | PMGWK6P |
|---|---|
| Codes | 9301356294411 (EAN) |
