(Solar Connector Plug, x1) Solar Panel T/Y Branch Cable Connector Diode Fuseholders Splitters & Coupler Fuse Triple

(Solar Connector Plug, x1) Solar Panel T/Y Branch Cable Connector Diode Fuseholders Splitters & Coupler Fuse Triple Description

MC 4 Diode

• Male on end, female other end.
• 15A Max load rating 1000V DC IP66 waterproof

Used to ensure no current flow back into the solar panel array, especially when working on off-grid installations where there could be a risk of power discharged from the battery back into the solar panels/ array. Diodes may also be used where blocking diodes in the solar panels may either be not present or not effective

MC 4 Fuse holder

• Male on end, female other end.
• 1000V DC IP66 waterproof

Use for safety disconnect in the event of a short circuit. Protects solar array from any possible over current, maybe from battery storage system or charge controller fault.

Triple Branch

• Male Male Male Female & Female Female Female Male connectors
• 1000v DC or 30A Max
• IP66 Waterproof

Fuse

• Choice of 15A or 30A power rated fuses
• 1000V DC

T Branch Pair

• Male Male Female & Female Female Male connectors
• 1000V DC or 30A max
• IP66 waterproof

Used for linking multiple solar panels with solar connector output connectors to form larger solar arrays. Solar panels are usually strung together in series to give large output voltage/ lower current and help reduce cable voltage drops.

Y-Branch Pair

• Male Male Female & Female Female Male connectors
• 1000V DC or 30A max
• IP66 waterproof
• 4mm2 solar Cable

Triple Y-Branch Pair

• Male Male Male Female & Female Female Female Male connectors
• 1000V DC or 30A max
• IP66 waterproof
• 4mm2 solar Cable

Used for linking multiple solar panels with output connectors to form larger solar arrays. Solar panels are usually strung together in series to give large output voltage/ lower current and help reduce cable voltage drops.

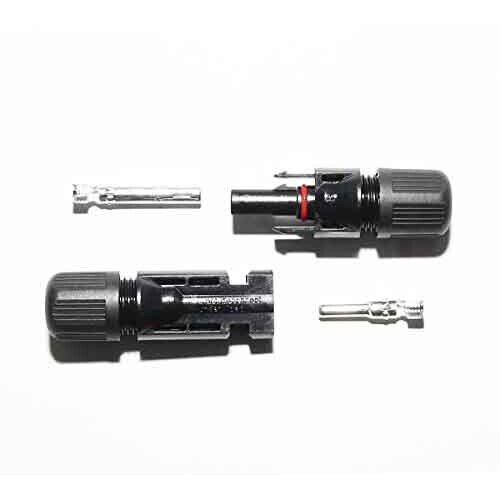

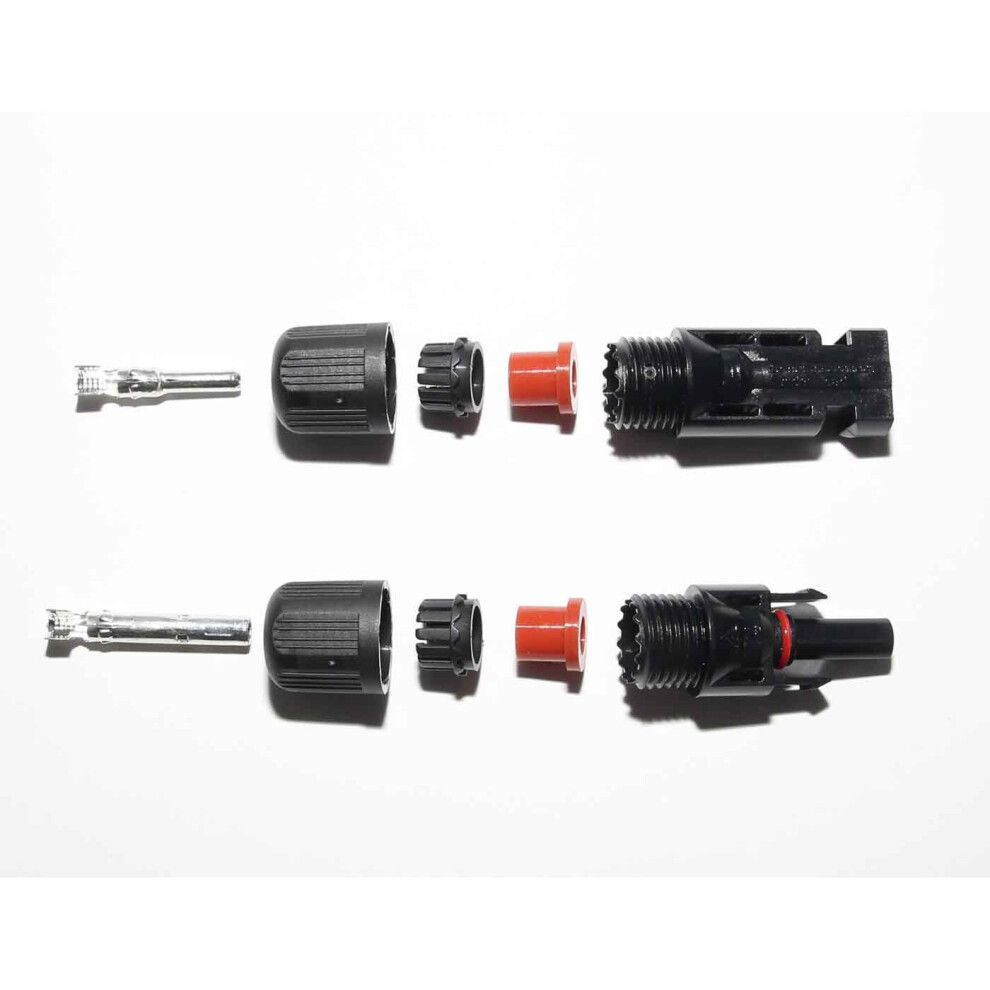

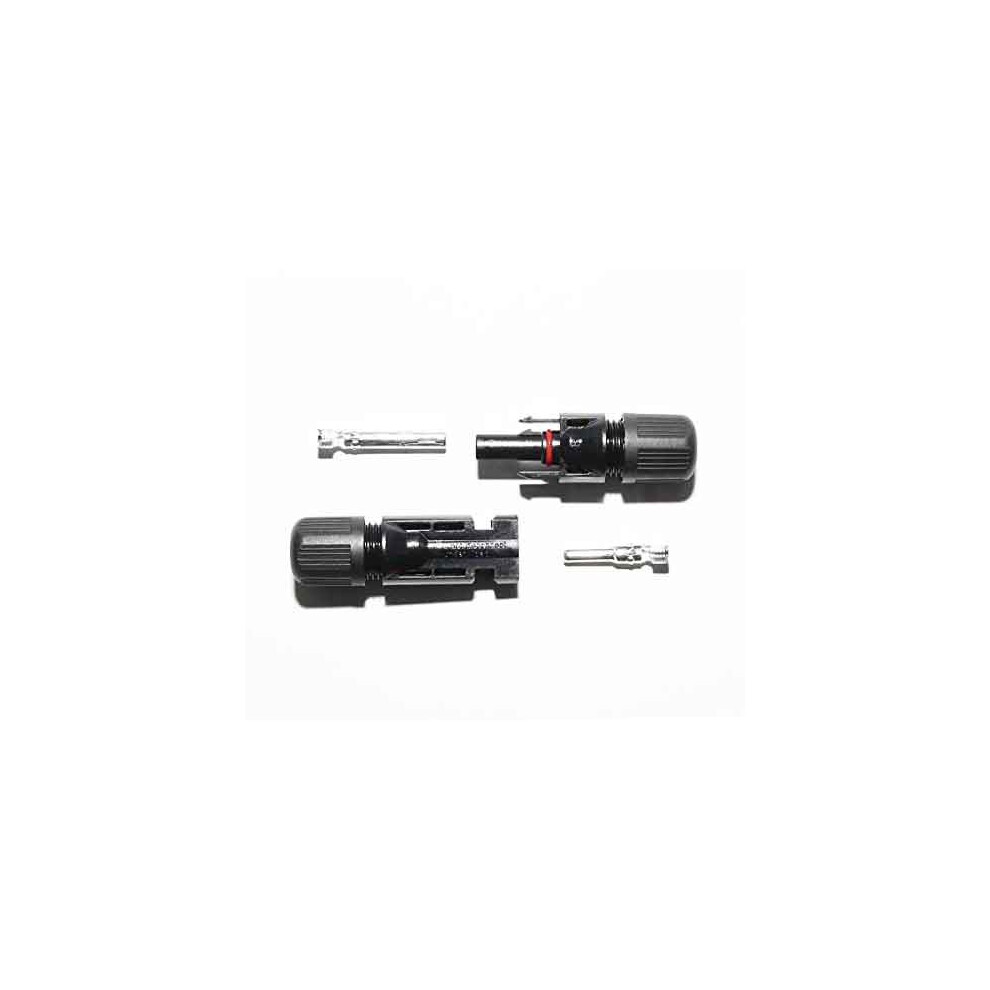

MC 4 Solar Connectors

• Male & Female
• IP66 waterproof

Used for linking multiple solar panels
