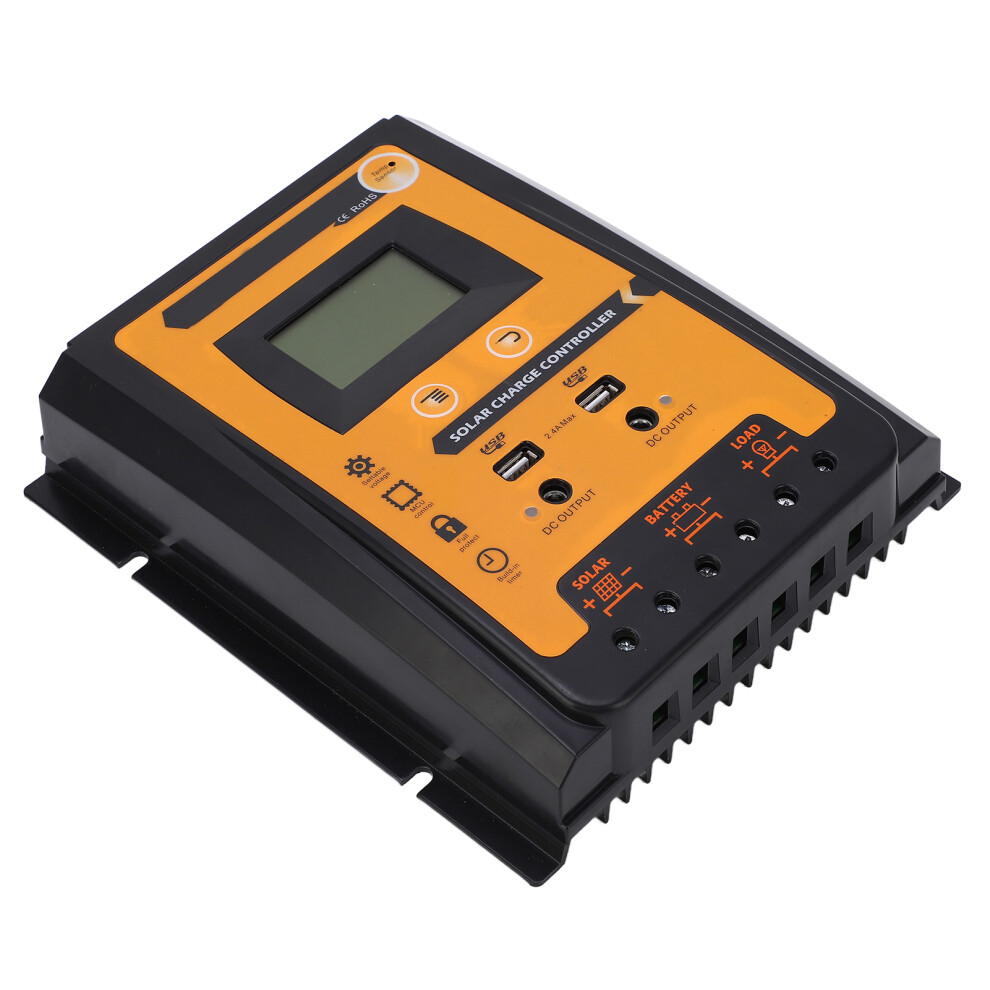

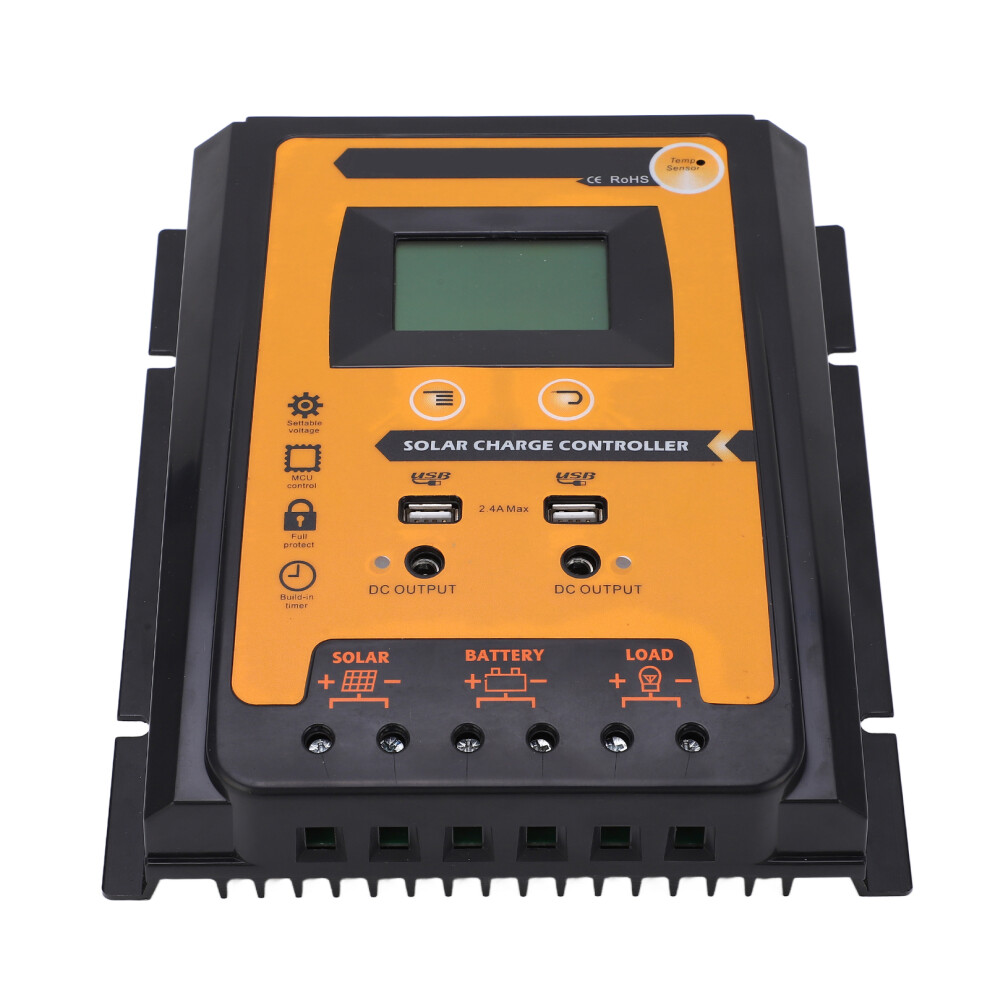

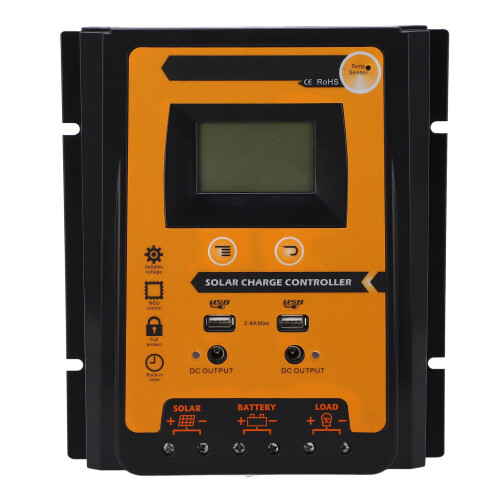

Solar Controller 70A LCD Dual USB 12V 24V Charge Regulator

Solar Controller 70A LCD Dual USB 12V 24V Charge Regulator Description

1、Automatic Function: This solar panel regulator automatically identify 12V 24V system voltage, automatically correct charge and discharge voltage, improve battery life 2、MOSFET Series Control: The solar panel, battery, solar charge controller positive pole are connected together, using negative MOSFET series to control circuit 3、Multi Function: This regulator has load control mode selectable function, resettable timer function for street lights at night, discharge capacity control, on time discharge counter, accurate temperature compensation 4、Data Storage: The solar panel controller can record the total operating time of the system, the error timer during operation, the number of the battery is fully charged, without worrying about data loss 5、Multiple Protection: The solar panel battery regulator has overvoltage, short circuit, overload, overcharge, overdischarge and reverse connection protection, the usage is safe and reliable
Item Type: Solar Panel Controller
Material: Aluminum alloy, ABS
Self Consumption: 10MA
Maximum Charging Current: 70A
Maximum Discharge Current: 70A
Overload Protection: Yes, restart once after 2 minutes
Working Environment Temperature: -20 to +55
Protection Class: IP32
USB Output: 5V 2.1A
DC Output: 12V, 24V
1 x
Solar Panel Controller
1 x Manual
