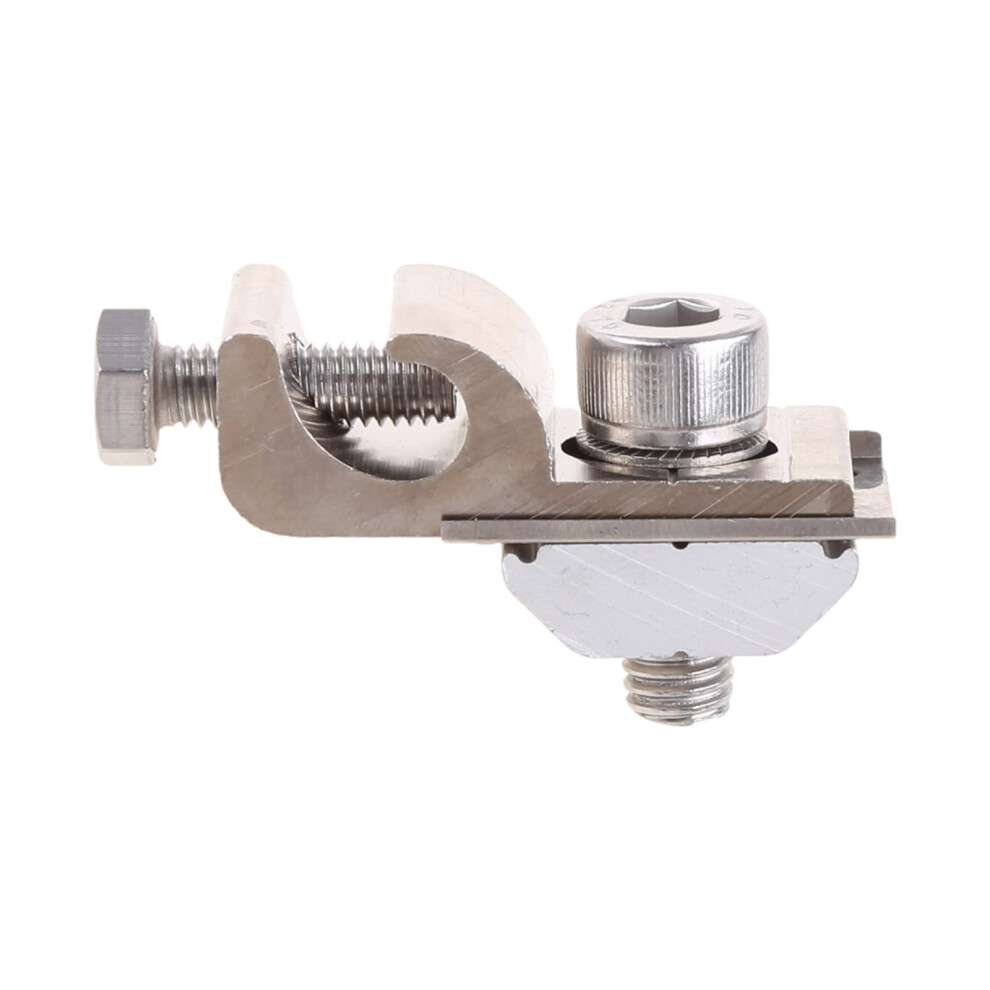

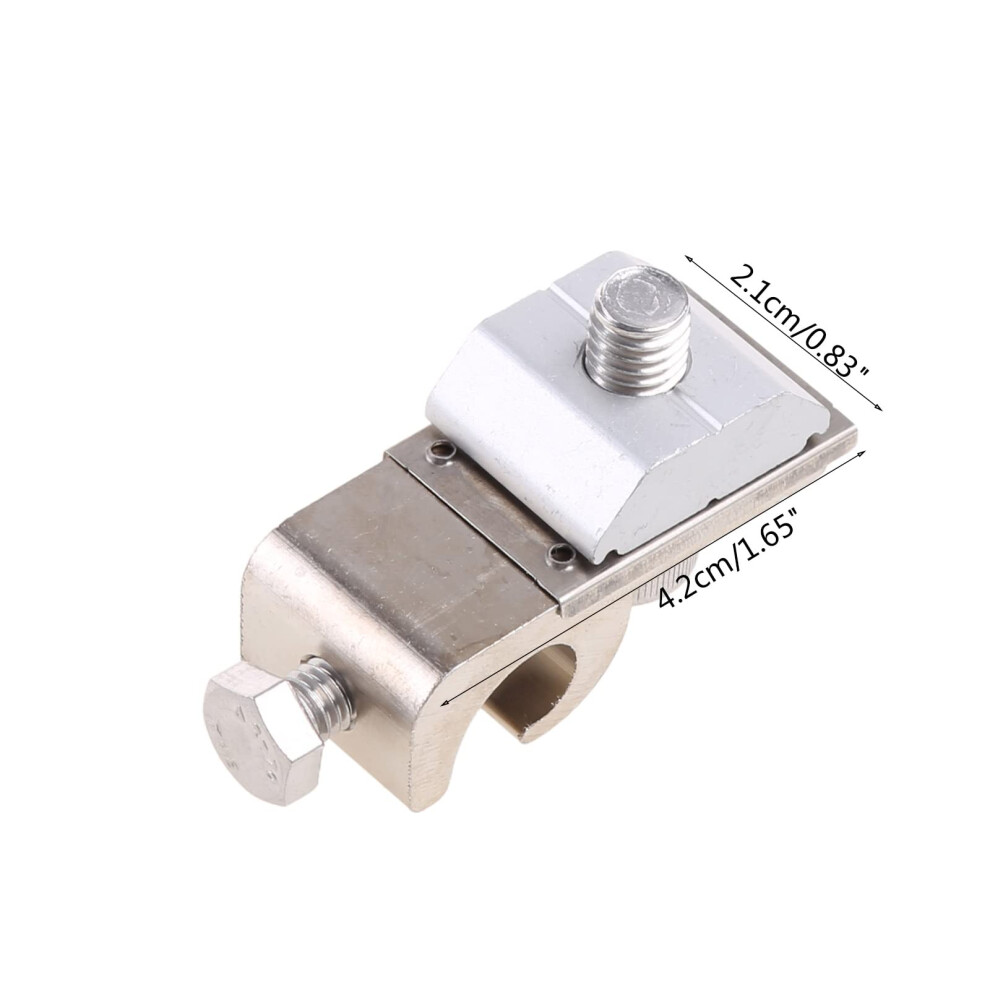

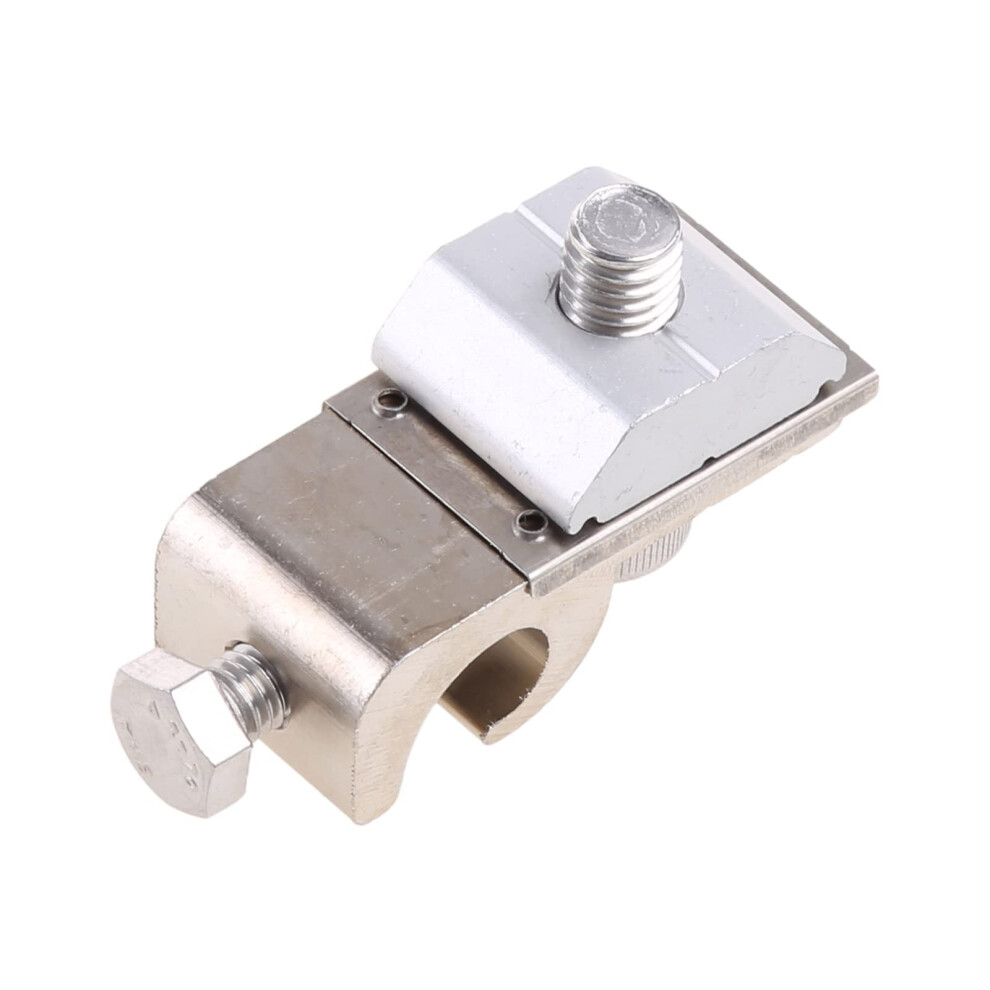

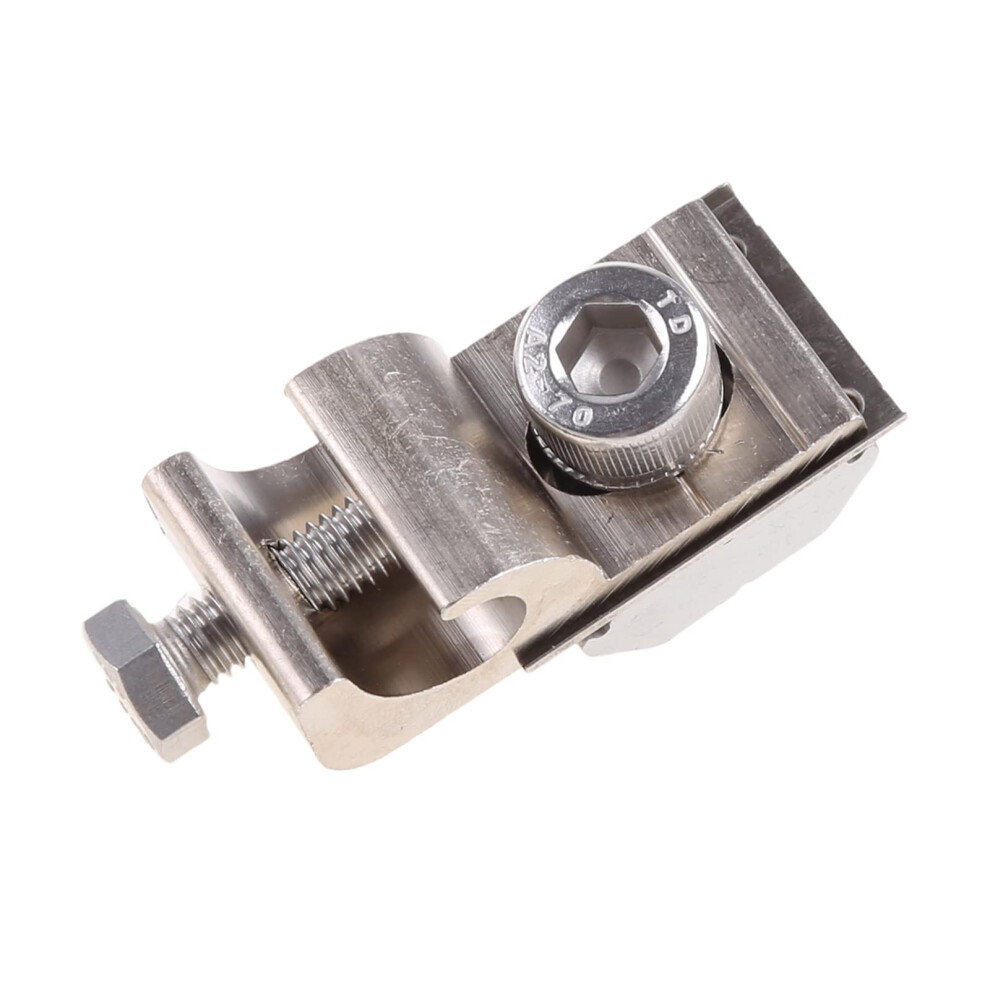

Solar Grounding Clip and Lug for PV Panel Frame Bonding, Secure Electrical Connection, Durable Build

Solar Grounding Clip and Lug for PV Panel Frame Bonding, Secure Electrical Connection, Durable Build Description

Grounding clip for solar modules that bonds module frames to mounting structures and provides a reliable electrical path to ground Key benefits Establishes electrical continuity between solar module frames and mounting structures, reducing the risk of stray voltage on the array. Simplifies installation by combining mechanical bonding and grounding in a single component, saving time on site. Compact design fits within the module frame and rail interface without adding bulk, supporting neat, lowprofile installations. Durable conductive construction for consistent lowresistance contact over time. What it does Bonds the metal frame of a solar module to the mounting structure while creating an electrical path to ground. Maintains a conductive connection across the mounting interface to support grounding requirements for PV arrays. Compatibility and fit Designed for use with framed solar modules and common metal mounting rails and structures. Compact form factor intended to fit between module frame and rail profiles used in residential and commercial PV installations. Suitable for retrofit and install applications where direct bonding between module frame and structure is required. Materials and performance Made from conductive materials that deliver a stable lowresistance connection between module and structure. Engineered for reliable electrical contact under typical outdoor installation conditions. Intended for use with standard fasteners and mounting hardware used in PV racking systems. Typical applications Residential rooftop PV arrays: bond each module frame to the roofmounted rail system to provide a continuous grounding path across the array. Commercial or industrial rooftop systems: use as part of a systematic grounding strategy during installs or system upgrades. Groundmounted arrays and solar carports: connect module frames to support structures to maintain consistent electrical continuity across large fields. Why you need it Provides a simple, integrated way to bond module frames to the structure while creating a continuous electrical path to ground. Reduces the need for separate grounding clamps or additional wiring steps at the moduletorail interface. Helps achieve a tidy installation by combining bonding and grounding functions in one component. Installation notes Install as part of the normal moduletorail fastening process, following site wiring and grounding plans. Verify fit with the specific module frame and rail profile prior to installation to confirm compatibility. This grounding clip is intended to be used where bonding of solar module frames to mounting structures and provision of an electrical path to ground are required.
