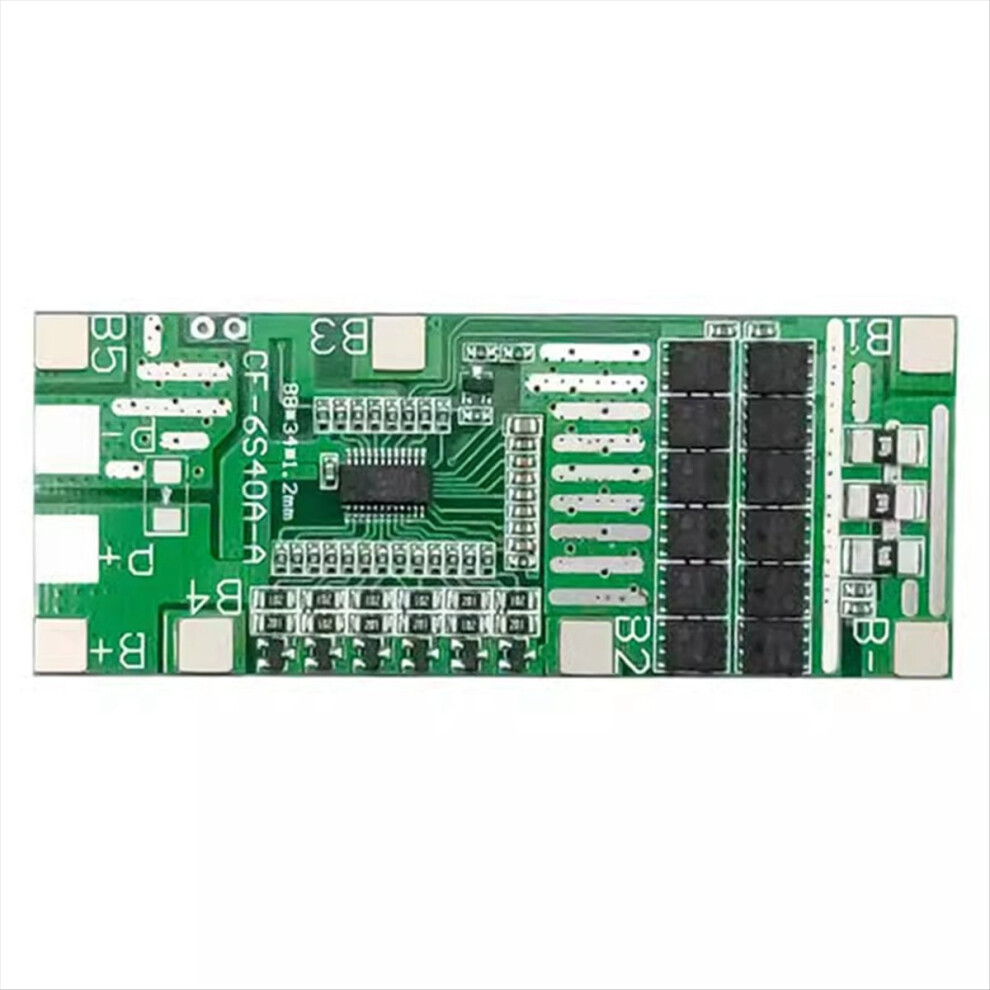

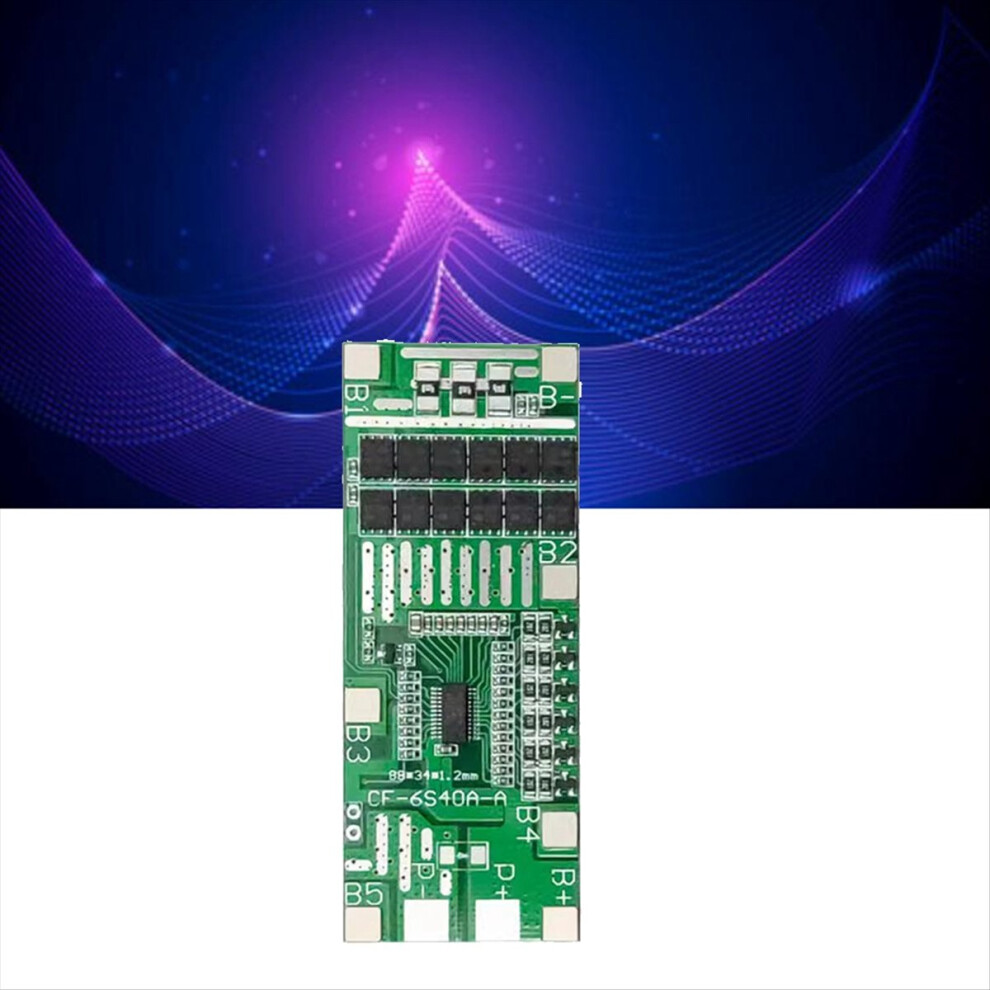

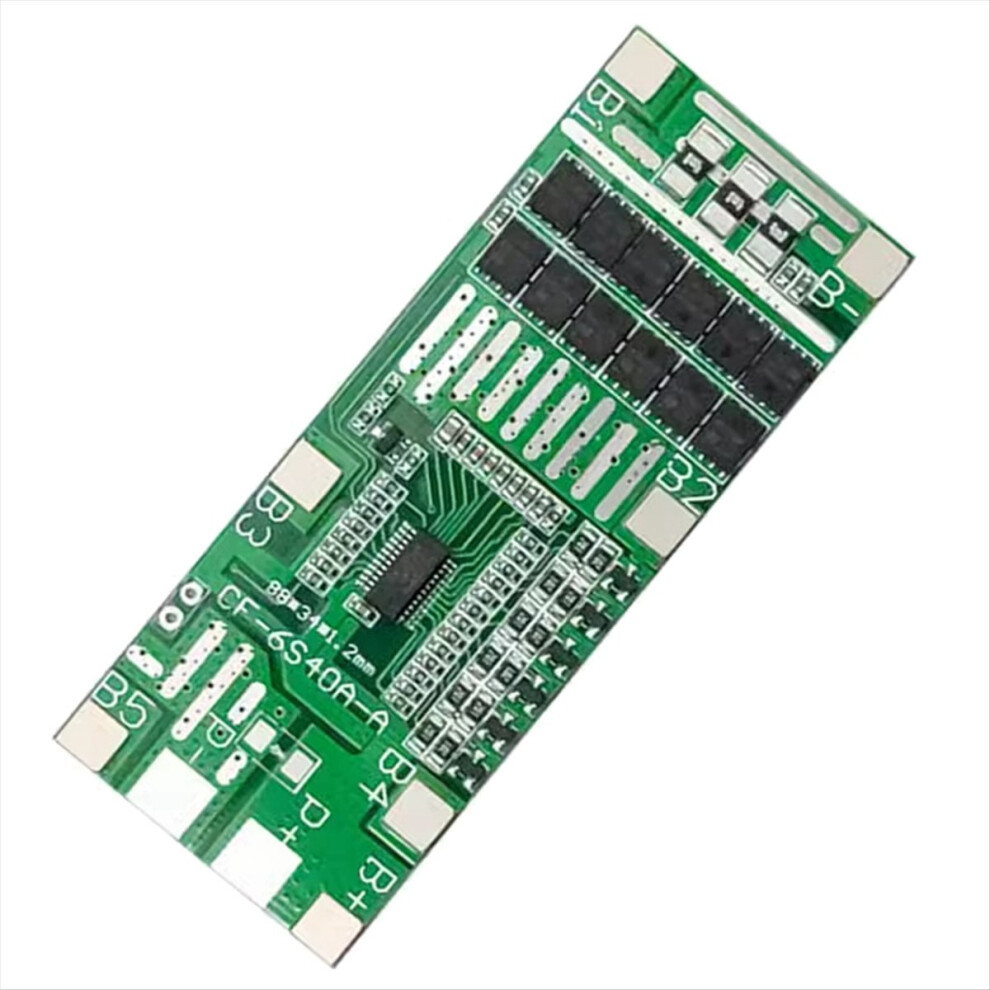

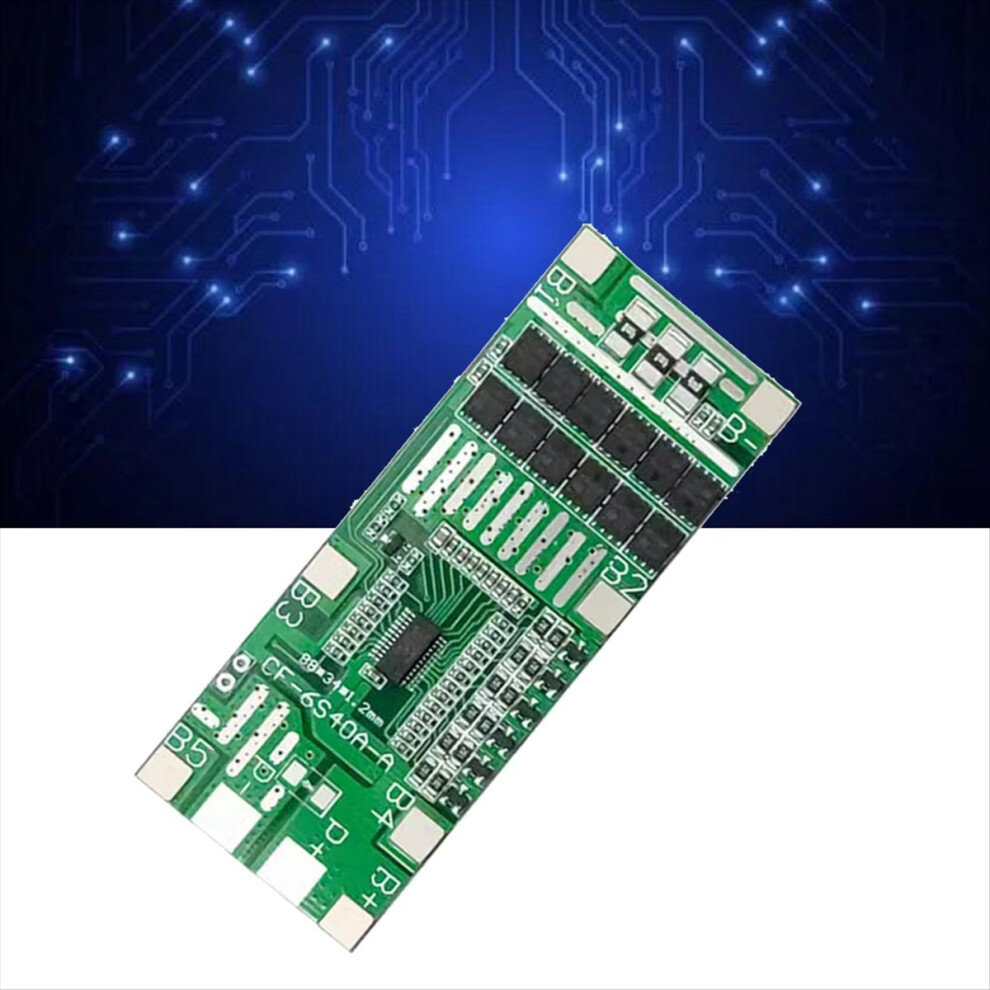

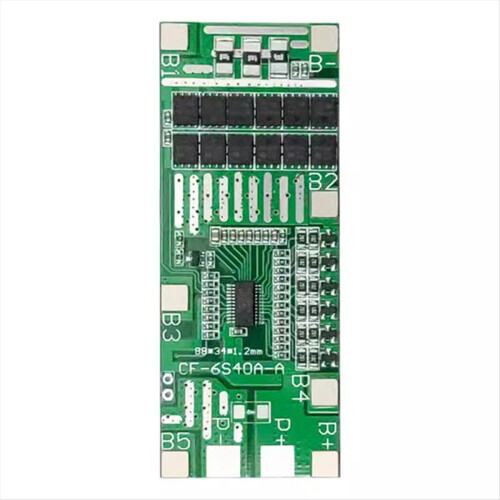

Solar Lighting Li-Ion Battery Protection Board Integrated Module 6 Series 24V 40A with Equalizer Power Tools

Solar Lighting Li-Ion Battery Protection Board Integrated Module 6 Series 24V 40A with Equalizer Power Tools Description

6 Strings Of 24V40A With Equalization,
Integrated Chip,
More Stable Performance,
Ultra-Thin High-Power Mos Devices
Easy To Carry And Simple To Store

Maximum Discharge Current: 40A
Instantaneous Discharge Current: 70A
Charging Voltage: 25.5V
Maximum Charging Current: 40A
Overcharge Detection Voltage: 4.250.025V
Overcharge Protection Delay: 1.00.5S
Overcharge Release Voltage: 4.150.05V
Cell Balance Detection Voltage: 4.1250.025V
Cell Balance Release Voltage: 4.1250.05V
Cell Balance Current: 415V
Over-Discharge Detection Voltage: 2.70.1V
Over-Discharge Detection Delay: 1.00.5s
Over-Discharge Release Voltage: 3.00.1V
Overcurrent Detection Voltage: 100mV
Overcurrent Detection Delay: 10.3s
Overcurrent Protection Current: 755A
Overcurrent Protection Release Condition: Disconnect The Load
Short Circuit Protection Conditions: External Load Short Circuit
Short Circuit Detection Delay: 250uS
Short-Circuit Protection Release Condition: Disconnect The Negative Switch
Main Circuit Conduction Internal Resistance: 20mΩ
Working Current: 40uA
Sleep Current (When The Battery Is Over-Discharged): 10uA
Temperature Rangetemperature Range-30--80
Colour:As Shown
Material:PCB
Note:
Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Not Affect The Use

Package Contents:
1 x Lithium Battery Protection Board Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
