Solar Panel Connector Male Female MC4 Quick Plug Inline Design AntiReverse for PV Systems

Solar Panel Connector Male Female MC4 Quick Plug Inline Design AntiReverse for PV Systems Description

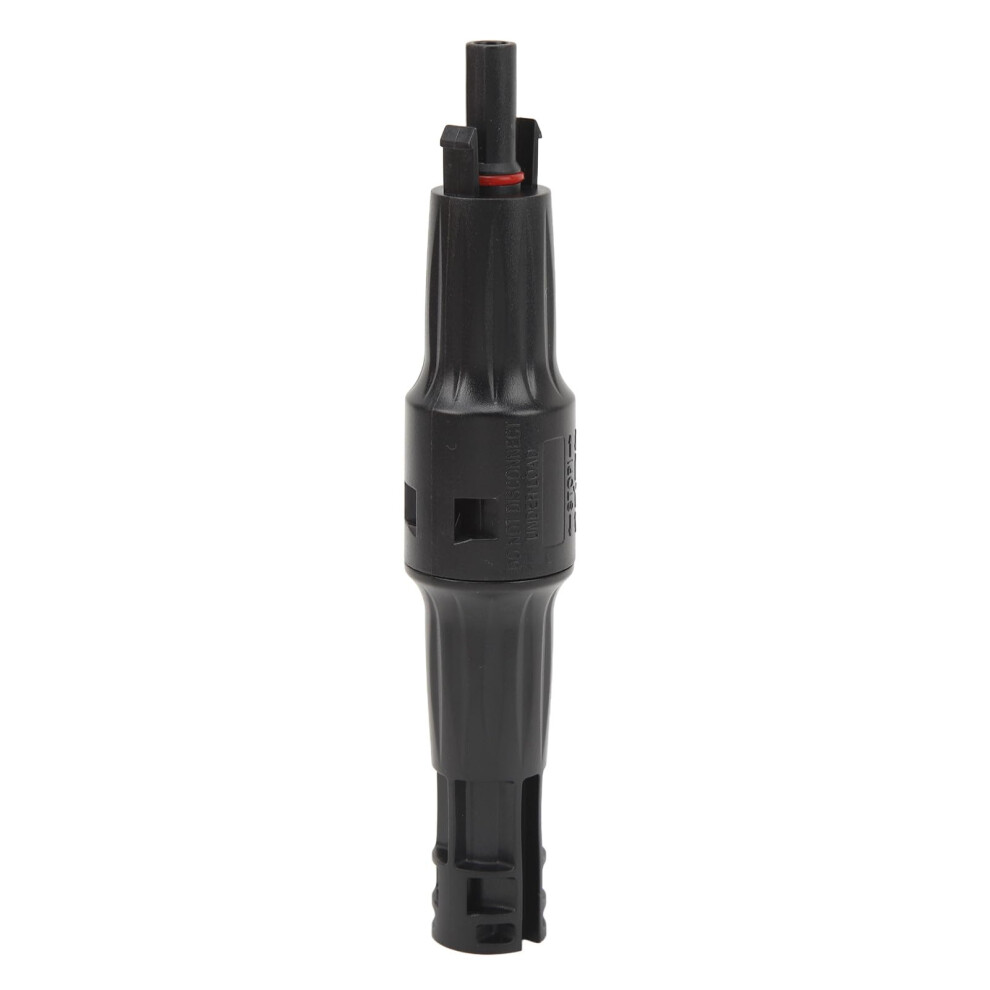

Male Female Solar Panel Cable Connector A compact inline male and female solar cable connector designed for straightforward installation and reliable power transfer in solar energy systems. The antireverse design reduces the risk of incorrect connections, while a robust contact system supports strong current carrying capacity for steady performance. Key benefits Prevents incorrect hookups: Antireverse inline design makes it easy to connect panels correctly, reducing installation errors. Quick installation: Plugin style connection allows fast assembly and disassembly, saving time during setup and maintenance. Stable power transfer: Solid conductive contacts deliver current capacity and low contact resistance for efficient energy flow. Secure and reliable fit: Precise male and female mating ensures a tight connection that resists vibration and accidental separation. Compact inline form factor: Small footprint fits tight routing paths and keeps cable runs neat. What it does and why you need it Provides a dedicated inline connection point between solar panels and system wiring, simplifying wiring runs and module replacement. Minimizes energy loss at the junction by maintaining low resistance contact, supporting overall system efficiency. Reduces installation mistakes through an antireverse mating feature that helps ensure correct polarity every time. Key attributes Function: Inline male to female cable connector for solar panel systems with antireverse mating. Compatibility: Designed for use with common solar PV cable assemblies, panel junctions, charge controllers, inverters, and battery inputs in residential and small commercial systems. Size and form: Compact inline connector that integrates easily into cable runs and junction boxes without adding bulk. Construction and performance: Durable housing with reliable conductive contacts engineered for repeated connect and disconnect cycles and strong current carrying capacity. Installation: Intended for quick plugin installation to streamline assembly and maintenance. Practical use scenarios Rooftop solar array installation: Use inline connectors to link panel strings to combiner boxes and to create serviceable junction points for maintenance and troubleshooting. Mobile and offgrid systems: Ideal for RV, marine, and portable solar setups where frequent assembly and secure, compact connections are required. Small commercial or remote power: Deploy inline connectors between panels, charge controllers, and battery banks to simplify wiring and enable quick component swaps. Installation tips Verify correct polarity before connecting. Ensure connectors are fully mated until seated to achieve lowresistance contact. Use appropriate cable sizes and routing practices consistent with system design to maintain performance. This inline male female solar panel cable connector provides a practical, easy to install solution for reliable connections in solar energy systems, combining antireverse functionality with strong current carrying capability.
