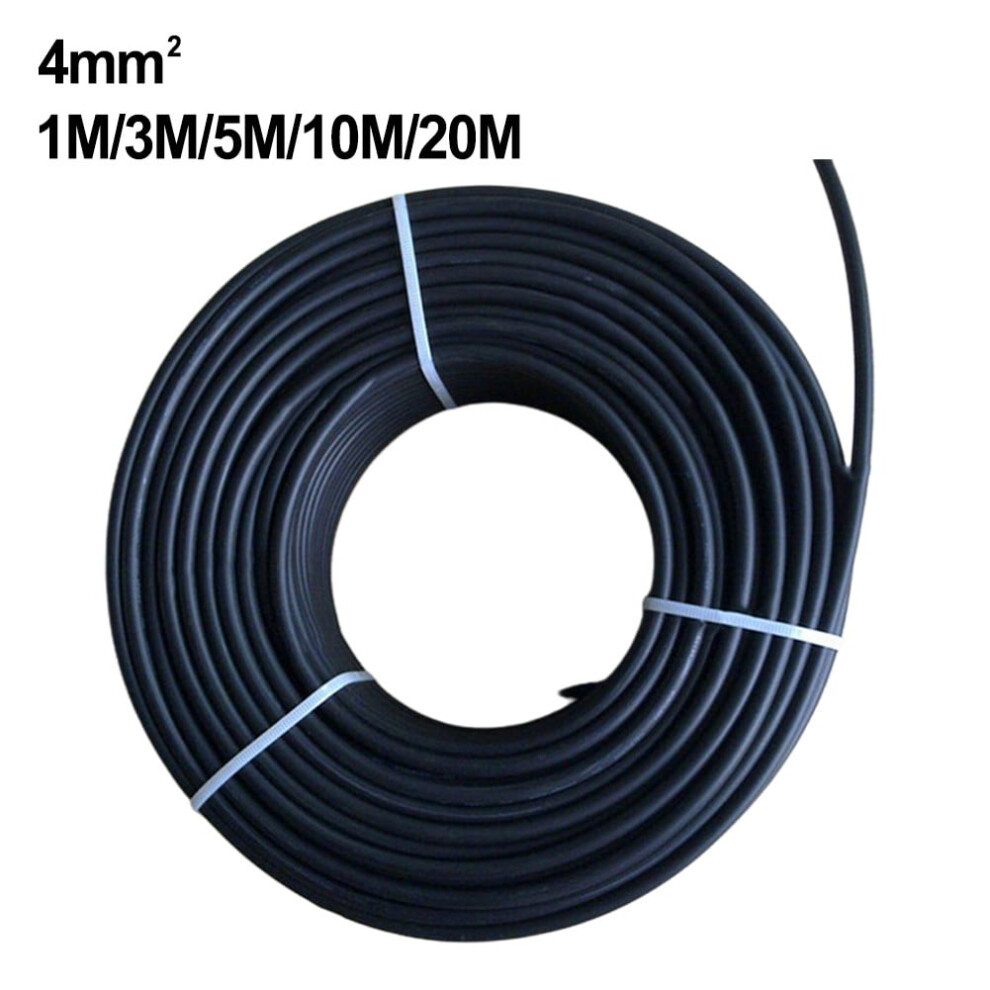

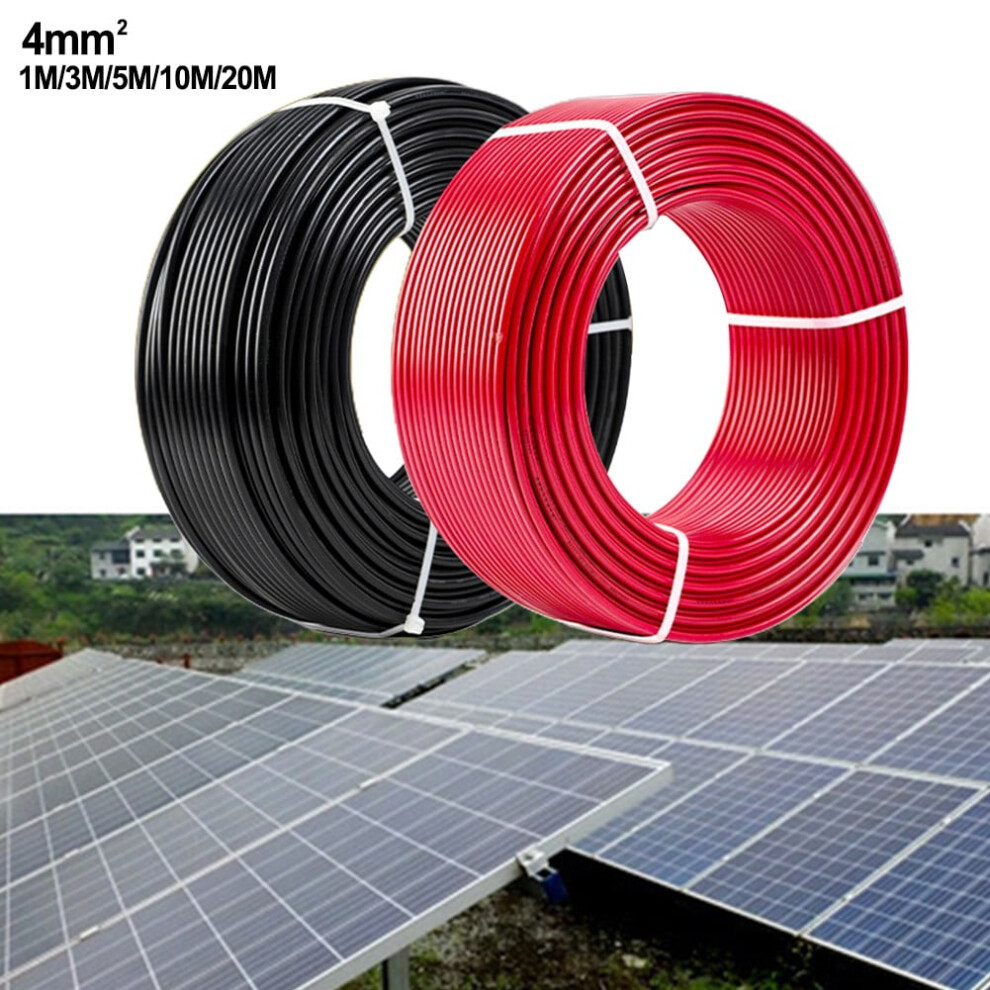

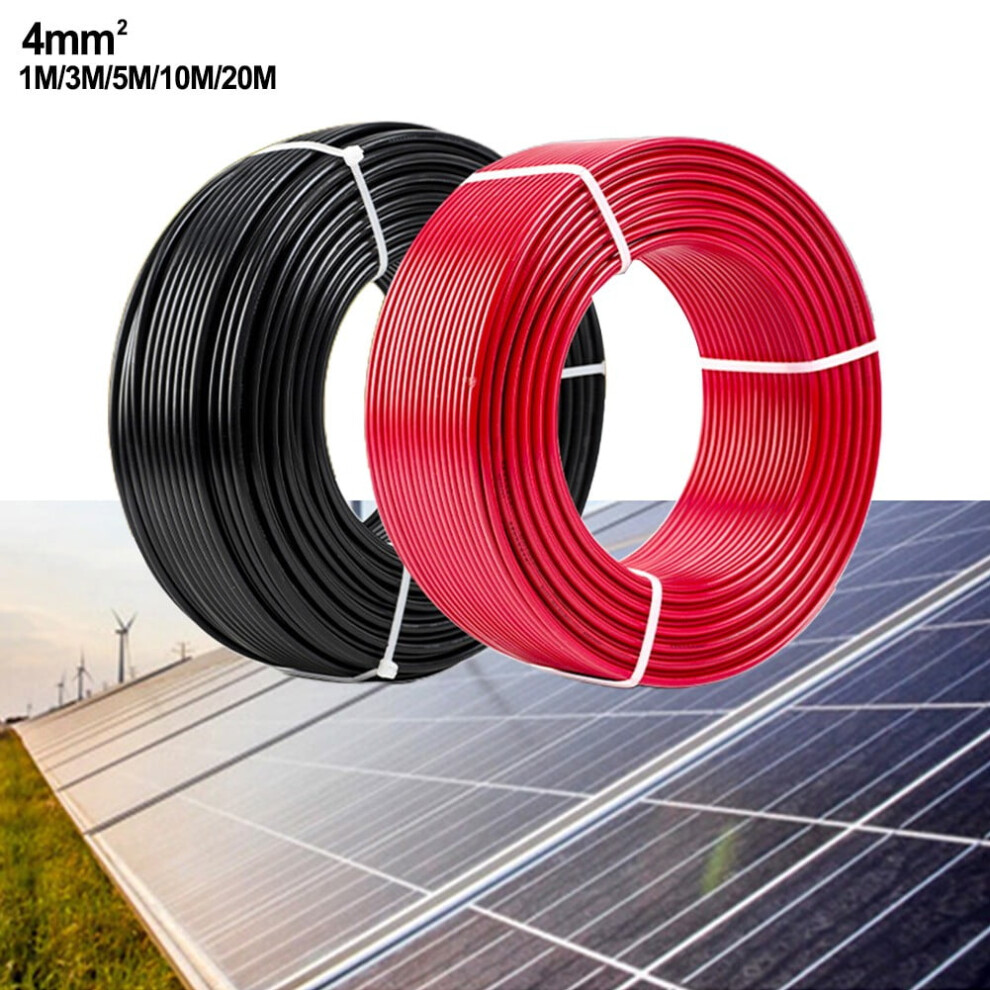

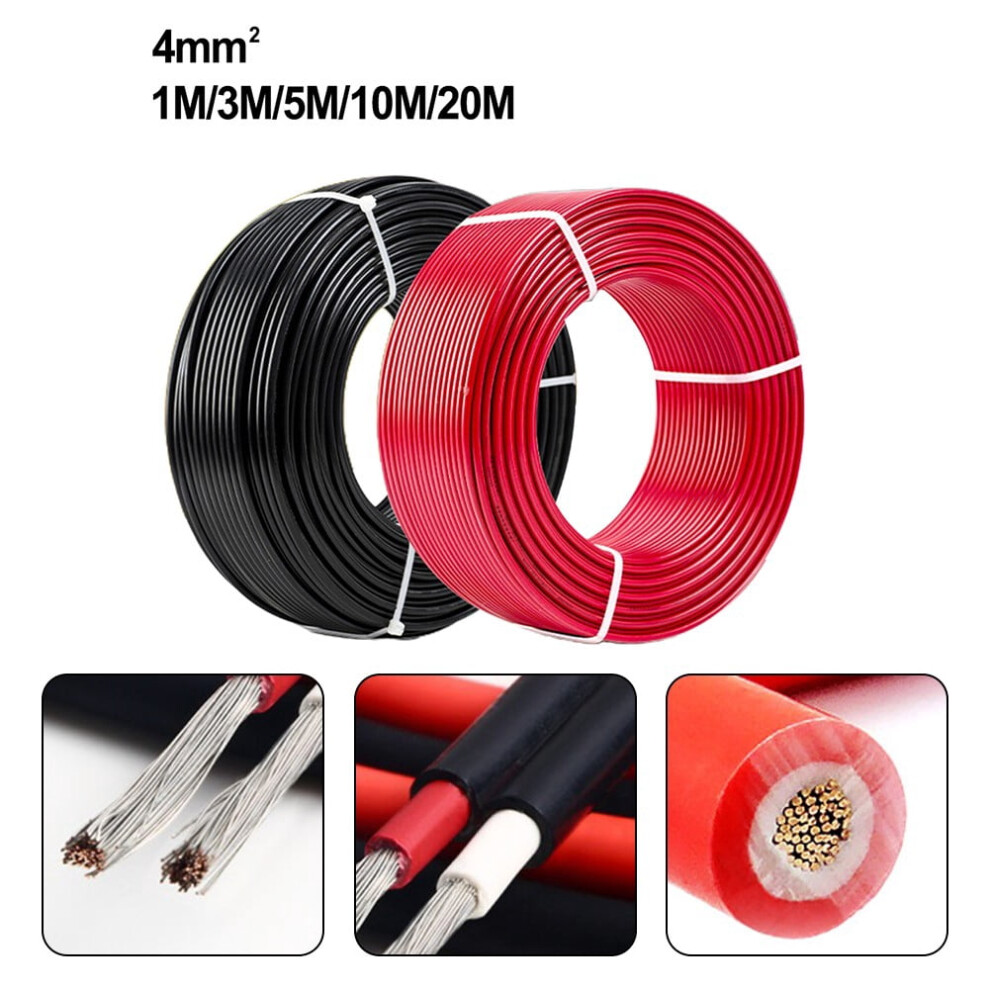

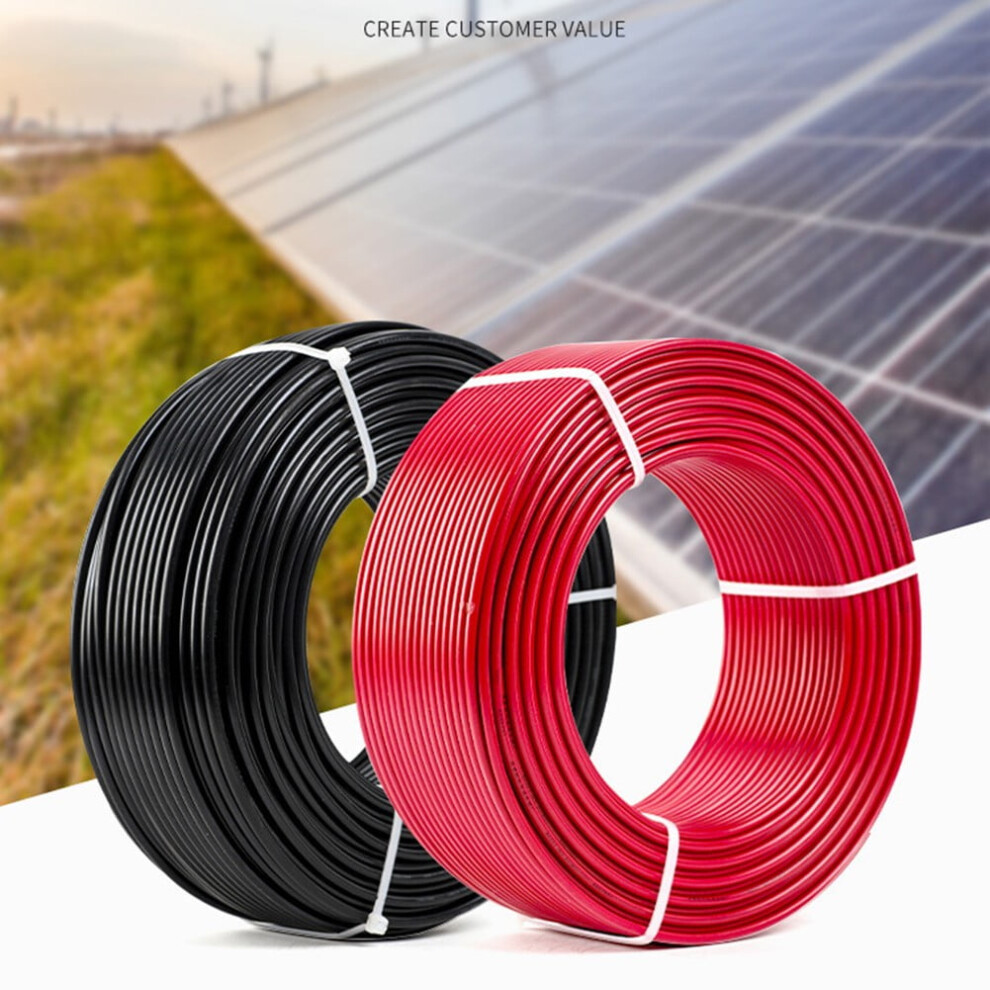

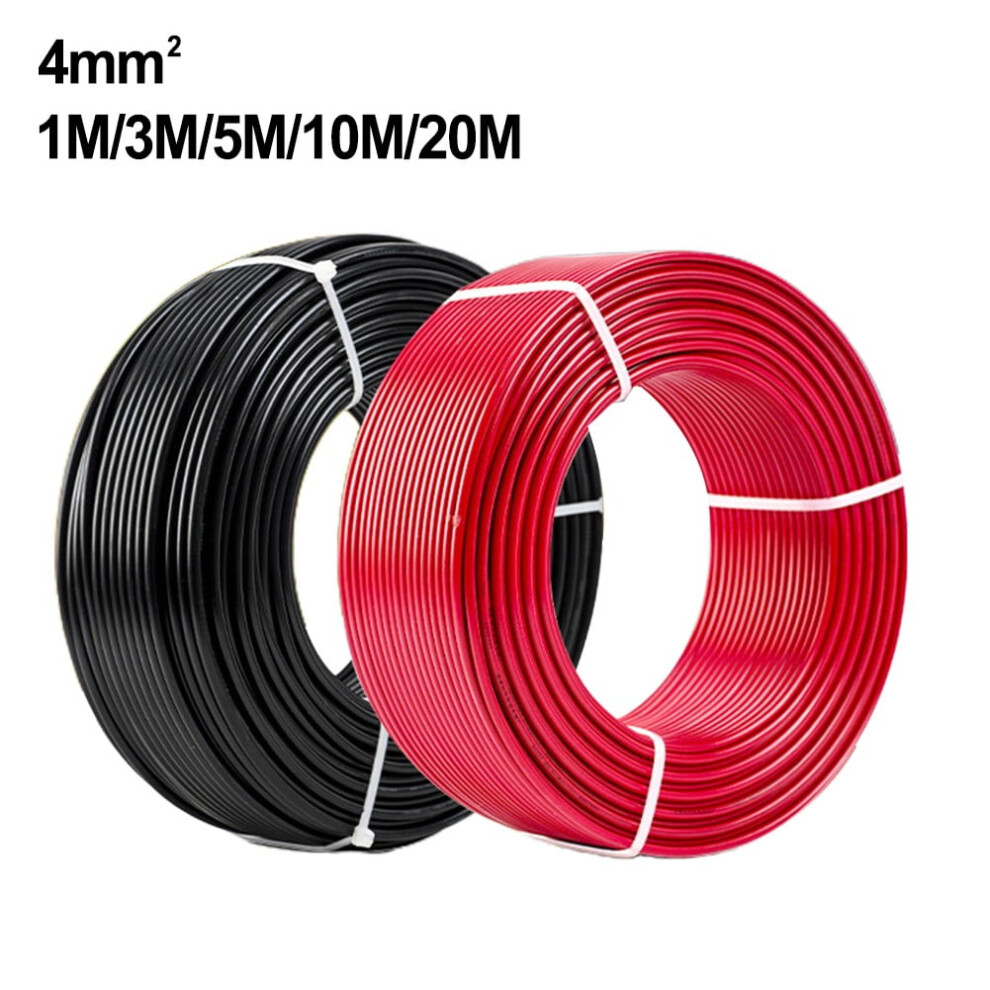

Solar Panel Extension Cable Black Red 12 AWG 1 m

Solar Panel Extension Cable Black Red 12 AWG 1 m Description

Features: * You will get brand new and high quality solar PV cable! * This product is made of high quality materials, , can extend the service life, good wear resistance, energy saving, low cost! * Cables and connectors are separate. You need to install them yourself. Only photovoltaic cables are sold. * Nominal section: 4mm2 (12AWG) Details: Nominal section :4mm2 (12AWG) Model: PV1 - F Rated current :70A (10AWG) Auditing: NO. 1 Conductor: copper wire structure NO./mm 84/0.30 Conductor stranded diameter :3.42mm Insulation (minimum wall thickness):0.5mm Sheath (minimum wall thickness):0.5mm Finished wire diameter :6.90.1mm Conductor resistance (20): 3.39Ω / km Test voltage kV/min: 6.5/5 without breakdown Rated temperature :-40~+90 C Maximum conductor temperature :+ 120 C Reference short-circuit allowable temperature :200 C for 5S Service life :> 25 years (-40 ~ +90) Rated voltage: DC :1.8kv AC U/U: 0.6/1kv Operating ambient temperature :-40 ~ +90 Operating voltage AC/DC (KV): 0.6 ~ 1.0/1.8 Weather resistance: light Flame retardant: single vertical combustion (IEC60332-1) Sun resistance test :HD605 / A1 resistance test of finished cable :EN50396 Smoke density :IEC61034, EN50268-2 Halogen acid release :IEC670754-1 EN50267-2-1 Waterproof grade: IP67 Rated voltage :1000 v Test voltage :6 kv(50 Hz) Insulation material :PPO Contact material: tinned copper, about 95% copper inside, about 5% tin outside Operating temperature :-40C to + 90C Safety class: 2 Class of flame: movement of UL94 - where V0 Connector contact resistance 5 Ω Insertion and removal force 50 n Withdraw troops 50 n Size: 1 meter, 3 meter, 5 meter, 10 meter, 20 meter Quantity: 1Pcs high quality solar photovoltaic cable Package Contents: 1Pcs solar photovoltaic cable Notes: 1. Due to various factors such as display brightness and light brightness, the actual color of the product may be slightly different from the picture displayed on the website. 2. Please allow slight manual measurement deviation in the data.
