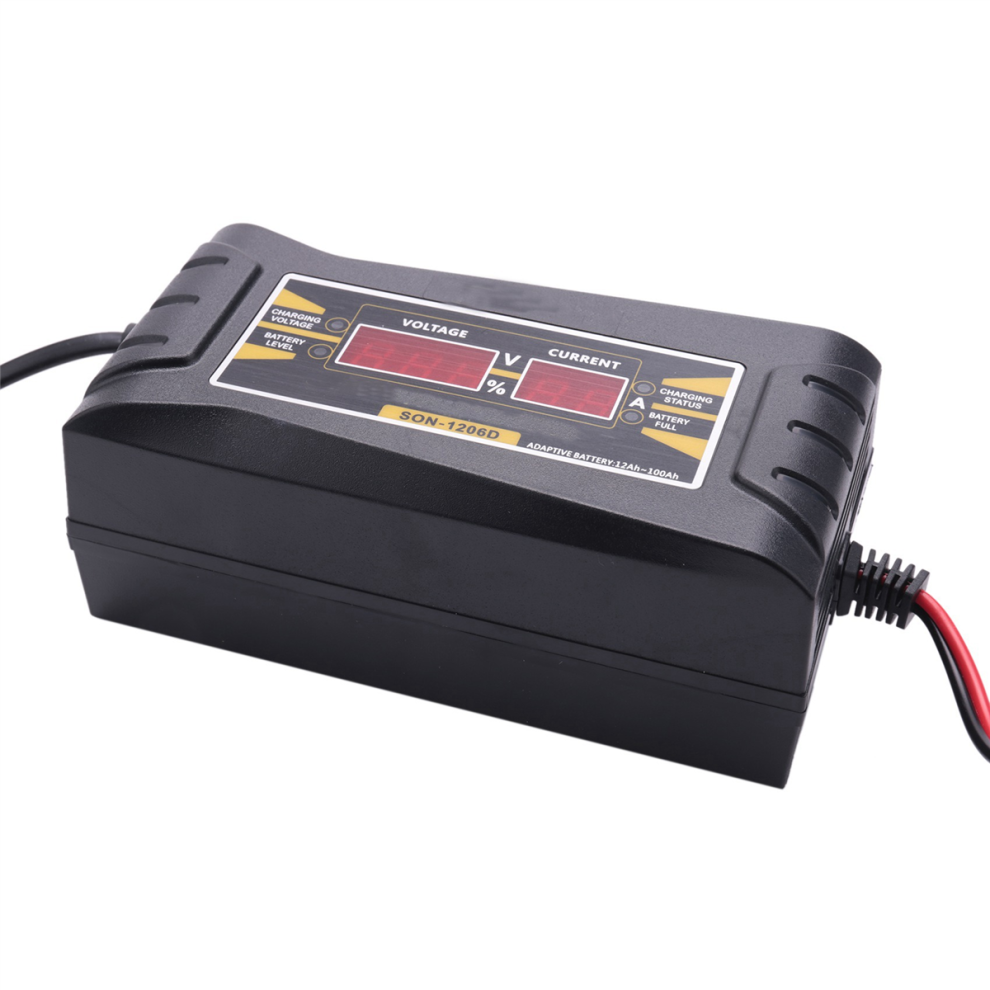

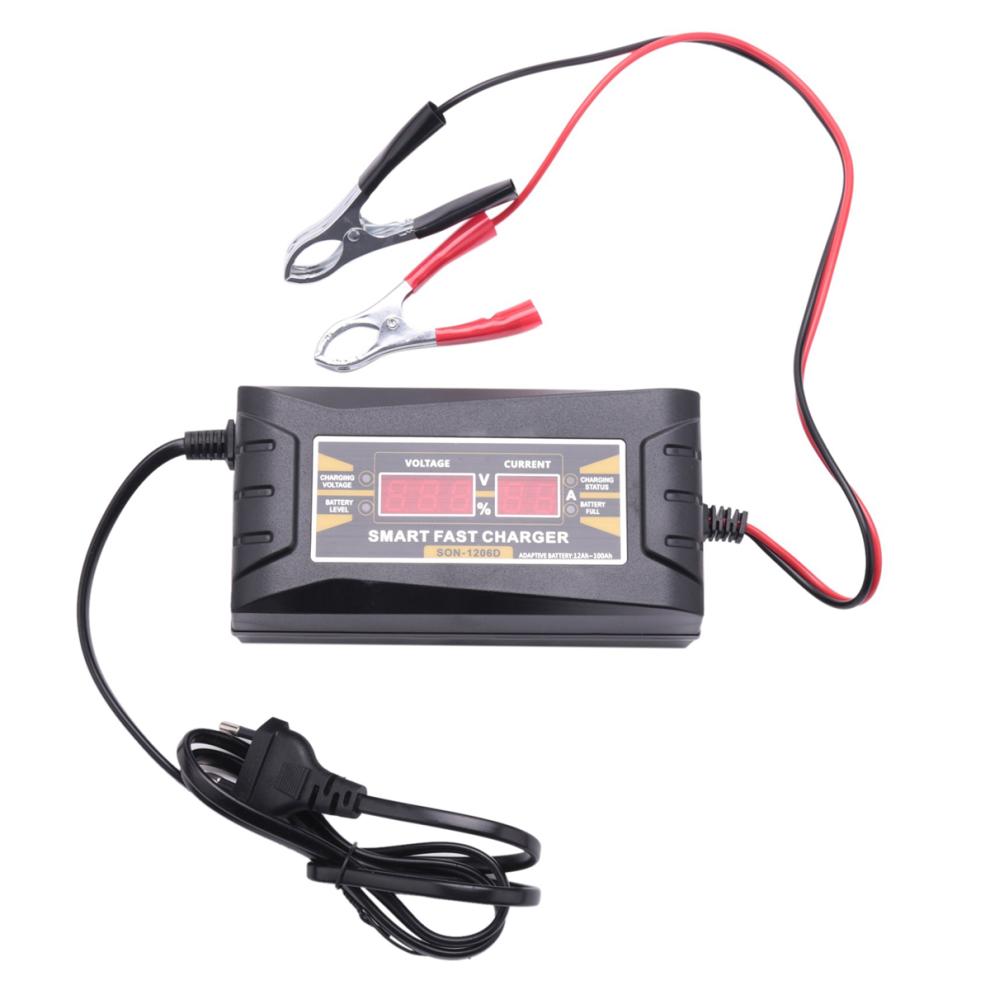

Son-1210D+ Lcd Smart Fast Lead-Acid Battery Charge

Son-1210D+ Lcd Smart Fast Lead-Acid Battery Charge Description

Manufacturer Part Number:no;Item Length:152mm; Item Width:75mm; Item Height:60mm; Special Features:no; Colour: Black; material: metal+Plastic; Placement on Vehicle:car
Features:Protect the battery all-around ,full automatic trickle charge.smart three-phase charging mode makes it charge quickly.it has the function of reverse connect protection and short circuit protection.the device can judge whether there is a battery intelligently.
1. This battery charger uses Mini MCU controller to manage the process of the battery charging.The charger automatically stop charging when it is fully .2. This battery charger uses three-phase charging mode(PWM charging mode),which includes constant current charging phase, constant voltage charging phase,floating charging phase.

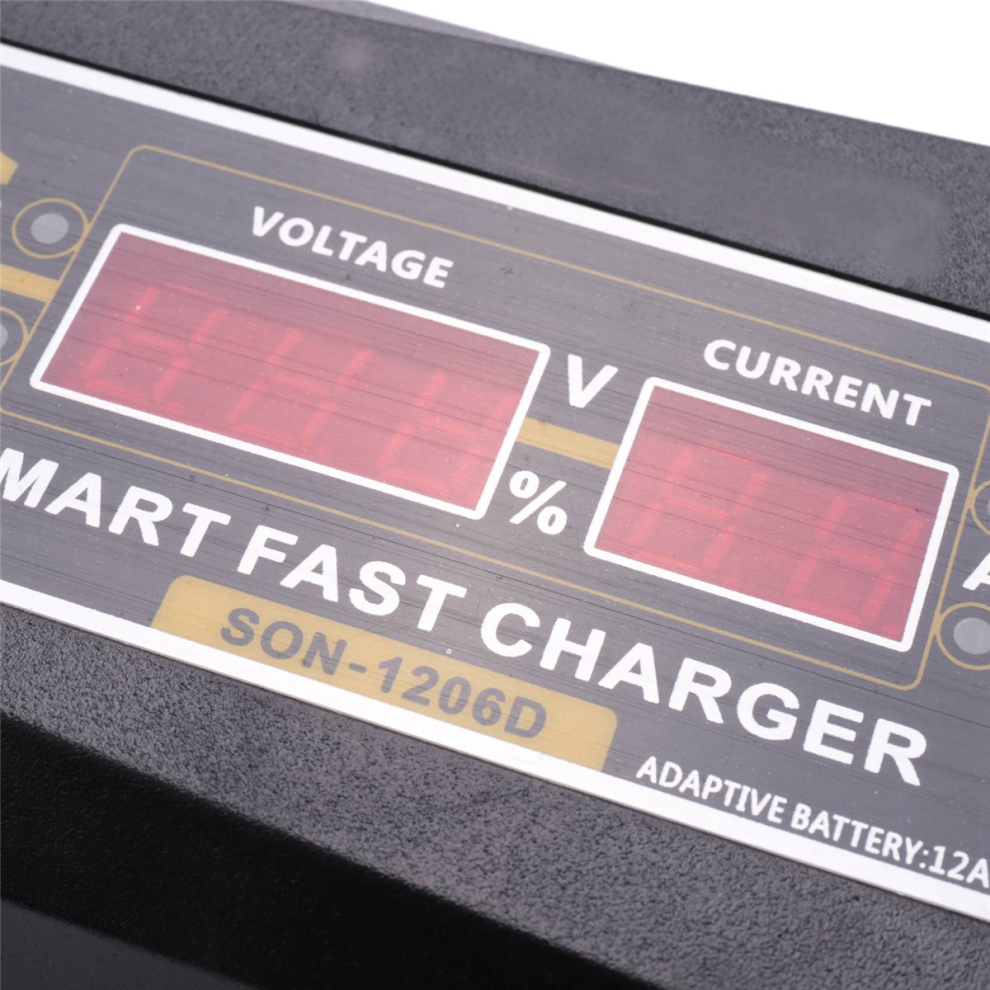

3. With online battery detection, short circuit protection, over voltage protection,Anti - reverse connecting protection,etc.4. The smart charging indicator shows charging process directly, which facilitates users to manage the current of the battery.5.Three-phase charging mode
Constant current mode:
When the voltage of the battery is lower than the value set by the charger,the charger work under the constant current mode and supply
the constant current for the battery.
Constant voltage mode:
Using the pulse width modulation(PWM) tech to control the charging current and output voltage of the charger which ensures
the battery is fully and avoids over charging.
Floating charge mode:
When the voltage of the battery is approaching the value of the constant voltage mode, and the current cut down to the given current gradually,
that means the battery power is full, then lamp turn green and the fan stop working.
The charger turn the mode into floating charge mode automatically. At this moment, t
