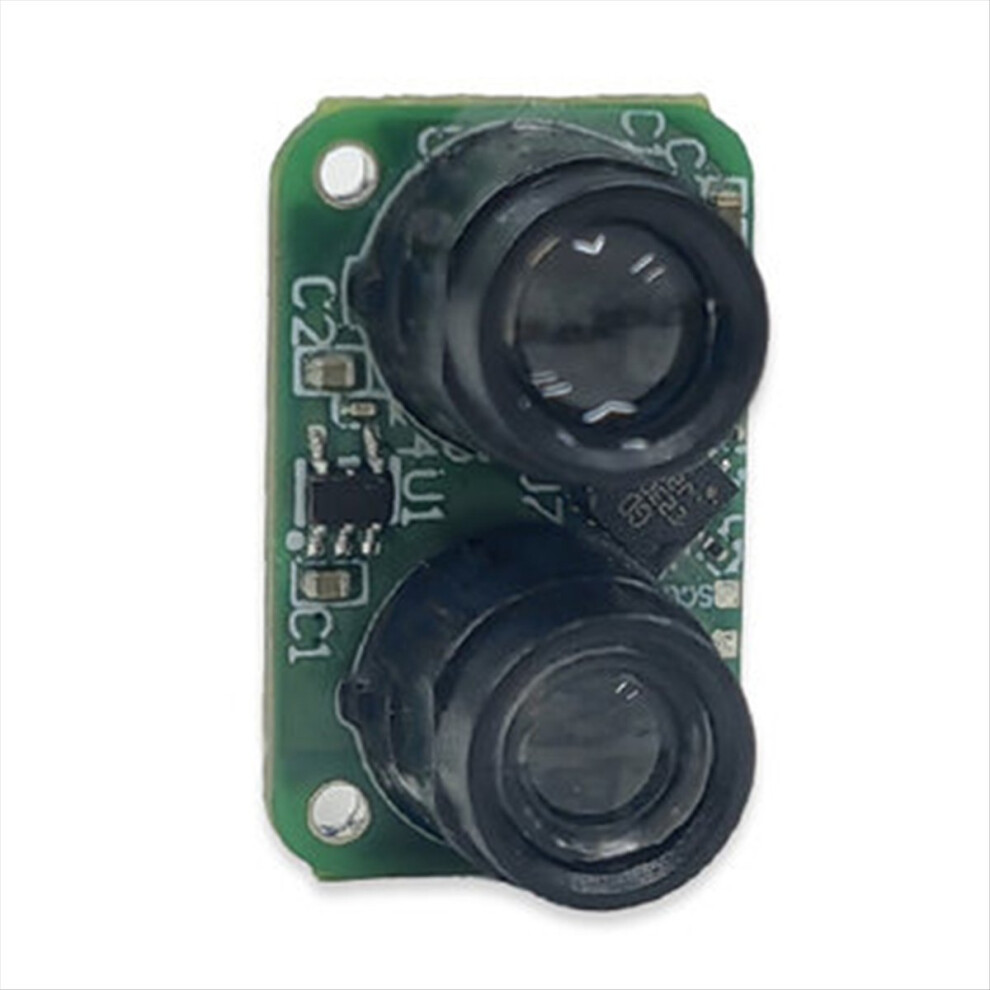

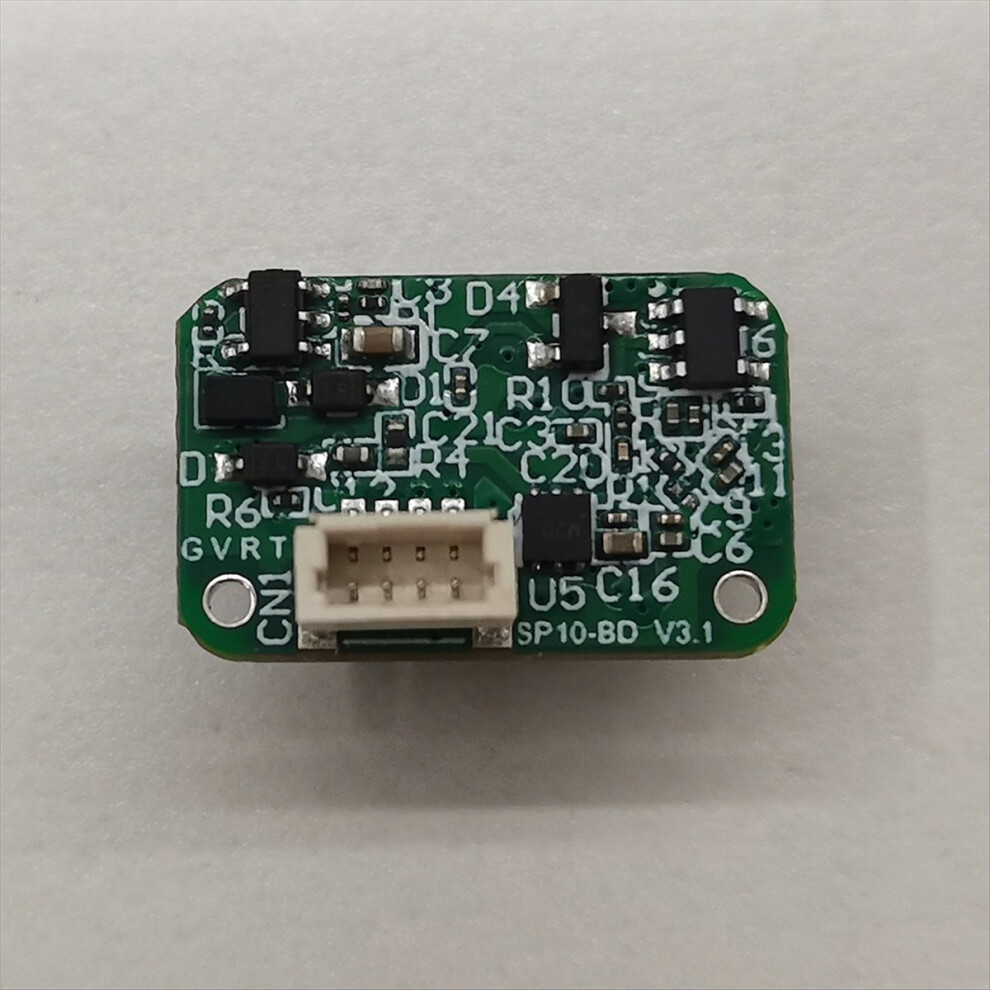

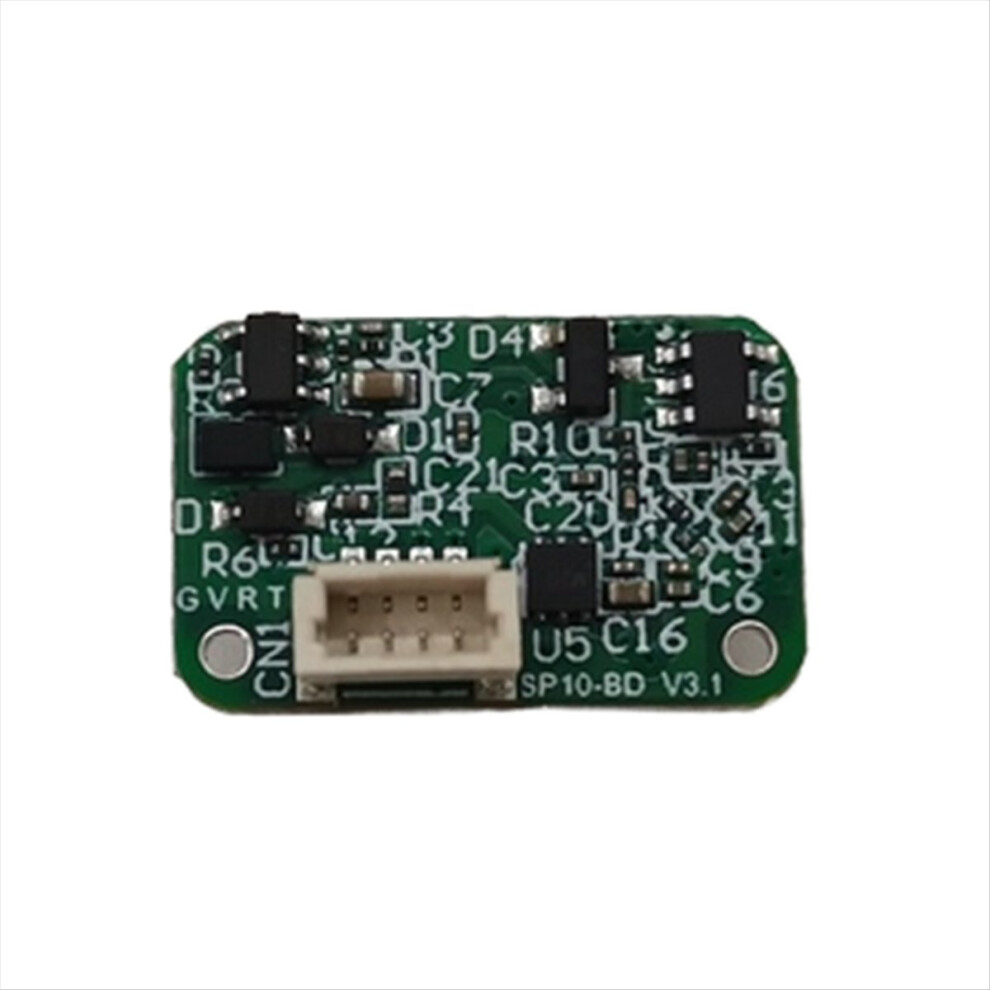

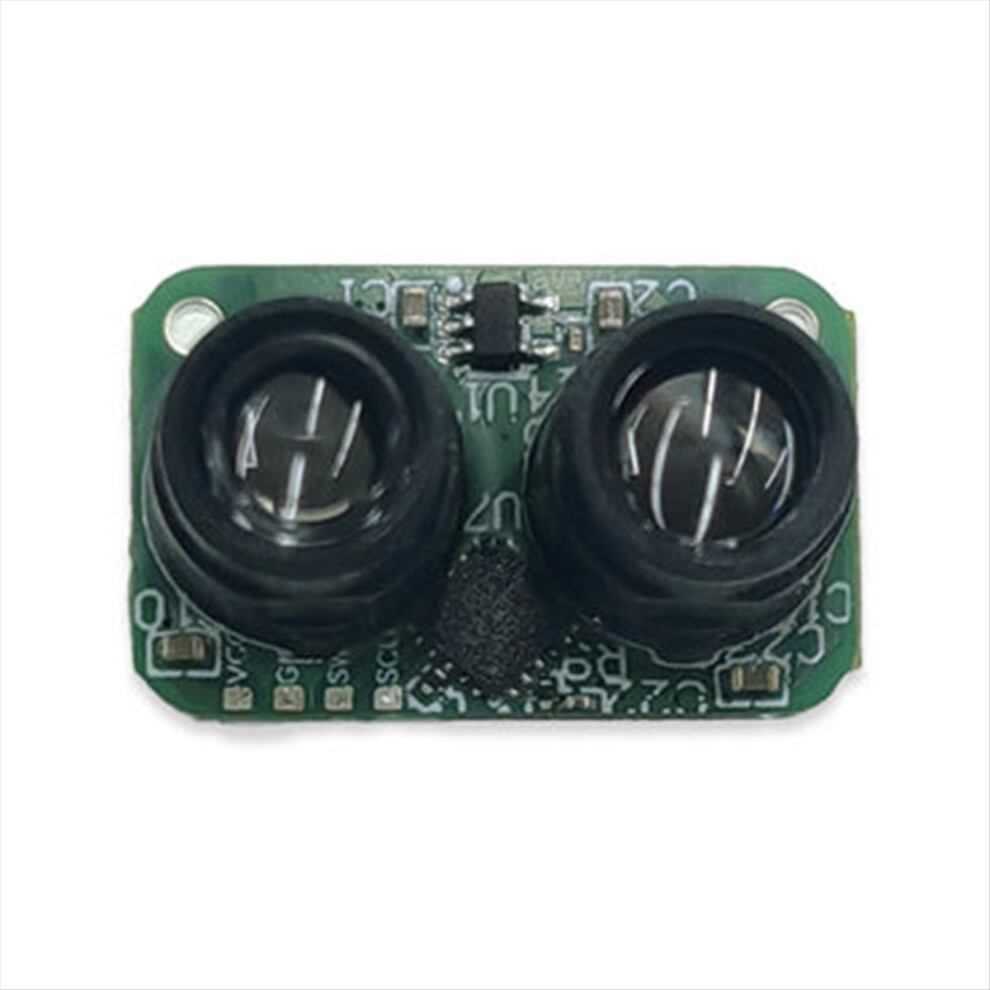

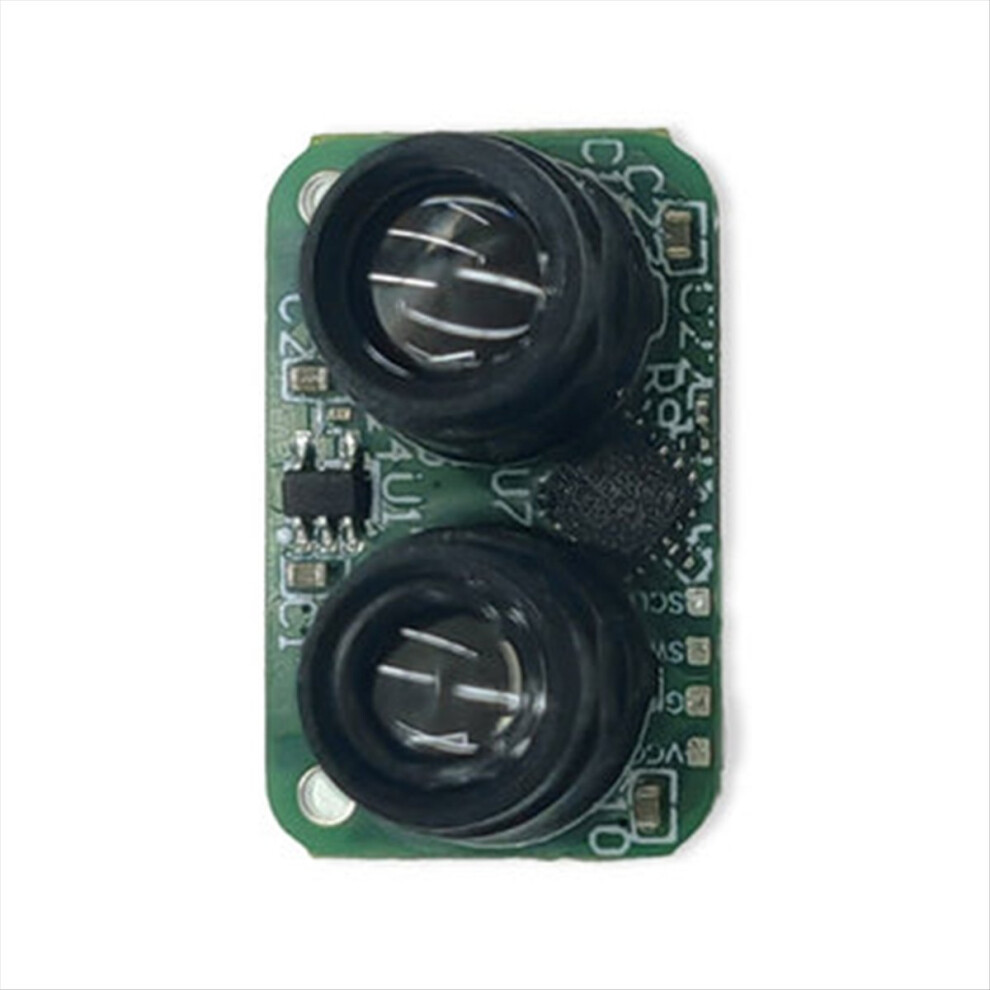

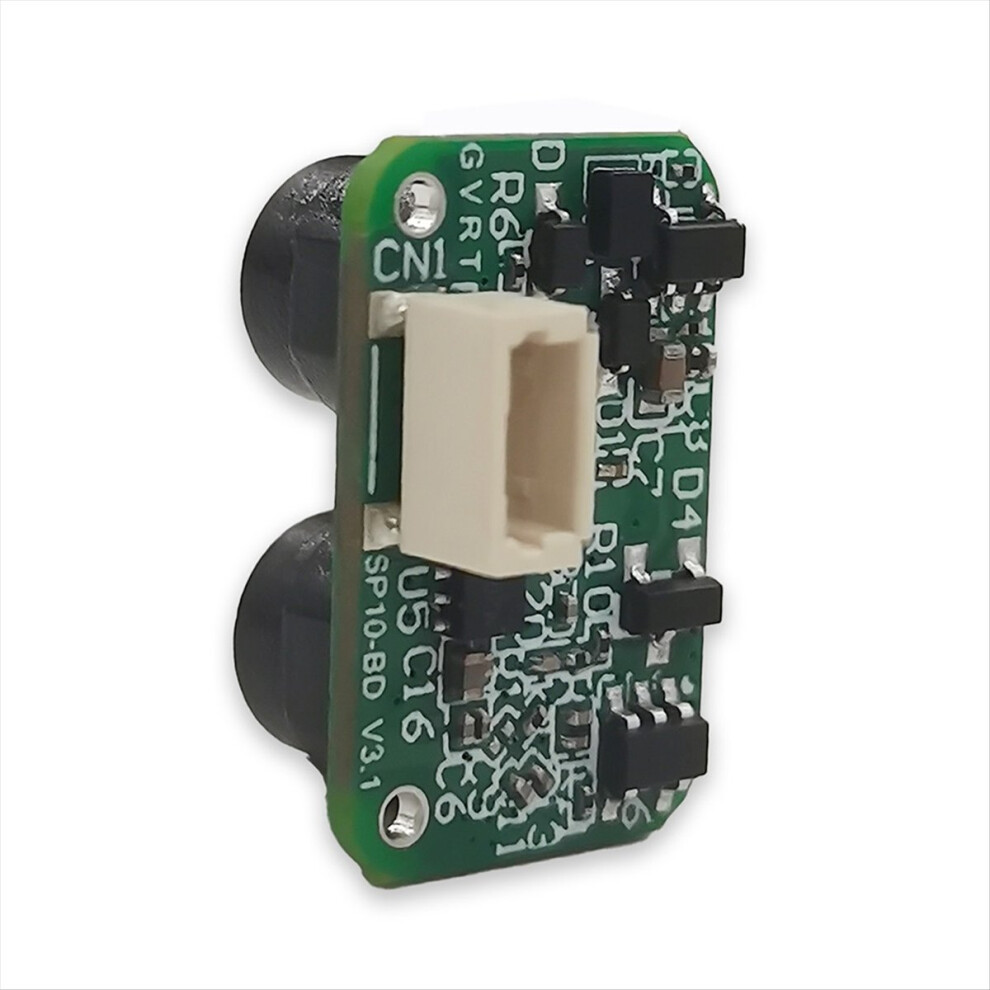

SP50M01 50m DTOF Single Point Lidar Sensor 500Hz UART TTL IIC Communication Interface Outdoor Laser Ranging Module

SP50M01 50m DTOF Single Point Lidar Sensor 500Hz UART TTL IIC Communication Interface Outdoor Laser Ranging Module Description

SP50M01 LiDAR is new laser ranging product launched for drones, robotic vacuum cleaners, industrial robots, and other fields. Based on the DTOF ranging principle, this product features a small size, low cost, excellent performance, and strong resistance to environmental light interference. It is easy to use, flexible in installation, and convenient for expansion, making it highly cost-effective.
Hign-concerned Chemical:None
Type:Other Motor Controls
Based on the time-of-flight algorithm
Range: 50m

Blind area: 3 cm
Frequency: 500Hz
Accuracy: 1%
Resolution: 1mm
Working temperature:-30~+65
Power supply voltage: 3.3-5VDC
Compact size: 18.7 x 11.8 x 13.3mm
Weight: 2g
Anti-environmental light: 100K Lux
Drones set altitude and avoid obstacles
Robot obstacle avoidance
Industrial grade light curtain
obstacle avoidance
High speed measurement and safety monitoring in transportation and industrial automation
Color: As Shown
Material: PC

Package Contents:
1 * SP50M01 50m DTOF Single point lidar sensor
1 * cable

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
