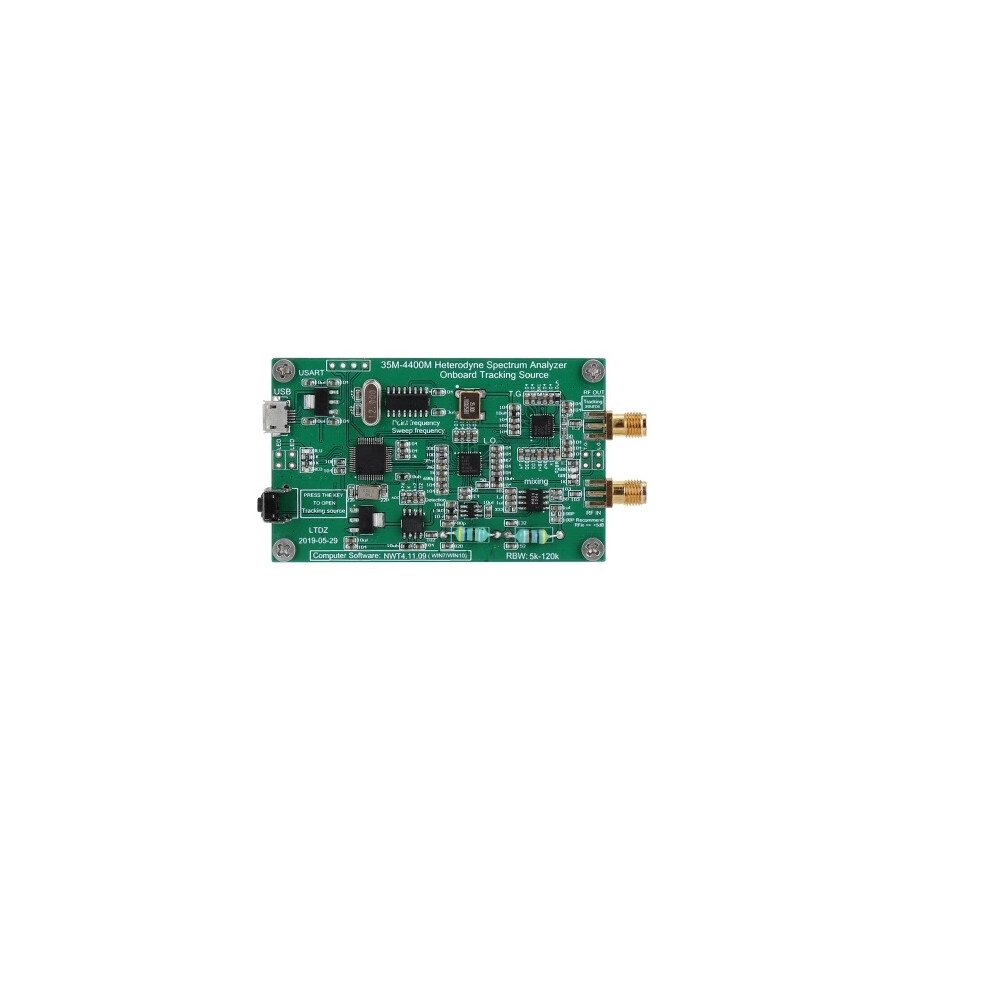

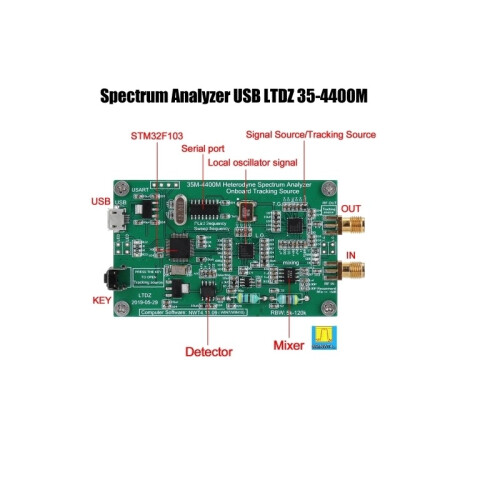

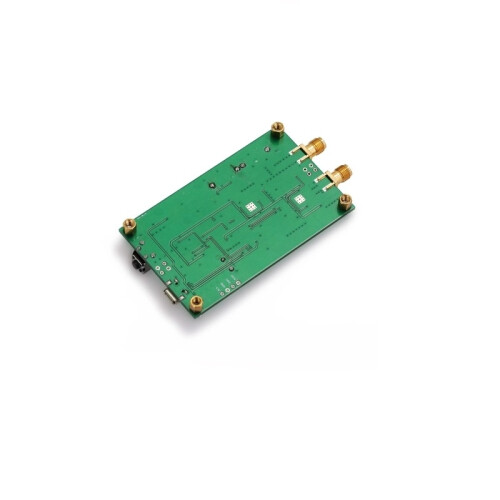

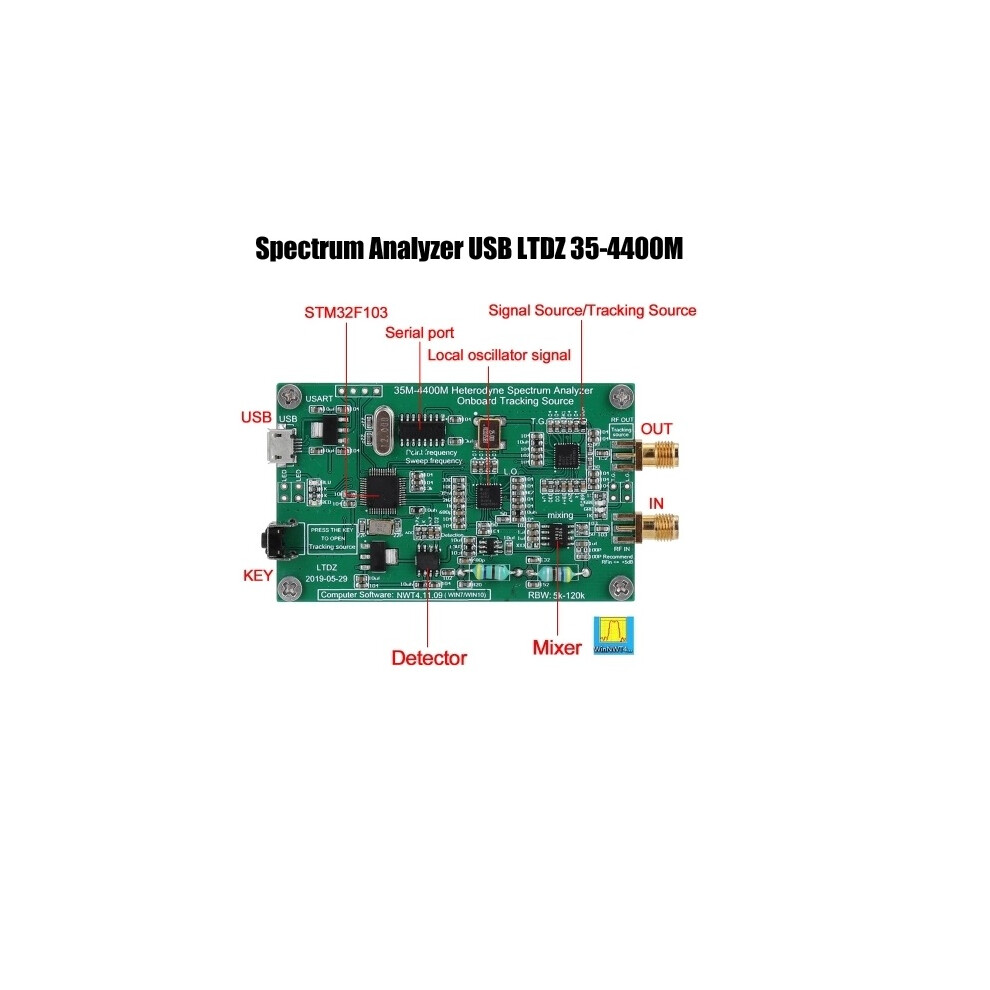

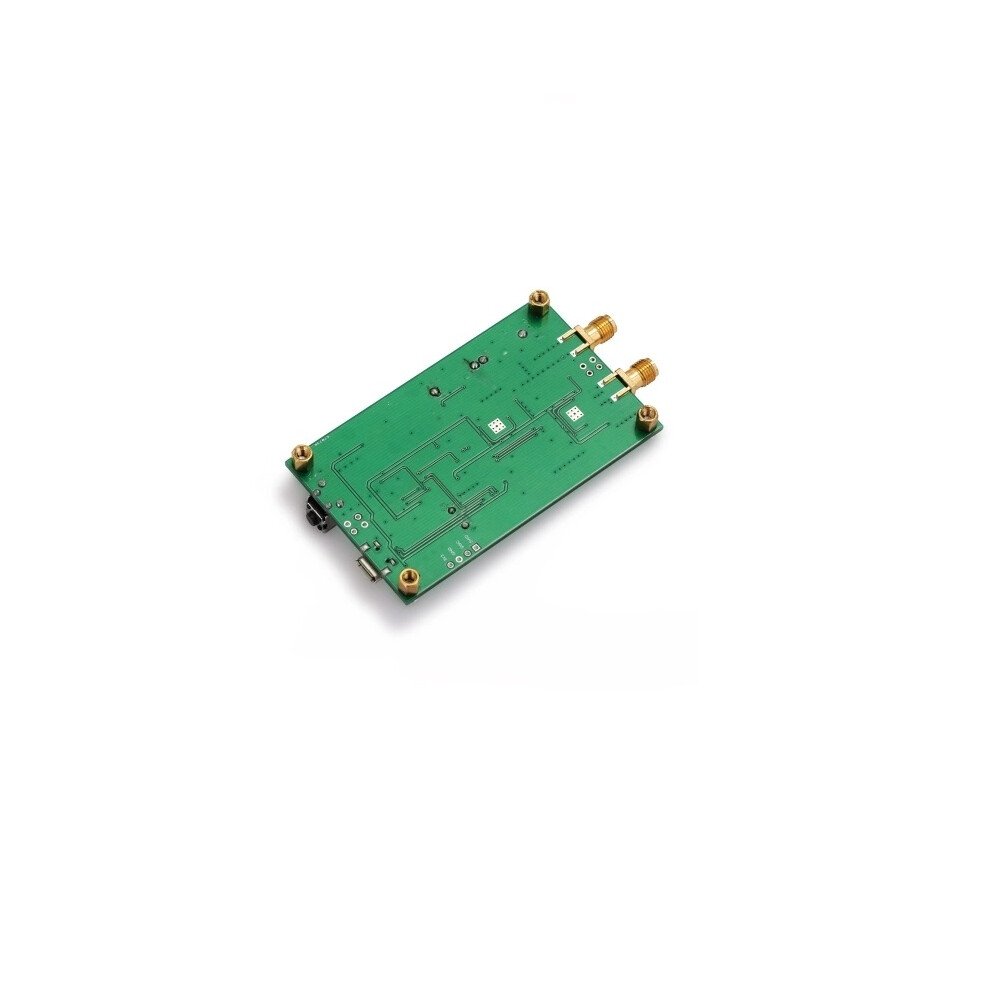

Spectrum Analyzer USB LTDZ 35-4400MHz with Tracking Source Module - RF Frequency Domain Analysis Tool
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 130,000 Trustpilot reviews and an 'Excellent' rating
£34.42
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Fri 14th - Mon 17th Aug
Returns: 30 days
180-day payment protection
You might also like
Description & Details
Spectrum Analyzer USB LTDZ 35-4400MHz with Tracking Source Module - RF Frequency Domain Analysis Tool Description
Features:
Made of fine quality material, it has a long service life.
Small and portable, high accuracy.
It is an RF frequency domain analysis tool.
Turn on the tracking source output bandwidth 33mHz-3000mHz.
Sweep step: ?? 33~68.75mHz/125Hz, 68.75~137.5mHz/250Hz, 137.5~275mHz/500Hz, 275~550mHz/1kHz, 550~1100mHz/2kHz, 1100~2200mHz/4kHz, 2200~4400mHz/8kHz.
Specifications:
Material: PCB
Color: green
Attribute: RF frequency domain analysis tool
Interface: USB
Power supply: USB
Standby current: ??100mA
Sweep current: ??350mA
Sweep bandwidth: 33mHz-4400mHz
Turn on the tracking source output bandwidth 33mHz-3000mHz
Sweep step: ?? 33~68.75mHz/125Hz, 68.75~137.5mHz/250Hz, 137.5~275mHz/500Hz, 275~550mHz/1kHz, 550~1100mHz/2kHz, 1100~2200mHz/4kHz, 2200~4400mHz/8kHz
Sweep speed: ??800 points/sec
Sweep dynamic log ratio: > 50dB
Point frequency or sweep output power: ??0 dBm
Input detection: ??10dbm
Background: ?? -60dBm
Software used on the computer side: NWT4.11.09 version
Computer operating system: for winxp, win7, win10
Item size: about 92 * 48mm / 3.6 * 1.9in
Item weight: about 23g / 0.8ounce
Package size: about 140 * 70 * 15mm / 5.5 * 2.8 * 0.6in
Package weight: about 24g / 0.8ounce
Package list:
1 * Spectrum Analyzer
