Spektrum FC6250HX Flybarless Flight Controller — AS3X/SAFE Stabilization, Forward Programming, SRXL2 Receiver (SPMFC6250HX)
In stock
Product overview:
- AS3X/SAFE stabilization for precise, controllable flight.
- Forward Programming tunes from Spektrum transmitters.
- DSMX/SRXL/SRXL2 support with 11ms or 22ms timing.
- Up to two receivers for signal diversity.
- HV 4.8-8.4V operation with low latency.
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Sat 22nd - Tue 25th Aug
Sold by: Jadlam Toys & Models
Returns: 30 days
180-day payment protection
You might also like
Summary
- AS3X/SAFE stabilization for precise, controllable flight.
- Forward Programming tunes from Spektrum transmitters.
- DSMX/SRXL/SRXL2 support with 11ms or 22ms timing.
- Up to two receivers for signal diversity.
- HV 4.8-8.4V operation with low latency.
Spektrum FC6250HX Flybarless Flight Controller — AS3X/SAFE Stabilization, Forward Programming, SRXL2 Receiver (SPMFC6250HX) Description
The FC6250HX delivers next‑generation AS3X and SAFE stabilization for precise, predictable flight in 3D aerobatics, F3C Precision, and Scale builds up to 700 size. At its core is a 32‑bit ARM Cortex‑M4 processor with DSP and FPU, a leading-edge 6‑axis MEMS inertial sensor, and a CNC aluminum lower case that provides excellent vibration rejection. Forward Programming lets you configure and tune flight modes, SAFE settings, and swash/tail behavior directly from your Spektrum transmitter on the flight line-no extra hardware or computer required. If a calibration is needed after a crash or repair, it's quick and easy in the same menu, with firmware updates performed via the Spektrum USB Programmer.
- 1) AS3X and SAFE Stabilization with Panic Recovery to upright the model within 4 degrees when needed.
- 2) Proprietary Advanced Adaptive Flight Control Algorithms for highly predictable, stable handling.
- 3) Forward Programming from compatible Spektrum transmitters for on‑line setup and tuning.
- 4) 32‑bit ARM Cortex‑M4 with DSP and FPU plus a cutting‑edge 6‑axis MEMS inertial sensor.
- 5) HV operation from 4.8V to 8.4V, supports Digital and Analog servos, and servo frequency adjustable 70Hz-560Hz (center settings 760µs and 1520µs).
- DSMX, SRXL and SRXL2 receiver support at 11ms or 22ms CCP, with up to two receivers for signal diversity.
- Includes 1 SRXL2 SPM4651T Full Range Telemetry DSMX Receiver with Bind Button.
- Smart ESC ready for direct telemetry of voltage, current, rotor head RPM when paired with a Spektrum Smart ESC.
- CNC aluminum lower case and included vibration‑damping pads for superior vibration rejection and durability.
- Compact and lightweight design suitable for mini to 700+ sized helicopter models.

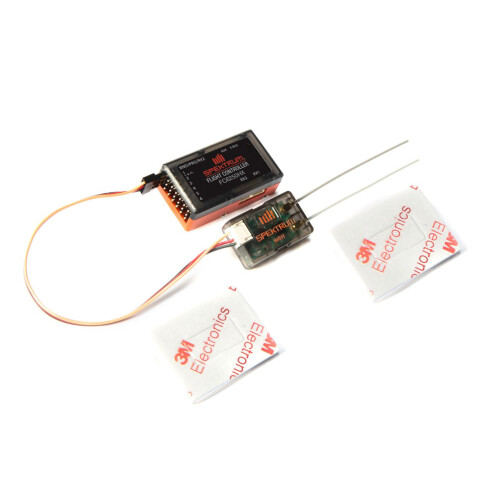

- Spektrum FC6250HX Flybarless Flight Controller
- Spektrum 4651T SRXL2 Full Range Telemetry Receiver (SPM4651T)
- Instruction Manual
- Two high‑quality vibration‑damping adhesive foam pads
- Operating voltage: 4.8V-8.4V (HV capable)
- Servo frequency: 70Hz-560Hz (center settings 760µs and 1520µs)
- Processor: 32-bit ARM Cortex‑M4 with DSP and FPU
- Inertial sensor: 6‑axis MEMS
- Interfaces: DSMX, SRXL, SRXL2; up to two receivers
- Mount: CNC aluminum lower case with vibration‑damping pads
- Telemetry: ready for Spektrum Smart ESC and battery telemetry
- Transmitter compatibility: IX and DX series transmitters (some updates may be required)
Details
| OPC | PDYV2DM |
|---|---|
| Brand | Spektrum |
| Codes | 0605482497999 (EAN) |
| 605482497999 (UPC) | |
| Rank | #141 Remote Controlled Aeroplanes |
