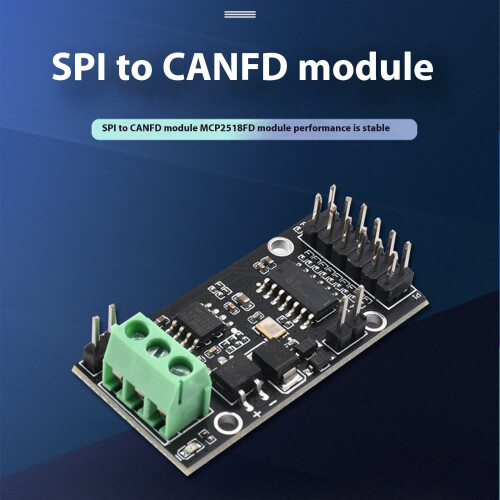

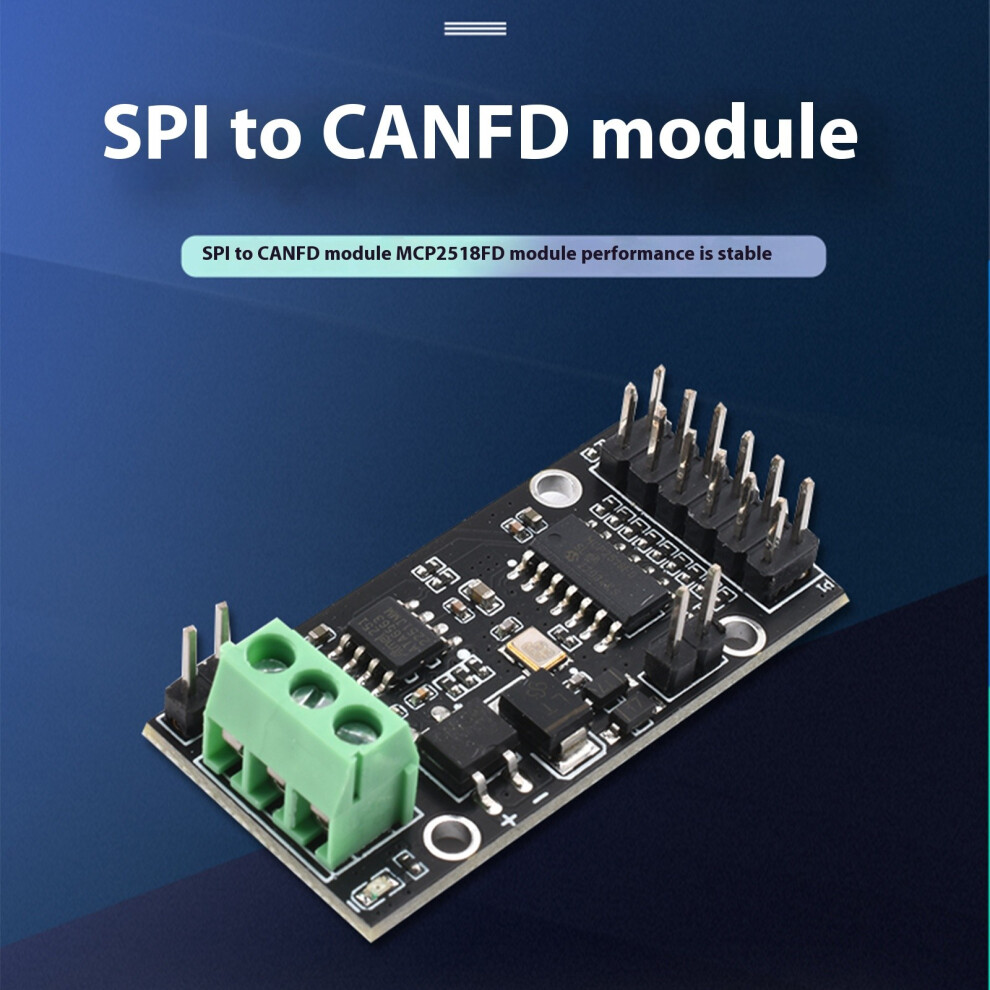

SPI To CANFD Controller Module Highly speed 8Mbps Data Transfer Fault Protections 1pc

SPI To CANFD Controller Module Highly speed 8Mbps Data Transfer Fault Protections 1pc Description

Features: SPI CANFD is economical and efficient small-sized SPI to CANFD controller, which use MCP2518FD as the control cores and can be easily added to microcontrollers or embedde systems through the SPI interfaces. The module supports CAN frame in classical formats CAN2.0B and CANFD, and complies with ISO11898-1:2015. Supports up to 1Mbps arbitration bit rate and up to 8Mbps data bit rate. There is 31configurable FIFOs for sending or receiving, 1sending queues, and a 32-bit timestamp for sending event FIFOs. The module have extremely low power consumption and can reach 15uA in sleep mode, with maximums operating current of 20mA. Specifications: Component:Plastic Size:Approx.40x20x12mm/1.57x0.79x0.47inch Option Type:1pc,2pcs; MCP2518FD Module Package Includes: Package A 1pc SPI To CANFD Module Package B 2pcs SPI To CANFD Module note: Please allow 1-2cm errors due to manual measurement. Due to the differences between different monitors, the picture may not reflect the actual item color.
