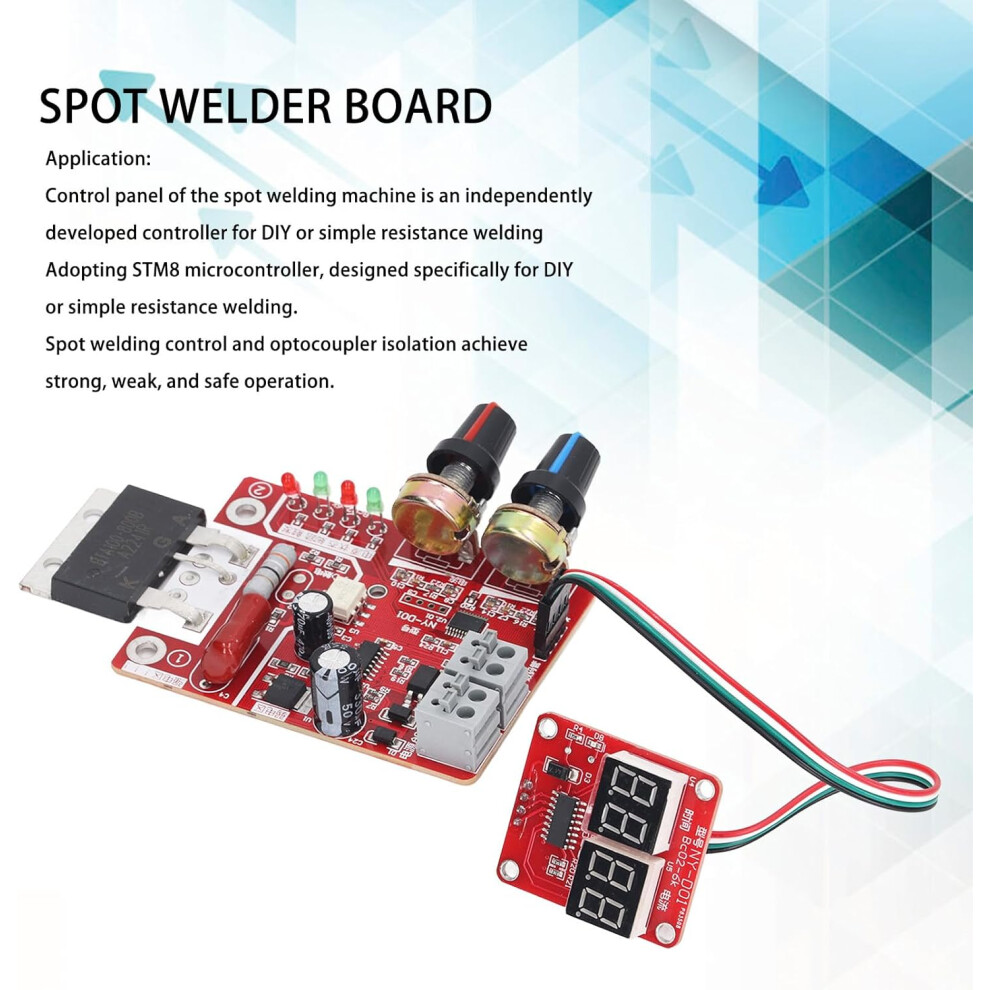

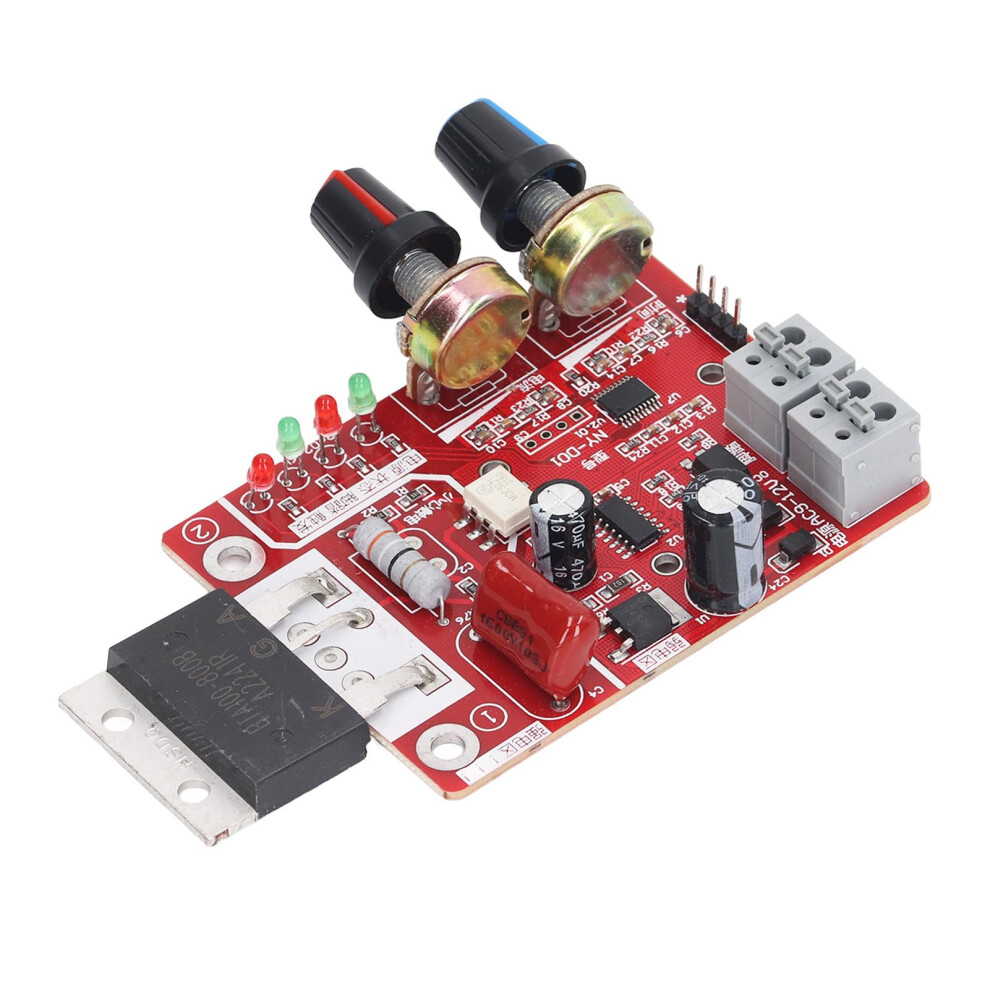

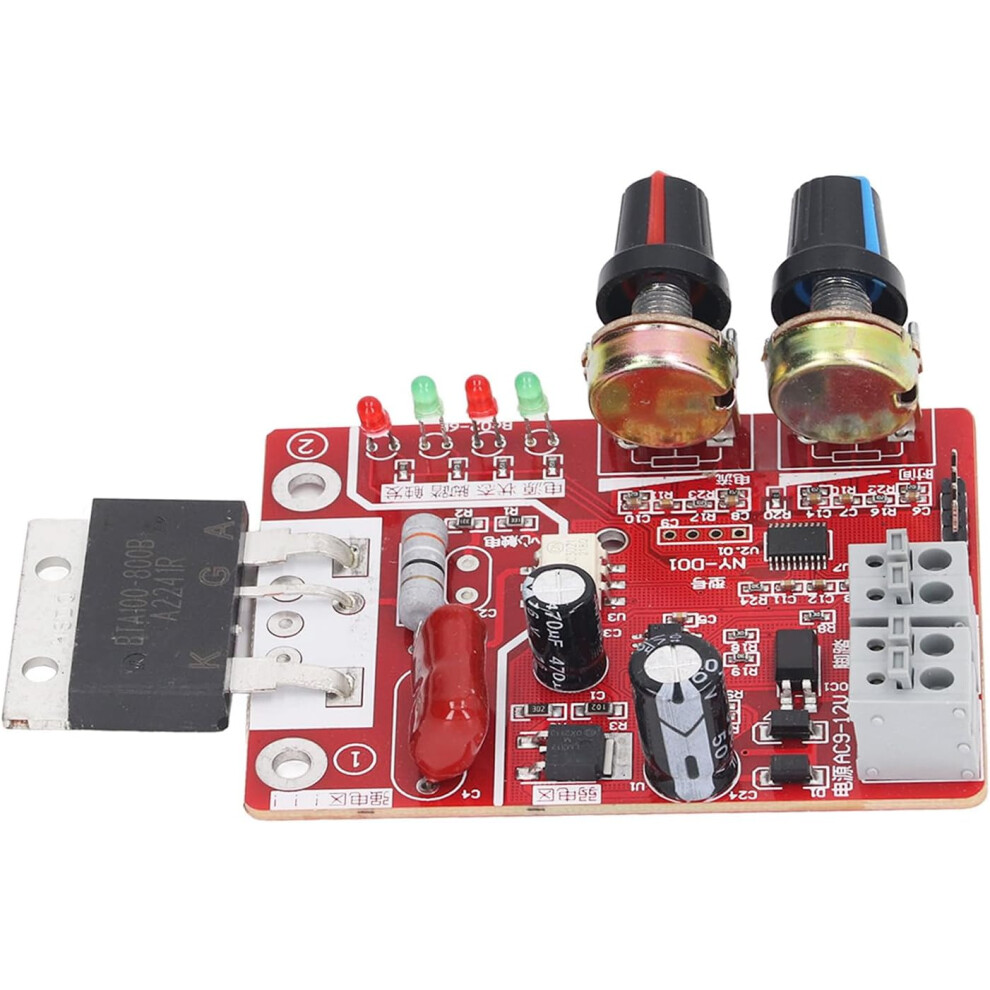

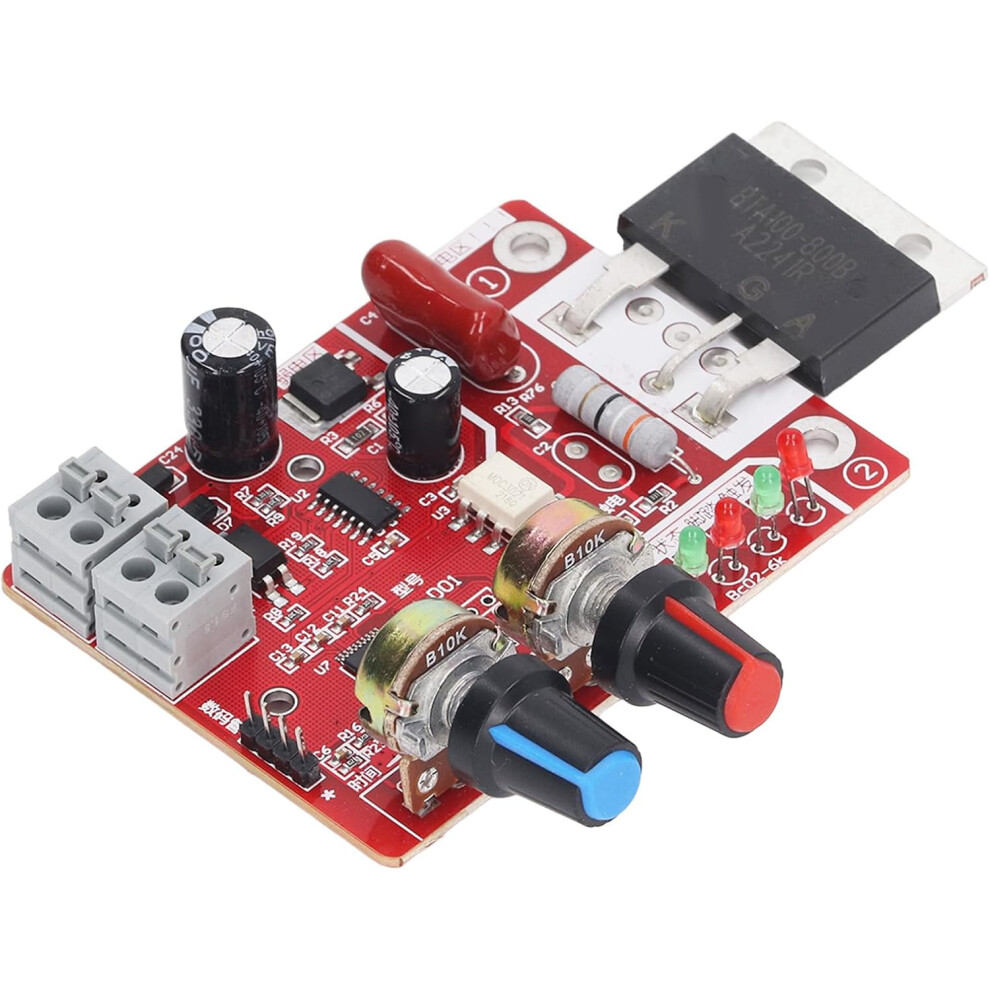

Spot Welding Control Board 100A, Digital Microcontroller Control, Easy Installation, Long Service Life For Simple Welding

Spot Welding Control Board 100A, Digital Microcontroller Control, Easy Installation, Long Service Life For Simple Welding Description

Easy to use and install: The spot welding control board is straightforward to install and includes a reliable 0 junction detection circuit to ensure accurate SCR phase control. Easy operation with 100A current control: This board features professional parts, safety modules, and digital current control, adjustable via the indicator lights on the display panel. Microcontroller based current control: The current controller uses a microcontroller, designed specifically for welding tasks. Safe and reliable operation: The control circuitry is isolated from the current side via an optocoupler, enabling safe operation with both strong and weak currents. Key features and benefits Functionality: Spot welding control board rated for 100 A, with digital current control and a zero junction detection circuit to improve welding accuracy. Safety: Optocoupler isolation provides protection between control and power sections, supporting safe operation. Control interface: Display panel with indicator lights for easy, ondevice adjustment of welding current. Reliability: Professional components and safety modules contribute to stable, repeatable welding performance. Typical use scenarios Lithiumion battery tab welding: Welding small battery tabs during pack assembly or with precise current control to prevent damage. Smallscale sheet metal or copper foil welding: Precision spot welding on thin metals for electronics enclosures, connectors, or copper foil contacts. Prototype and DIY welding projects: Projects requiring adjustable welding current and reliable zerojunction detection for consistent results. Specifications at a glance Current rating: 100 A Technology: Spot welding control board with 0 junction detection circuit Control: Digital current control on a display panel with indicator lights Safety: Isolation via optocoupler for safe operation with both and low currents Controller: Microcontroller based current controller designed for welding tasks
