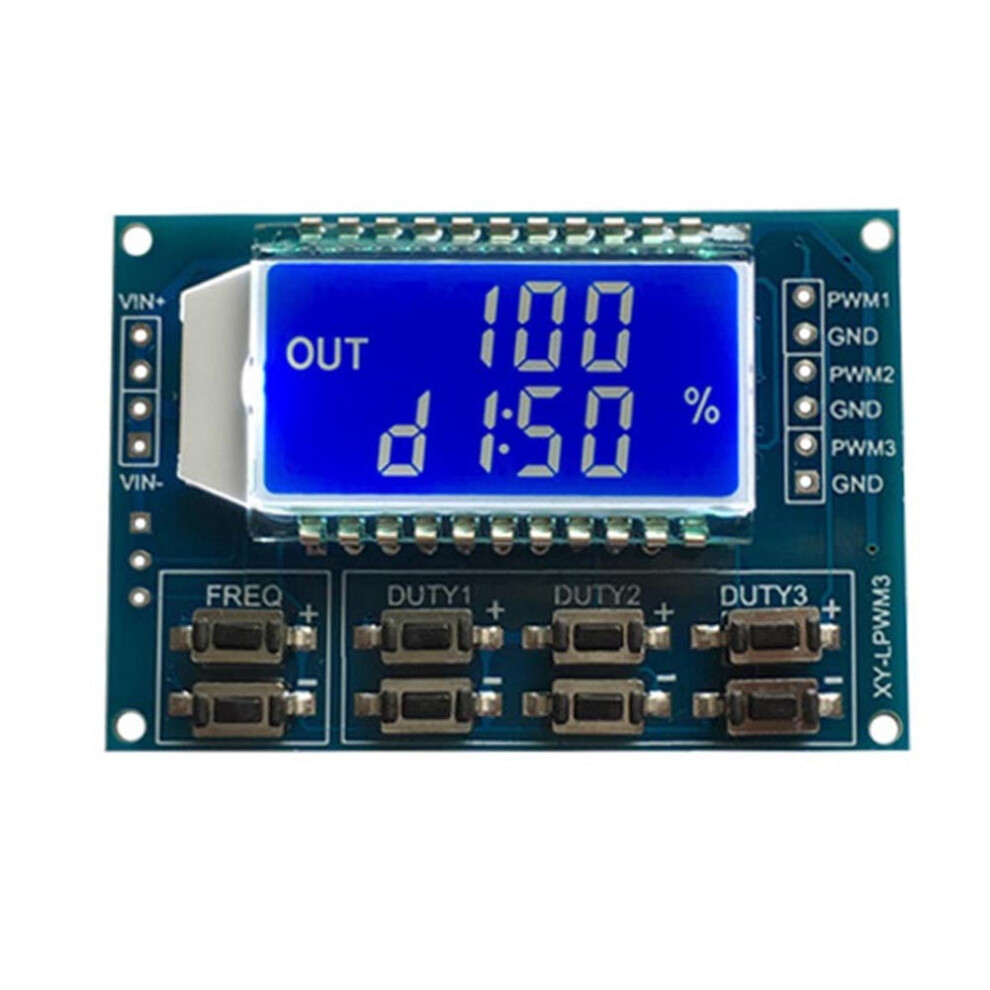

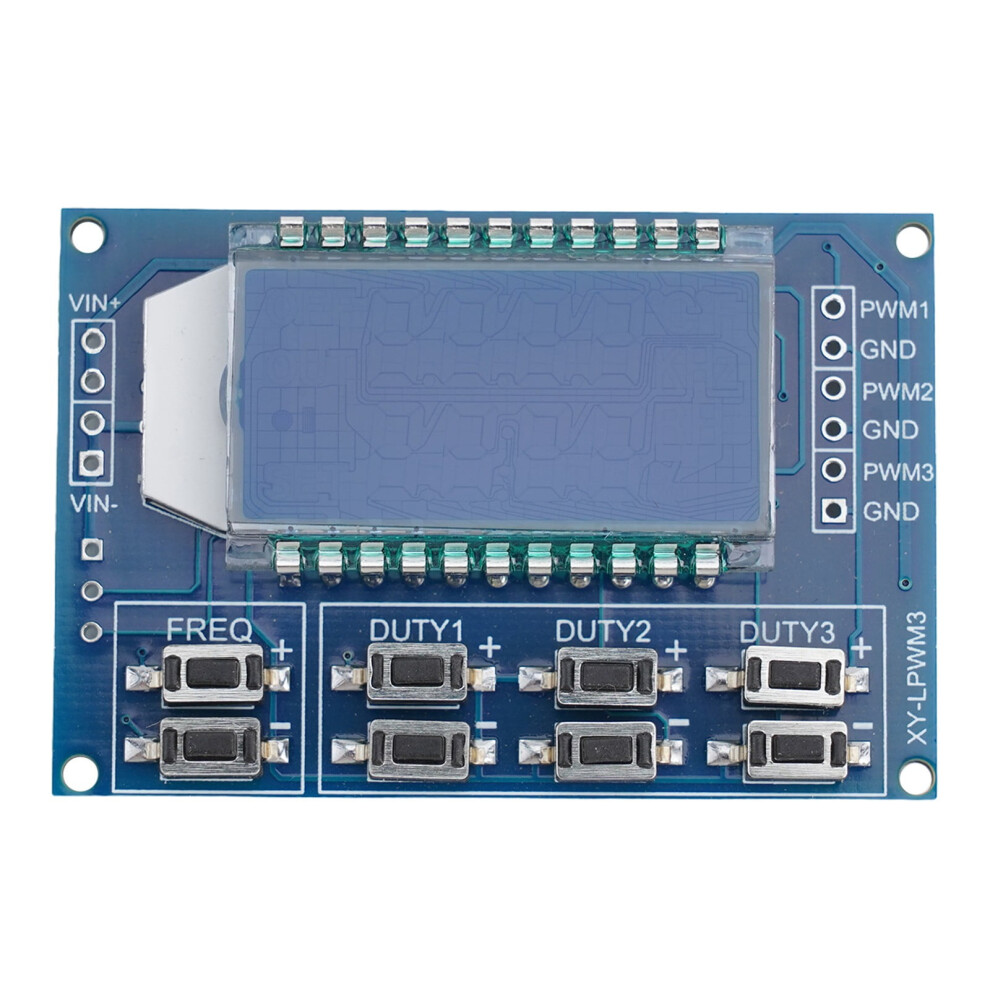

Square Wave Signal Generator with LCD and Adjustable PWM

Square Wave Signal Generator with LCD and Adjustable PWM Description

Feature: *LCD display frequency and duty cycle, very clear, for PWM output can set the frequency and duty cycle respectively; *Wide frequency range and high accuracy; *Serial communication available *3 channels of for PWM output, frequency adjustable, 3 channels of frequency output are consistent, duty cycle can be adjusted independently, suitable for most occasions; *Scope of application: Used as a square wave signal generator to generate square wave signals for experimental development; used to generate square wave signals to control motor drivers; generate adjustable pulses for MCU use; generate adjustable pulses to control related circuits (Applications such as for PWM dimming and speed regulation) Specification: Part name: Signal generator Model: XY-LPWM3 Material: plastic Color: As shown in the picture Size: 55*38mm Weight: 14g Working voltage: 3.3~30V; Frequency range: 1Hz~150KHz; Frequency accuracy: The accuracy in each range is about 2%; Signal load capacity: the output current can be around 5~30ma; Output amplitude: for PWM amplitude is equal to the supply voltage; Ambient temperature: -20~+70 Package Contents: *signal generator Notes: . Due to various factors such as monitor brightness and light brightness, the actual color of the item may be slightly different from the image displayed on the website. 2. Manual measurement data may have slight deviations.
