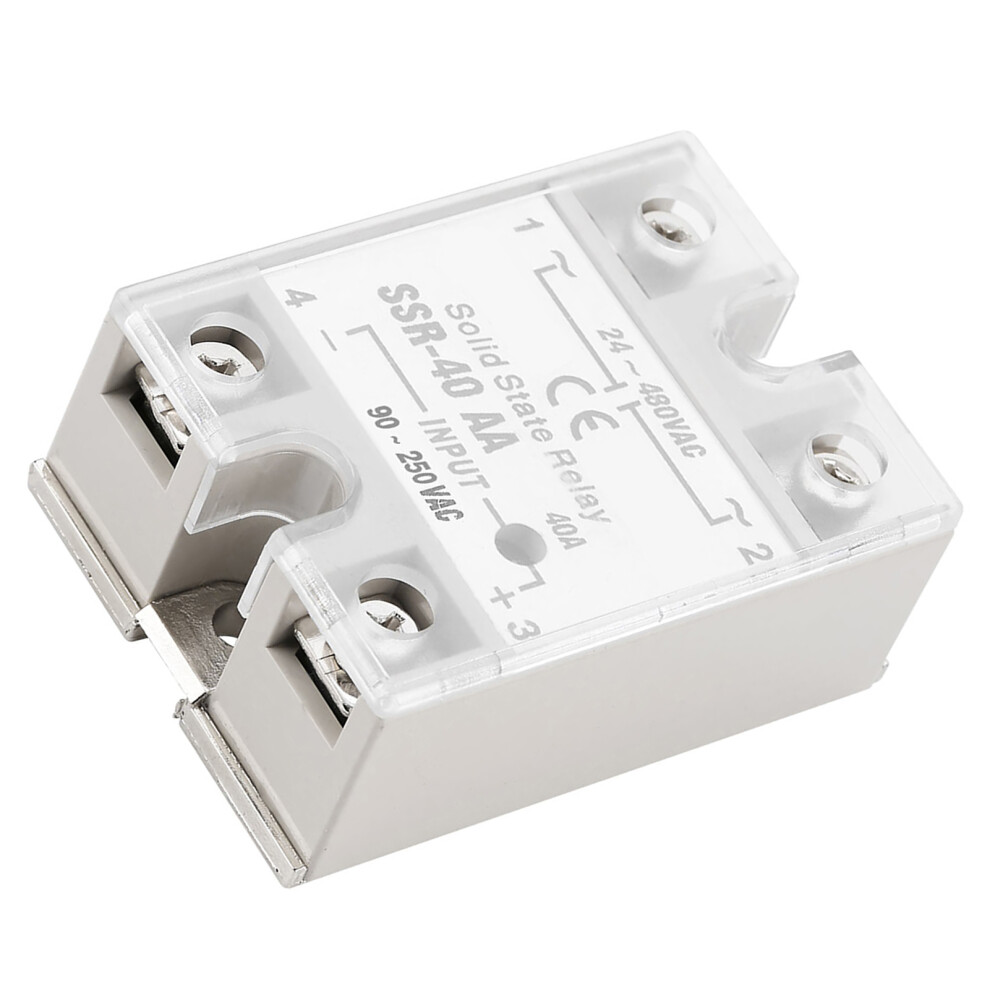

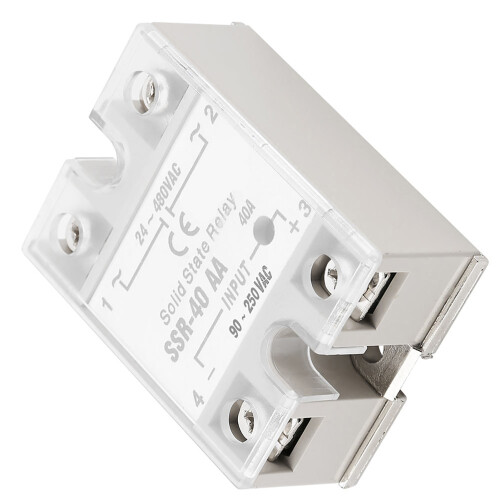

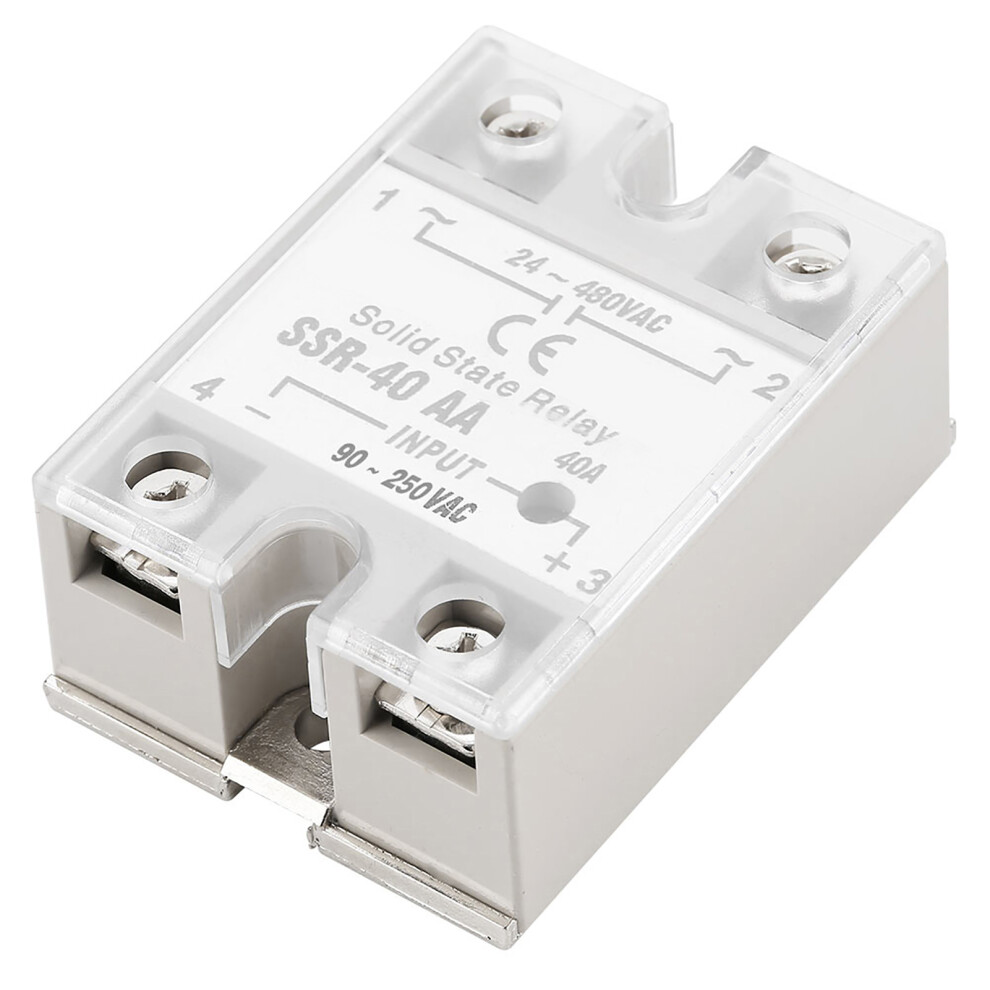

SSr 40AA 40A Solid State Relay Module AC-AC 24-480V Adjustable Controller

SSr 40AA 40A Solid State Relay Module AC-AC 24-480V Adjustable Controller Description

SSr 40AA 40A Solid State Relay Module AC-AC Input AC Output 24-480V AC
Features:


Opto-isolator is between the input circuit and the output circuit.



Pass load-current aging test. Get ec CE certification and international ISO9000 certification.


LED light displays the working status in real time.

Specification:
Material: Plastic+Metal
Color: Shown As Pictures
Weight: 124g
Type: Solid State Relays
Trigger Current: 40
Off Speed: Normal
Heat Dissipation Function: no heat sink
Power Characteristics: medium power
Rated Forward Average Current: 40
Frequency Characteristic: intermediate frequency
Maximum Stable Working Current: 40
Poles: 3 poles
Application: solid state
Pick-Up Current: 40
Control Mode: AC-AC
Load Current: 40A
Control Current: AC:12mA
On State Leakage Current: less than 2mA
General Antihypertensive: no more than 1.5V AC
Breaking Time: less than or equal to 10mS
Pressure Resistance: 2500V AC
Insulation Resistance: 500 mΩ / 500 VDC
Ambient Temperature: - 30 to + 75
Installation: Bolted
Work Instruction: LED
Package List:
1 x Solid State Relay
Note:It can only be used within 30% of 40a (12A) and a radiator should be added at the bottom.Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
