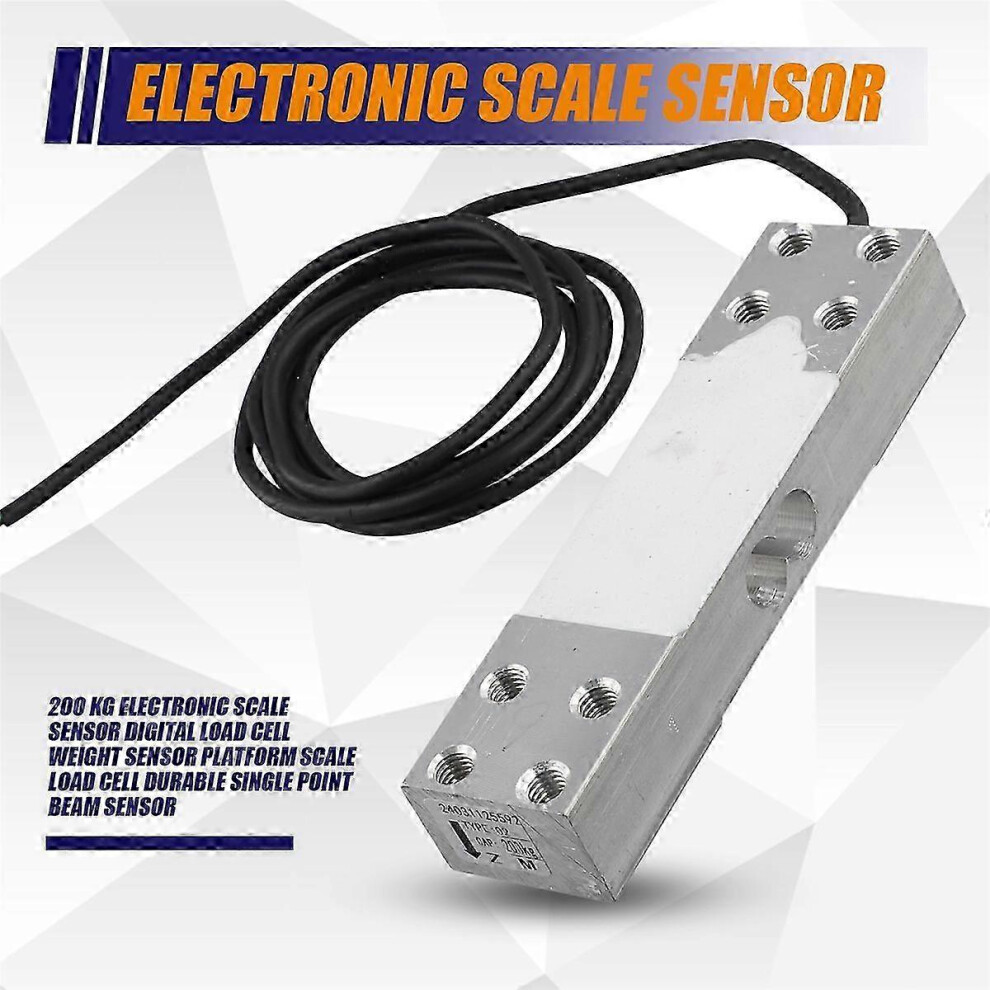

Stainless Steel 200kg Electronic Scale Sensor Digital Load Cell compatible with Accurate Weighing

Stainless Steel 200kg Electronic Scale Sensor Digital Load Cell compatible with Accurate Weighing Description

Stainless Steel 200kg Electronic Scale Sensor Digital Load Cell compatible with Accurate Weighing Comprehensive error: 0.02%F.S
Sensitivity: 1.0 +/- 0.1mv/v
Non-linearity: 0.02%F.S
Hysteresis: 0.02%F.S
Repeatability: 0.02%F.S
Creep: 0.02%F.S/10min
Zero output: +/- 2%F.S
Input impedance: 405 +/- 10 ohm
Output impedance: 350 +/- 3 ohm
Insulation resistance: greater or equal to 5000M ohm(100VDC)
Excitation voltage: 5VDC~12VDC
Temperature compensation range: 10~+40
Operating temperature range: -20~+60
Influence of zero temperature: 0.03%F.S/10
Sensitivity temperature influence: 0.02%F.S/10
Safe overload range: 120%
Limit overload range: 150%
Protection level: IP65
Colour: silver
Material: aluminum alloy
Package Contents:
1 * Electronic platcompatible withm scale
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
