  5. Stainless Steel S Type Load Cell 10kg M8x1.25 Tension Compression Sensor

Sorry, this item is temporarily out of stock.

Stainless Steel S Type Load Cell 10kg M8x1.25 Tension Compression Sensor

New
£36.53

Similar Products we think you'll like

Laboratory Scales
Digital Scales 0.01g 200g Grams Jewellery Gold Weighing Mini PocketDigital Scales 0.01g 200g Grams Jewellery Gold Weighing Mini Pocket
£6.99FREE Delivery
Kabalo - 500g x 0.1g Mini Digital Pocket Scale Gram Jewellery, Backlit LCD Screen - with 1yr warranty!Kabalo - 500g x 0.1g Mini Digital Pocket Scale Gram Jewellery, Backlit LCD Screen - with 1yr warranty!
£4.45FREE Delivery
50G/0.001G Milligram Scale,Milligram Precision Scale,MG, Pocket Scale,Laboratory Scale with LCD Display, Scale50G/0.001G Milligram Scale,Milligram Precision Scale,MG, Pocket Scale,Laboratory Scale with LCD Display, Scale£15.56FREE Delivery
Dog Weight Scale Electronic Cat 15kg Multi-PurposeDog Weight Scale Electronic Cat 15kg Multi-Purpose£18.89FREE Delivery
30/0.001g High-precision Electronic Gigital Carat Scale Laboratory Lipstick Diamond Jewelry Scales30/0.001g High-precision Electronic Gigital Carat Scale Laboratory Lipstick Diamond Jewelry Scales
£12.35FREE Delivery
Digital Milligram Scale, 50g Precision Scale with 0.001g AccuracyDigital Milligram Scale, 50g Precision Scale with 0.001g Accuracy£8.27FREE Delivery
DS750 Digital Reloading Scale with LCD Display for Reloading, Weighing, ScaleDS750 Digital Reloading Scale with LCD Display for Reloading, Weighing, Scale£15.12FREE Delivery
Triton T3R Rechargeable Scale 500g x .01gTriton T3R Rechargeable Scale 500g x .01g£26.53FREE Delivery
(As show, One size) Digital Force Gauge 500n/ 50kg/ 110lb/ 1760oz Portable Push Pull Force Meter Unit Switchable Backlit Mini Dynamometer With 6 Fixture Heads, Storage CaMultiple Options Available(As show, One size) Digital Force Gauge 500n/ 50kg/ 110lb/ 1760oz Portable Push Pull Force Meter Unit Switchable Backlit Mini Dynamometer With 6 Fixture Heads, Storage Ca£74.72FREE Delivery
Platform Scale Commercial Weighing Scales LED Display Pallet Parcel Weigh ScalesPlatform Scale Commercial Weighing Scales LED Display Pallet Parcel Weigh Scales£564.99FREE Delivery
DY510 4-20mA Load Cell Weighing Sensor Transducer Transmitter Amplifier Signal AmplificationDY510 4-20mA Load Cell Weighing Sensor Transducer Transmitter Amplifier Signal Amplification£42.37FREE Delivery
Digital Milligram 50g/0.001g Precision Mini Scale – Jewelry/Gold Scale with 5-Unit Display, Tare, PCS, Wind ShieldDigital Milligram 50g/0.001g Precision Mini Scale – Jewelry/Gold Scale with 5-Unit Display, Tare, PCS, Wind Shield£25.99FREE Delivery
High Accuracy Jewelry Scale 1000g/0.01g PortableHigh Accuracy Jewelry Scale 1000g/0.01g Portable£19.44FREE Delivery
100Kg 220Lbs Hanging Scale Capacity Alloy Mechanical Scales with 2 Hook100Kg 220Lbs Hanging Scale Capacity Alloy Mechanical Scales with 2 Hook£21.68FREE Delivery
Digital Scale 1000g x 0.1g Jewelry Pocket Gold SilDigital Scale 1000g x 0.1g Jewelry Pocket Gold Sil£8.94FREE Delivery
Fine Scale 0.001G, Digital Milligram Scale 50G / 0.001G, Digital Pocket Scale with LCD Display, LabFine Scale 0.001G, Digital Milligram Scale 50G / 0.001G, Digital Pocket Scale with LCD Display, Lab£30.18FREE Delivery
Hanging Scale, Digital Crane Scale 1000KG, Industrial Heavy Duty LED Indication, BlueHanging Scale, Digital Crane Scale 1000KG, Industrial Heavy Duty LED Indication, Blue£66.92FREE Delivery
Pocket Digital Scales Jewellery Gold Weighing Mini LCD 0.1g 500g GramsPocket Digital Scales Jewellery Gold Weighing Mini LCD 0.1g 500g Grams£5.50FREE Delivery
13 Units Conversion Lab Analytical Balance Digital High Precision Scale for Beginners DIY Use 3000g13 Units Conversion Lab Analytical Balance Digital High Precision Scale for Beginners DIY Use 3000g£89.37FREE Delivery
Digital Pet Scale 10000g/1g Precision, Mini ABS White Backlit LCD, Small Pet Scale for Cats, Puppies, Hamsters (10kg Max)Digital Pet Scale 10000g/1g Precision, Mini ABS White Backlit LCD, Small Pet Scale for Cats, Puppies, Hamsters (10kg Max)£17.45FREE Delivery
Dual Platform Kitchen Scale, [10Kg/1G] Weighing Scales Kitchen, High Precision with LCD DisplayDual Platform Kitchen Scale, [10Kg/1G] Weighing Scales Kitchen, High Precision with LCD Display£21.04FREE Delivery
Add to Basket
Description & Details

Summary

  • S TYPE: The S type is a common force sensor shape, which has a simple structure, and convenient for installation.
  • HIGH ACCURACY: This load cell sensor has large contact area, high measurement accuracy, usually used for measuring light and medium loads.
  • STABLE AND RELIABLE: The tension and compression sensor has good linearity and high stability, ensuring long term reliable performance.
  • STAINLESS STEEL MADE: This load sensor is made of stainless steel material, which is sturdy and firm, hard to rust or corrode, ensuring service life.

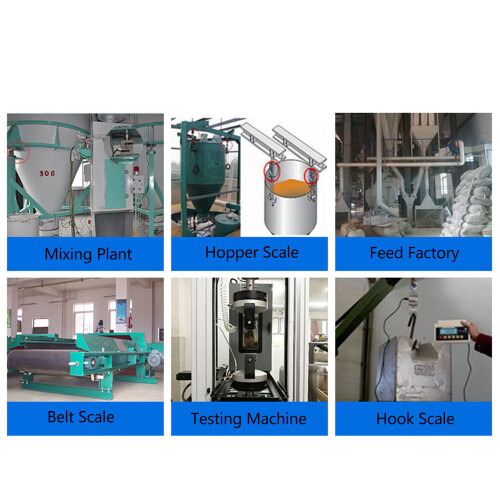

  • WIDE APPLICATION: Suitable for mechanical manufacturing industries such as machine tool, petrochemical industries, steel metallurgy such as casting, aerospace industries such as airplane.

Stainless Steel S Type Load Cell 10kg M8x1.25 Tension Compression Sensor Description

S Type Load Cell Weight Sensor M8x1.25 Stainless Steel Pull Pressure Compression and Tension Force Sensor 10KG
Item Type: S Type Load Cell
Material: Stainless Steel
Model: DYLY 103
Sensitivity: 2.010%mV/V
Non Linearity: 0.03% F.S.
Lag: 0.03% F.S.
Repeatability: 0.03% F.S.
Creep (30 Minutes): 0.03% F.S.
Zero Point Output: 1% F.S.
Zero Temperature Coefficient: 0.03% F.S./10
Sensitivity Temperature Coefficient: 0.03% F.S./10
Working Temperature Range: -20 to +80
Impedance: 350Ω
Safety Overload: 150%
Insulation Resistance: 5000MΩ/100VDC
Recommended Excitation Voltage: 5V-15V
Thread: M8x1.25

Details

OPC PPXCHXM
Codes 8321376466248 (EAN)

Product Images

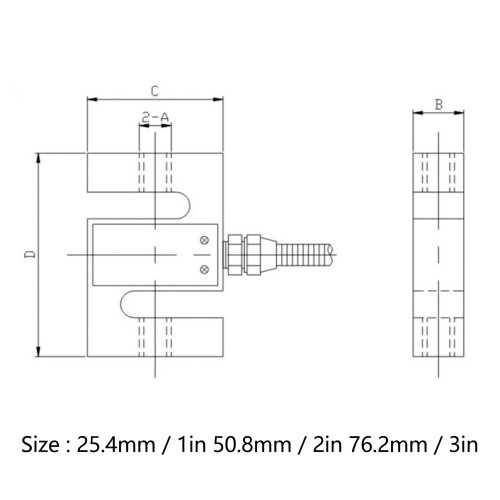

Stainless Steel S Type Load Cell 10kg M8x1.25 Tension Compression Sensor 1
Stainless Steel S Type Load Cell 10kg M8x1.25 Tension Compression Sensor 2
Stainless Steel S Type Load Cell 10kg M8x1.25 Tension Compression Sensor

Sorry, this item is temporarily out of stock.

Stainless Steel S Type Load Cell 10kg M8x1.25 Tension Compression Sensor

New
£36.53
