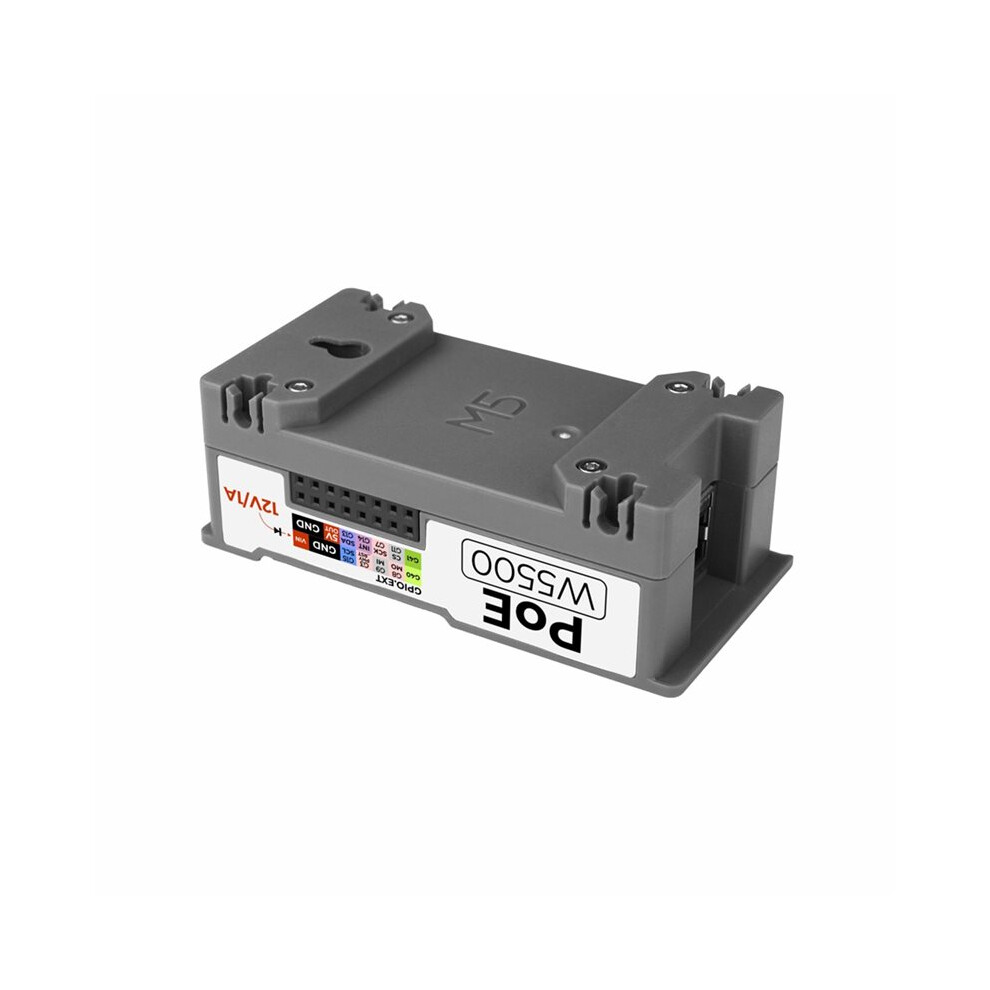

StamPLC PoE Ethernet Control PoE Module for StamPLC, Built-in W5500 Embedded Ethernet Controller, Support PoE

StamPLC PoE Ethernet Control PoE Module for StamPLC, Built-in W5500 Embedded Ethernet Controller, Support PoE Description

StamPLC PoE is an Ethernet control module adapted to StamPLC hosts, supporting PoE (Active Ethernet) technology, enabling simultaneous data transmission and power supply via network cable.

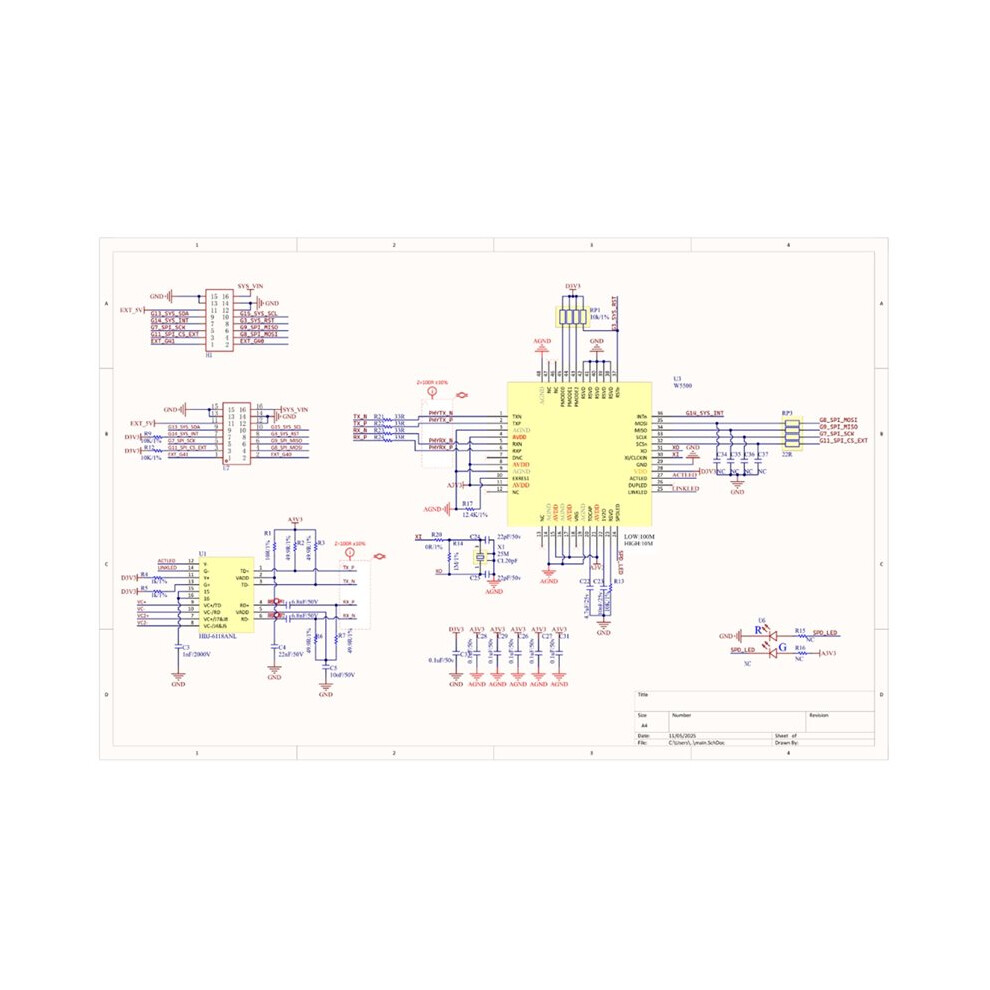

This module integrates a W5500 embedded Ethernet controller with a TCP/IP protocol stack, featuring 8 independent hardware sockets, a 10/100M Ethernet data link layer () and physical layer (PHY), and supports mainstream network communication methods such as UDP and TCP.
The module connects to the network via an RJ45 interface and communicates with the StamPlC host via an SPI interface. It is suitable for scenarios with high requirements for network stability and real- performance, such as wired network access applications in industrial automation production lines and and power distribution monitoring.
Specifications:

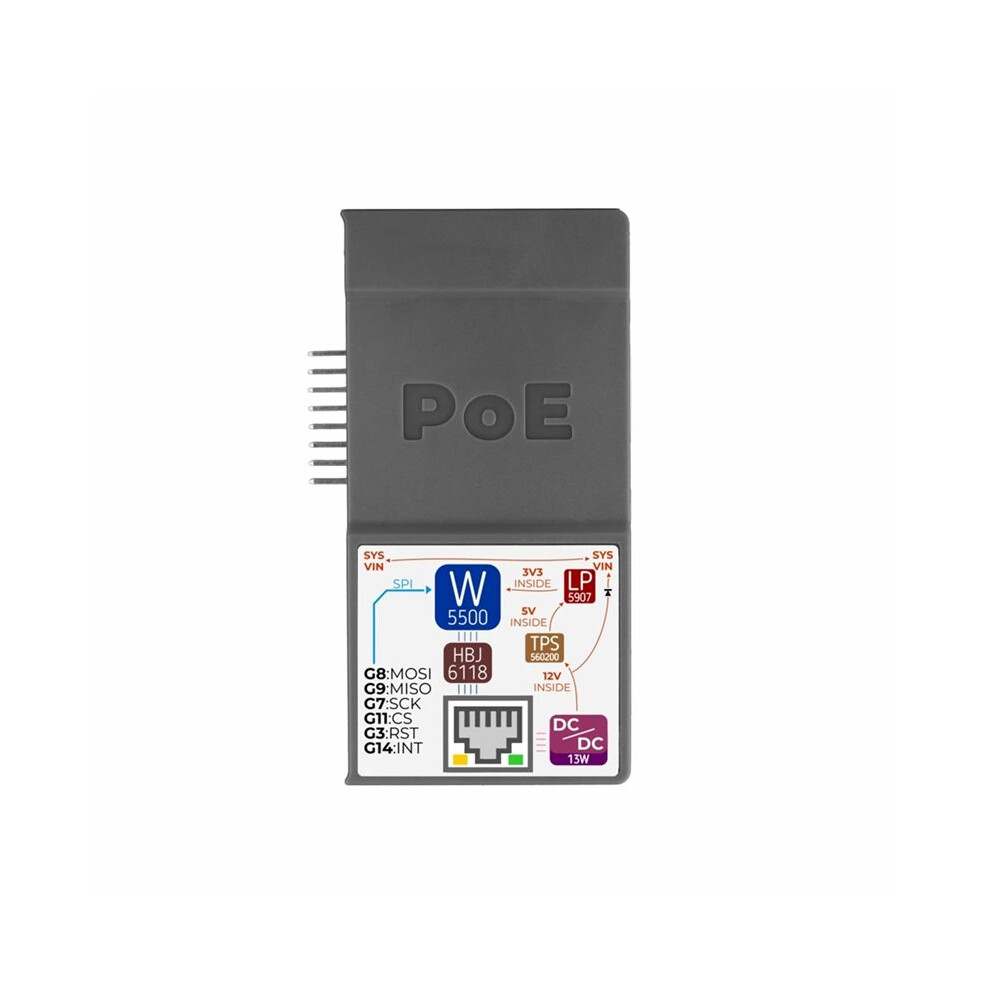

Communication Method: SPI Communication
Ethernet Controller: W5500
Ethernet Rate: 10/100M Auto-sensing
Power Supply: PoE/ 12V/ 5V
Hardware Socket Quantity: 8 independent hardware sockets
Supported Protocols: TCP/UDP/ICMP/IPv4/ARP/IGMP/PPPoE
PoE Features: Compliant with IEEE 802.3af standards, supports 37~57V wide voltage input
PoE Power: Maximum 13W

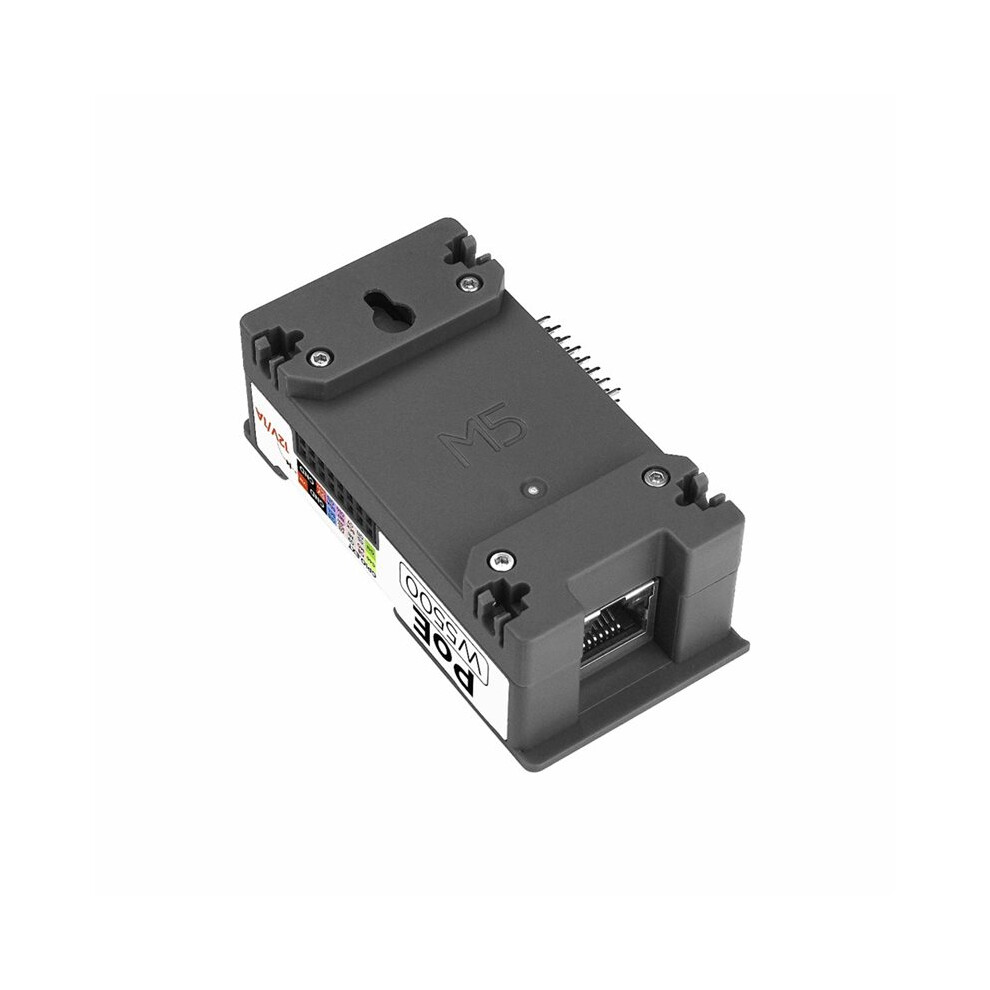

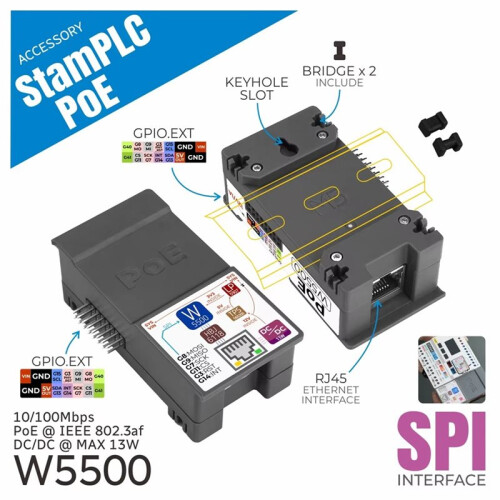

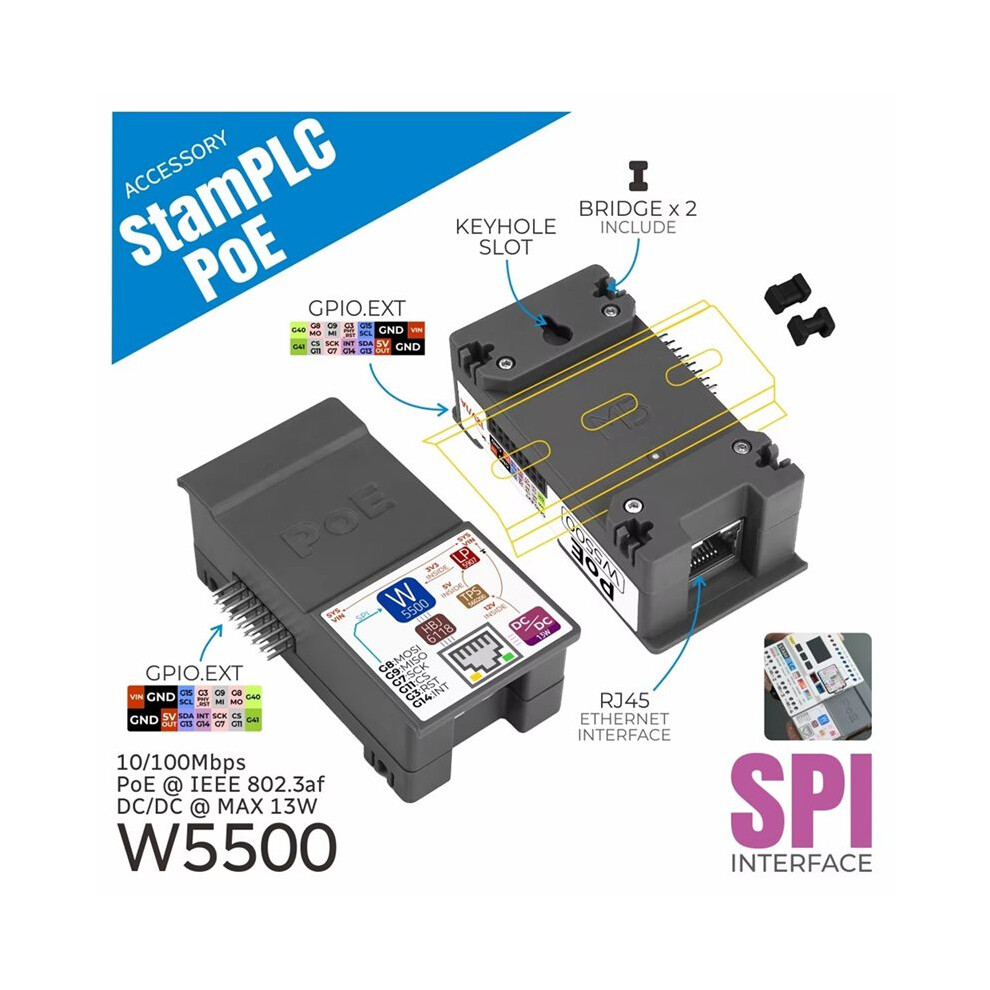

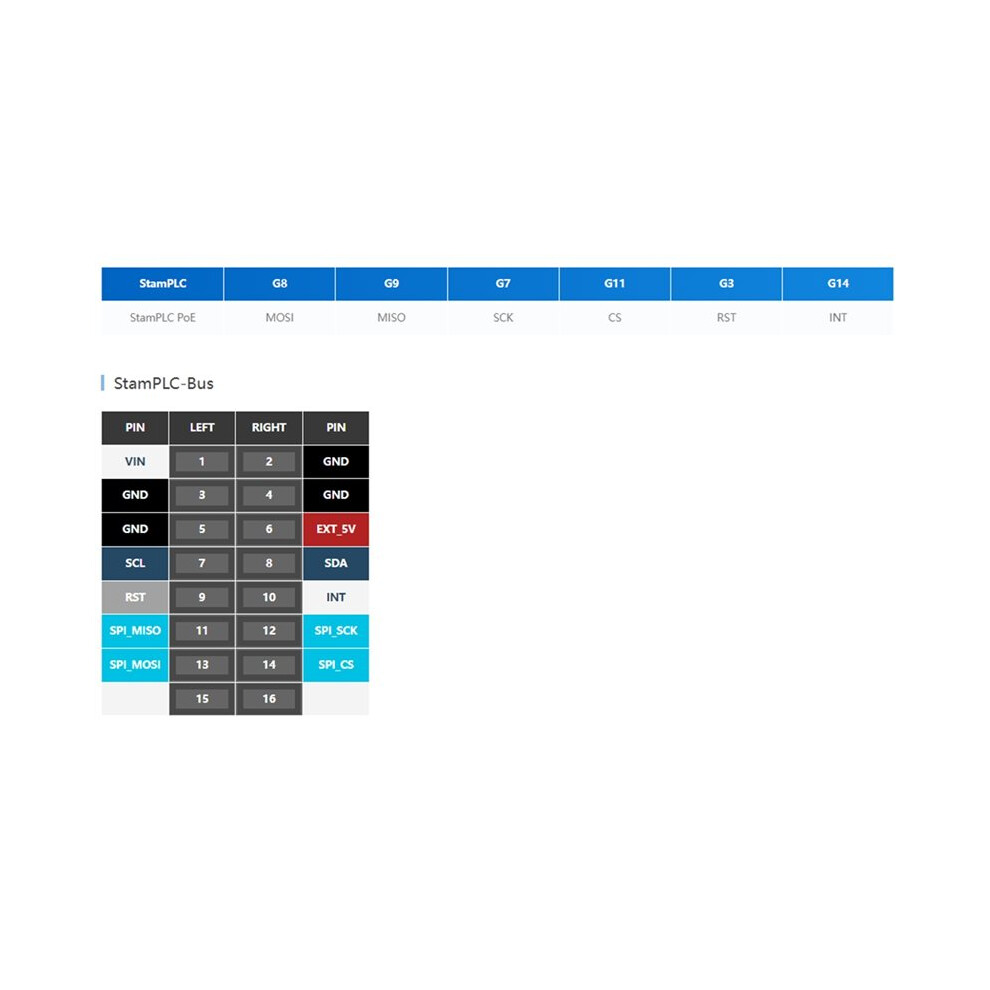

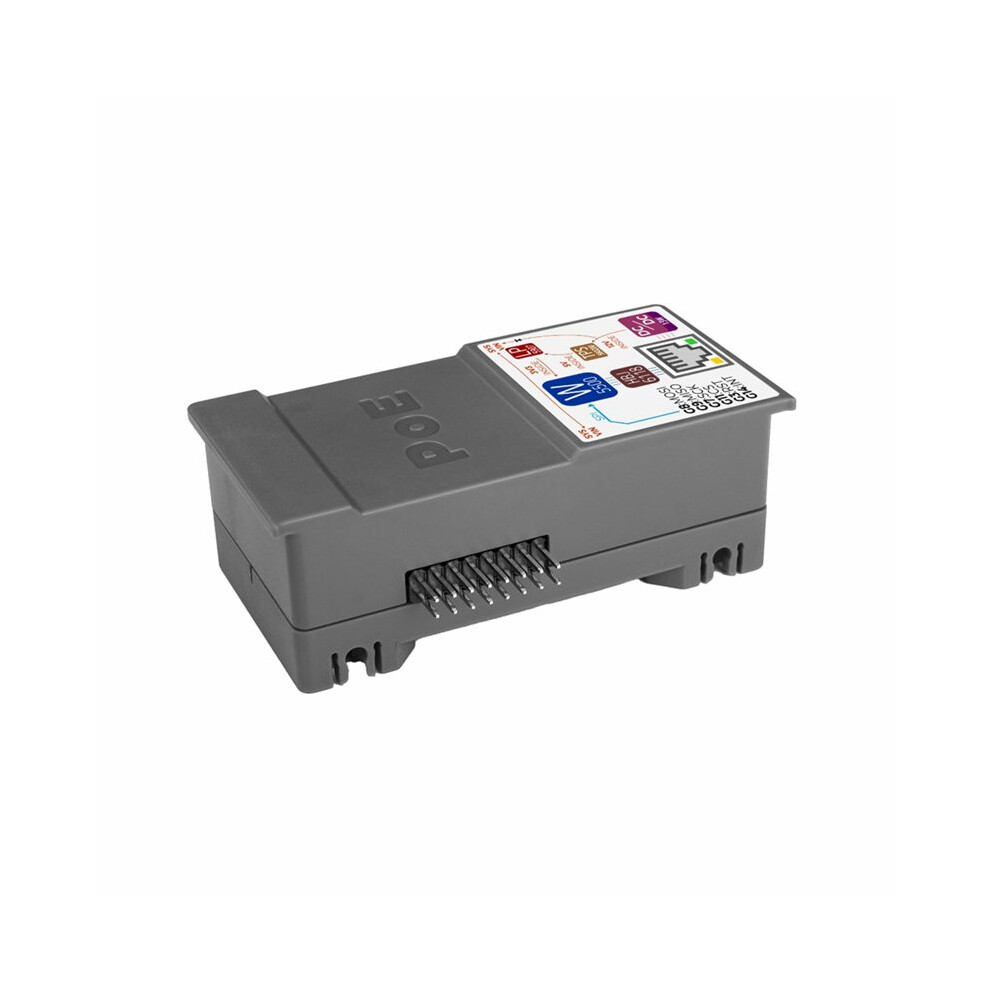

Interface Type: 2x8P 2.54mm pin headers/female headers, RJ45 Ethernet interface
/PHY: Integrated 10/100M & PHY
Mounting Method: DIN rail mounting/mounting hole

Applications:
Automated production lines
Building centralized control systems
and power distribution monitoring
Data center and communication equipment management
Color: As Shown
Material: plastic

Package Contents:
1 * StamPLC PoE
