(Standard Photocell) Occupancy Sensor PIR Motion Light Switch Ceiling Recessed Wall Long Short Range

(Standard Photocell) Occupancy Sensor PIR Motion Light Switch Ceiling Recessed Wall Long Short Range Description

Occupancy Sensing switches are commonly used to control lighting and extract ventilation. They will save energy by ensuring lights and fans are not left on. The energy savings will be high with a short energy-saving investment payback time if connected to average energy level lightings such as fluorescent tubes, or compact fluorescent lamps. Higher savings if controlling tungsten or halogen lighting. In a domestic application, these products are well suited to rooms such as integral garages, storerooms, toilets, or any other room where lighting may accidentally be left turned on.

Potential energy savings in commercial property will be far greater with shorter payback times, generally less than one year.  This product is ideally suited to circulation areas, storerooms, toilets, kitchens, common stairs wells, or corridors where there are frequently people passing in and out of an area and the lighting often gets left on all day.

Payback is the time it takes for an investment in energy conservation to repay its cost in energy savings.

PIR Light Switch Wall, 200W - no neutral - 2 wire connection

Technical Specification

• Operating voltage:180 to 250 V AC
• Power consumption:<0.02W
• Load power:200W max incandescent lights, max 35W for CFL energy saving lights
• Delay time: set at around 30 seconds but lighting will stay on as long as movement is detected within range of the sensor
• Brightness sensitivity:10 Lux ± 20% so that lighting will be turned off during full day lighting
• Induction distance:5~8m.
• Induction angle: about 115 °
• Size: 86*86*30mm (standard single wall switch size)
• Wire connections needed: 2 wire  NO NEUTRAL

Technical Specification

• Power Source: 220-240V/AC
• Detection Range: >140°
• Working Temperature:-20~ 40 deg C, Working Humidity:<93%RH
• Ambient Light:3-2000 LUX (adjustable)
• Time-Delay : min:10 sec ± 3 sec Max:7 min ± 2min
• Installation Height: 0.4m -1.8m
• Power Consumption: 0.45W (working) 0.1W (static)
• Max Rated Load: 500w (incandescent lamp) 125W Max (energy-saving lamp)
• Detection Motion Speed: 0.6-1.5m/s
• Detection Distance: 10m max (
• 79mm x 79mm square, 32mm deep (min 35mm deep backbox)
• On/ Off and PIR operation settings
• Wire connections needed: 2 wire NO NEUTRAL

Sleek 200w Wall Mounted

Technical Specification

• Operating voltage: 100v - 250v/AC
• Power consumption: <0.5W
• Load power: 200w Max (220-240V/AC), for resistive lighting e.g. Halogen 40W Max load for CFL/ LED/ Fluorescent lighting
• Adjustable time delay : 5 seconds ~ 8 minutes (adjustable), but lighting will stay on as long as movement is detected within range of the sensor
• Induction distance:5~8m
• Induction angle: about 115 °
• Size: 86 x 86 x 30mm (standard single wall switch size)
• Two wire only - Live in & Live out

Ceiling Mounted PIR 1200w

Technical Specification

• Power Source: 220 -240V AC
• Detection Range: 360°
• Working Temperature: -20 - 40 deg C, Working Humidity: <93%RH
• Ambient Light: 3-2000 LUX (adjustable)
• Time-Delay: min: 10 sec ± 3 sec - Max: 7 min ± 2min
• Installation Height: 2.2-4m
• Power Consumption: 0.45W (work), 0.1W (static)
• Rated Load: 1200W (incandescent lamp)/ 300W (energy-saving lamp)
• Detection Motion Speed: 0.6 ~1.5m/s, detection distance: 6m max (24 deg C)
• Wire connections needed: 3 wire

Ceiling Recessed PIR 1200W

Technical Specification

• Power Sourcing: 220 - 240V AC
• Working Temperature: -20~ 40 deg C, Working Humidity: <93%RH
• Ambient Light: 3-2000 LUX (Adjustable)
• Time-Delay: min.10 sec ± 3 sec - Max.7 min ± 2min
• Installing Height: 2.2m~4m
• Power Consumption: 0.45W (work), 0.1W (static)
• Rated Load: 1200W (incandescent lamp), 300W (CFL energy-saving lamp)
• Detection Motion Speed: 0.6~1.5m/s
• Detection Distance: 6m max (
• Wire connections needed: 3 wire

Wall Mounted PIR, 1200W

Technical Specification

• Power Source: 220V/AC-240V/AC
• Working Temperature: -20 - 40 deg C, Working Humidity: <93%RH
• Ambient Light:3-2000LUX (adjustable)
• Time-Delay: min:10sec±3sec - max:7min±2min
• Installation Height: 1.8m~2.5m, Detection Range: 180º
• Power Consumption: 0.45W (work), 0.1W(static)
• Rated Load: 1200W (incandescent lamp) - 300W Max (CFL energy-saving lamp)
• Detection Moving Speed: 0.6~1.5m/s
• Detection Distance: 12m max(
• IP44 ingress protection, water resistant
• Wire connections needed: 3 wire
• AVAILABLE IN WHITE & BLACK

• Operating voltage:220-240V AC
• Detection Range: 360 degree sphere
• Detection distance 1-8m (radius) adjustable
• HF System: 5.8Ghz CW radar, ISM Band
• Power consumption: 0.9W
• Installation height: 1.5-3.5M
• Time Delay: 10 sec +/- 3 sec to 12 minutes +/- 1 min
• Rated Load 1200 incandescent or halogen lights, Max 300w for fluorescent lights.
• Dimension: 90 ×46 x 45mm
• CE marked, individually boxed and with instructions.
• Wire connections needed: 3 wire
• Can be Concealed within a thin wall or in a cupboard/ above ceiling

Micro PIR Sensor

Technical Specification

• Operating voltage:220-240V AC
• Detection Angle: 100 degree
• Detection distance 8m (radius) adjustable
• Lux level:
• Time Delay: 5 sec, 30 sec, 1 min, 3 min, 5 min & 8 min (adjustable)
• Rated Load 800w tungsten, 200w fluorescent lights.
• Dimensions: Sensor: 10 x 22mm. Unit 55 x 25 x 35mm
• CE marked, individually boxed and with instructions.
• Wire connections needed: 3 wire
• Can be Concealed within a thin wall or in a cupboard/ above ceiling

Long Range Slimline Ceiling Mounted PIR 2000w

Technical Specification

• Power Source: 220 -240V AC
• Detection Range: 360°
• Detection Range: 16m max - diameter
• Working Temperature: -20 - 40 deg C, Working Humidity: <93%RH
• Ambient Light: 3-2000 LUX (adjustable)
• Time-Delay: min: 7 sec ± 3 sec - Max: 8 min ± 2min
• Installation Height: >1.5m - 3.5m
• Power Consumption: 0.45W (work), 0.1W (static)
• Rated Load: 2000W (incandescent lamp) / 500W (energy-saving lamp)
• Detection Motion Speed: 0.6 ~1.5m/s, detection distance: 6m max (24 deg C)
• IP20
• Wire connections needed: 3 wire

Long Range Wall Mounted PIR 800w

Technical Specification

• Power Source: 220 -240V AC
• Detection Range: 180°
• Working Temperature: -20 - 40 deg C, Working Humidity: <93%RH
• Ambient Light: 3-2000 LUX (adjustable)
• Time-Delay: min: 5 sec ± 5 sec - Max: 8 min ± 2min
• Installation Height: 1.8m  - 2.5m
• Power Consumption: 0.45W (work), 0.1W (static)
• Rated Load: 800W (incandescent lamp)/ 200W (energy-saving lamp)
• Detection Motion Speed: 0.6 ~1.5m/s, detection distance: 6m max (24 deg C)
• IP44
• Wire connections needed: 3 wire

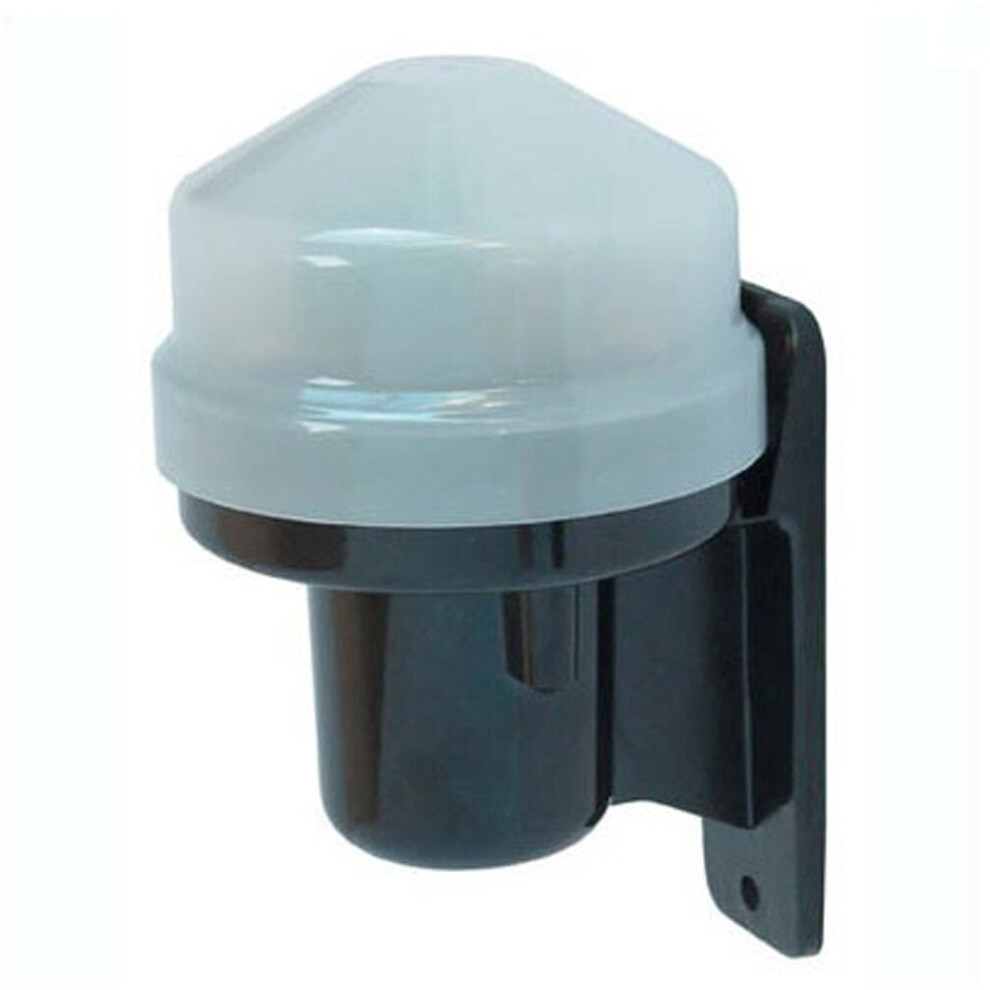

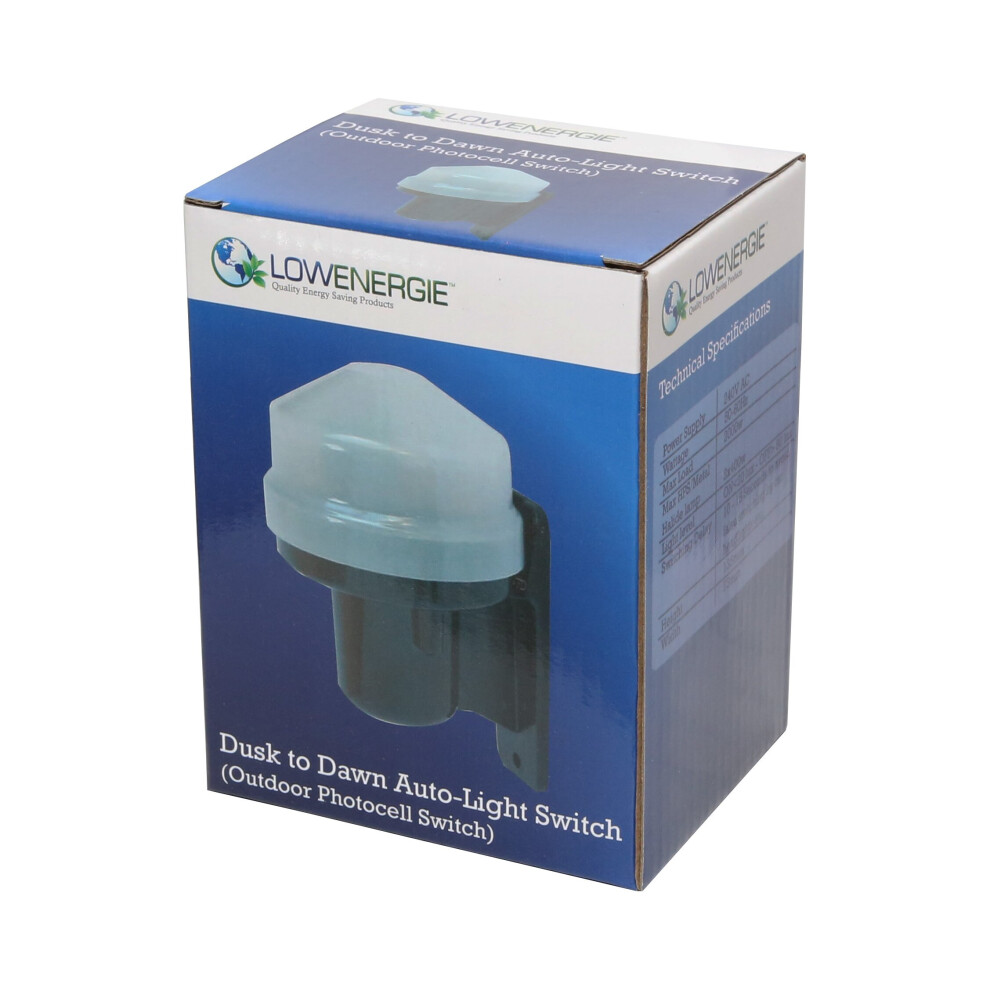

Photocell timer switch

• Voltage - 105-305v
• Maximum Load - 16A Relay rating, typical 1000 watt tungsten, 1800VA.HID
• Guaranteed operation, 5000 operations minimum
• Delay Time, 20 to 30 seconds
• Operating temperature -30 degC to +70 degC
• Average Power consumption
• Materials, Cover: PP UV stabilized, Contacts: Brass
• Suitable for outdoor usage
• Height: 135mm; Width: 85mm
• Full warranty against defects in material and workmanship for 1 year from date of purchase.
• CE Marked, RoHS Approved

Please be aware you are purchasing the correct sensor for your requirements

To comply with all UK building regulations any electrical work should be carried out by a UK certified electrician.

All electricity should be switched off prior to any electrical work being carried out.

Low Energy Supermarket accepts no responsibility for any electrical item purchased being installed and any item is fitted at owners risk
