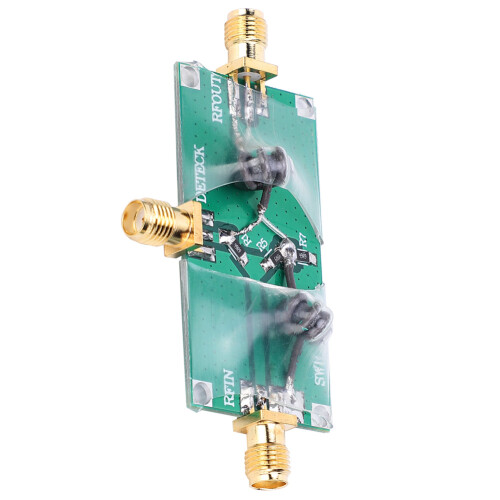

Standing Wave Ratio Bridge 10-3000MHz RF Reflective Bridge Plastic Electronic Tool
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 129,000 Trustpilot reviews and an 'Excellent' rating
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Thu 23rd - Sat 25th Jul
Returns: 30 days
180-day payment protection
Most Popular in Circuit Board Hardware
Summary
- This bridge is a sensor for measuring reflection coefficient, used for radio frequency network measurement, output reflection signal amplitude and phase information
- Standing wave ratio bridge possess the features of wide frequency and high directivity
- The simple application of this bridge can be combined with a radio frequency spectrum analyzer or a frequency sweeper with a tracking source, which can measure the return loss of the device and the reflection of the entire frequency band
- If combined with a vector voltmeter or a vector voltage measurement device and a signal source, the vector impedance of the circuit can be accurately measured, and the test and debugging of the RF matching circuit can be completed
- Widely used in antenna measurement and debugging, measurement and debugging of radio frequency circuit and radio, television and communication equipment, etc.
Standing Wave Ratio Bridge 10-3000MHz RF Reflective Bridge Plastic Electronic Tool Description
Standing Wave Ratio Bridge RF Reflective Bridge 10‑3000MHz Sensor Plastic Electronic Components
Item Type: Standing Wave Ratio Bridge
Model: 10-3000MHz
Material: Plastic
Frequency Range: 1MHz3GHz (1MHZ-2.6GHZ is relatively flat)
Characteristic Impedance: 50Ω
Directivity: 30dB
Maximum Input Power: 0.2W
Details
| OPC | PSWRCWJ |
|---|---|
| Codes | 8461392286533 (EAN) |
