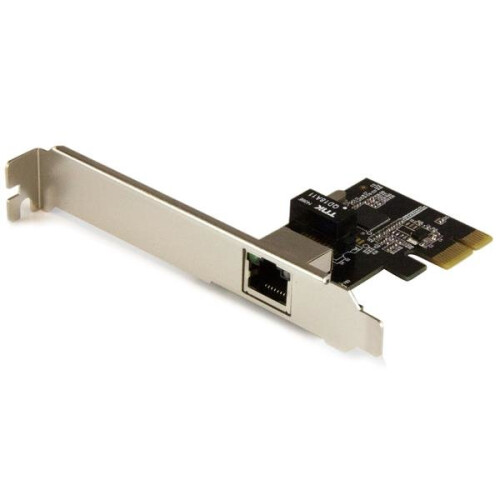

StarTech.com 1-Port Gigabit Ethernet Network Card - PCI Express, Intel I210 NIC

StarTech.com 1-Port Gigabit Ethernet Network Card - PCI Express, Intel I210 NIC Description

Boost the performance and capabilities of your server or desktop computer by adding a Gigabit Ethernet port through a PCI Express slot, to help deliver a high-performance and cost-effective network solution.

The performance and reliability you demand in network connectivity
This Gigabit Ethernet network card utilizes the Intel I210-AT chipset, designed to deliver the power, performance and enhanced capabilities you need for dependable network connections to your server or computer. Compliant with IEEE 802.3/u/ab standards, the network card provides an effective upgrade or replacement network port with maximum throughput up to 1000Mbps in each direction (2000 Mbps total) - up to ten times faster than 10/100 Ethernet.

The I210 chipset provides many advanced features to support load-balancing the flow of network traffic, to enhance throughput and provide greater data reliability. It also supports Audio-Video Bridging (AVB) to enable tightly controlled media stream synchronization, buffering and resource reservation.

A versatile and cost-effective solution
Compatible with a broad range of operating systems, this versatile PCIe Gigabit NIC is ideal for many business applications requiring upgrades to servers or workstations, adding feature-rich Gigabit networking. It's a cost-effective way to upgrade your server or computer from a 10/100 Ethernet port to a Gigabit Ethernet port, or add an Ethernet port to take advantage of advanced features such as VLAN tagging, Jumbo Frames, Wake-On LAN and Auto MDIX.

Easy installation
With a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card comes equipped with a full-sized bracket, and includes a low profile/half-height installation bracket that you can use as needed. The ST1000SPEXI is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Ports & interfaces Internal Yes Ethernet LAN (RJ-45) ports 1 Interface Ethernet Host interface PCI-E Connectivity technology Wired Bandwidth Full duplex Yes Data transfer rate (max) 2000 Mbit/s Networking VLAN tagging Yes Chipset Intel I210-AT Ethernet LAN Yes Cabling technology 10/100/1000BaseT(X) Networking standards IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x Jumbo frames support Yes Ethernet LAN data rates 10,100,1000 Mbit/s Technical details Colour of product Black, Metallic Wake-on-LAN ready Yes Auto MDIX IEEE Yes Software Windows operating systems supported Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 Linux operating systems supported Yes Indication LED indicators Activity Design Colour of product Black, Metallic LED indicators Activity Performance Server operating systems supported Windows Server 2003, Windows Server 2003 x64, Windows Server 2008 R2, Windows Server 2012 Wake-on-LAN ready Yes Auto MDIX IEEE Yes Windows operating systems supported Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 Linux operating systems supported Yes Auto-negotiation Yes Packaging data Package width 14.2 cm Package depth 17 cm Package height 3 cm Package weight 104 g Weight & dimensions Width 6.6 cm Depth 12 cm Height 1.8 cm Package width 14.2 cm Package depth 17 cm Package height 3 cm Package weight 104 g Weight 35 g Certificates Certification CE, FCC RoHS compliance Yes Operational conditions Operating temperature (T-T) 5 - 50 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 20 - 80% Packaging content Mounting brackets included Yes Manual Yes
