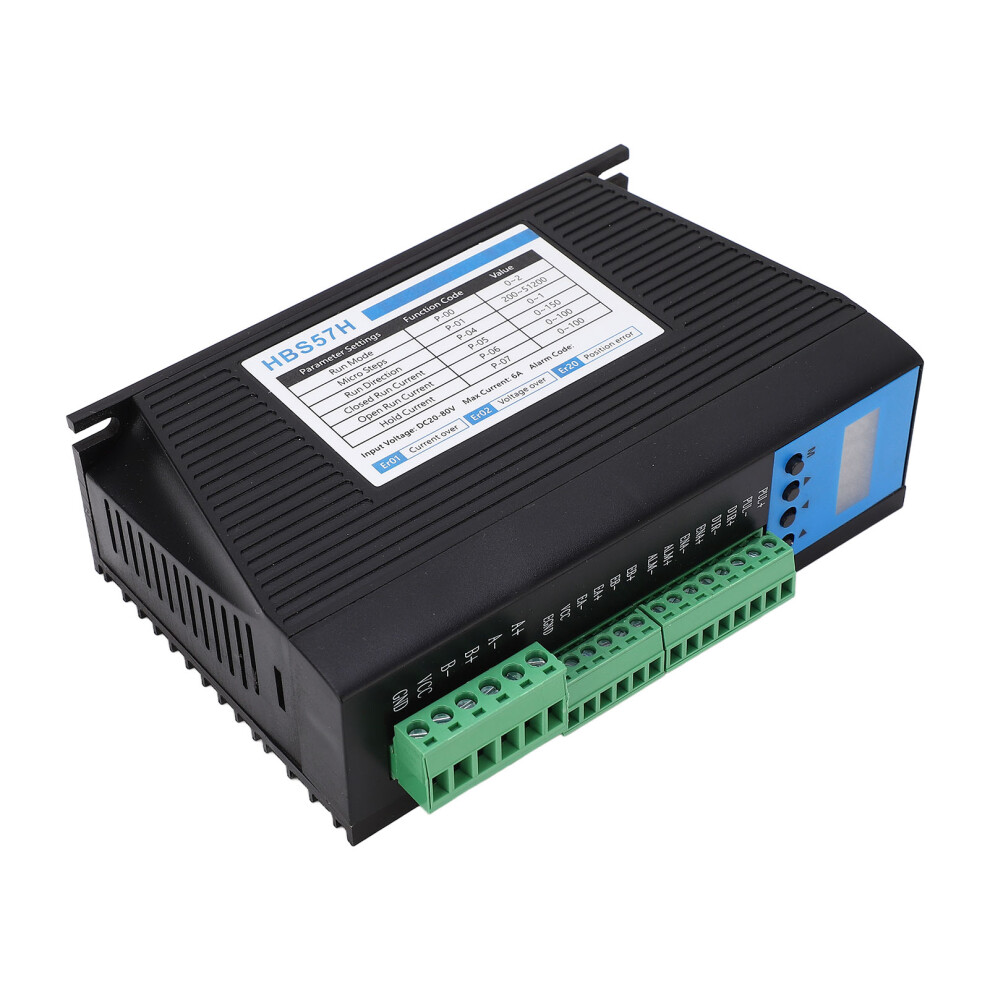

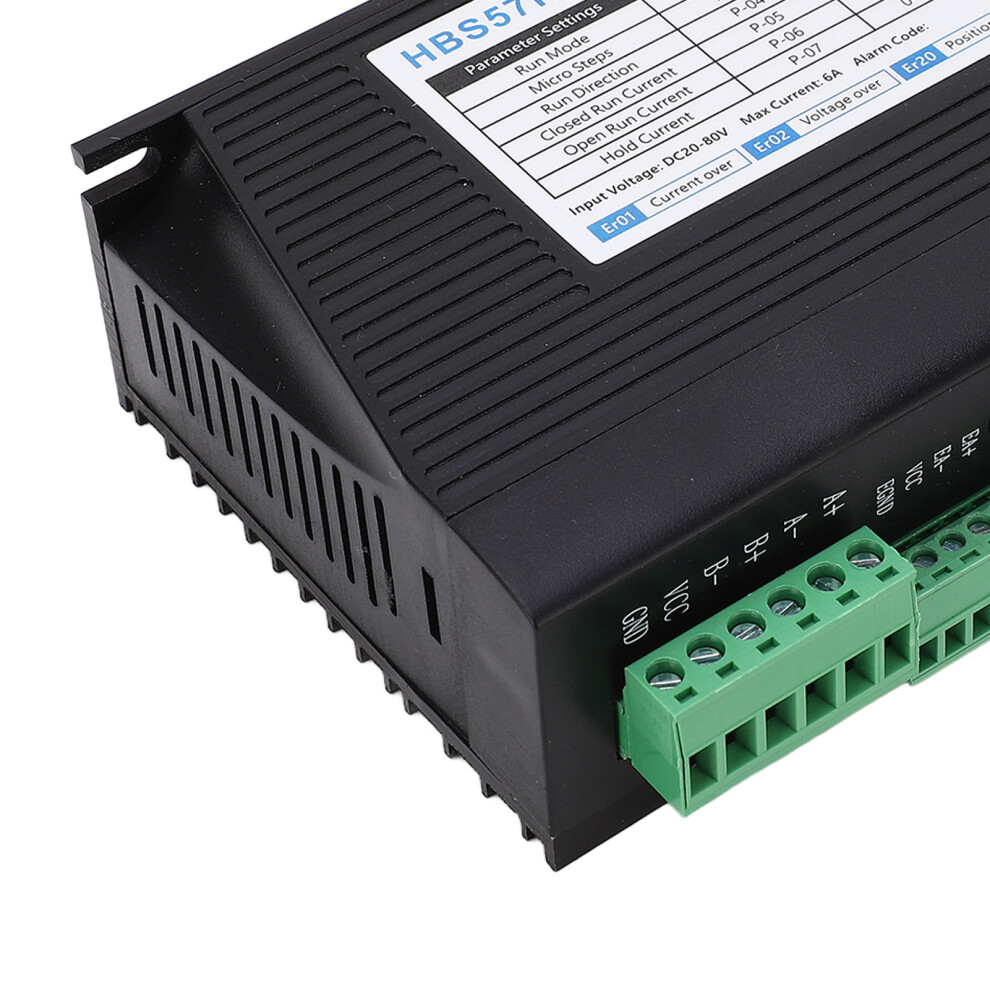

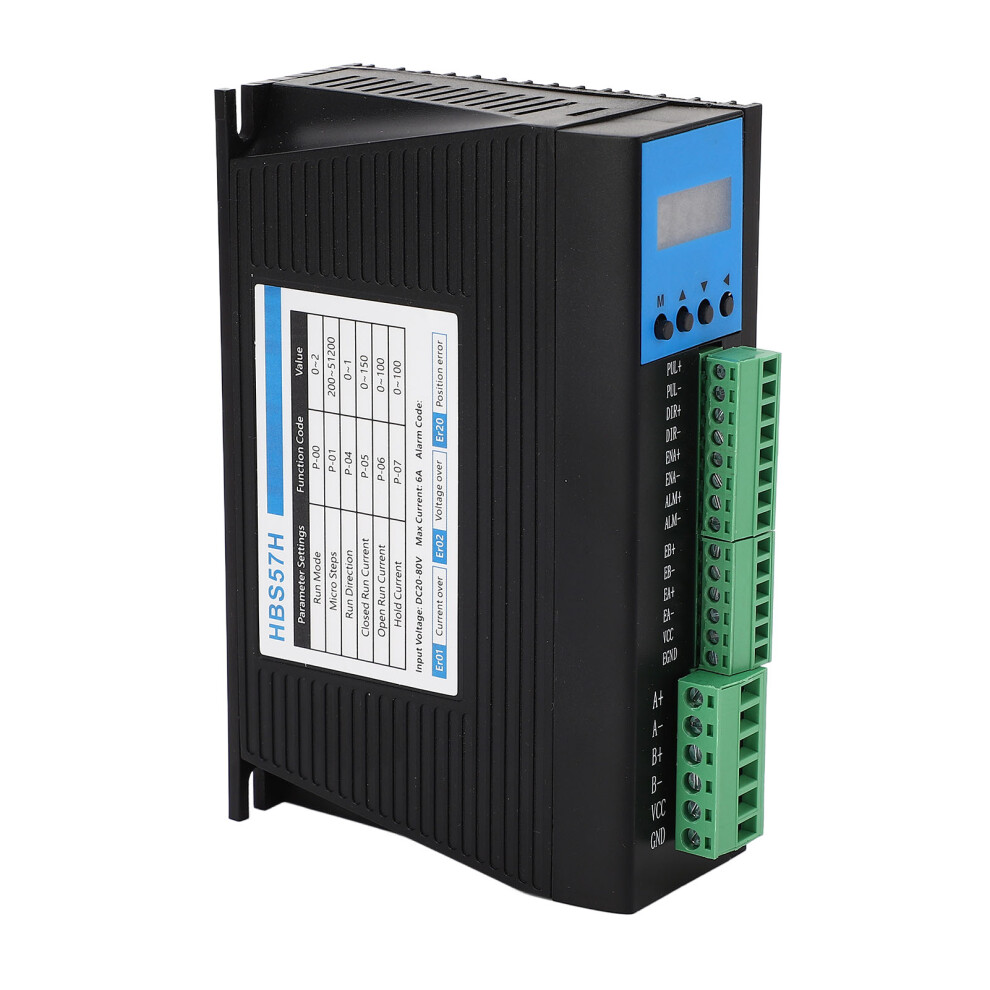

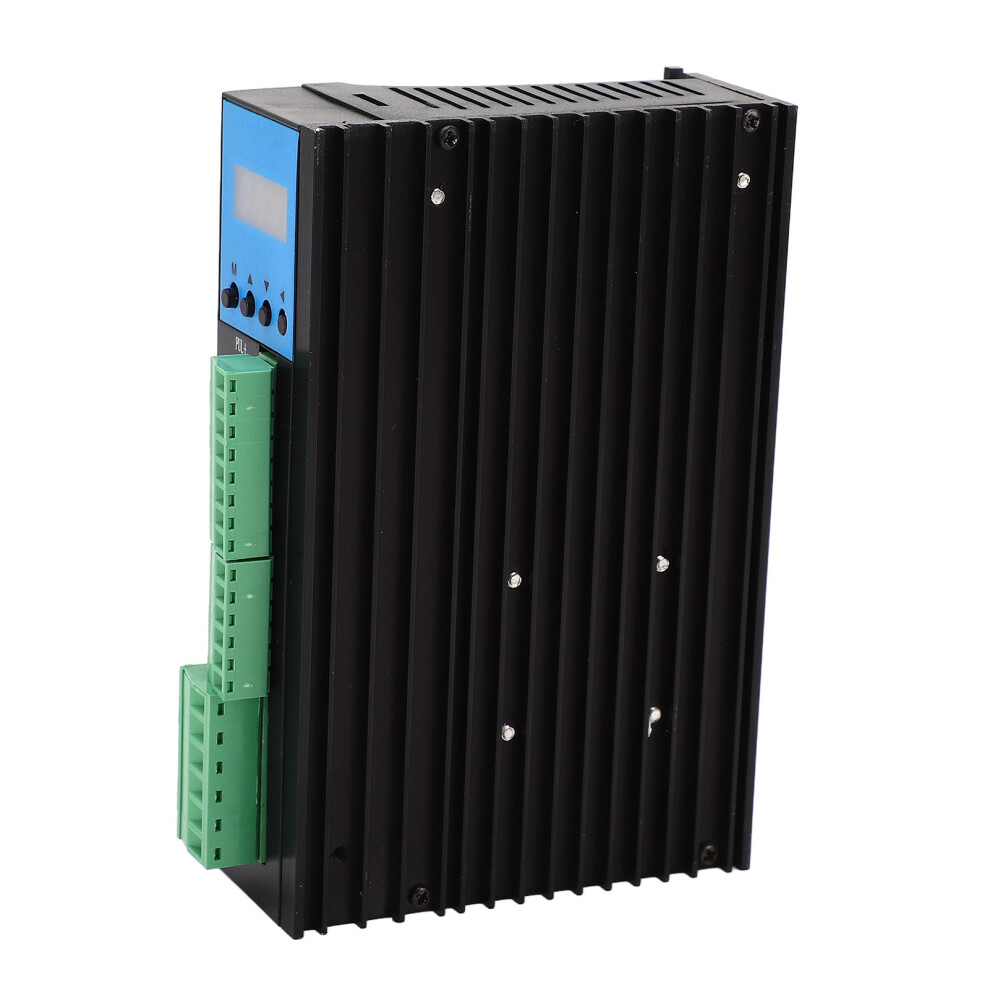

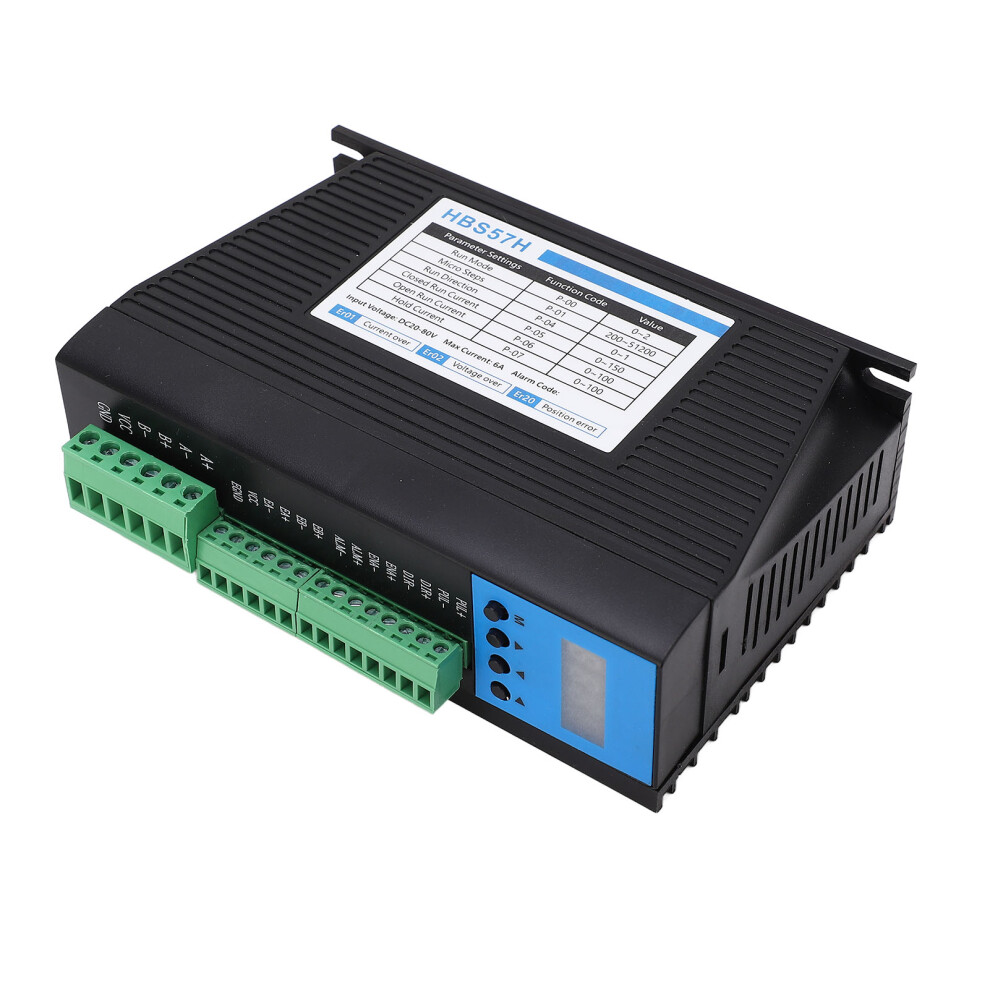

Stepper Motor Driver Closed Loop CNC Router DC20-80V Black Shell HBS57H
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 128,000 Trustpilot reviews and an 'Excellent' rating
£41.53
£63.89
35% off!
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Thu 9th - Sat 11th Jul
Returns: 30 days
180-day payment protection
Most Popular in Power Tool Routers
Description & Details
Summary

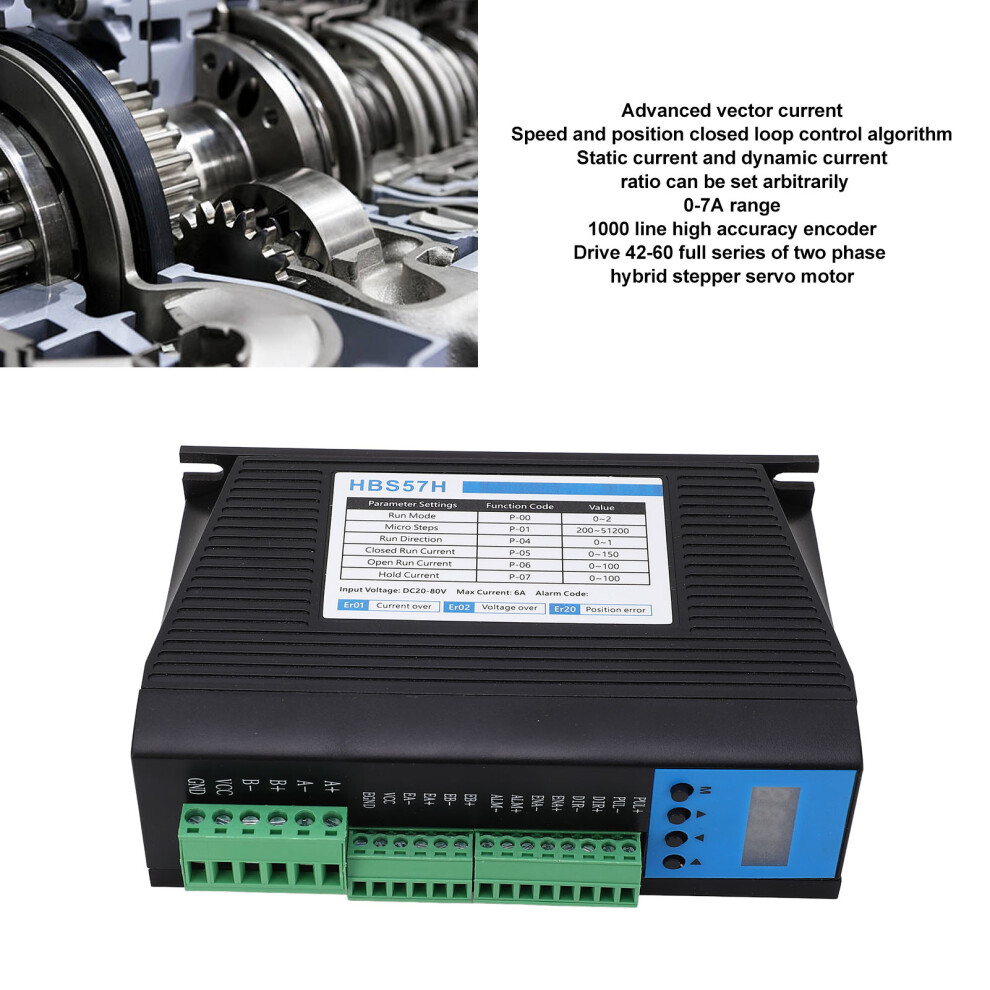

- CLOSED LOOP CONTROL: Digital stepper motor driver adopts advanced vector current, speed and position closed loop control algorithm
- CURRENT RANGE: The driver static current and dynamic current ratio can be set arbitrarily, in the range of 0‑7A
- APPLICABLE MODEL: Motor standard 1000 line high accuracy encoder, can drive 42‑60 full series of two phase hybrid stepper servo motor

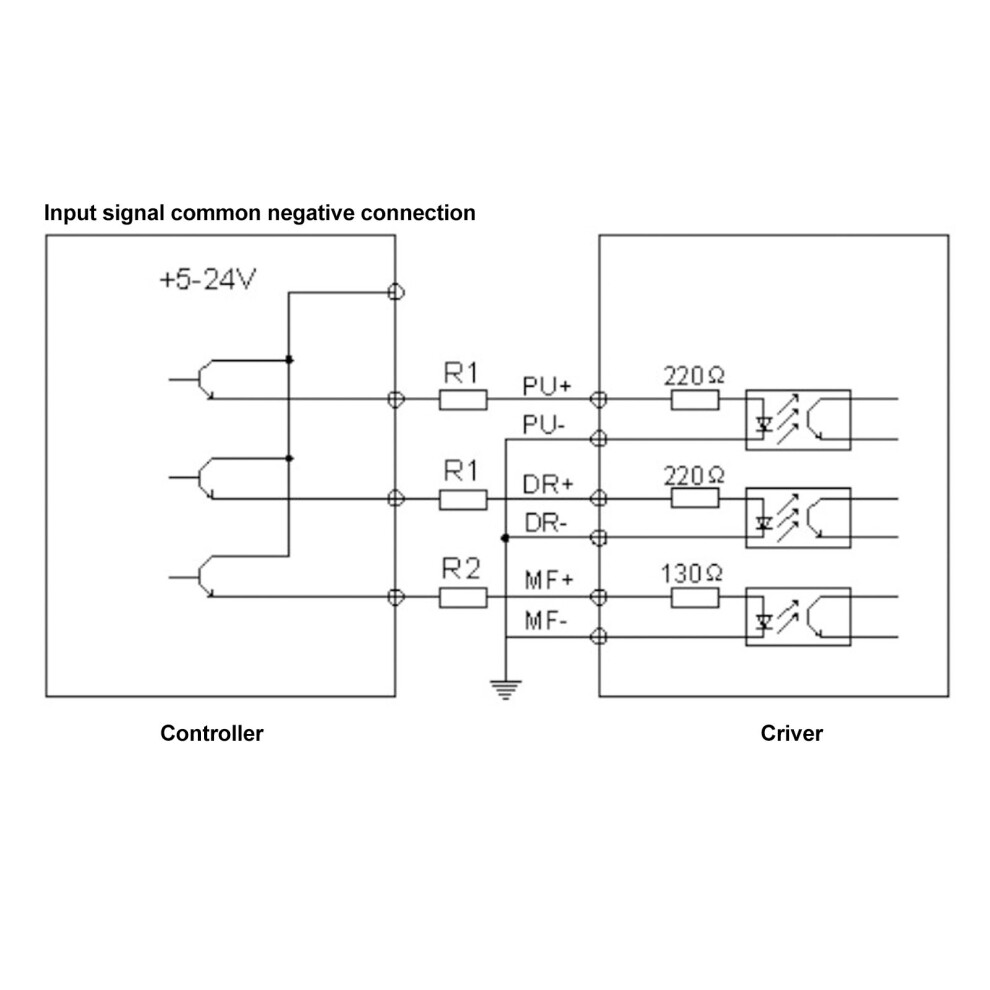

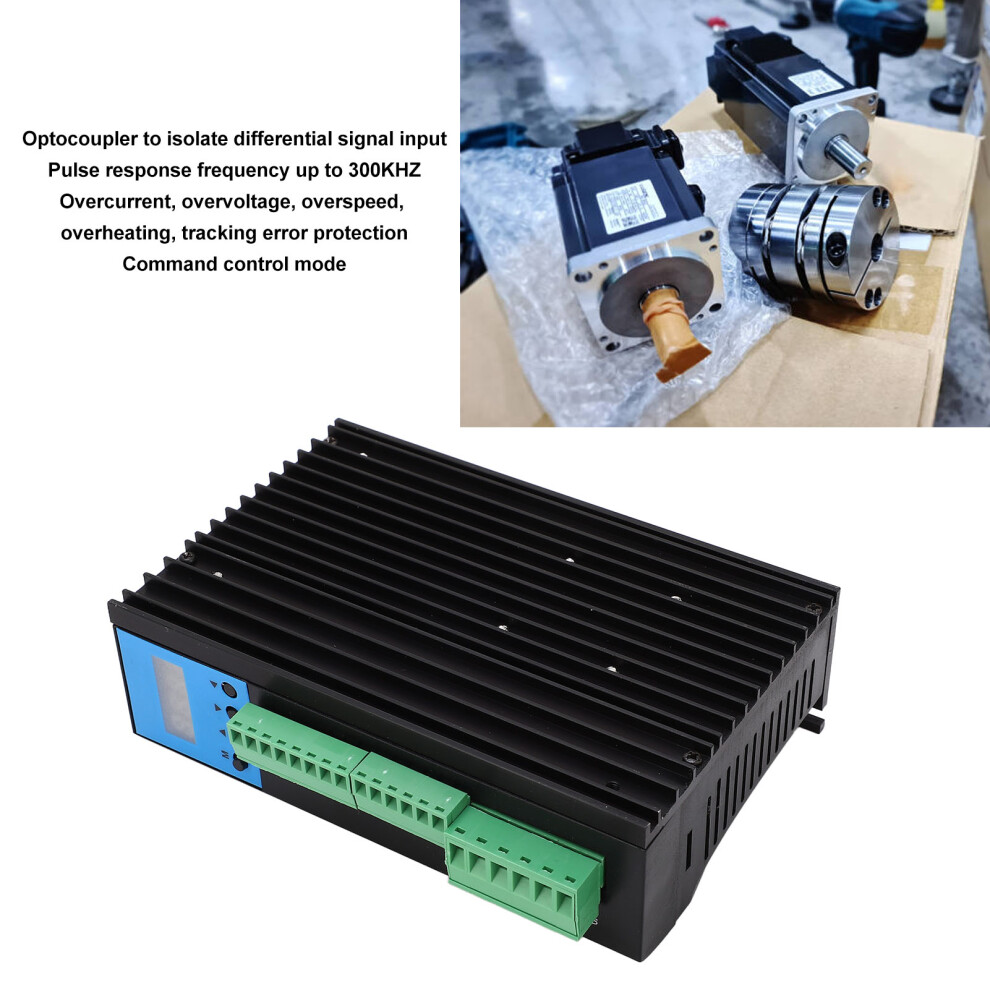

- SIGNAL AND FREQUENCY: Stepper motor driver uses optocoupler to isolate differential signal input, pulse response frequency up to 300KHZ
- VARIOUS PROTECTION: With overcurrent, overvoltage, overspeed, overheating, tracking error and other protection functions, support for command control mode
Stepper Motor Driver Closed Loop CNC Router DC20-80V Black Shell HBS57H Description
Stepper Motor Driver Closed Loop Router Machine Protective CNC DC20‑80V Black Shell
Item Type: Stepper Motor Driver
Color: Black shell
Model: HBS57H

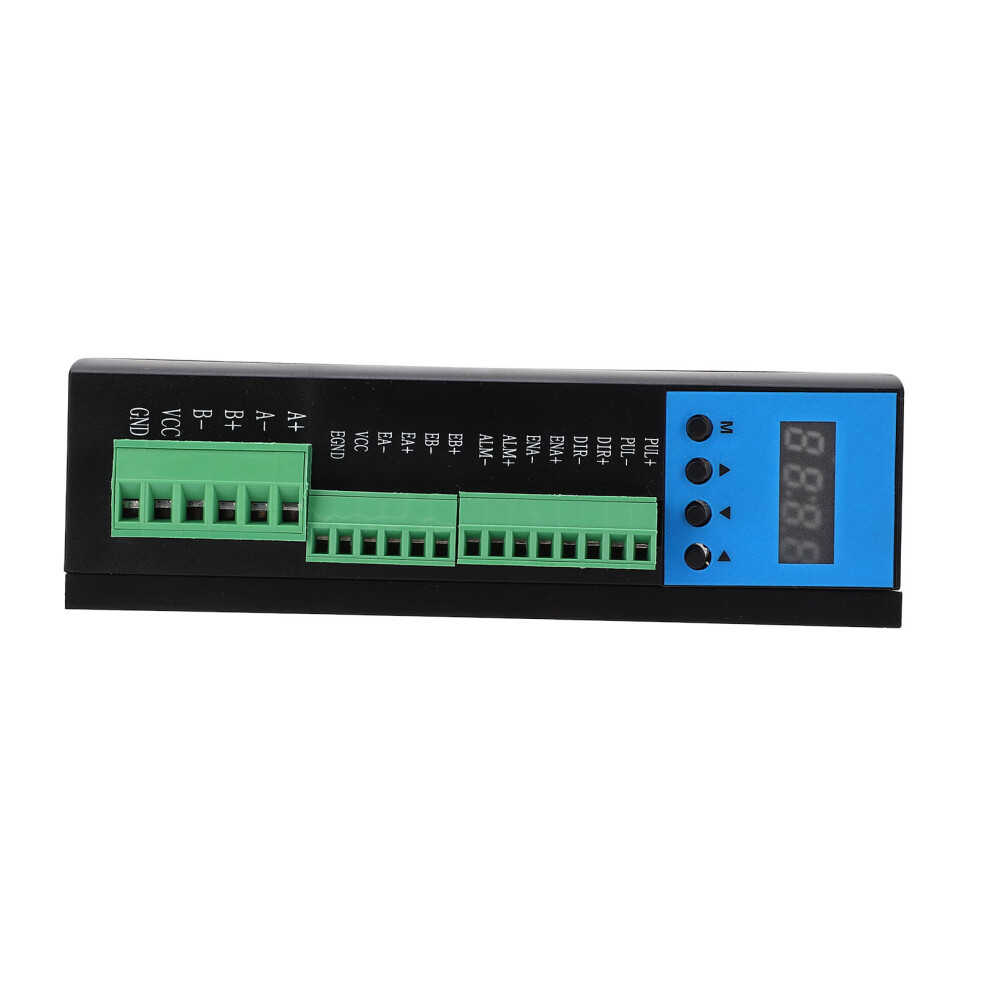

Terminal Interface: A+, Access Mode: A phase motor winding +
Terminal Interface: A-, Access Mode: A phase motor winding -
Terminal Interface: B+, Access Mode: B phase motor winding +
Terminal Interface: B-, Access Mode: B phase motor winding -
Terminal Interface: +VDC. Access Mode: Power input positive
Terminal Interface: GND, Access Mode: Power input negative
Terminal Interface: EB+, Access Mode: Motor encoder B phase positive input
Terminal Interface: EB-, Access Mode: Motor encoder B phase negative input
Terminal Interface: EA+, Access Mode: Motor encoder A phase positive input
Terminal Interface: EA-, Access Mode: Motor encoder A phase negative input
Terminal Interface: VCC, Access Mode: Encoder power +5V input
Terminal Interface: EGND, Access Mode: Encoder power ground

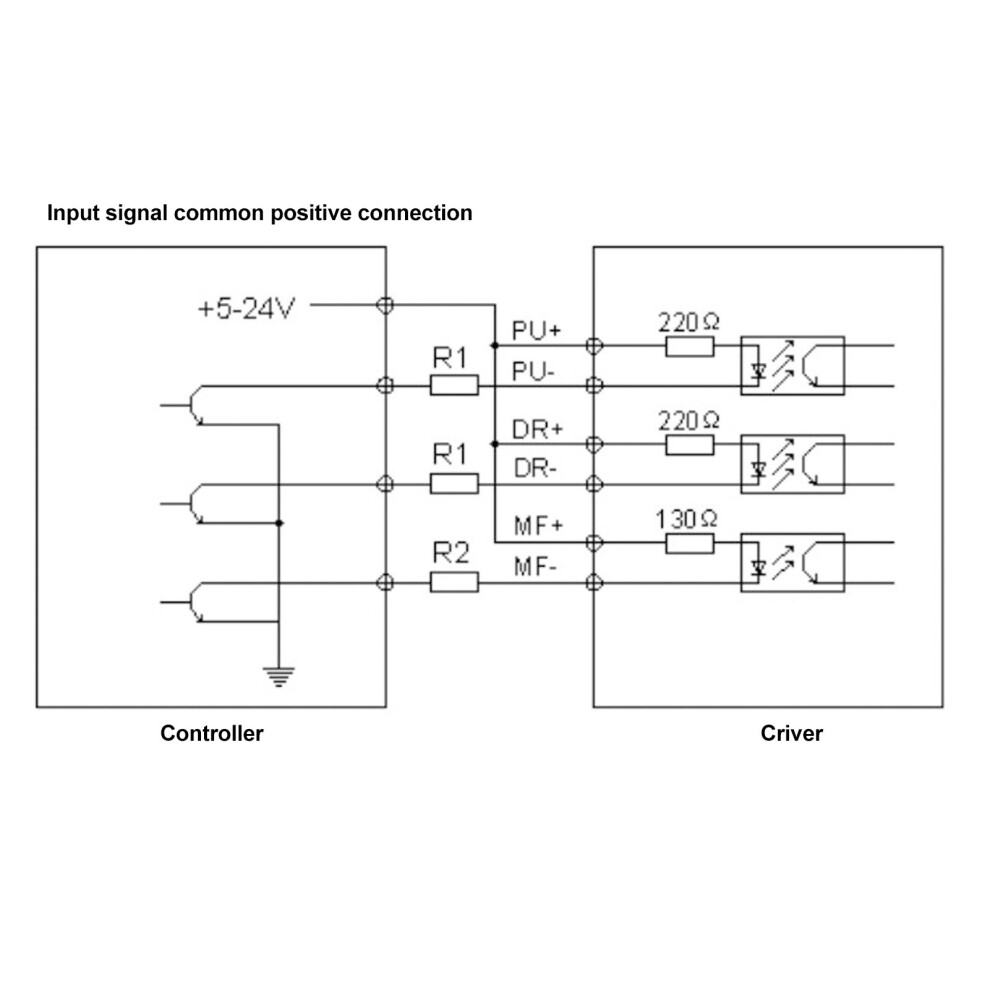

Terminal Interface: PU+, Access Mode: Pulse positive input
Terminal Interface: PU-, Access Mode: Pulse negative input
Terminal Interface: DR+, Access Mode: Direction positive input
Terminal Interface: DR-, Access Mode: Direction negative input
Terminal Interface: ENA+, Access Mode: Motor enable positive input
Parameter
Minimum value
Typical value
Maximum value
Unit
Continuous output current
1
-
6
A
Input voltage
20
-
80
VDC
Logic input current
7
10
20
mA
Machine power
-
-
50
W
Pulse frequency
0
-
300
kHz
Insulation resistance
500
-
-
MΩ

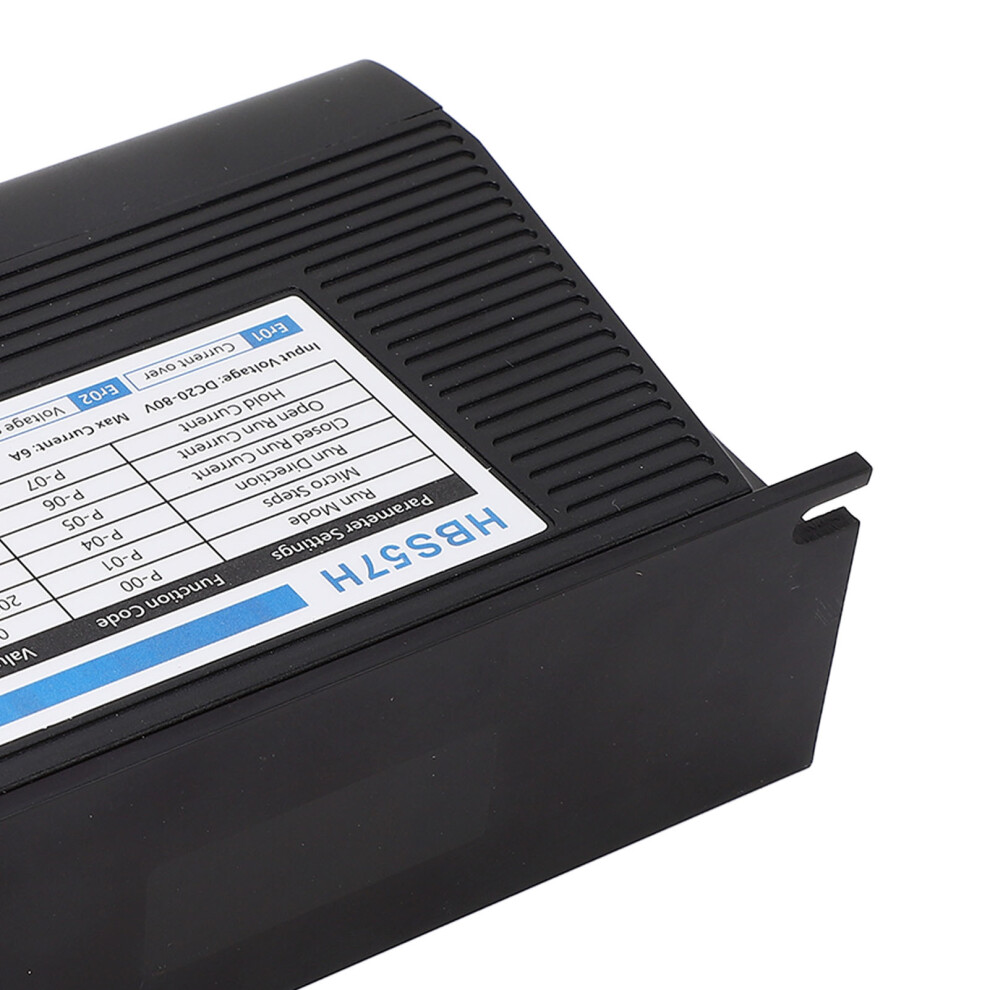

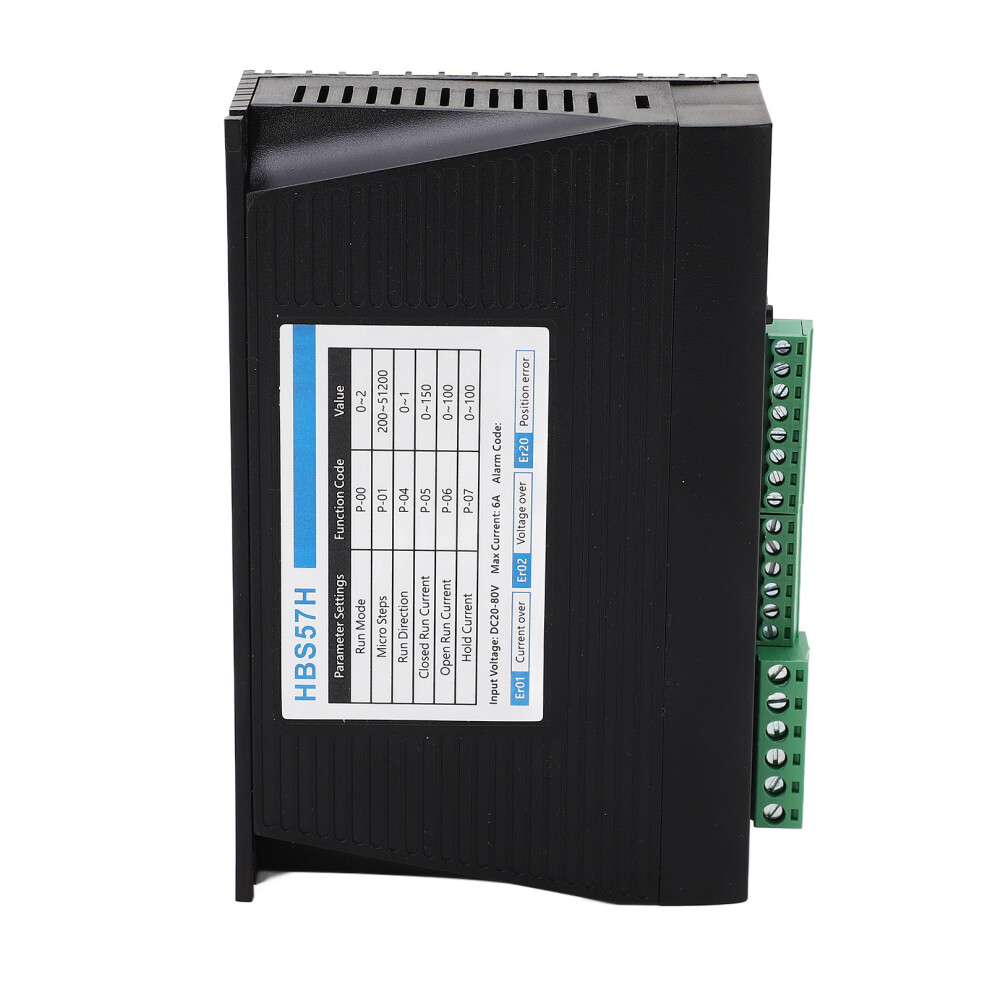

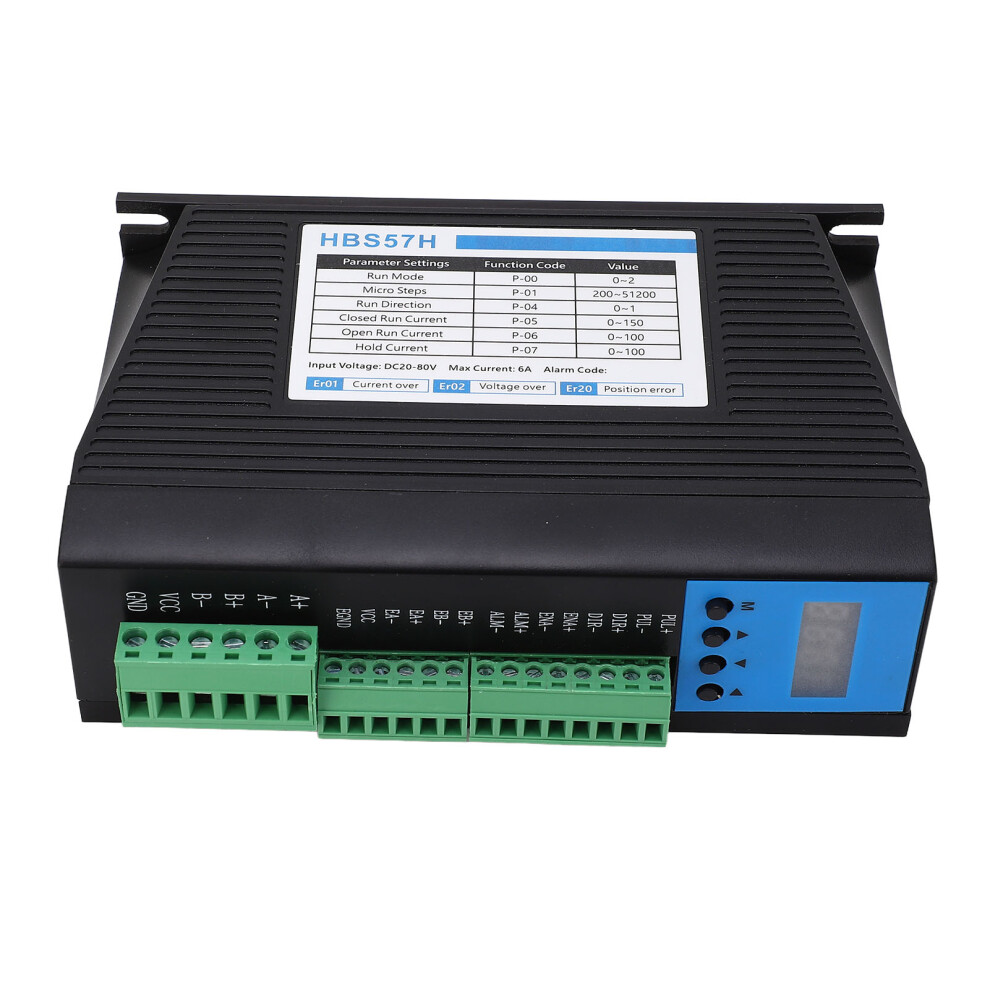

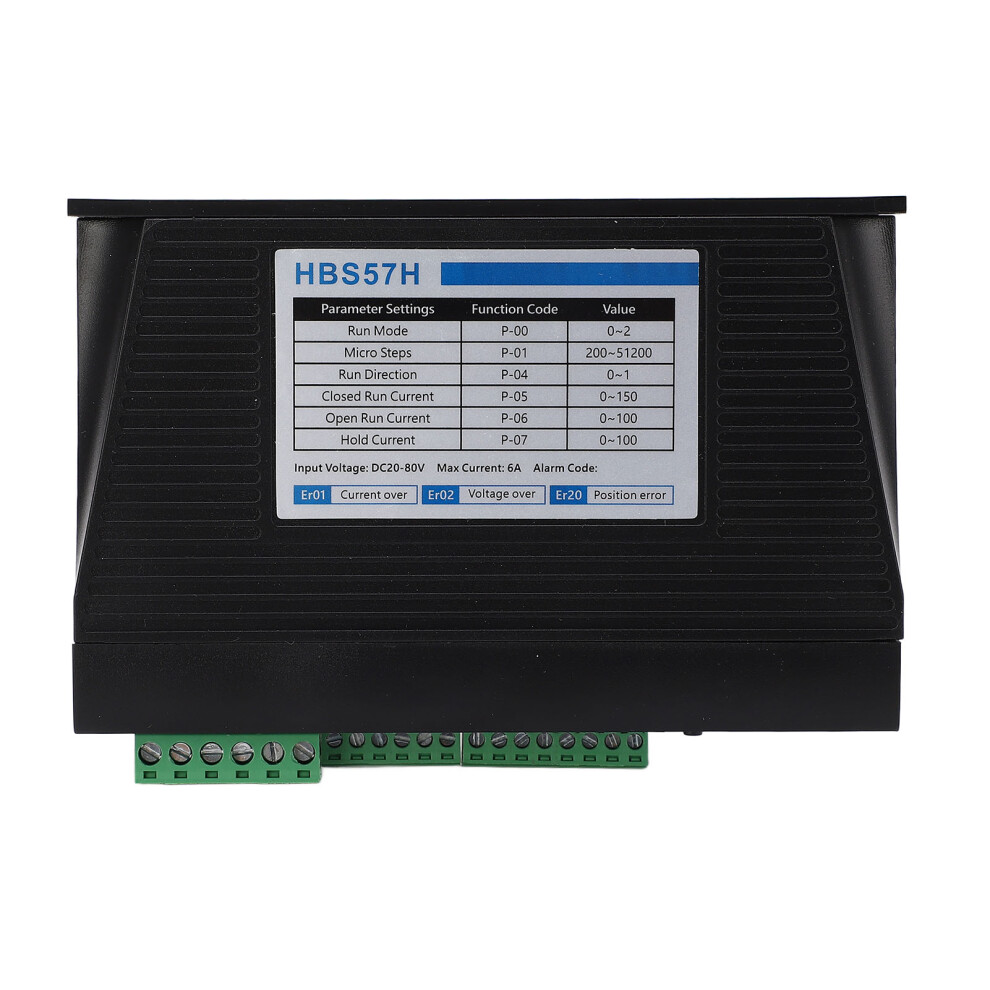

Parameter setting
Function code
Typical value
Operating mode
P-00
0~2
Microstep
P-01
200~51200
Direction of operation
P-04
0~1
Closed running current
P-05
0~150
Open running current
P-06
0~100
Holding current
P-07
0~100
Details
| OPC | PJHT2GK |
|---|---|
| Codes | 7901339034717 (EAN) |
