Stepper Motor Driver Controller for 42 57 Series 2-phase Digital Stepper Motor Driver

Stepper Motor Driver Controller for 42 57 Series 2-phase Digital Stepper Motor Driver Description

Description:
Stepper Motor Driver Controller for 18-48V 42 57 Series 2-phase Digital Stepper Motor Driver.

Specifications:
Input Current: 18~48V DC power supply.
Capacity: not less than 200VA.
Typical value: DC36V.
Output Current: 1.0A~5.6A.
8 gears adjustable:
Resolving power 0.5A.
Drive Mode: Double constant current PWM drive output.
Insulation Resistance: Normal pressure and temperature500M.
Insulation Strength: Normal pressure and temperature 500V/min.
Weight: About 267.
Environmental Requirements.

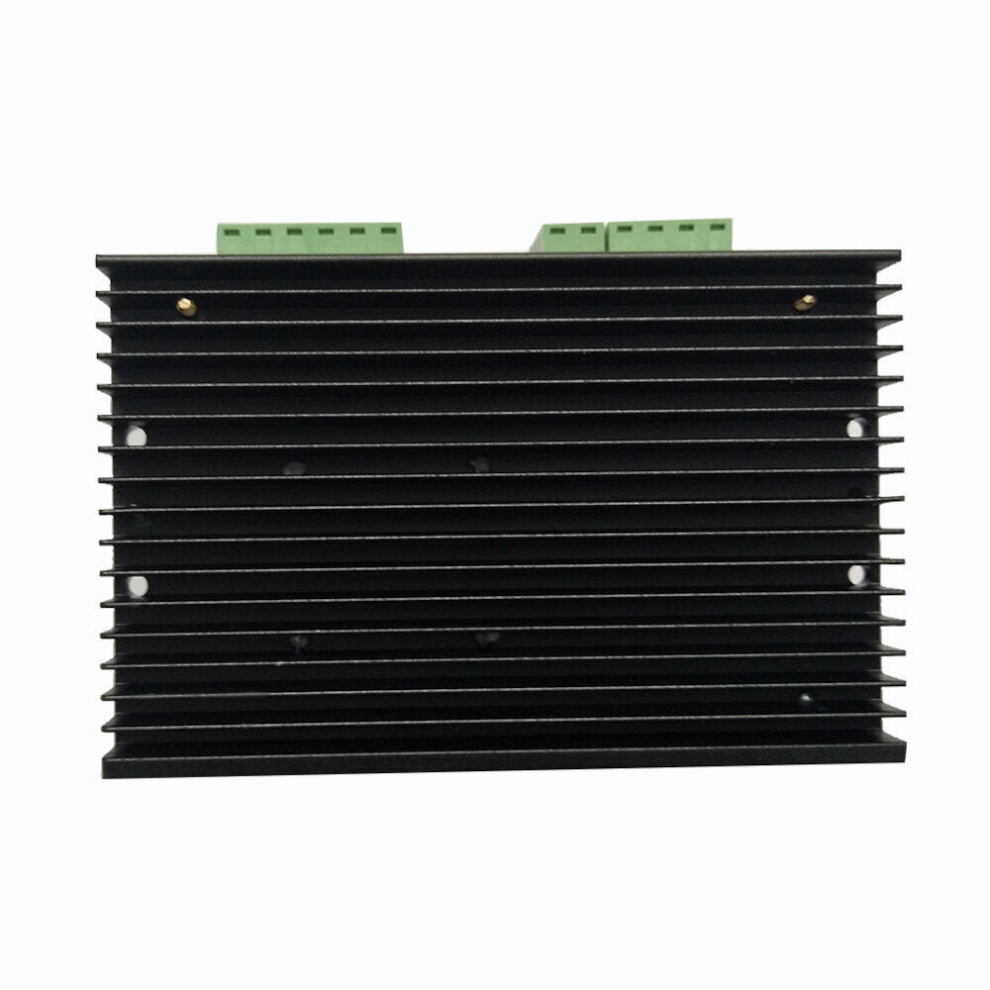

Cooling Method: Natural cooling.
Use Occasion: Avoid dust, oil mist and corrosive gases.
Use Temperature: 0~+50.
Ambient Humidity:80%RH, No condensation, no frost.
Shake: Maximum not more than 5.7m/s.

Drive Function Description:

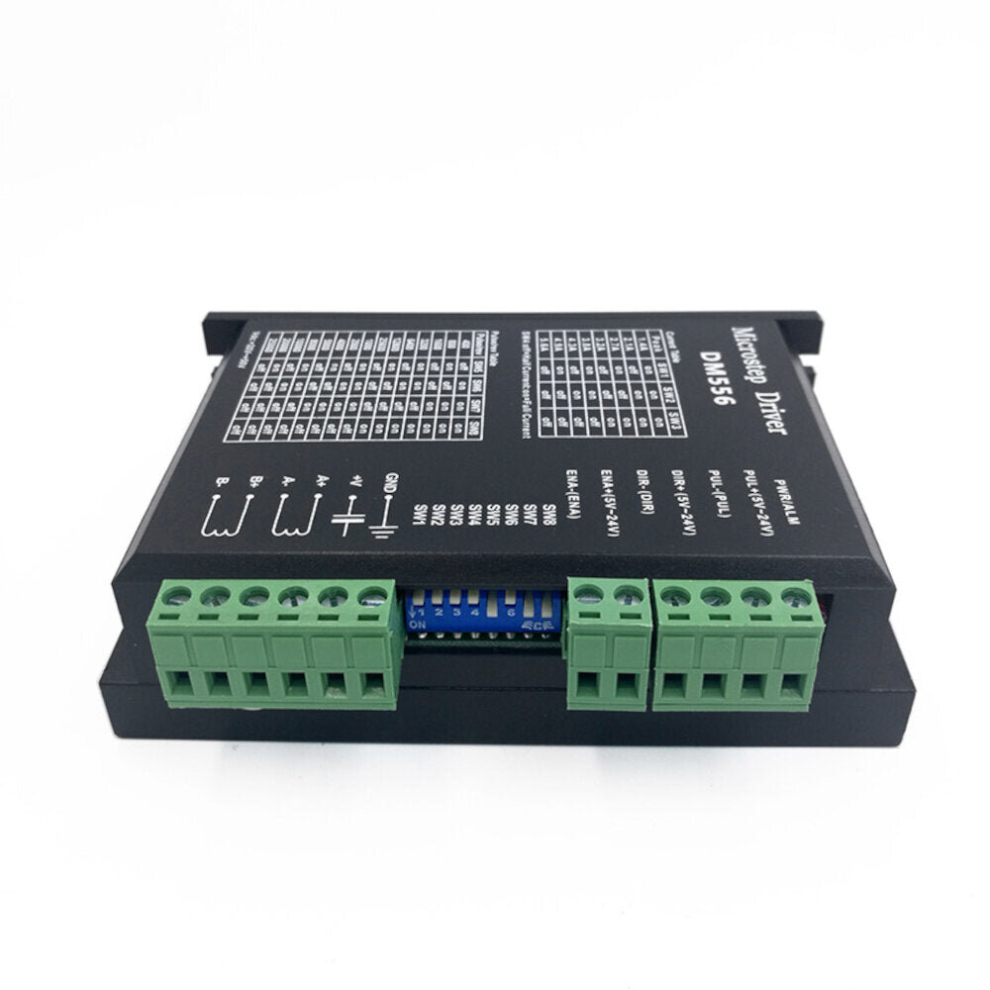

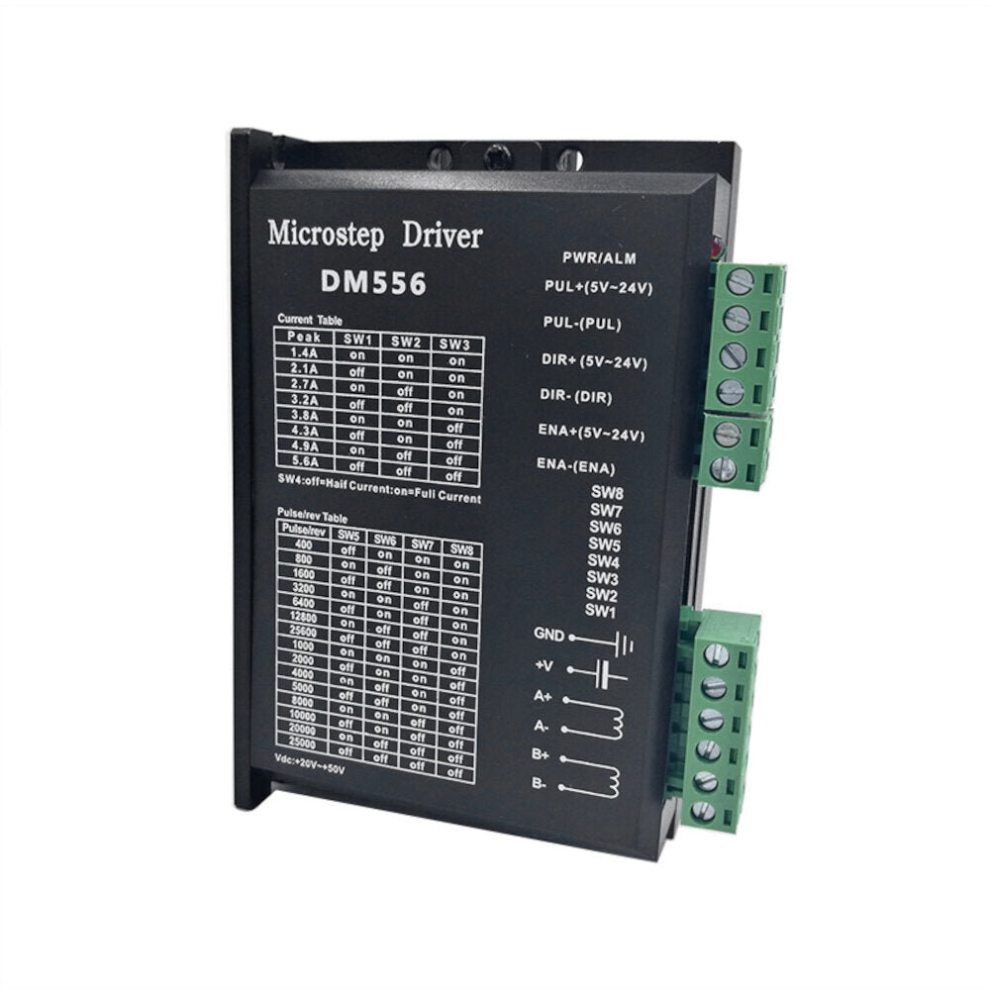

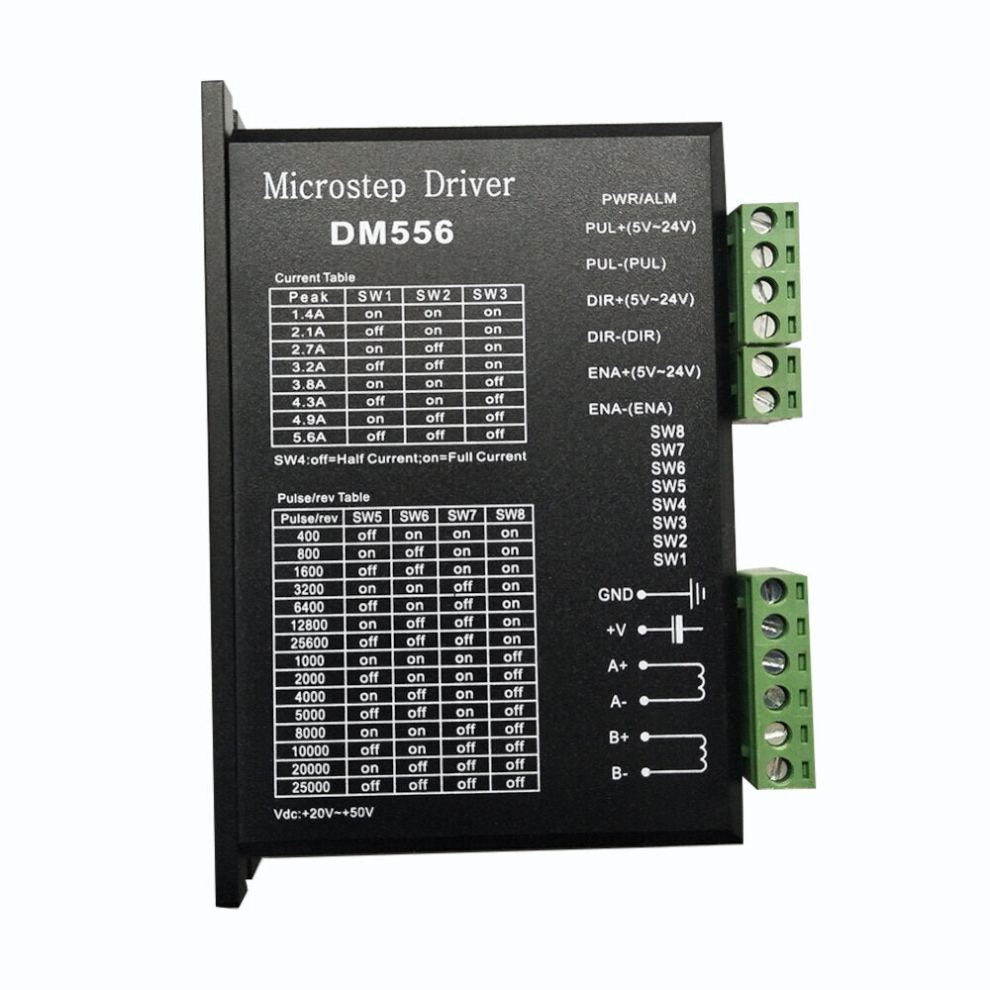

Signal Interface:
PUL+: To control the positive and negative ends of the pulse signal.
DIR+: To control the positive and negative ends of the pulse signal.
ENA+: Is the positive and negative ends of the enable signal.
ENA-: Power Connector.
A+: Connect the positive and negative ends of the A-phase winding of the stepper motor.
B+: Connect the positive and negative ends of the B-phase winding of the stepping motor.

Features:
- Supply voltage can reach 48V.
- The peak calue of the output current can reach 5.6Az.
- Optical isolation, the pulse maximum response frequency is 200KHz.
- Low speed zero vibration with minimal noise.
- Strong anti-interference ability, in the harsh environment of the power grid. can achieve high-precision positioning.

Package Included:

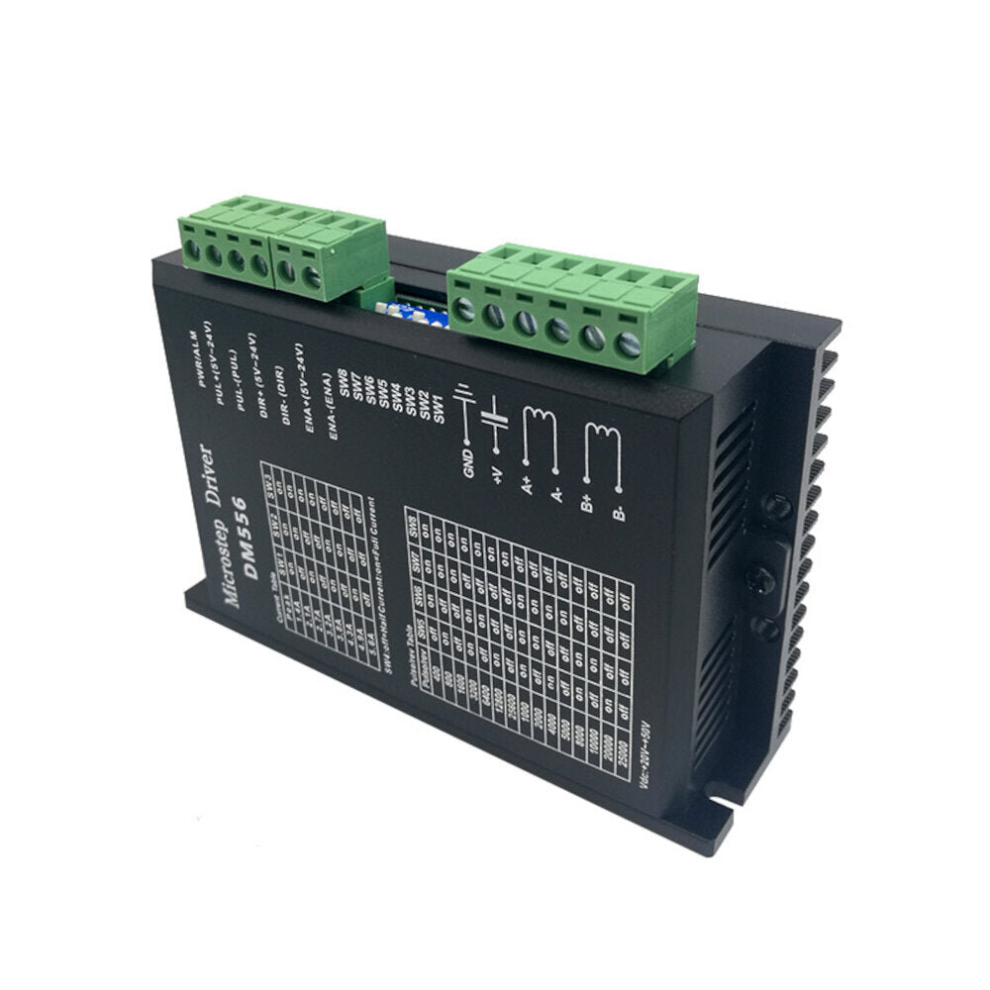

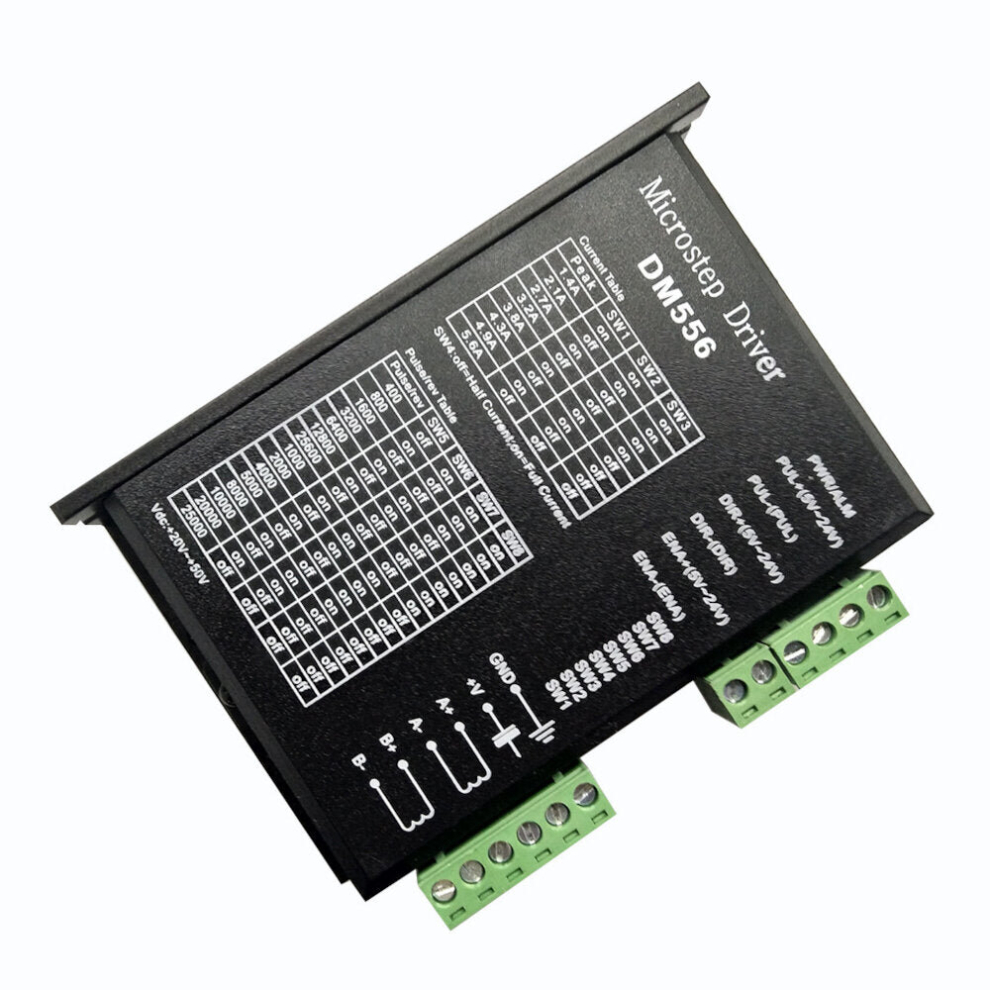

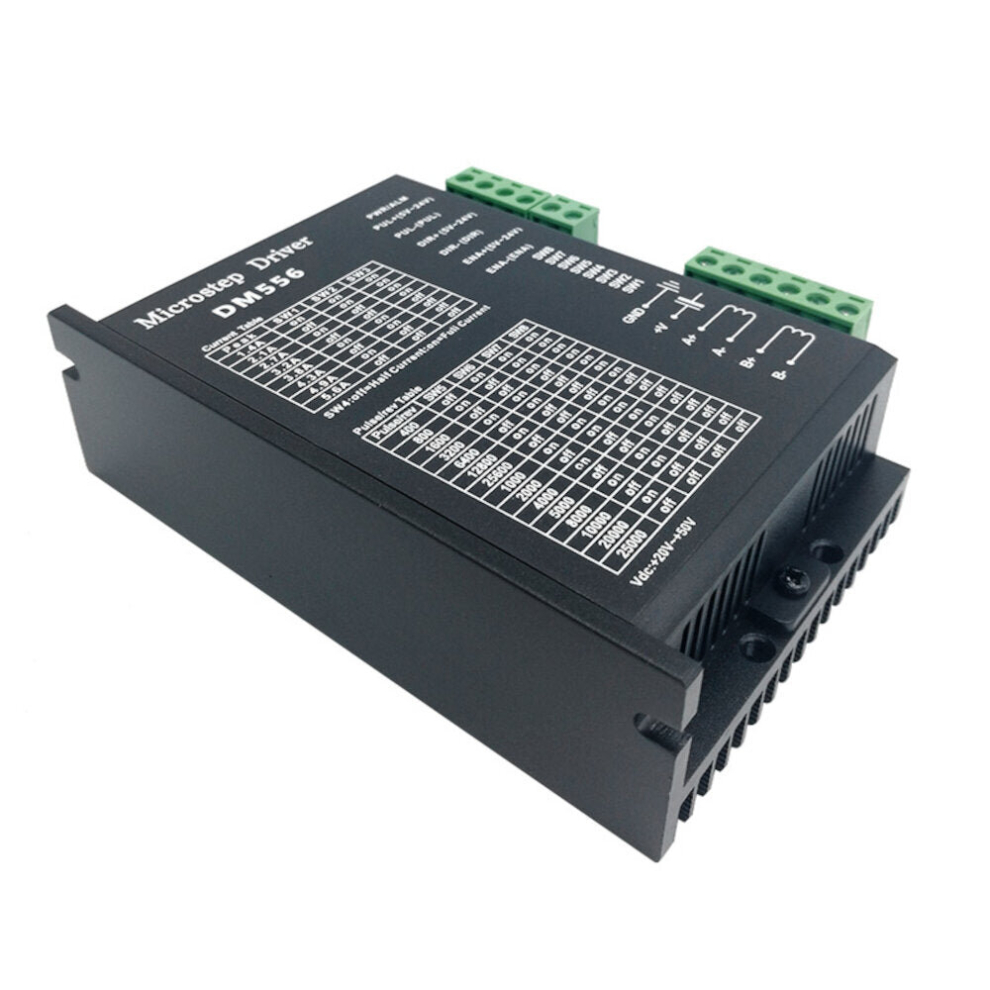

1 Pc x DM556 Stepper Motor
