Stepper Motor HAT V0.2+Robot Expansion Board Stepper/Motor/Servo for Raspberry Pi 3B/3B+

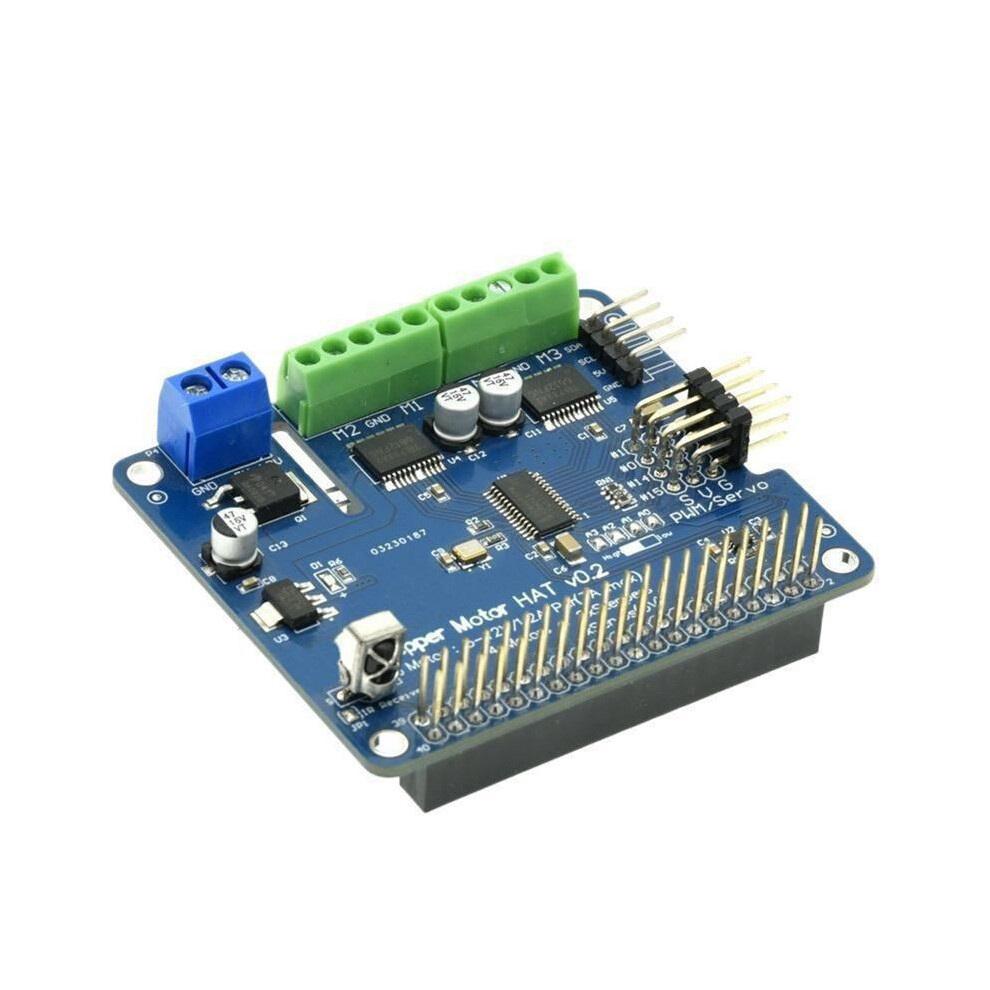

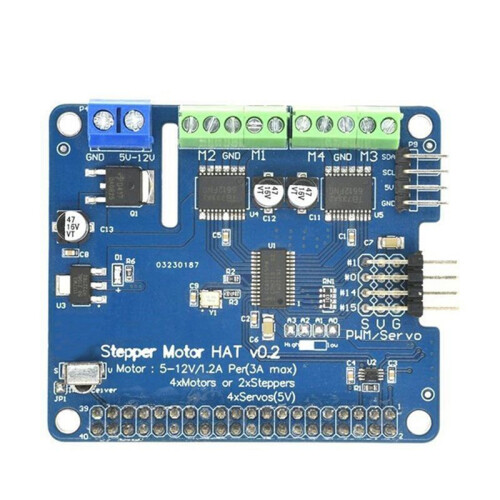

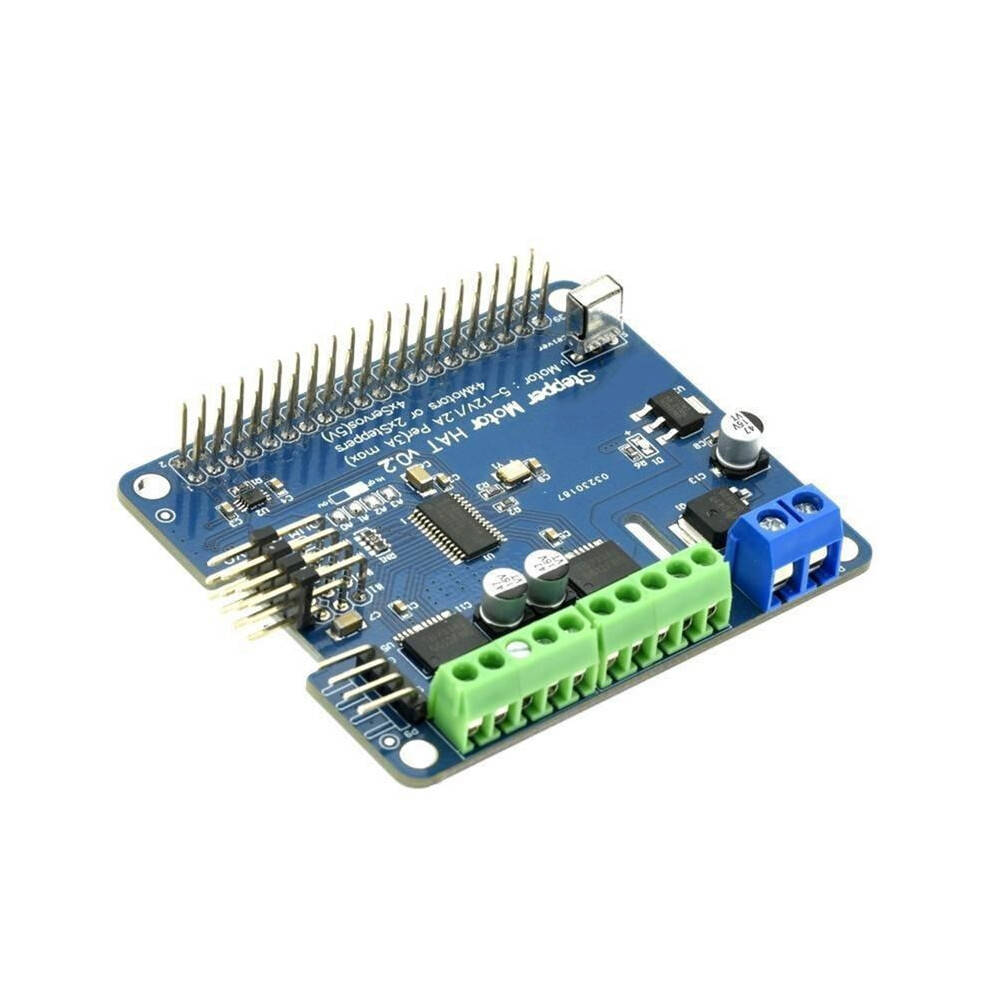

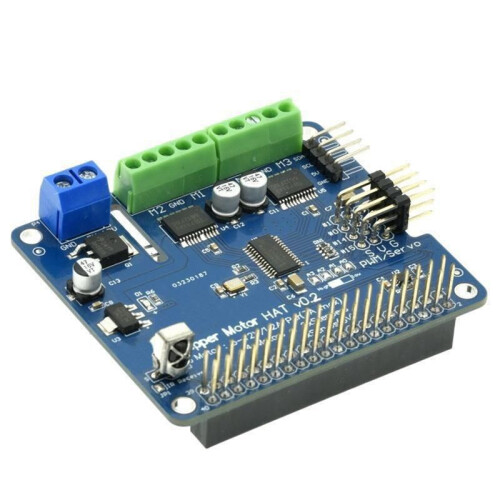

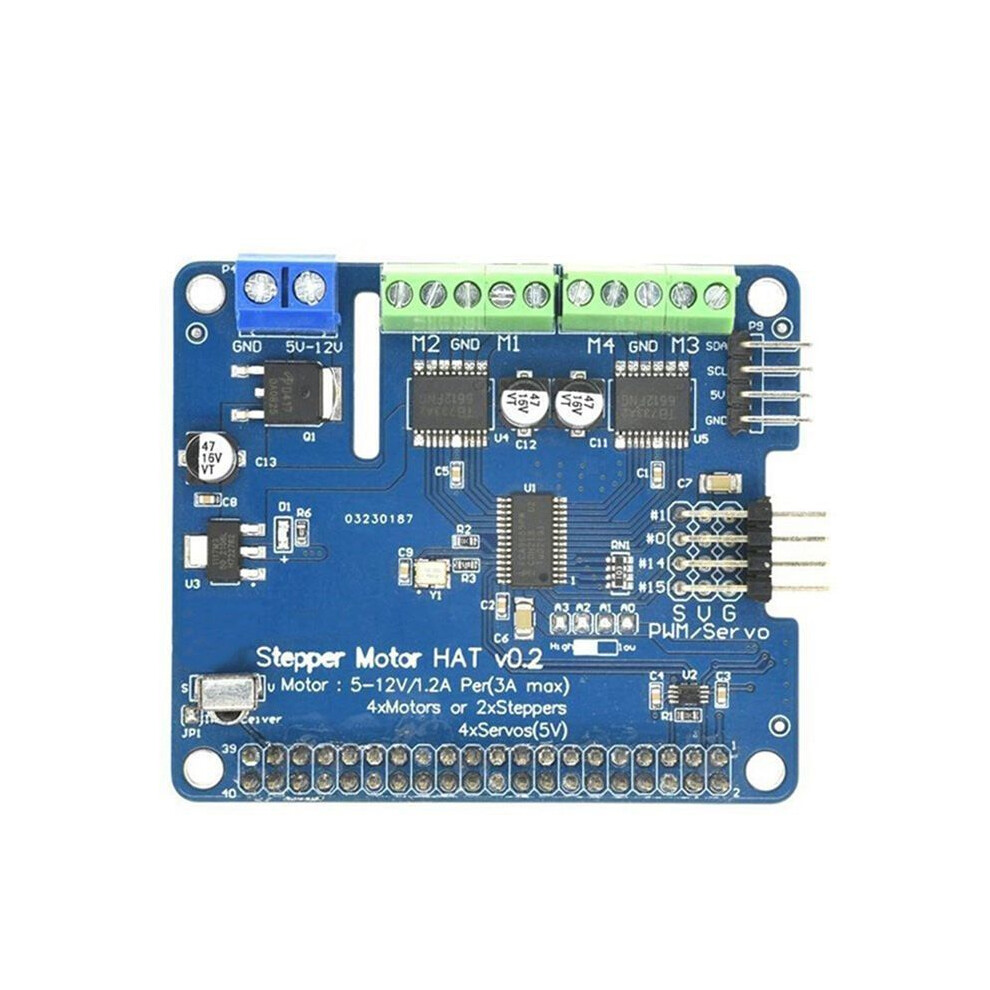

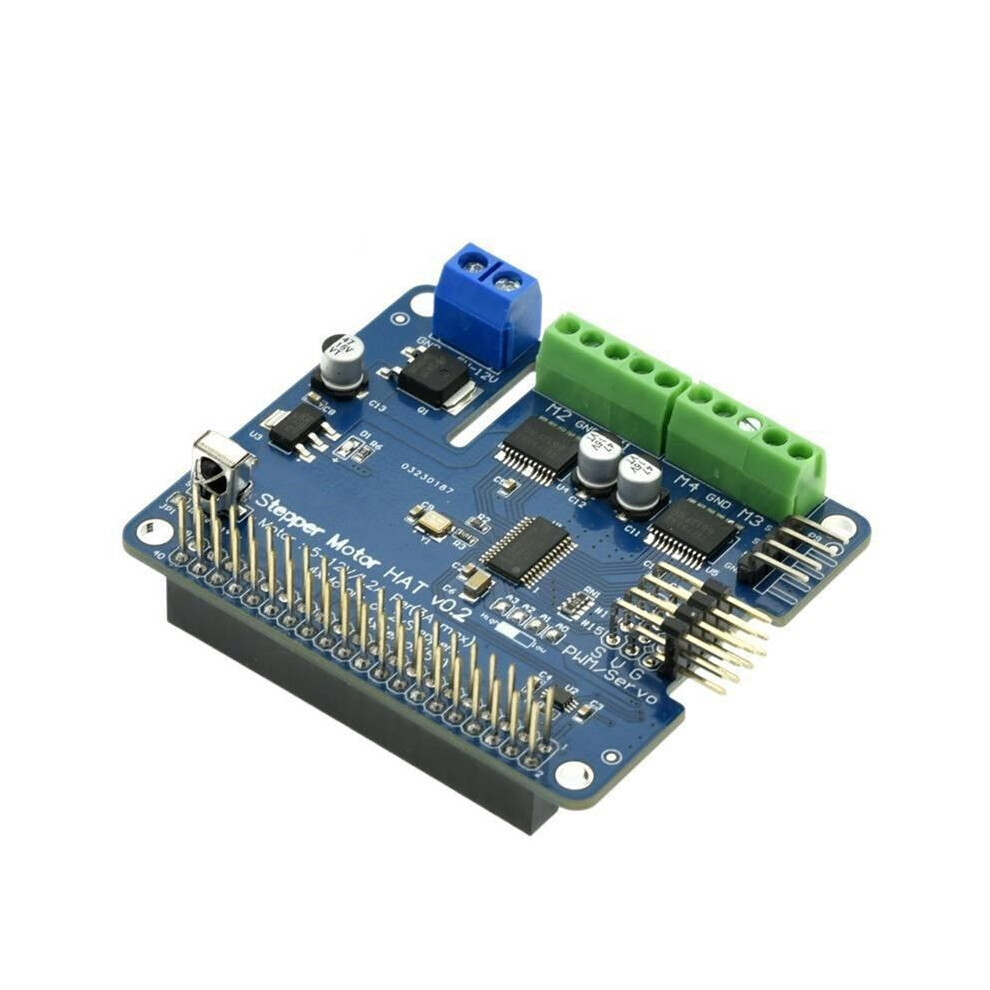

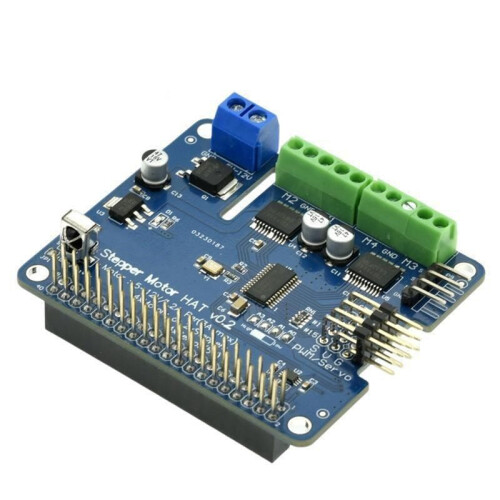

Stepper Motor HAT V0.2+Robot Expansion Board Stepper/Motor/Servo for Raspberry Pi 3B/3B+ Description

Product introduction:This expansion board is a full-featured robot expansion version market that can support multiple motors/stepper motors/servos (Stepper/Motor/Servo) at the same ,and can be stacked to expand more control interfaces.It's especially fit for various applications such as DIY robots, cars,robotic arms, pan/tilts,etc.The control interface simply adopts the I2C interface and is compatible with 3.3/5V levels,so it's also fit for other development boards market.
note: Due to different batches, the appearance, color, and printed words of the product may vary, which does not affect its use.

Features:
1. Single power supply, the normal working power supply voltage range is 5V~12V; (Please select the correct input power supply voltage and current according to the motor control voltage you control)
2. Complete data input/output through the I2C bus of for the Raspberry Pi,
3. One I2C interface, compatible with 5V level, can be controlled by for or other development boards
4. One I2C interface can be connected to various sensors to expand various applications
5. The address of the expansion board is determined by 4 address pins, and a maximum of 16 expansion boards can be used at the same .
6. Supports 16 PWM channel outputs and can control 16 servos or LED lights.
7. 12-bit resolution, adjustable PWM frequency to 1.6KHz, configurable push-pull or open-drain output
8. Supports 4-way servo interface and 3P standard interface to facilitate connection of servo and LED lights.
9. Supports 2-channel 6V~12V stepper motors, Supports 4-channel 6V~12V reduction motors
10. Support infrared receiving function for convenient infrared control
spec:
Working voltage: 5V~12V
Interface: I2C
interface description:
1. 4-way servo interface (#0, #1, #14, #15)
2. 4-way motor interface (M1, M2, M3, M4)
3. 2-way stepper motor
