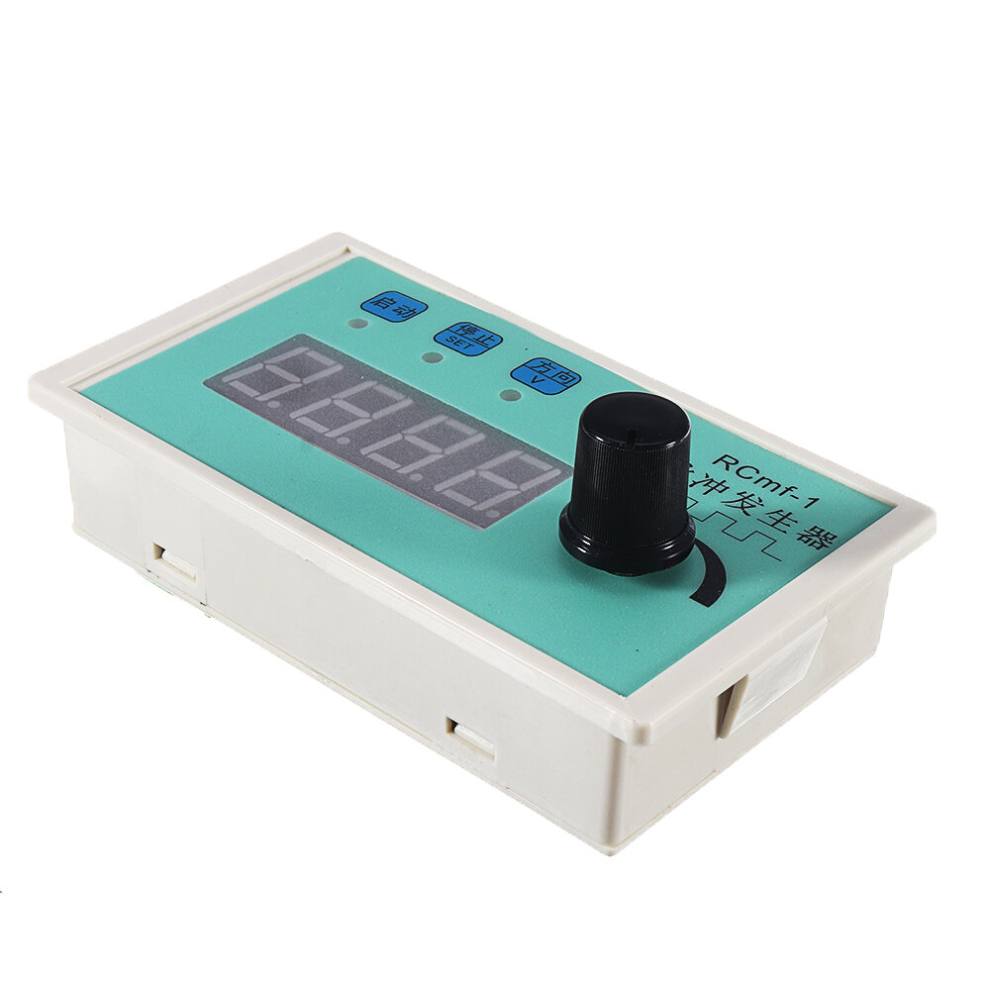

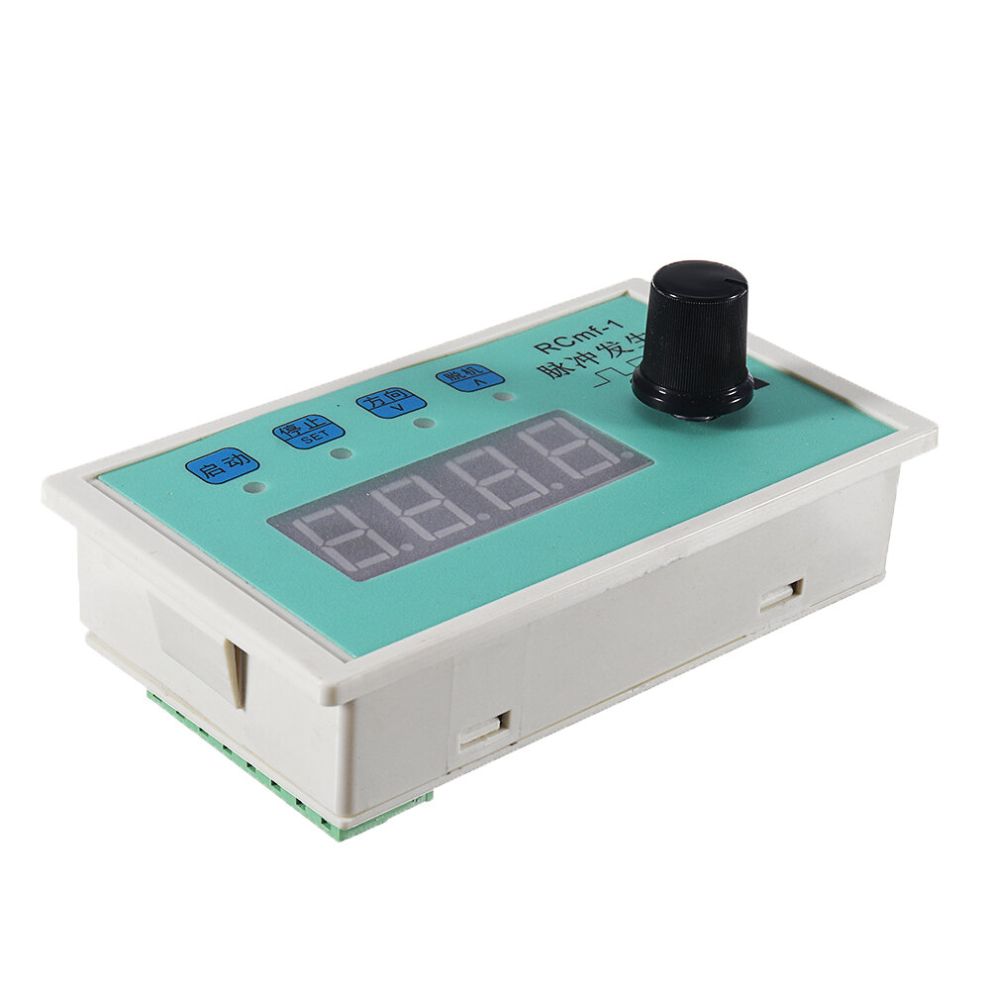

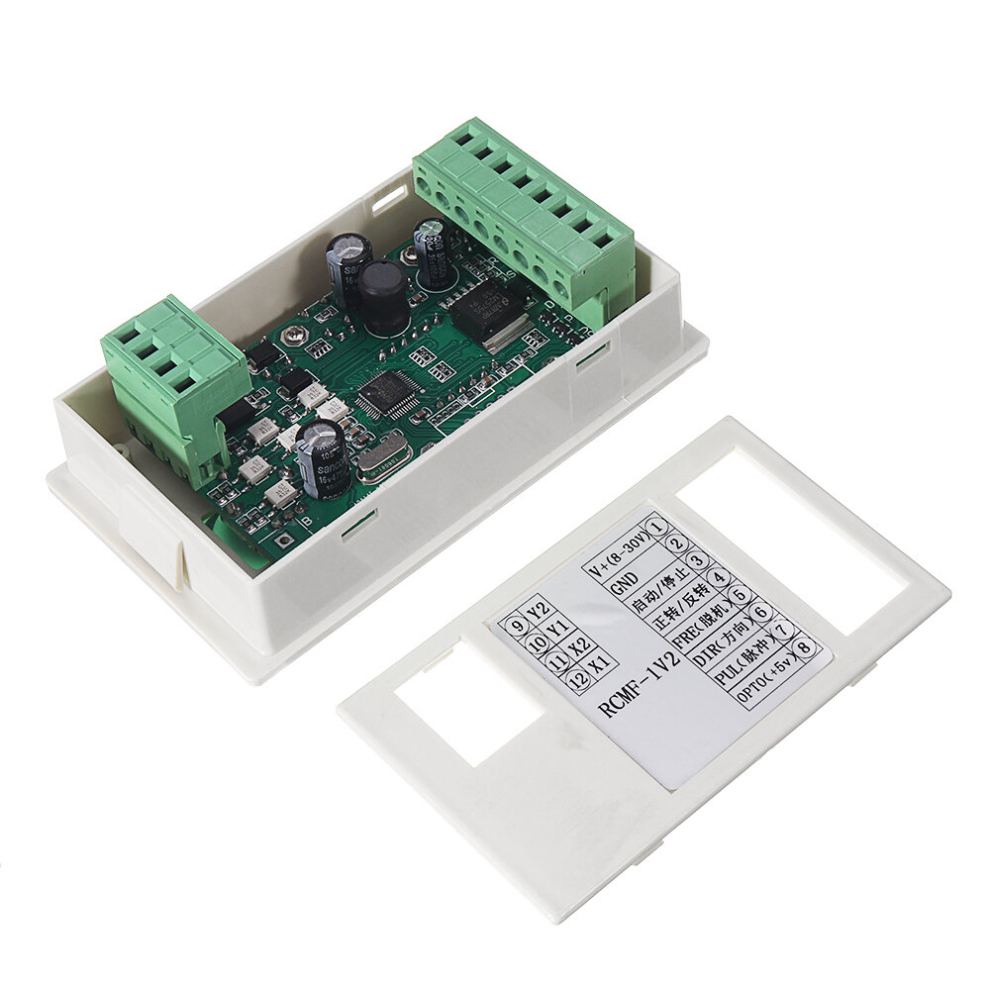

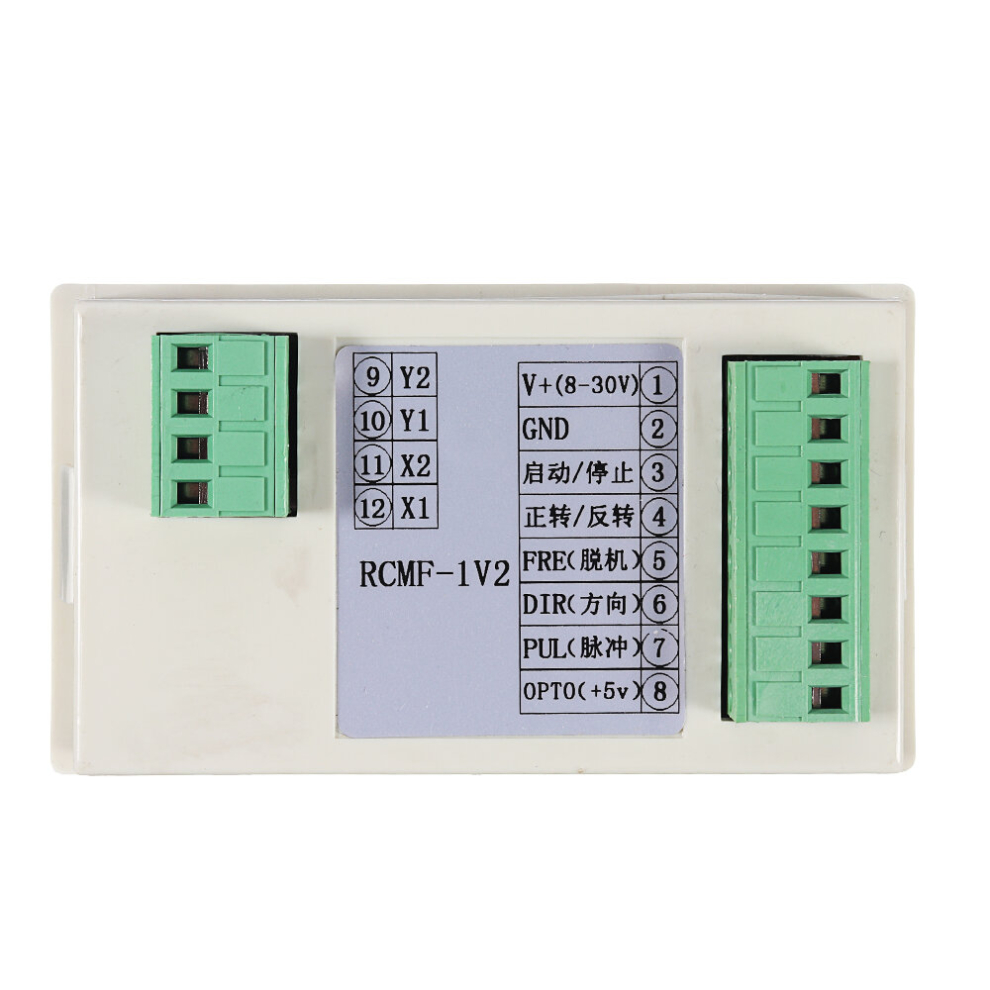

Stepping Servo Motor Pulse Generator RCmf-1 Speed Regulating and Length Fixing Controller

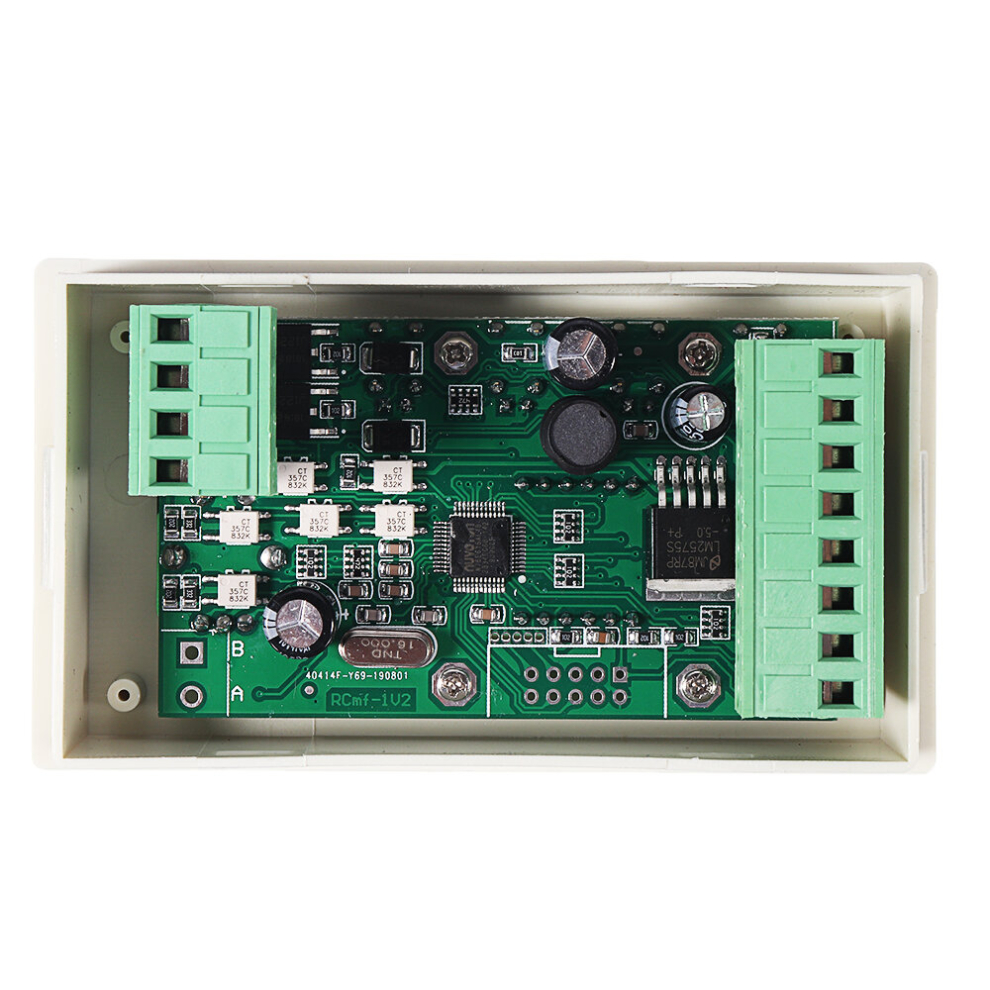

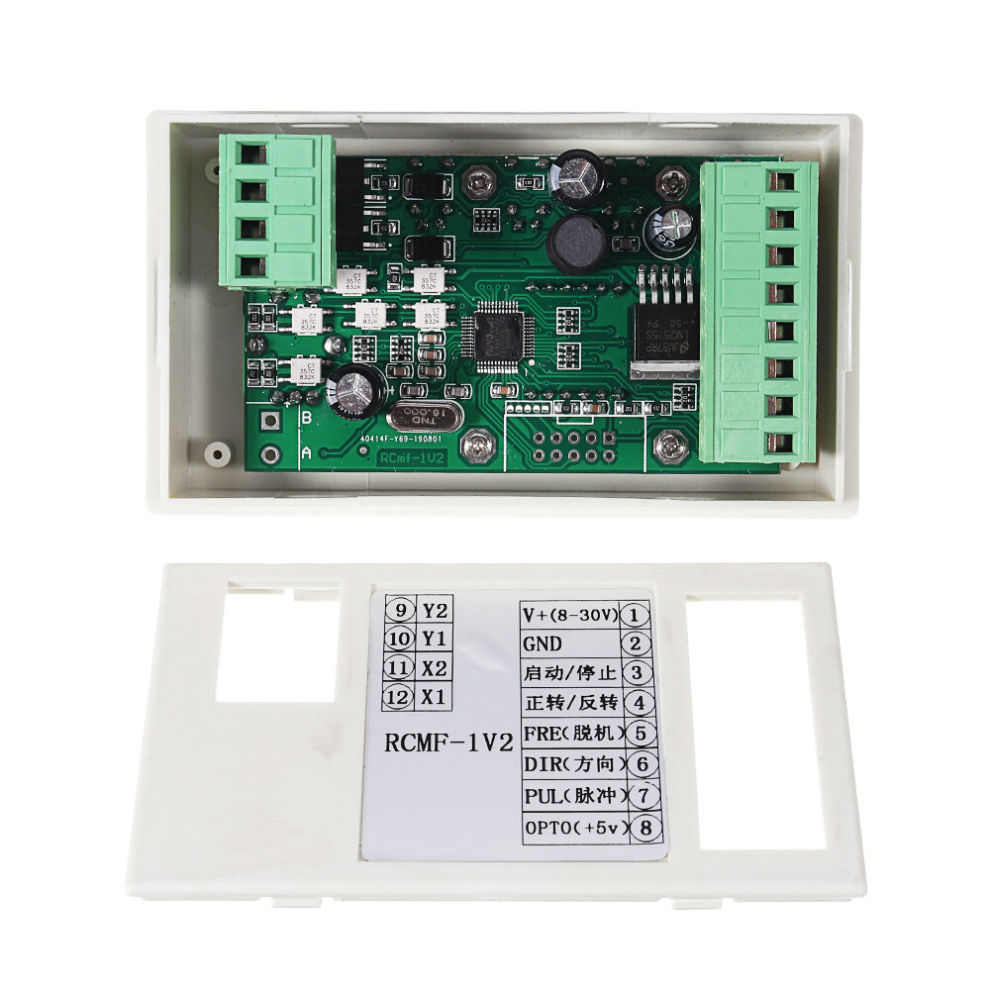

Stepping Servo Motor Pulse Generator RCmf-1 Speed Regulating and Length Fixing Controller Description

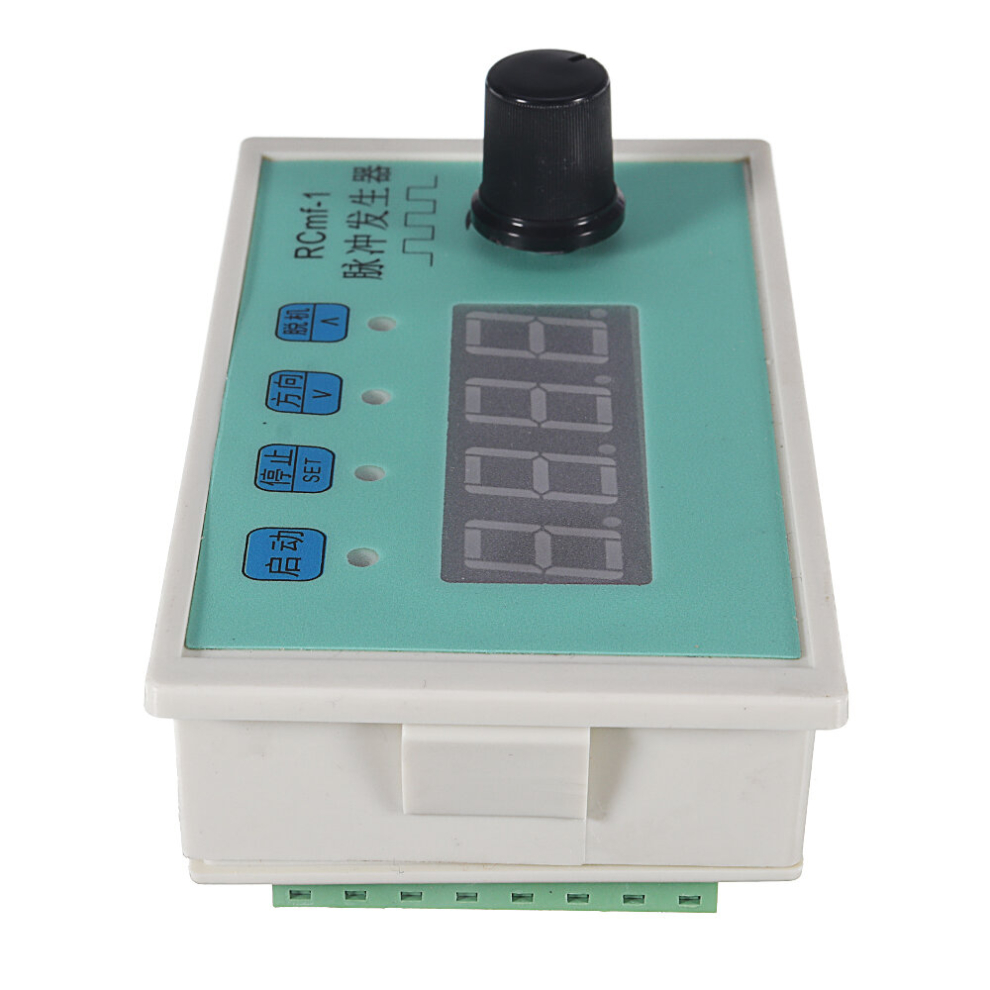

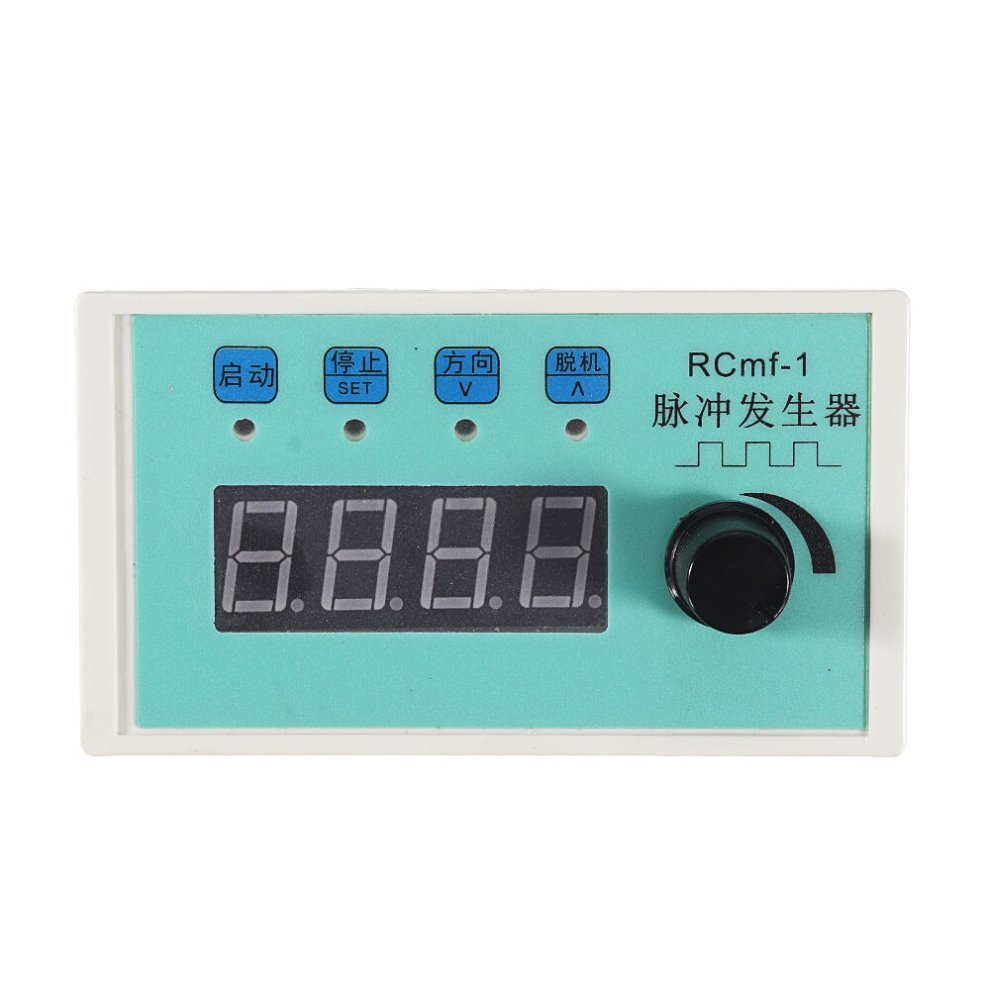

Size Conversion Inches Centimeters Please according to your own measurements to choose your suitable size. The tags inside the items will show in our Asian (Type) size. Description: Stepping Servo Motor Pulse Generator RCmf-1 Speed Regulating and Length Fixing Controller Specifications: Product Name Pulse generator Size 112x60x52mm Back Size 968x56mm Quantity 1 Pc à Pulse generator Instructions: 1. Display description: The digital tube displays the current speed value in the running state or in the stopped state, and the unit is rpm. In the setting state, the set parameter code or parameter value is displayed. 2. Parameter setting: In the stop state, long press the stop button (SET), ACC appears, and then press the stop button (SET) to display the ACC parameter value, press the direction key (â) and offline key (â§) to modify, After modifying, press the stop key (SET) to confirm, return to the ACC state, press the arrow key (â) to display tAb, press again to display Modo, then press to display Model, press again to return to the ACC parameter setting and ACC, press the offline key (â§) Exit parameter setting to stop state. 3. Operation description: Panel start or external terminal start, adjust potentiometer to adjust speed during operation. When the panel stops, the external terminal stops, and it displays 0 when it stops. If you need to display the current adjusted speed of the potentiometer in the stopped state, you can press the offline key. When the offline light is on, adjust the potentiometer to modify the speed value and change the direction in the stop state. Press the panel Arrow keys or external direction keys. ACC acceleration setting (1-99) 1 is the fastest, 99 is the fastest, load reset is slower, the default value is 5. tAb subdivision setting (1-64) This value is set according to the drive, and should be consistent with the drive setting. When the setting is consistent, the displayed speed is the actual speed, the default value is 10. When Run (0-1) is set to 0, it will be power-off when it is powered on, and it will run when it is powered on. The default value is 0. IN-S operation stop input setting, the default value is 0. 0 Terminal 3 is connected to start, disconnected to stop, the direction is terminal 4 is connected to forward, disconnected to reverse 1 Terminal 3 Press once to start, press again to stop, direction terminal 4 Press to stop 2 Terminal 3 click to start, terminal 4 click to stop 3 Terminal 3 Press the forward rotation to start, press again to stop, press the wire end 4 Press to reverse the start, press again to stop 4 Terminal 3 is connected to start forward, disconnected to stop, terminal 4 connected to reverse to start, disconnected to stop Mode operation mode setting (0-3) 0 speed control, 1 fixed length control, 2 continuous control, 3 reciprocating control, the default value is 0 In fixed-length mode, in the stop state, press the stop button to set P-01, long press the stop button to have d1A, d1b In continuous mode and round-trip mode, press the stop key to set P-01, P-02, P-03 in stop state In speed control mode and round trip mode, X1, X2 limit is valid, and the direction will be reversed when encountered. P-01 length value, pulse number=P-01*d1A/d1b doub: magnification setting default 10-1000 rpm adjustable P-02 delay value, the unit is set to 20-2000 rpm adjustable in milliseconds P-03 times value, continuous running times value is set to 30-3000 rpm adjustable P.S. â : V+ (8-30V) â¡ : GND â : Start/stop â : Forward/Reverse â : FRE (offline) â : DIR (direction) â: PUL (pulse) ⧠: OPTO (+5v) â : Y2 â : Y1 ⪠: X1 â«: X2 Features: - RCMF-1 pulse generator can control stepper motor, servo motor, motor speed 0-1000 rev / min, square wave, stepless adjustable. - External start and stop, direction can achieve external control. With speed control, fixed length function. Package Included: 1 x Driver More Details:
