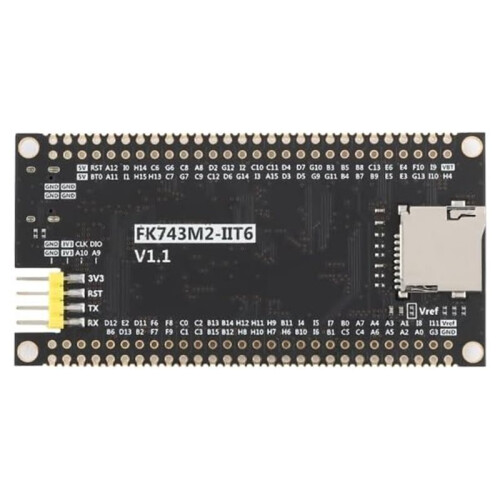

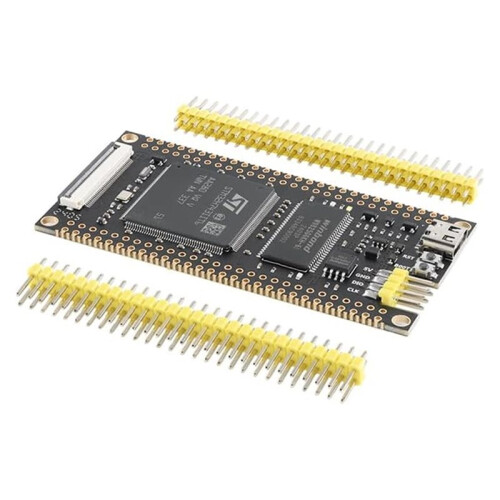

STM32H743IIT6 Learning Board STM32 Development Board 2M Flash 1M STM32H743 Core Board System Board
Brand Brecantia
New
In stock
18
By law, vaporisers, electronic cigarettes and relevant paraphernalia cannot be bought by people under the age of 18. A valid form of ID and a signature will be required upon delivery of this product.
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 128,000 Trustpilot reviews and an 'Excellent' rating
£53.03
£65.51
19% off!
FREE Delivery
1%
Earn £0.53 instantly
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Thu 23rd - Sat 25th Jul
Returns: 30 days
180-day payment protection
Most Popular in Vaporiser & E-Cigarette Parts & Accessories
Hot
Hot
Description & Details
Summary
- Experience high-speed processing with a 480MHz STM32H743 Core Board, offering 2M Flash and 1M SRAM for efficient development tasks
- Expand your storage capabilities effortlessly with QSPI driving W25Q64 and 16-bit wide 32MB SDRAM supported on this STM32 Development Board
- Seamlessly control your projects with a reset button, a BOOT button, a user LED, a Type C interface, and reserved SWD and serial ports
- Utilize 97 IO ports (some used by the core board) for versatile connectivity options on the STM32H743IIT6 Learning Board
- Operate in extreme conditions from -40°C to 85°C, making this System Board ideal for a wide range of applications
STM32H743IIT6 Learning Board STM32 Development Board 2M Flash 1M STM32H743 Core Board System Board Description
Experience high-speed processing with a 480MHz STM32H743 Core Board, offering 2M Flash and 1M for efficient development tasks
Expand your storage capabilities effortlessly with QSPI driving W25Q64 and 16-bit wide 32MB SDRAM supported this STM32 Development Board
Seamlessly control your projects with a reset button, a BOOT button, a user LED, a Type C interface, and reserved SWD and serial
Utilize 97 IO (some used by the core board) for versatile connectivity options the STM32H743IIT6 Learning Board
Operate in extreme conditions from -40C to 85C, making this System Board ideal for a wide range of applications
Main frequency 480MHz
chip 2M Flash, 1M
External expansion QSPI driver W25Q64
External expansion of 16 bit wide 32MB SDRAM
1 reset button; 1 BOOT button; 1 user LED; 1 Type C interface
Reserve SWD and serial port
97 IO with pin arrangement and half hole lead out
(Some IO are occupied by the core board, such as LCD pins)
Working environment temperature -40~85C
One click entry into ISP mode without pressing the reset button, making it easy to download programs using USB
Debug Interface
SWD and USART1
Type C interface
Support USB download program
STM32H743IIT6
V version chip, with a main frequency of 480M
SDRAM
16 bits wide, 32M bytes
LCD interface
RGB888 24 bit color
8M bytes W25Q64
Using QSPI driver to provide MDK download algorithm
(Differences in printed wording do not affect usage)
Color: Black
Material: ABS
Package Contents:
1 * STM32 Development Board
2 * Pin Header
Details
| OPC | PTBWQDK |
|---|---|
| Brand | Brecantia |
| Codes | 6032940043667 (EAN) |
Product Data
| Height | 3cm |
|---|---|
| Width | 6cm |
| Length | 10cm |
| Weight | 0.04kg |
| Colour | Black |
| Material | ABS |
