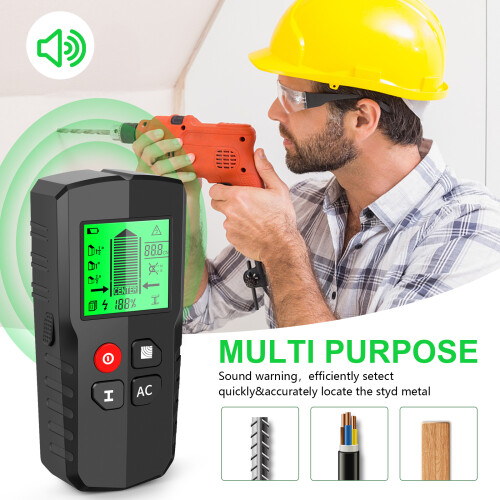

Stud Finder Wall Scanner 5 in 1 Electronic Stud Detector Metal Depth

Stud Finder Wall Scanner 5 in 1 Electronic Stud Detector Metal Depth Description

Features:

1/2"Stud Scan Mode:Detects wood or metal studs up to 13mm deep

1"Stud Scan Mode:Detects wood or metal studs up to 25mm deep

1 1/2"Stud Scan Mode:Detects wood or metal studs up to 38mm deep

Metal Mode:Detects metal up to 80mm for magnetic(60mm for non-magnetic)deep

AC Mode:Detects live unshielded AC wires up to 51mm deep

Purpose: Quickly locate wood, metal and AC wires hidden in the walls, floors and ceilings of your house. It works on slats, wallpaper, wood floors, acoustic ceilings, painted walls and more.

Avoid the dangers you encounter when installing TVs, cabinets, garage racks and more.

Metal Depth Indicator

Green Backlight

Low Voltage Indicator

Battery Type:9V battery(6F22)(not included)

Operating Current:<50ma

Shutdown Current:<10UA

Automatic Shutdown Time:3 minutes

Detection Mode Selection:

Stud Mode

In stud mode, there are 3 scan modes o choose for properly thick of the

scanning surface:

1/2"Scan Mode can detect 1/2 in. (13mn) deep.

1"Scan Mode can detect 1 in. (25mm)deep.

1 1/2"Scan Mode can detect 1 1/2 in.(38mm) deep.

If you don't know the depth of the detection, it is recommended to use

1/2"scan mode first. When 1/2"scan mode is not detected, use 1"or 1

1/2"scan mode instead.

Metal Mode:

The detection of magnetic metal can be as deep as 3.2 in. (80mm)(diameter

15mm galvanized steel tube)

It can detect non-magnetic metals up tc 2.4 in. (60mm) (diameter 13mm

copper tube).

AC Mode:

Detect unshielded AC live wire up to 2 in. (51mm) deep.

Package Included:

1 x Wall Scanner
