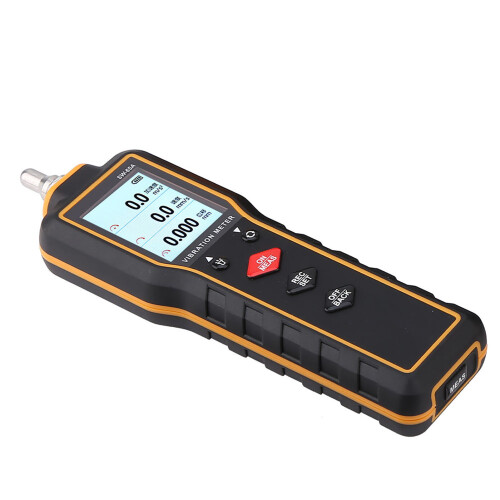

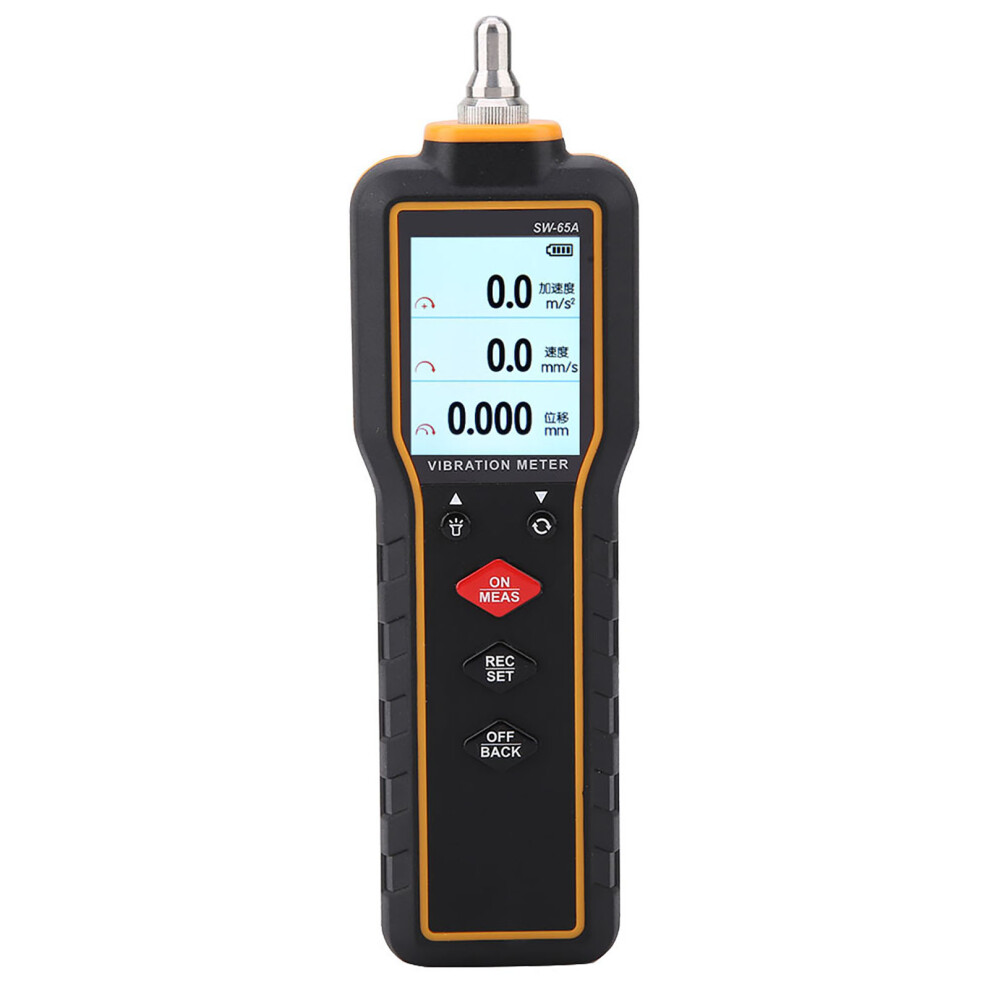

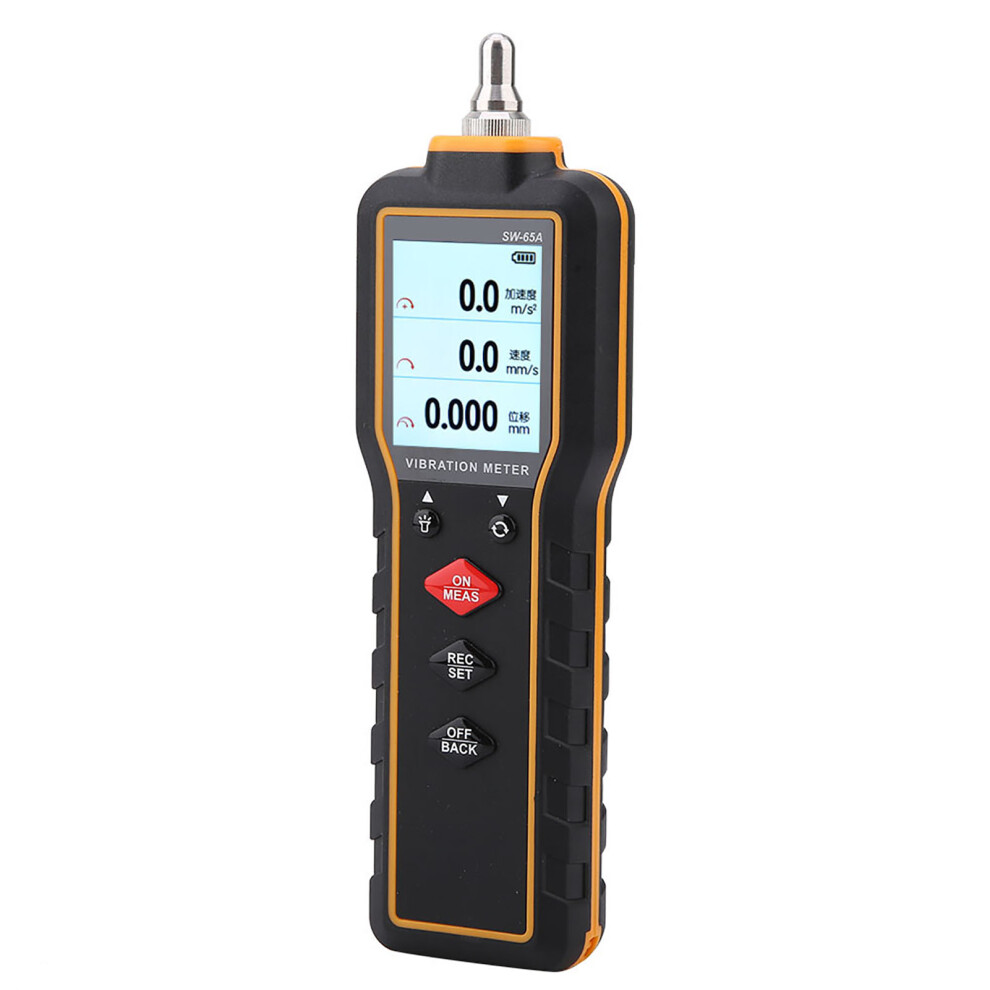

SW-65A Handheld Digital Vibration Meter Tester Measuring Machine

SW-65A Handheld Digital Vibration Meter Tester Measuring Machine Description

SW-65A Handheld Digital Vibration Meter Tester Measuring Machine

Features:
1.

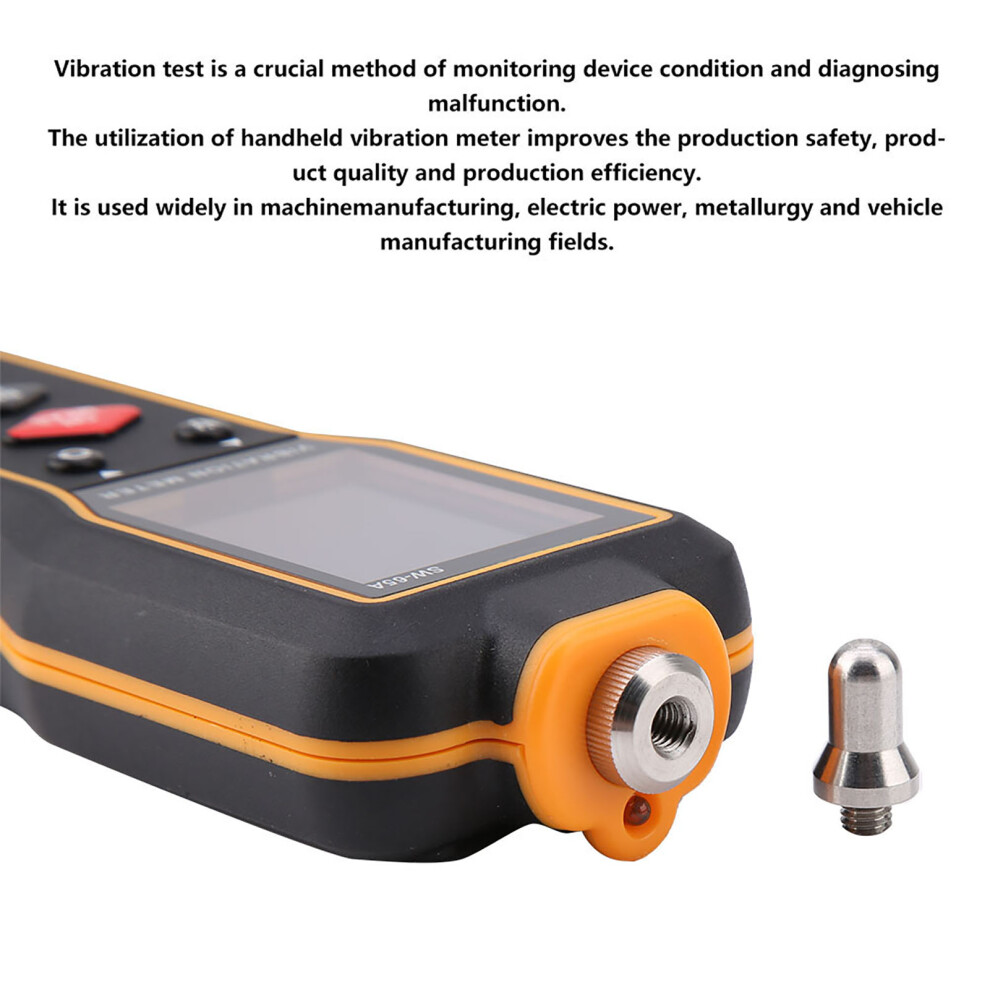

2. Vibration test is a crucial method of monitoring device condition and diagnosing malfunction.
3. The utilization of handheld vibration meter improves the production safety, product quality and production efficiency.

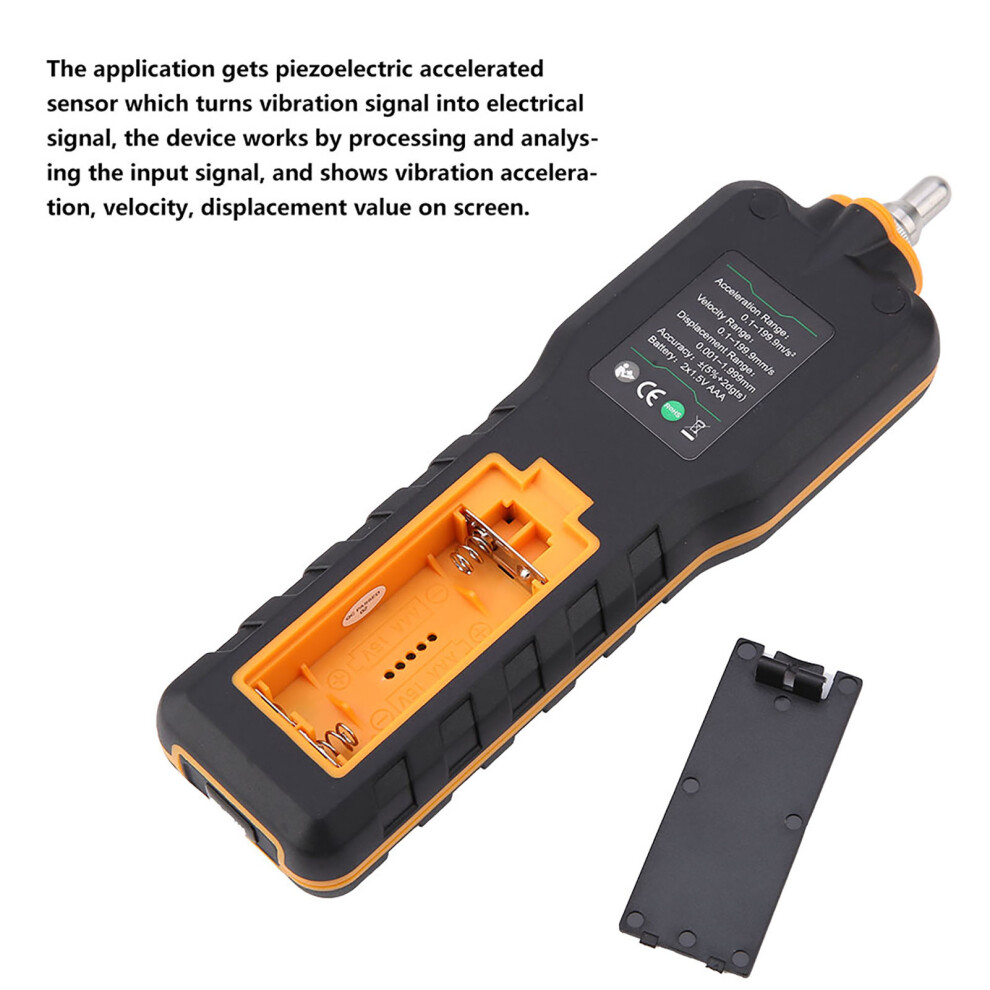

4. The application gets piezoelectric accelerated sensor which turns vibration signal into electrical signal, the device works by processing and analysing the input signal, and shows vibration acceleration, velocity, displacement value on screen.

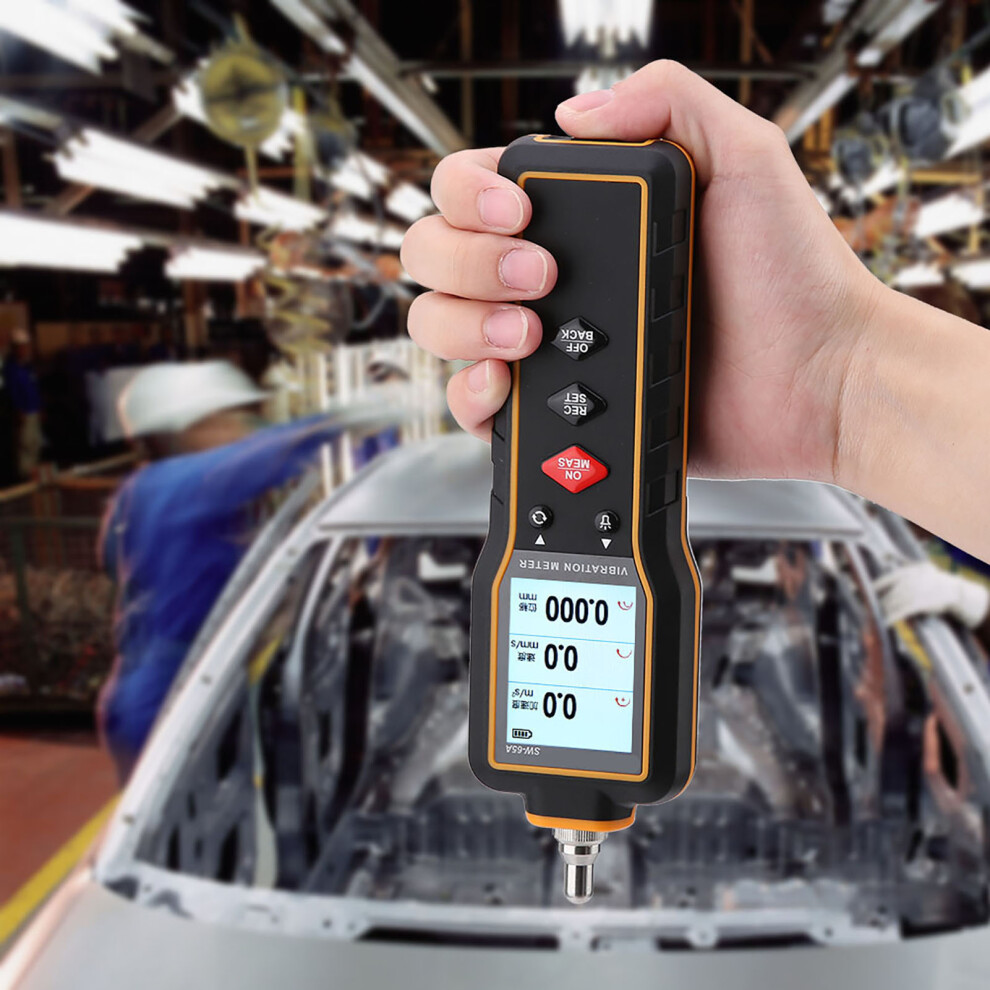

5. It is used widely in machinemanufacturing, electric power, metallurgy and vehicle manufacturing fields.

Specification:
Condition:
Model: SW-65A




Items




SW-65A






sensor




piezoelectric accelerated sensor






acceleration measurement




0.1-199.9m/s2(peak value)






velocity measurement range




0.1-199.9mm/s(real-time valid value)






displacement measurement




0.001-1.999mm(peak-peak value)






accuracy




(5%+2dgts)






low frequency acceleration




10Hz-1KHz






high frequency acceleration




1KHz-10KHz






velocity measuring frequency




10Hz-1KHz






displacement measuring




10Hz-500Hz






storage capacity




200 sets






data refresh time




500ms






power




2*1.5V AAA battery(not included)






battery working life




beyond four hours without breaks






working temperature




0-50






working humidity




20%RH-80%RH






storage temperature




-20-60






storage humidity




20%RH-80%RH






height above sea level




<2000m




Weight: Approx. 668g / 23.6oz

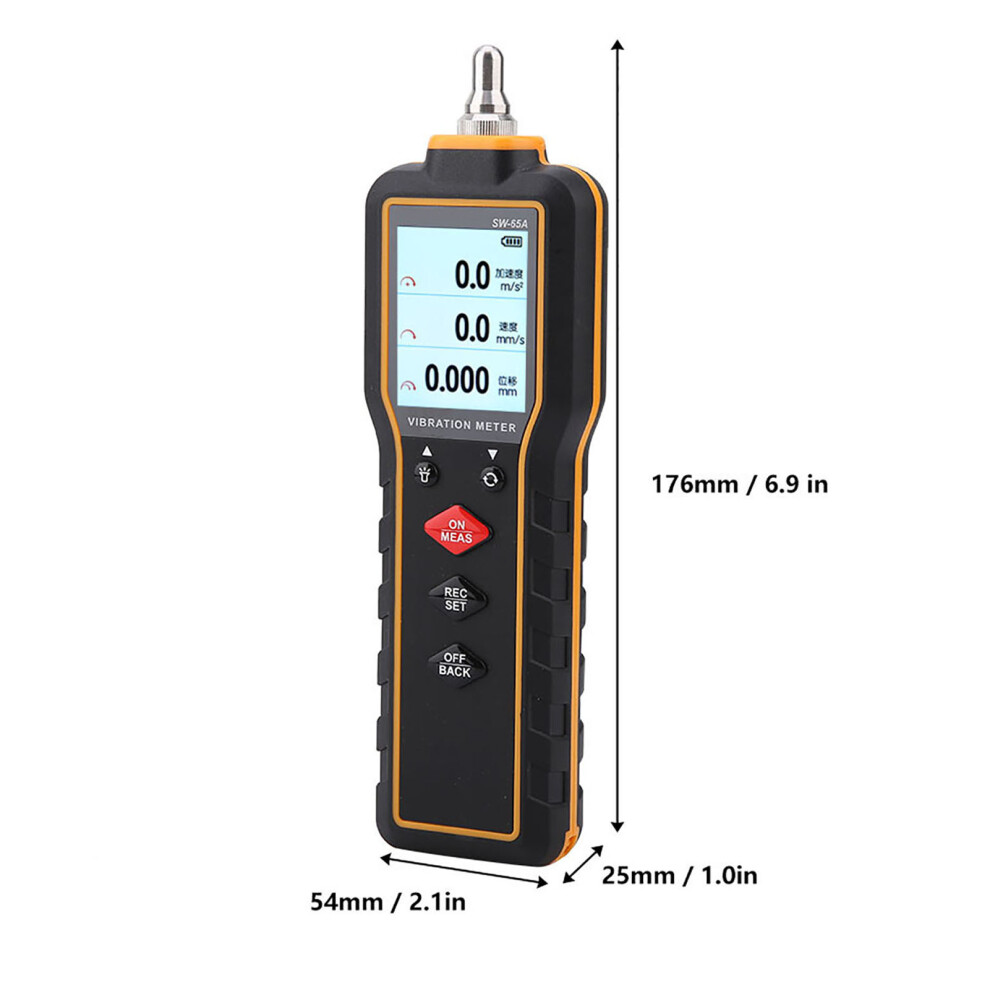

Size: Approx. 176 * 54 * 25mm / 6.9 * 2.1 * 1.0in

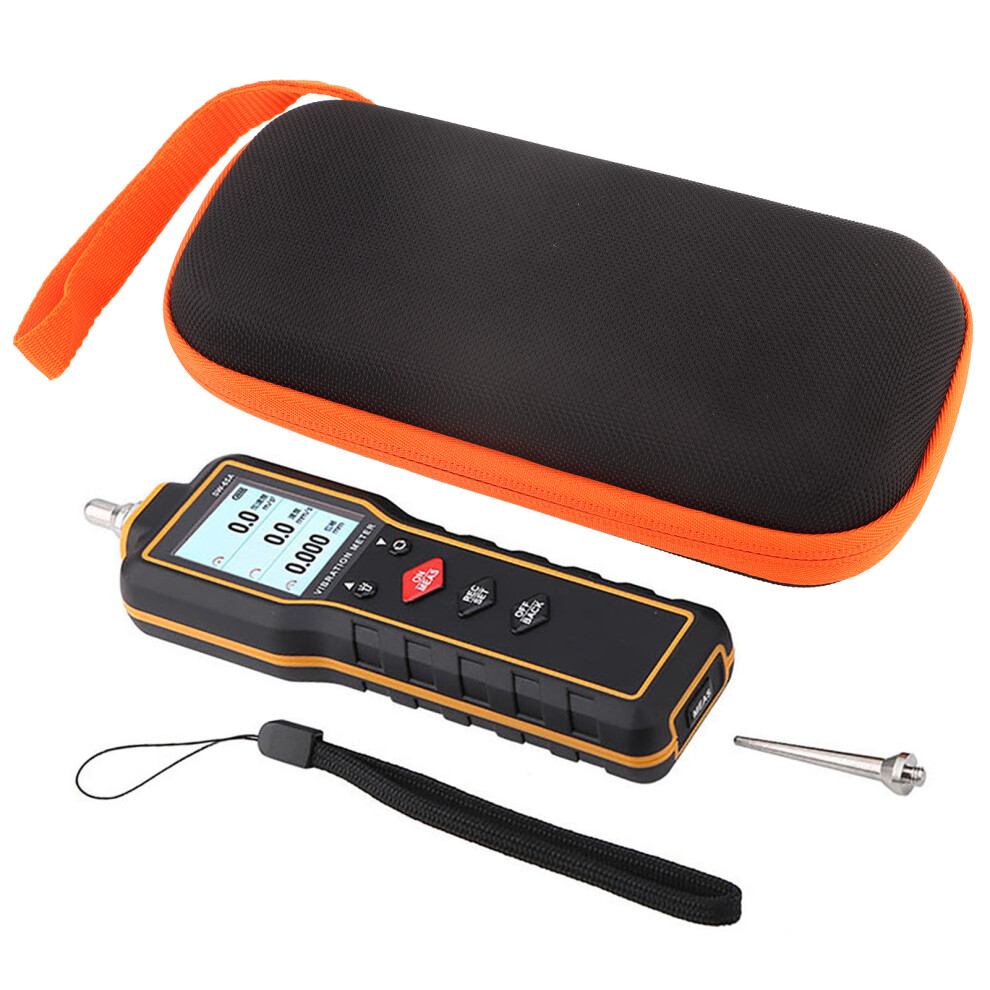

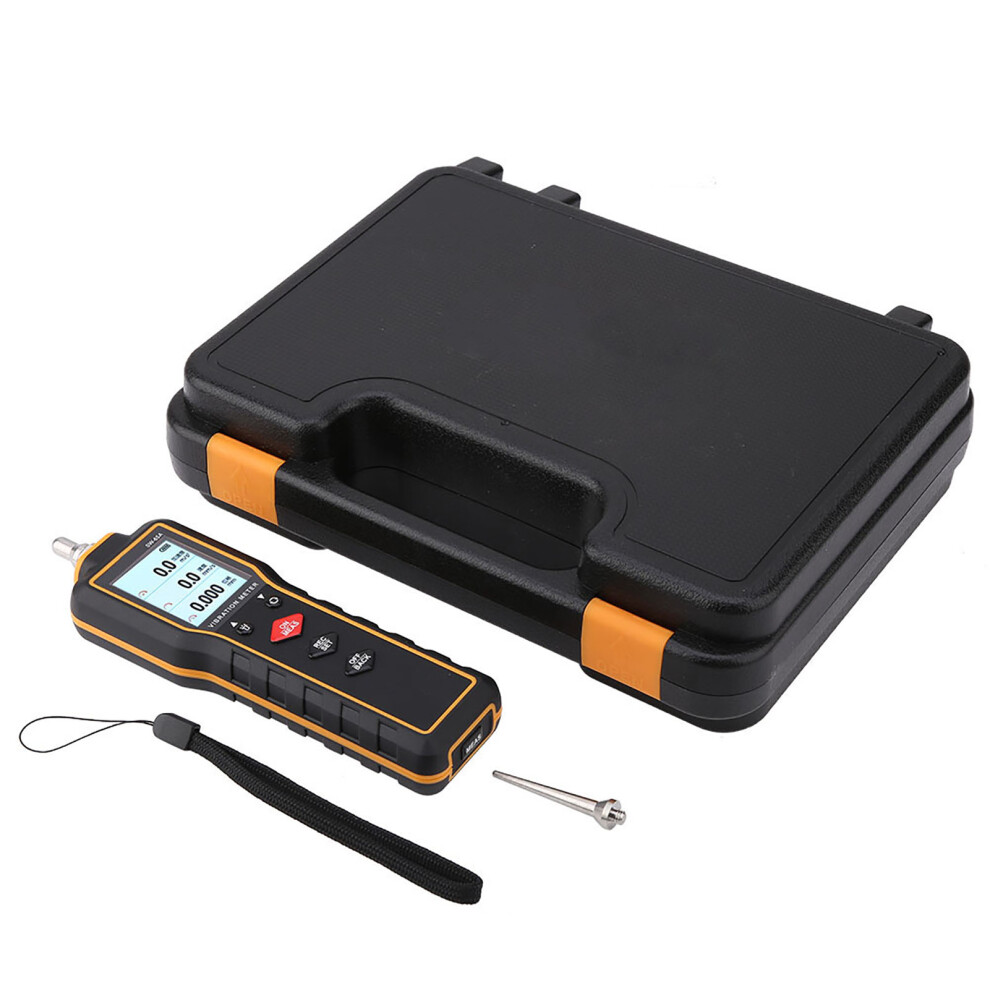

Package List:
1 * Handheld Vibration Meter
1 * User Manual
1 * Hanging Rope
1 * Cloth Bag
1 * Probe

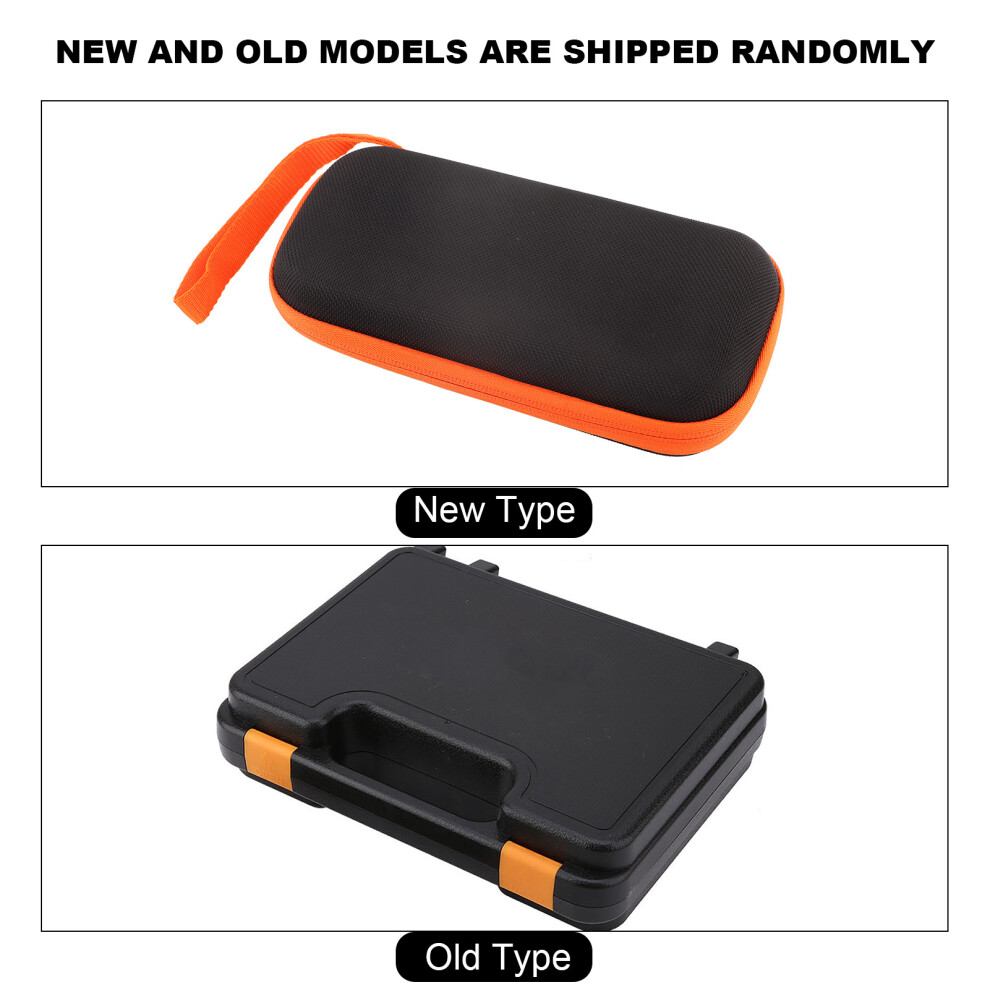

Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
