SW3518 100W Full Protocol High-Power Fast Charge M

SW3518 100W Full Protocol High-Power Fast Charge M Description

1. Max 100W output power, support /PD/QC/AFC/FCP/SCP/SFCP/VOOC and other fast charging protocols
2. Support the fast charge output of port A or C port, only support the pressure reduction
3. Input voltage 6 ~ 32V, it is recommended to use 24V power supply to achieve 20V output

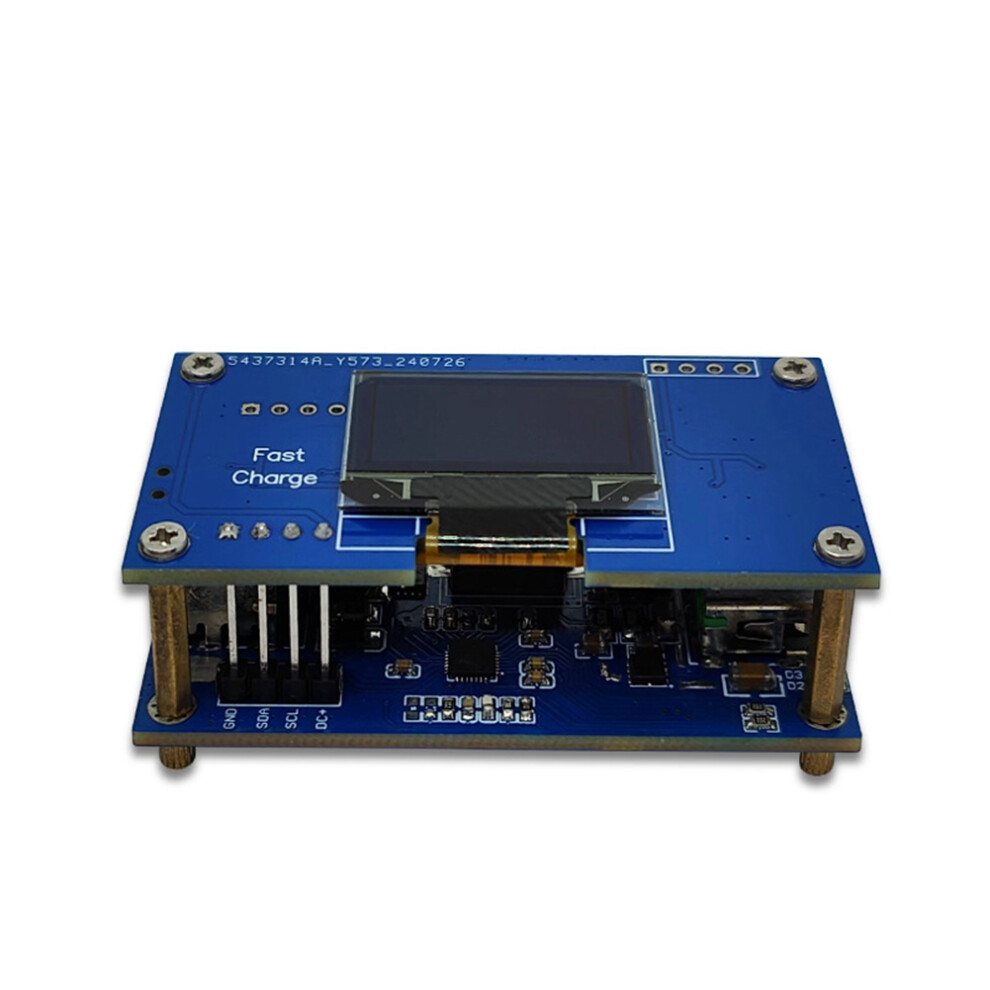

4. Support the extension display or multiple power board superposition

Instructions for use:

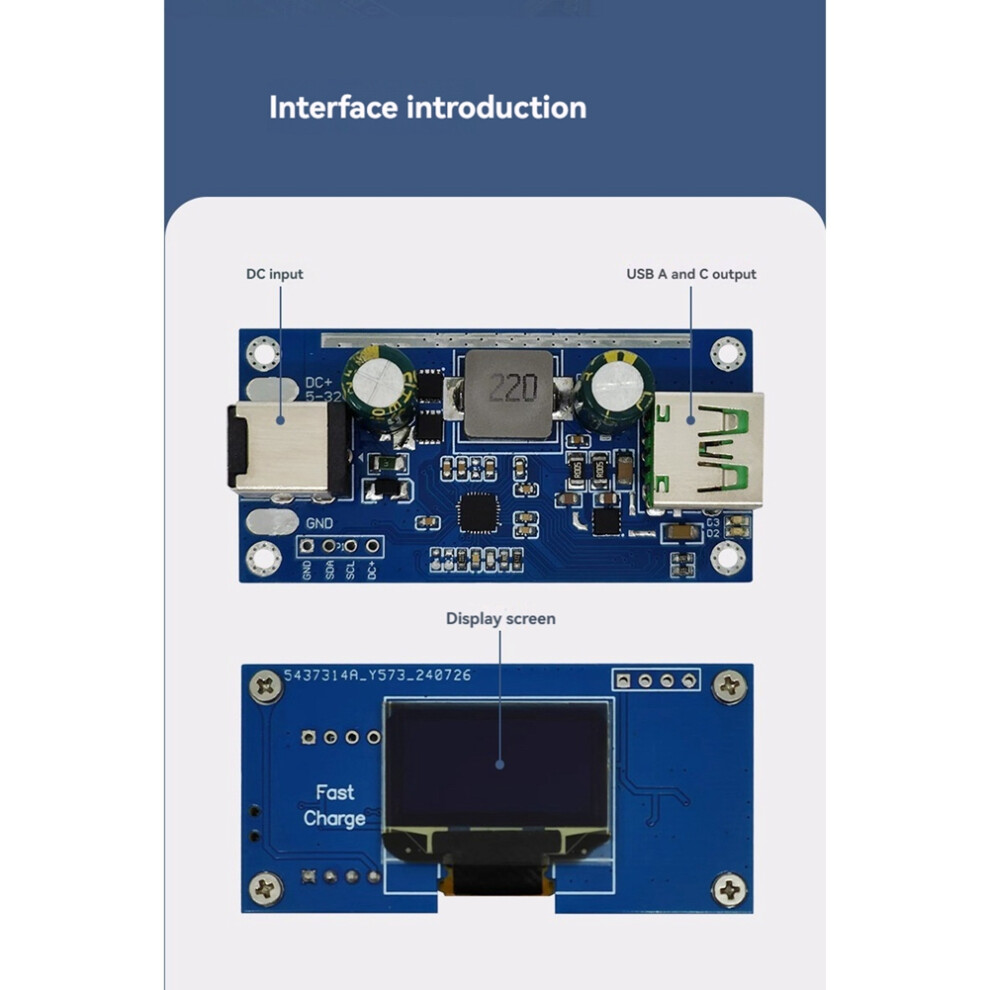

Power supply through 5.5x2.1mm power sockets, or to connect to the power supply by yourself. power supply
The voltage range is 6 ~ 32V.
Because it is a lower voltage power supply, the input voltage must be the output voltage. If you want to output 20V
It is recommended to enter 24V.
After inserting the power supply, the red indicator lights up, and the USB A port have 5V power output.
If you insert a device with fast charge, such as mobile phones, power seductors, etc., the blue indicator lights are on
Starting, it means entering the fast charge mode. Output voltage current is adjusted by equipment such as mobile phones or seductors
Festival.

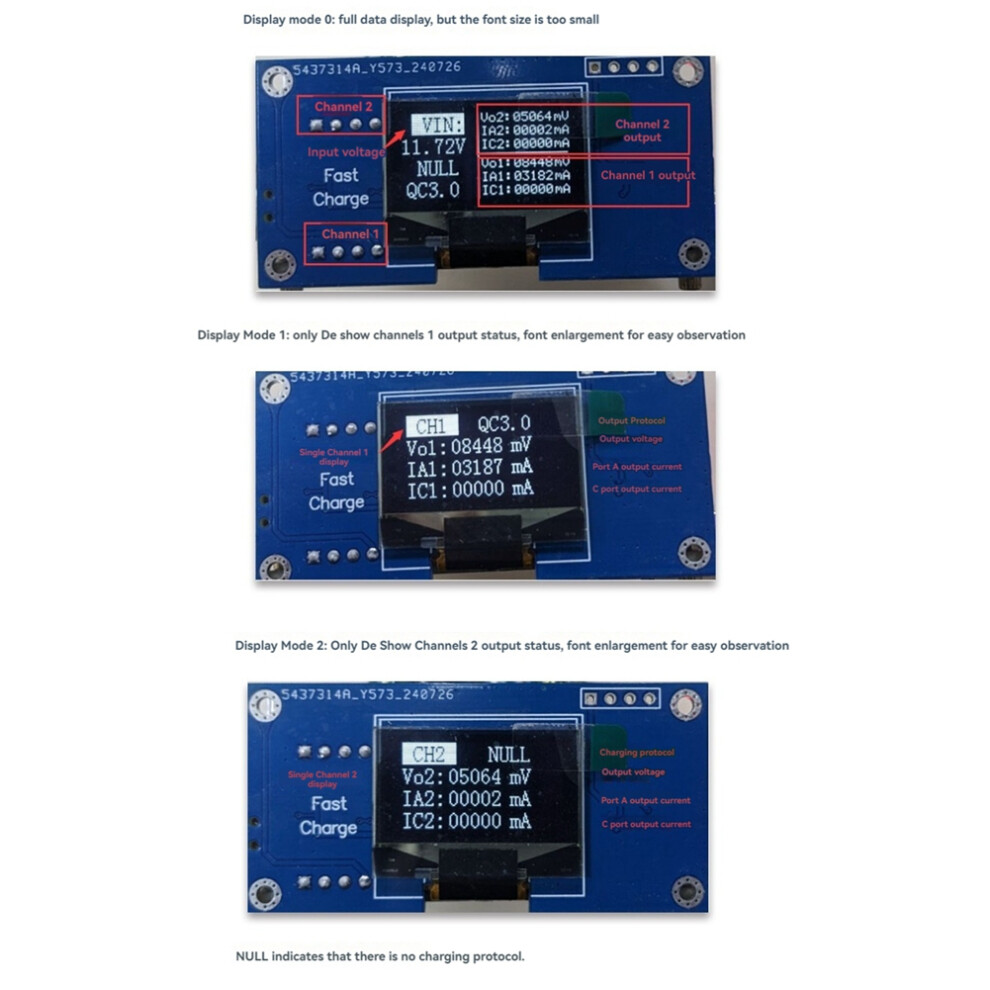

If there is a fast charge display board, you can know the charging voltage and charging current through the screen
Charging protocols, input voltage and other parameters. Through the switch on the side, 3 display methods can be changed.
Colour:Blue
Material:PCB

Package Contents:
1 x Full protocol high -power fast charge module

Only the above package content, other products are not included.
