SX1262 LoRa HAT for Series Boards 915M Frequency Band Communication Module Support Data Transmission

SX1262 LoRa HAT for Series Boards 915M Frequency Band Communication Module Support Data Transmission Description

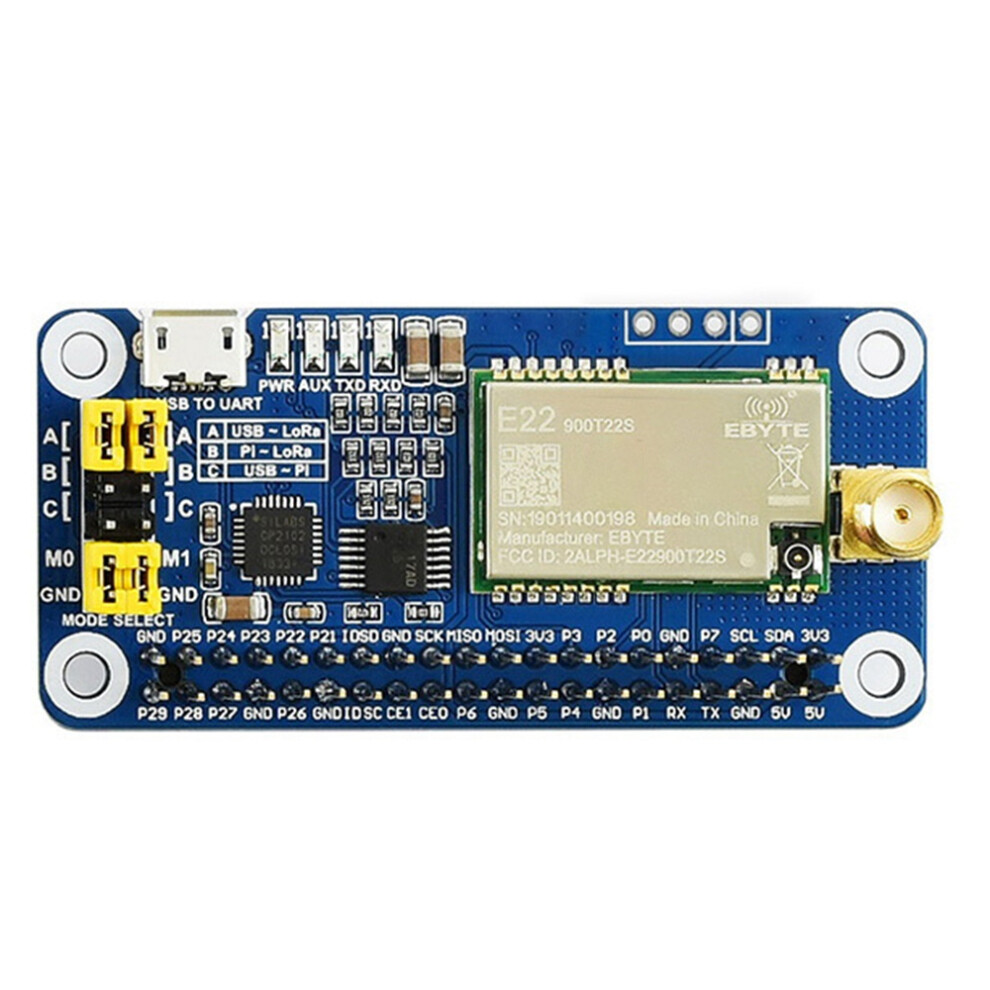

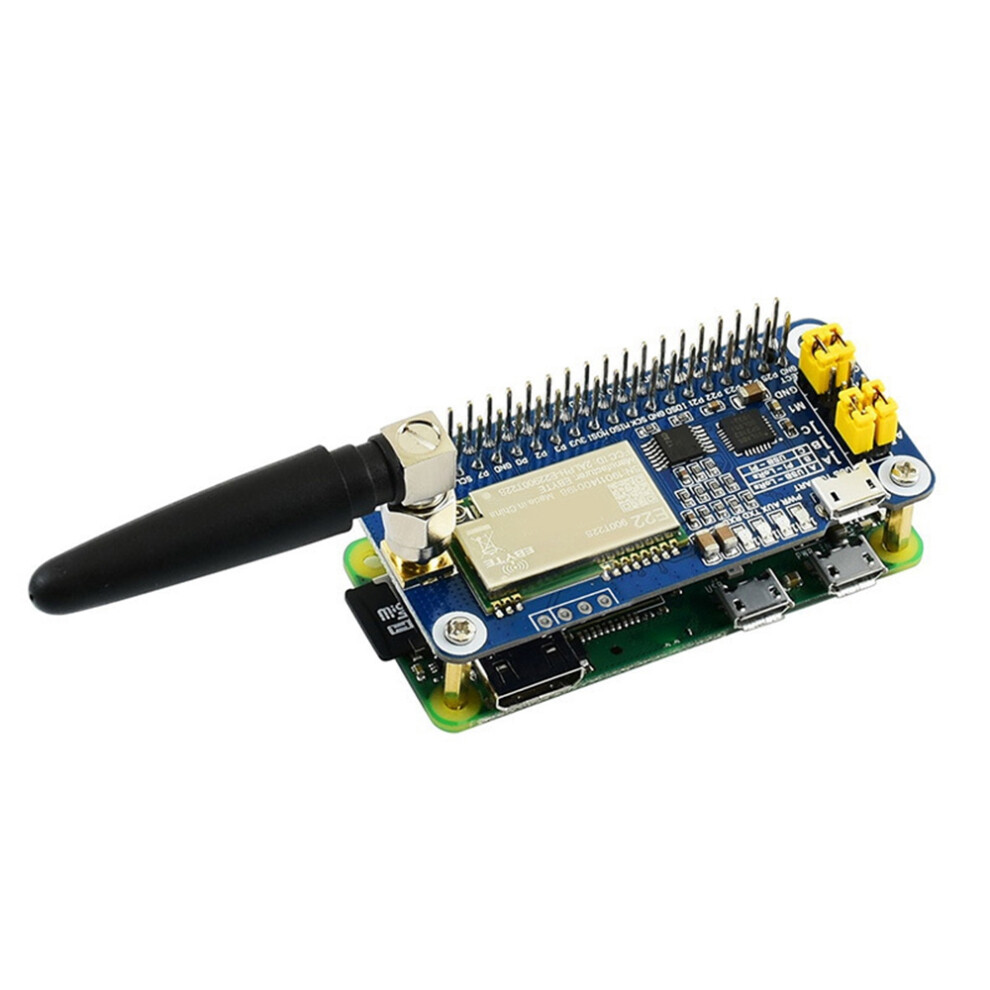

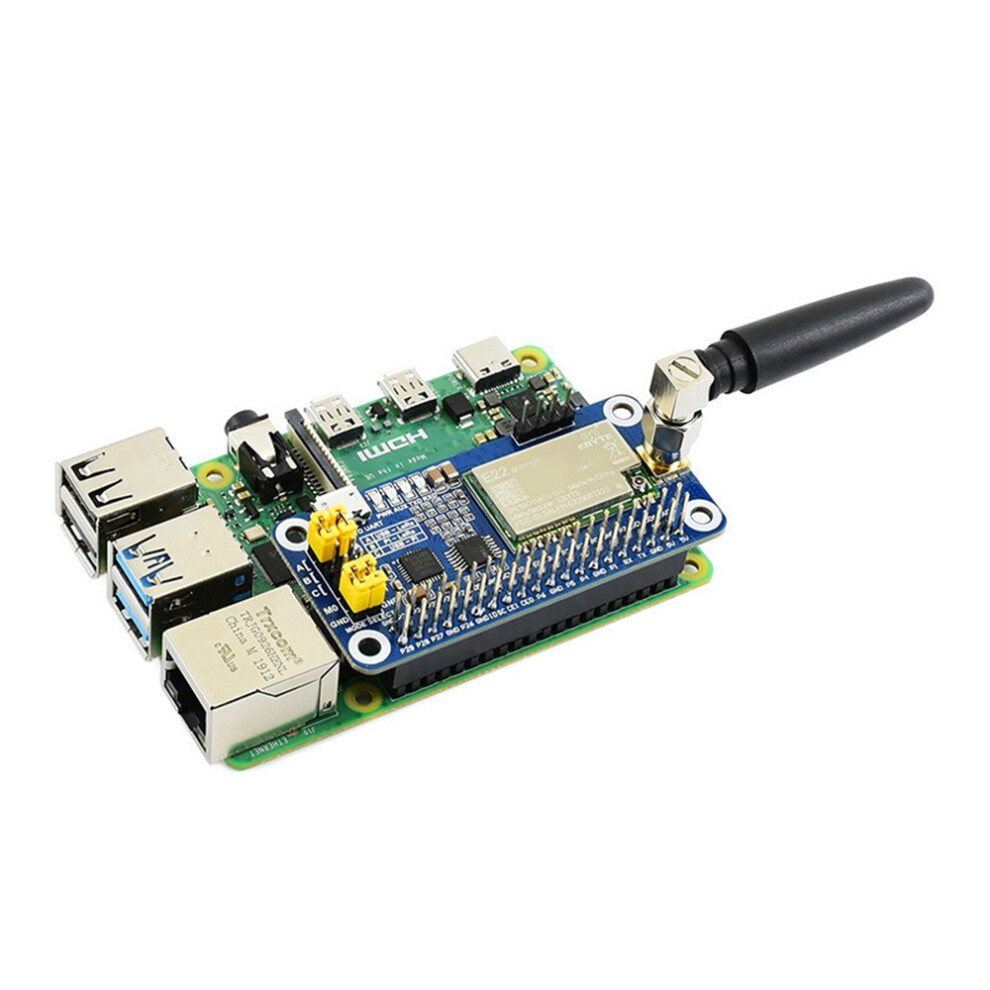

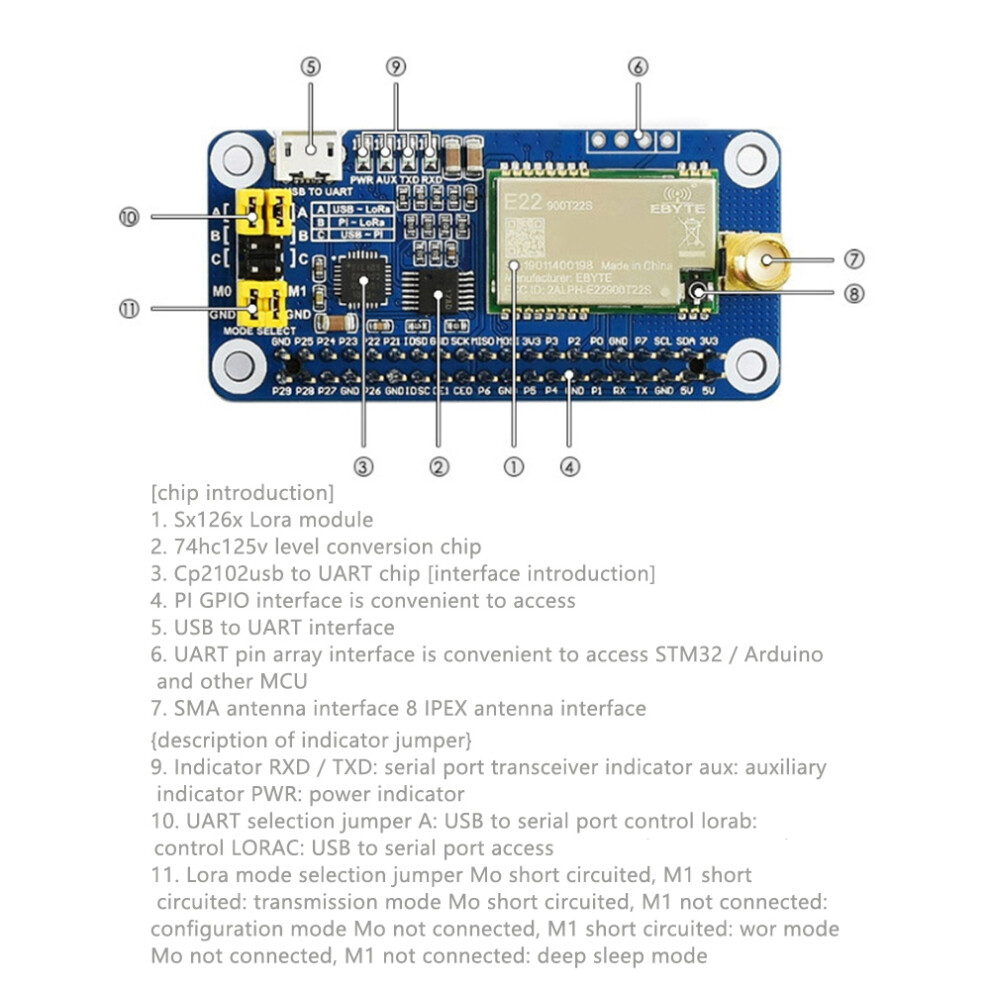

Onboard 40pin GPIO interface, suitable for Raspberry series motherboards
Onboard CP2102 USB to UART chip, convenient for serial debugging
Export the UART control interface of the module, which is convenient to connect to the main control board such as /STM32
Onboard 4 LED indicators, easy to check the running status of the module

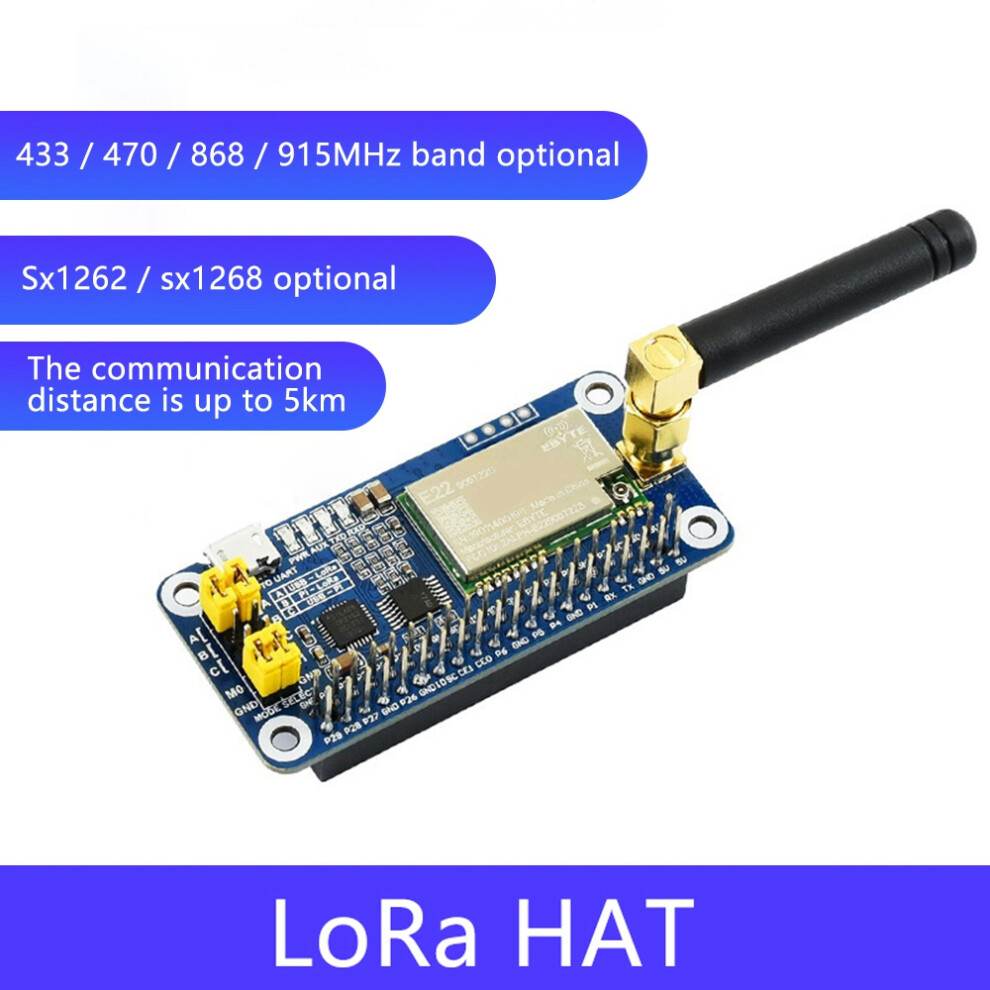

Using LoRa spread spectrum technology, up to 81 channels are optional, the communication distance is longer, and the anti-interference ability is stronger

chip: SX1262
Working frequency band: 850.125 - 930.125MHz
Supporting antenna: 915MHz antenna (2dBi)
Air rate: 0.3kbps-62.5kbps (programmable control)
Transmit power: 22.0dBm (10/13/17/22dBm programmable control)
Receive sensitivity: -147dBm (air rate 2.4kbps)
Module power consumption
Emission current: 133mA (instantaneous power consumption)
Receive current: 11mA
Sleep current: 2uA (LoRa module software shutdown)
Communication interface: UART (TTL level)
Baud rate range: 1200bps- 115200bps (default is 9600bps)
Packet length: 240 Byte (32/64/128/240 Byte programmable)
Cache capacity: 1000 Byte
Measured distance: 5km (Test environment: clear and open, 2.5 meters above sea level, 5dBi antenna gain, 2.4kbps air rate)
Supply voltage: 5V
Logic level: 3.3VI5V
Working temperature: -40-85Celsius
Colour:blue
Material:PCB

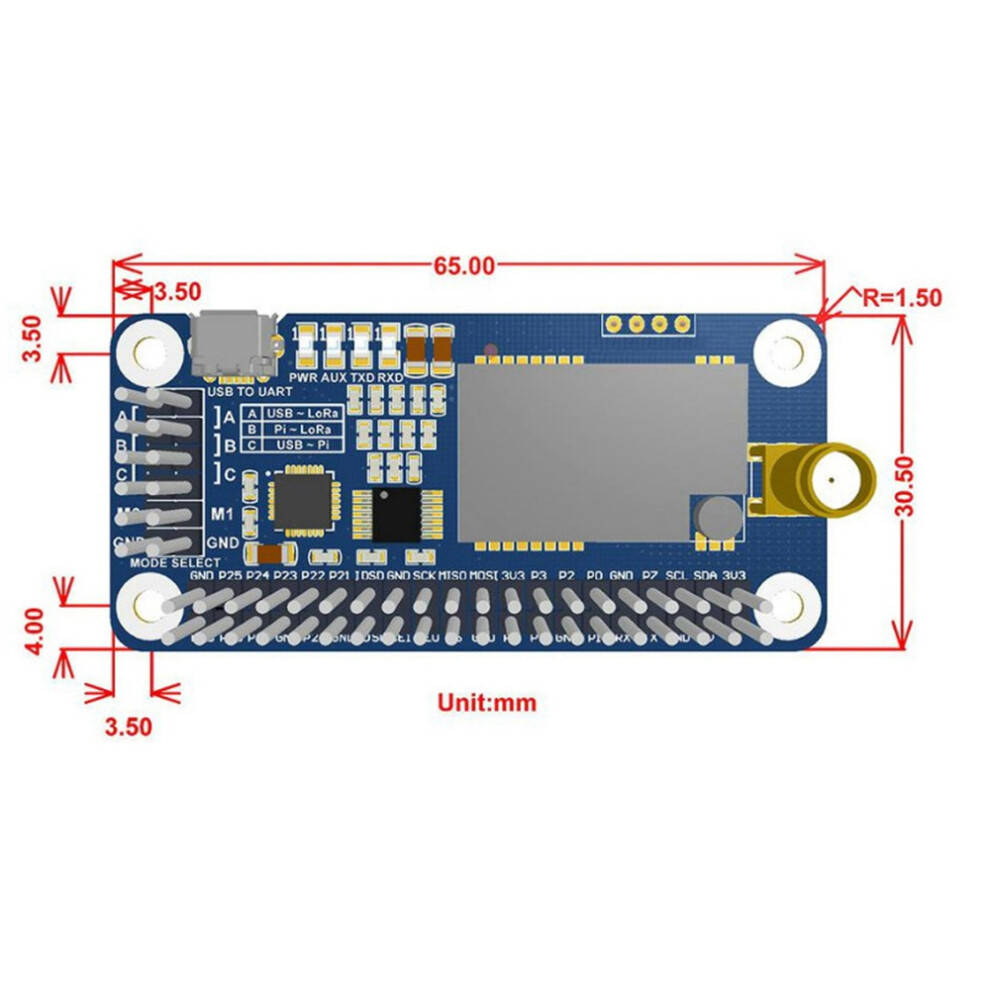

Size:65 x 30.5MM

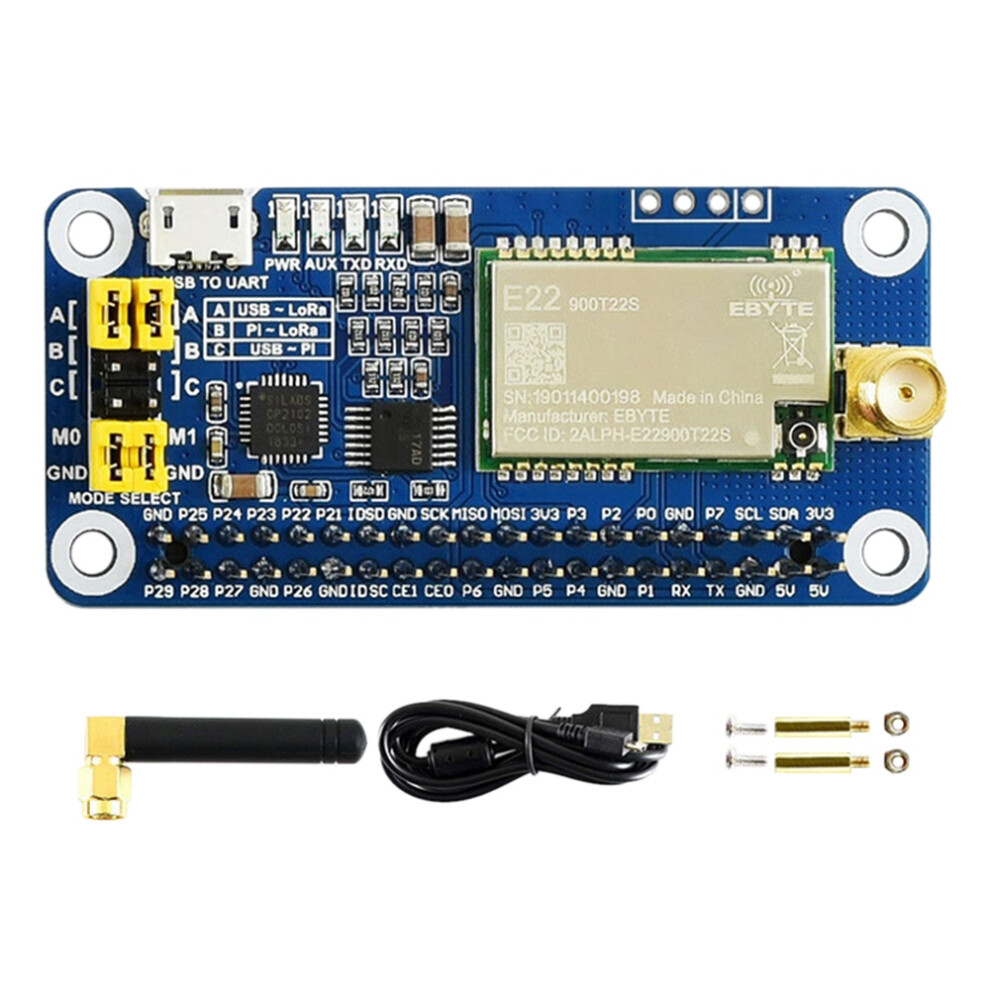

Package Contents:
1 x SX1262 915 A Plug To Micro-Plug Cable
1 x 915MHz Antenna
1 x Screw Package

Only the above package content, other products are not included.
