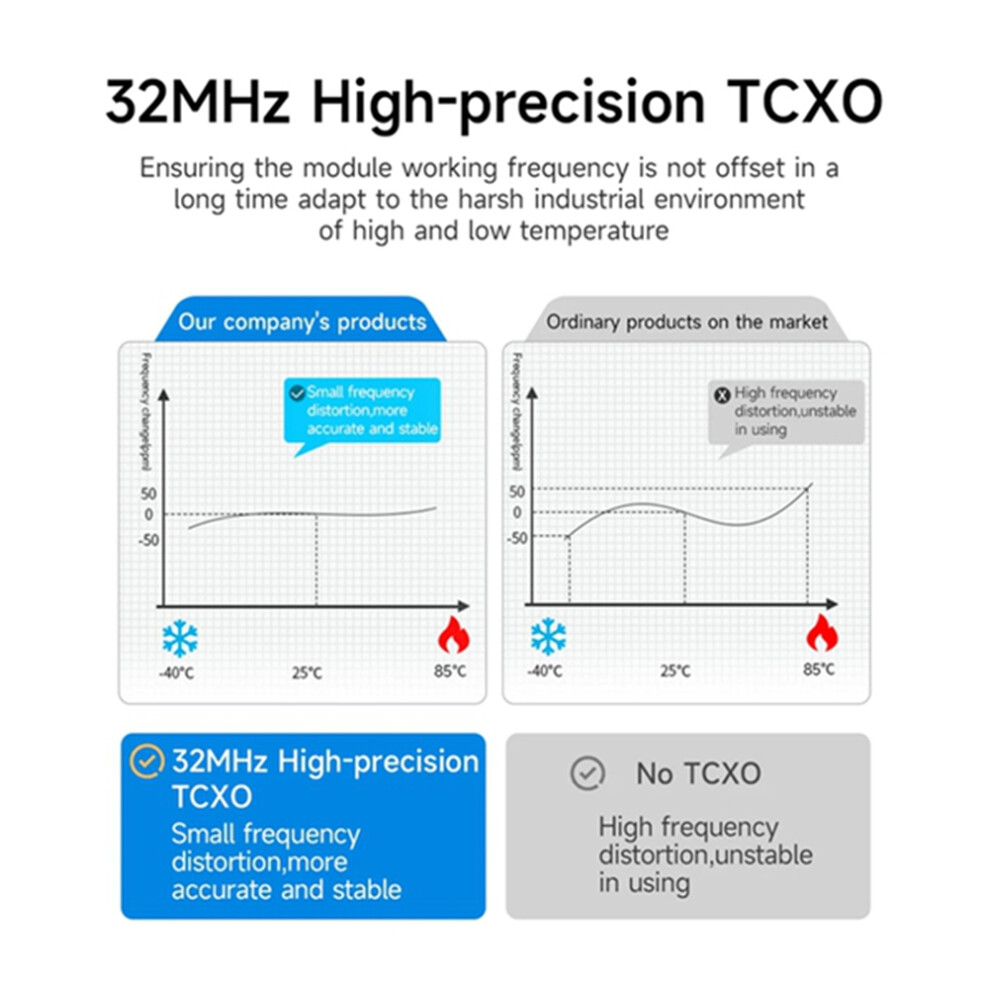

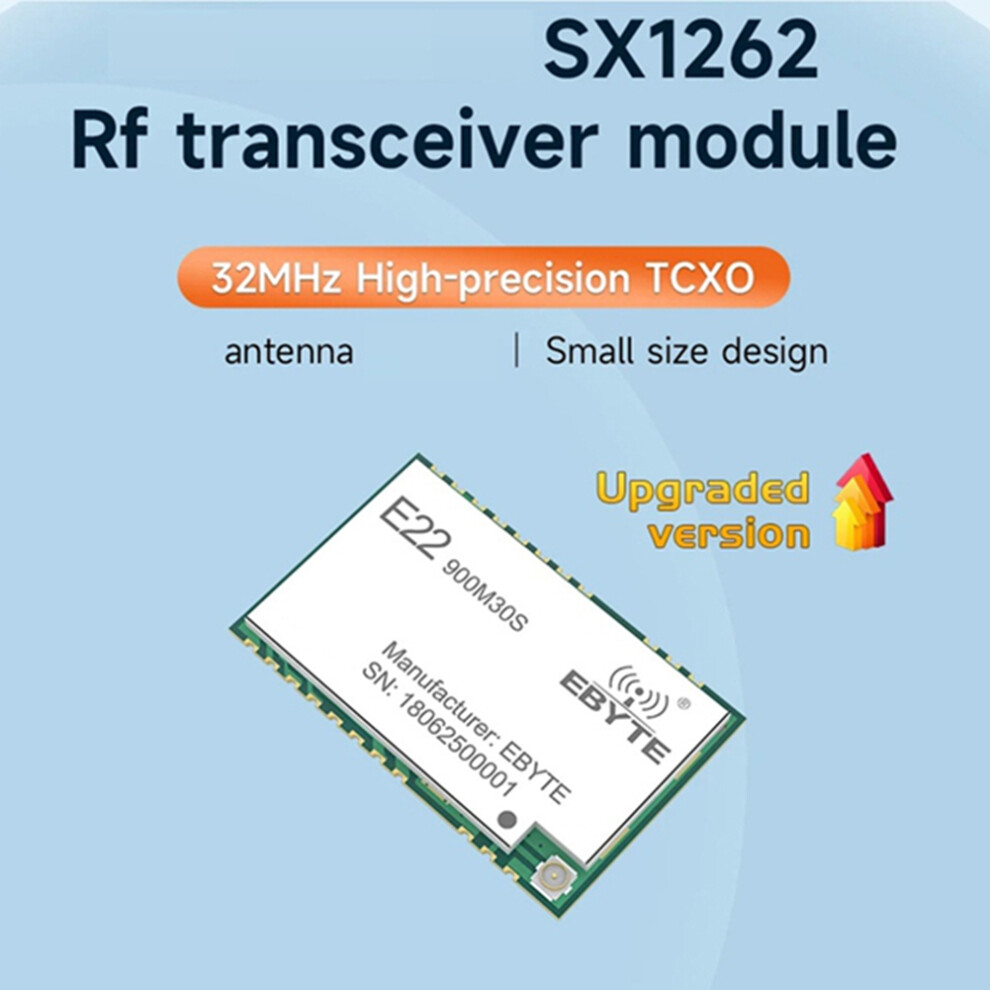

SX1262 LoRa Module 32MHz High-Precision TCXO E22-

SX1262 LoRa Module 32MHz High-Precision TCXO E22- Description

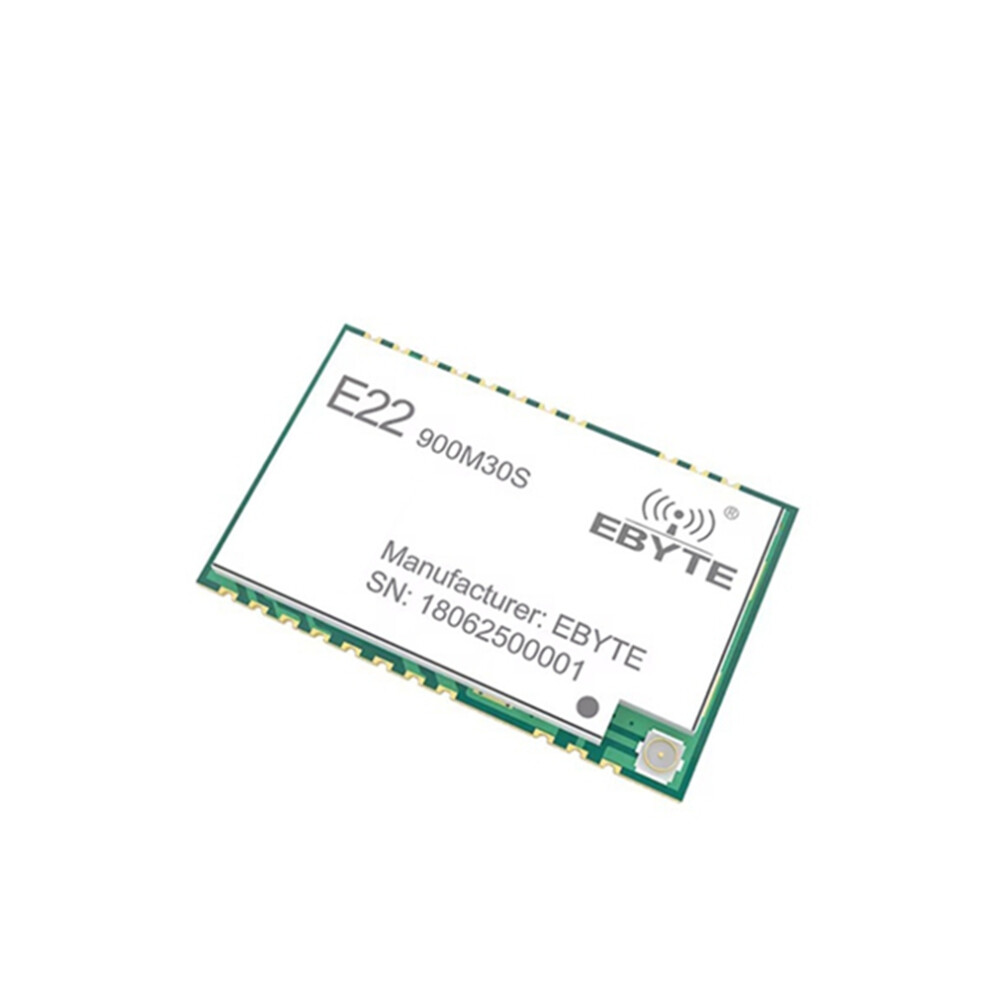

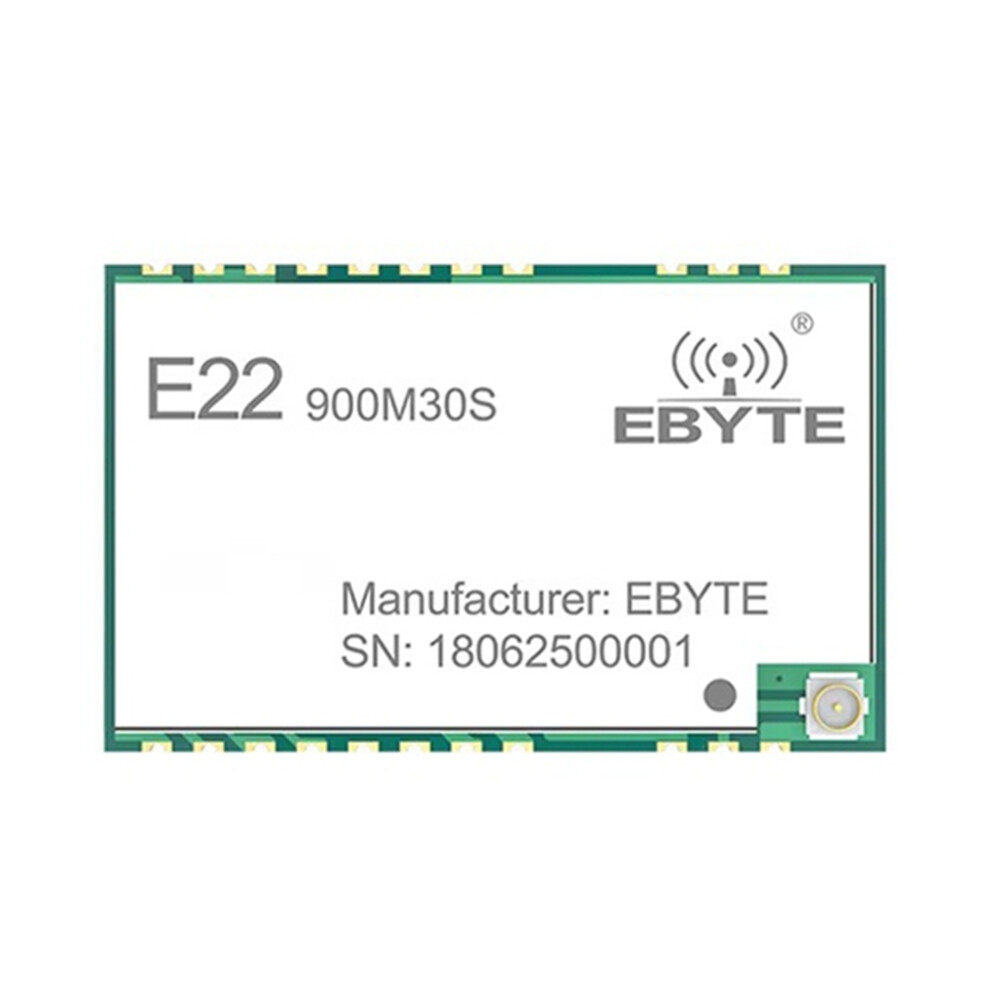

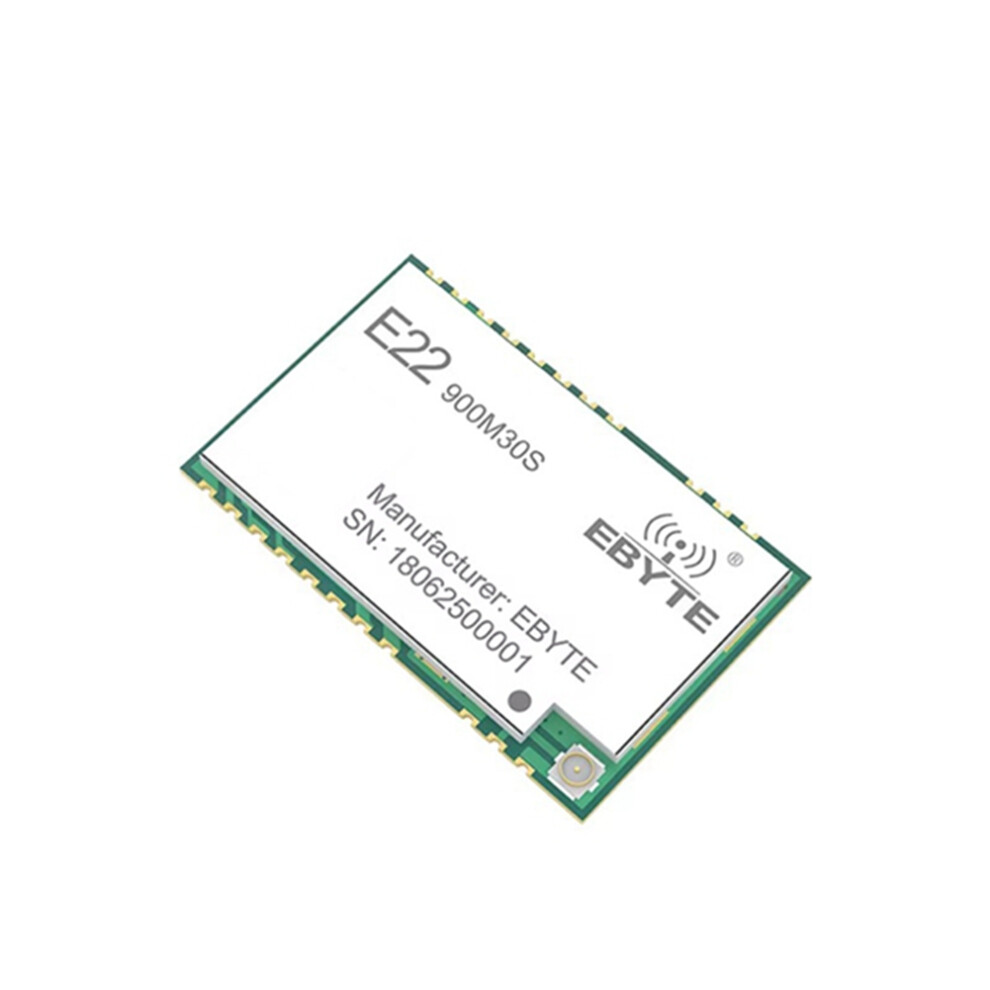

The E22-900M30S is a high-power SX1262 LoRa Module designed for efficient long-range communication.
Operating between 850-930 MHz, this module is perfect for IoT applications requiring extended range and robust signal integrity.
High Transmitting Power: 30 dBm (1W) for broad wireless coverage.
Enhanced Sensitivity: Receiving sensitivity of -150 dBm ensures reliable data acquisition even at long distances.
Flexible Data Rates: Supports air data rates from 0.018 kbps to 300 kbps, adaptable to communication needs.

Extended Range: Capable of reaching up to 12,000 meters in open and clear conditions with optimal settings.
Physical Dimensions: Compact size, equipped with and Stamp hole antenna options for versatile mounting.
Electrical
Power Supply: 2.5V to 5.5V.
Low Power Consumption: Sleep current as low as 1.35 nA, ideal for battery-powered applications.
Operational Reliability: Operates effectively within a temperature range of -40 to +85 and humidity levels from 10% to 90%.
Color: White & Green
Material: Plastic+Metal

Package Contents:
1 * LoRa Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
