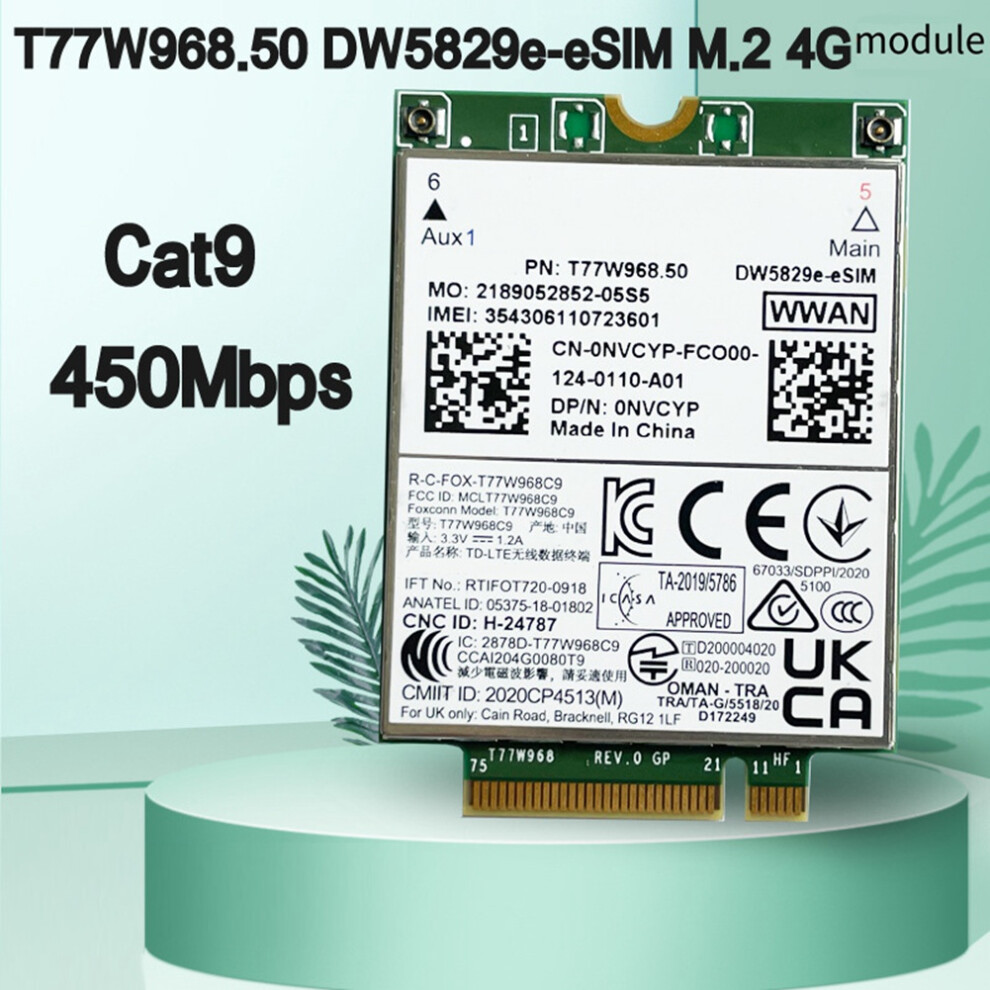

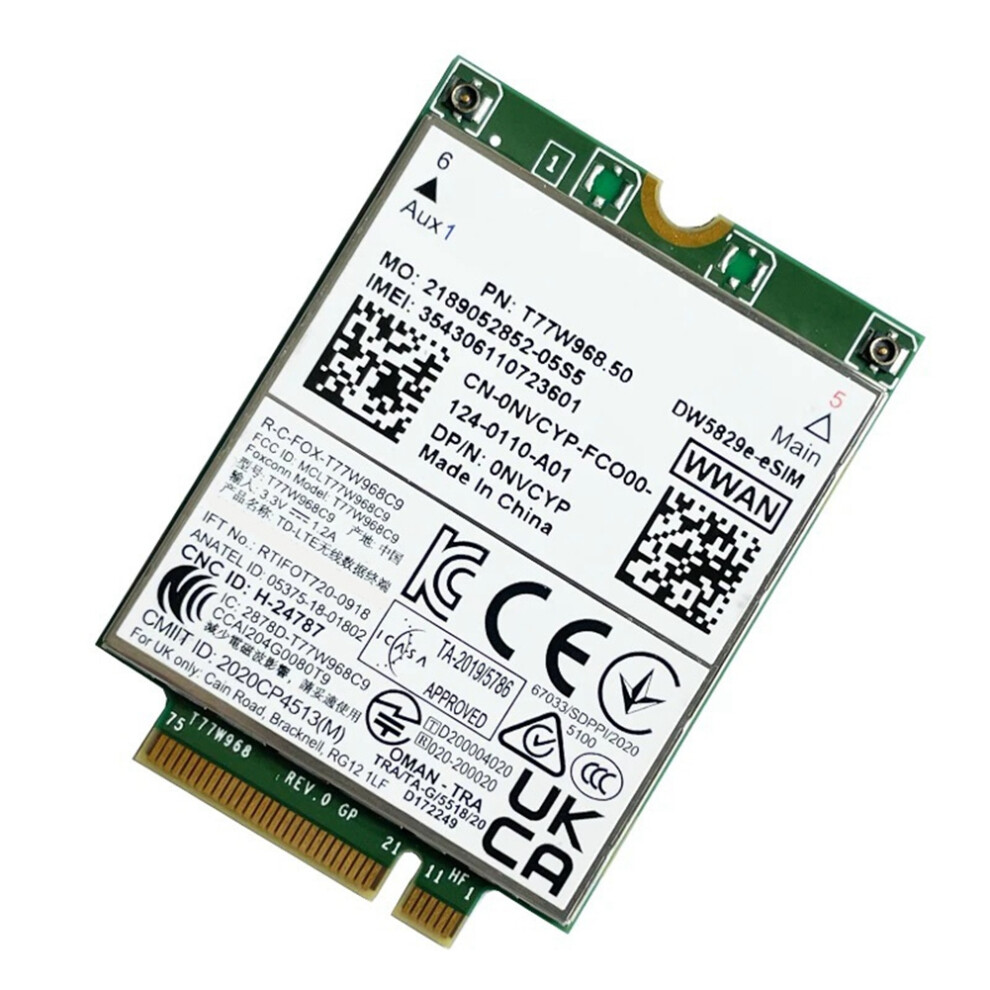

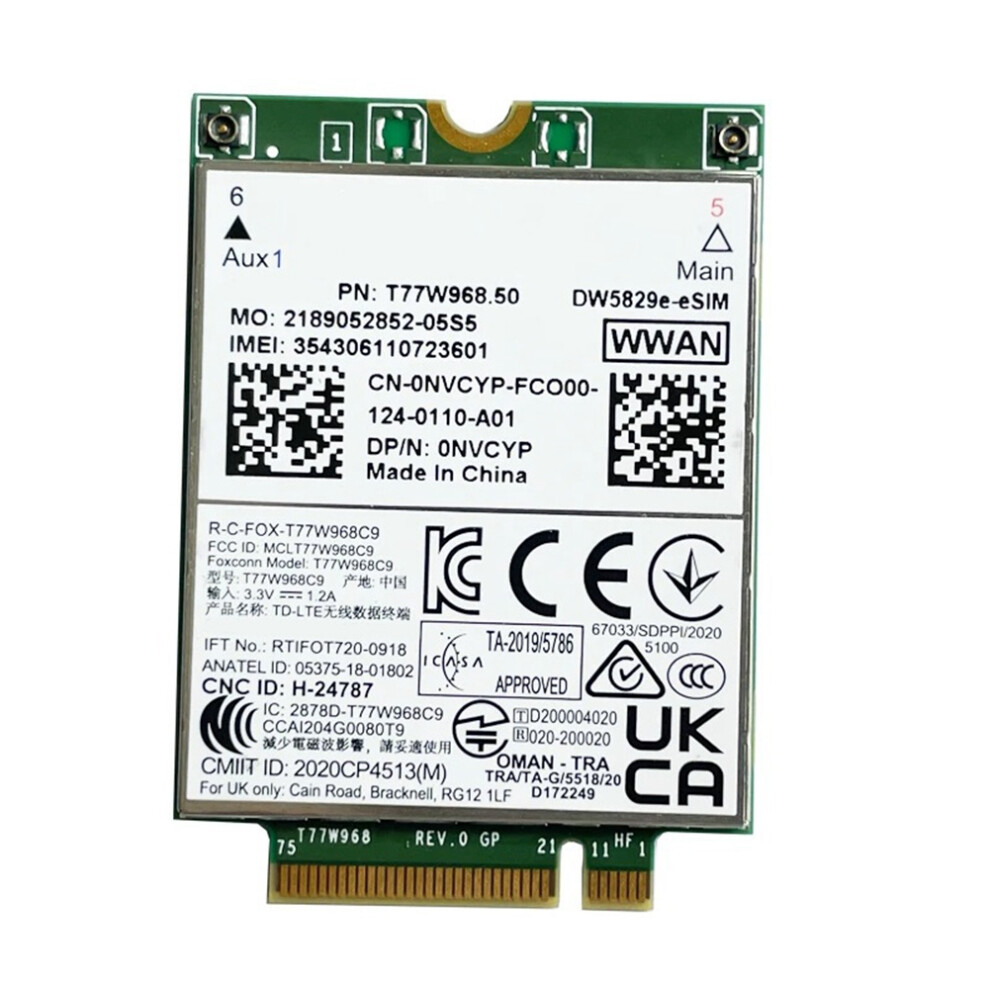

T77W968.50 DW5829e-ESIM M.2 4G Modem Module Cat9 4

T77W968.50 DW5829e-ESIM M.2 4G Modem Module Cat9 4 Description

T77W968.50 is the data card solution
That delivers wireless wide-area network (WWAN) connectivity for the LTE, UMTS (HSDPA/HSUPA/HSPA/DC-HSPA) and GPS/Glonass/Beidou protocols in one hardware configuration
LTE Bands:LB:B26(5/18/19)/8/12(17)/13/14/20/28/29; MB:B1/2(25)/3/4(66)/32; HB:7/30/38/39/40/41/42/43/48; :B46(DL only)
WCDMA Bands:1/2/4/5(6/19)/8/9
Made of high-quality materials, sturdy and .

Carrier Support:
NA: , , Sprint
: , Orange, Telefonica-O2
EU: Deutsche , Swisscom
: , , , KDDI
China: CMCC/CUCC/CTCC
Carrier engagement based on real business agreement
QCT Solution:SDX20-2+SDR845+PMX20
4G:
Mode:FDD/TDD
Support Band:LB 26(5)/12(17)/13/14;MB 2/25/4/66;HB 7/30/38/41
Carrier Aggregation:3xDL CA (Up to 60MHz, 64QAM)
Cat (DL/UL Mbps):ue-Category UL 5 (UL: 75Mbps) + ue-Category DL 9 (DL: 450Mbps) with 2X2 MIMO
3G:
WCDMA HSPA+ Rel8 (DL/UL:up to 42/11 Mbps)
Support Band:B2/4/5
GNSS:GPS/GLONASS/Beidou/
Tunable antenna:Reserve MiPi/GPlO at M.2 interface for external antenna tuner
eSIM:Dual with eSlM on board, Dual and single active (DSSA)
Interface:USB2.0, USB3.0
Form factor:3042 PCle M.2 Key.B Sigle side
Due to different batches, the printed words on the product be different, which does not affect use.
Colour:As Shown
Material:PCB

Package Contents:
1 * Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
