T8 Multi-Function 8-Channel Audio Isolator 1U Rack Mounted XLR 6.35mm Eliminates Current

T8 Multi-Function 8-Channel Audio Isolator 1U Rack Mounted XLR 6.35mm Eliminates Current Description

The 8-channel multi-interface audio isolator is a high-quality, fully passive audio interface that uses 8 to separate the input and output signal grounds, isolating the two systems and reducing and ground loop noise.
The T8's audio have a flat and wide frequency response that can handle high signal levels while maintaining isolated balanced outputs. This gives the T8 a very clean and neutral sound from a variety of signal sources.
The are wound with 1:1 gain and are designed for impedances from 600 ohms to 100k ohms. The versatility of connections sets the T8 apart from other isolation boxes. The T8 offers balanced XLR, 1/4-inch phone, and type phono connections simultaneously on all inputs and outputs.
The T8 easily fits into almost any audio system and is a clear patching point between all types of systems.

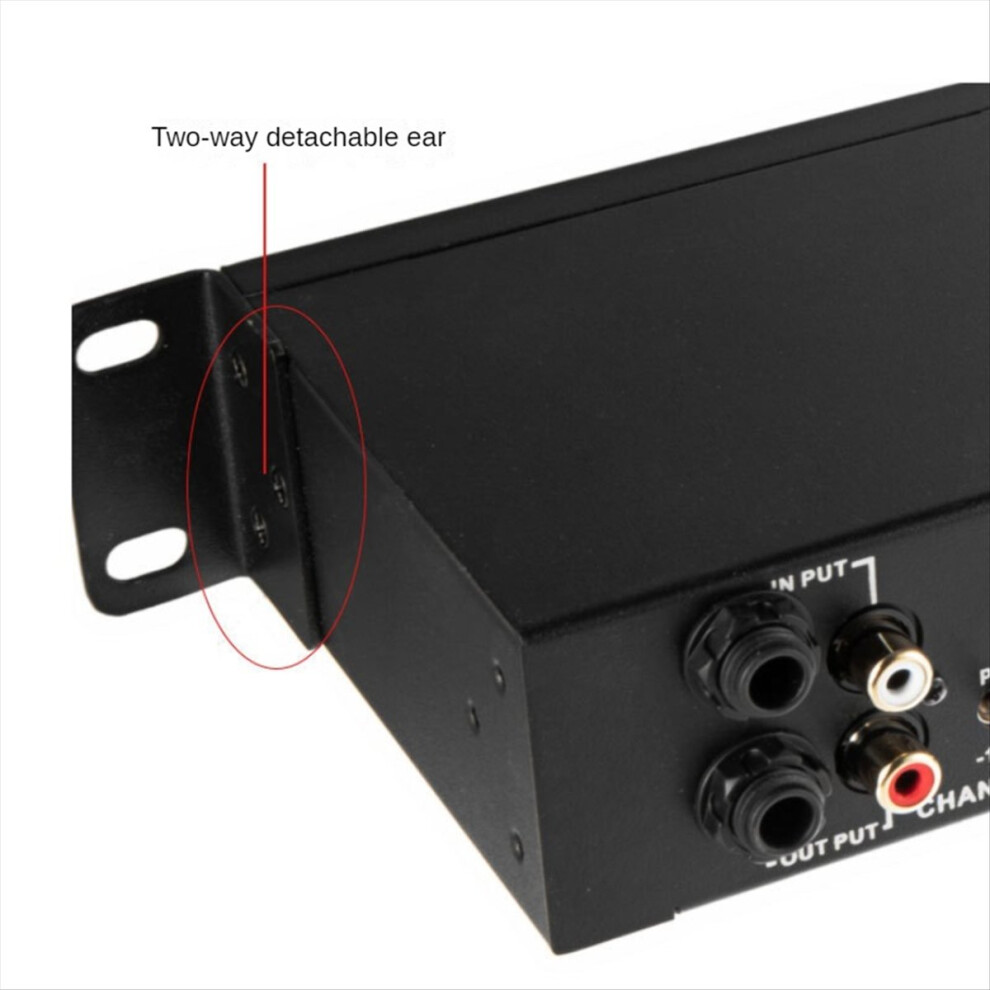

The mounting ears of the T8 are reversible so you can place the XLRs on the front.

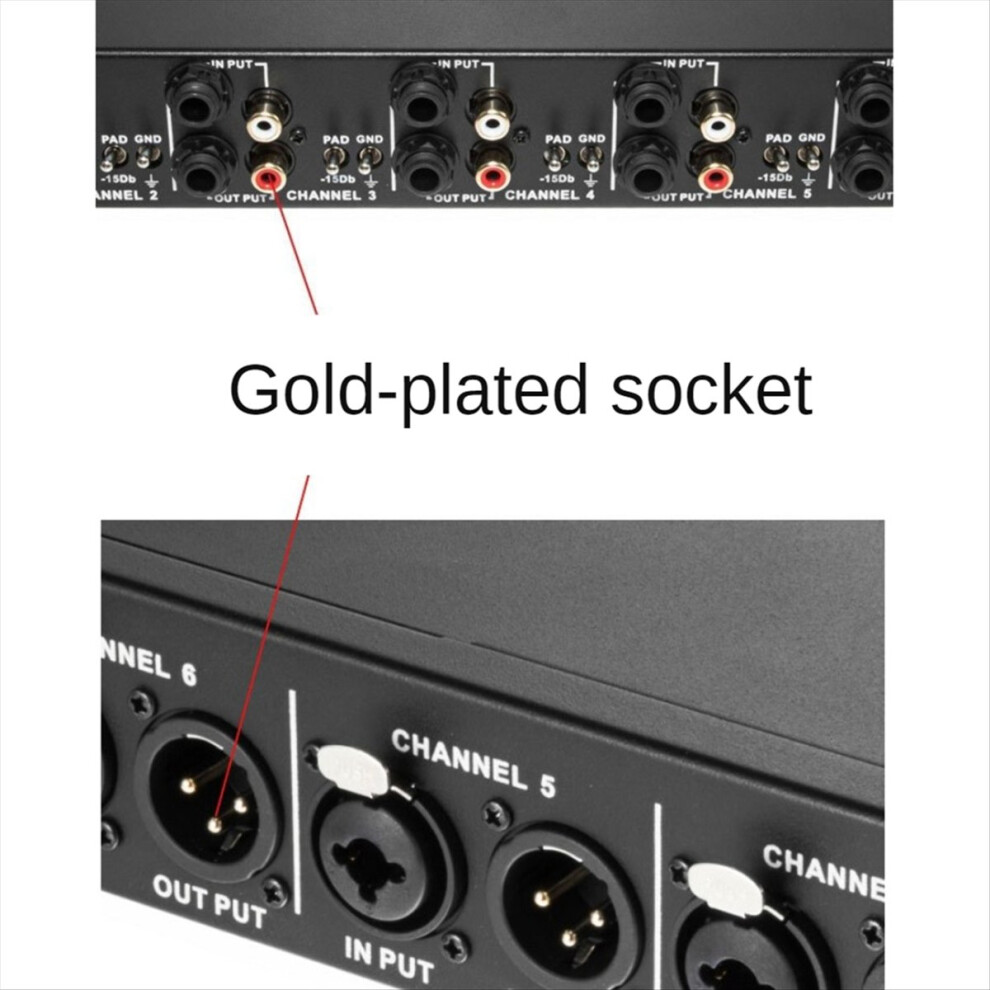

The T8's full feature set, rugged construction and high-end specifications make the T8 the obvious choice for live sound, permanent/fixed installations, DJ and virtually any PA application. High-quality passive audio interface with 8 high-performance transformer-mounted XLR, 1/4inch phono and type phono connections on all inputs and outputs.
Parameters and specifications:
1. Eight channels (6.5 ) input and output, with PAD attenuation switch, GND switch ground isolation switch
2. Impedance ratio:600 at input, 600 at output (1:1)
3. Frequency response:20HZ-30KHz (0.3dB, +4dBu; -1.5dB, +28dBu)
4. Maximum input level:+28dBu (THD0.5%, 50HZ; TH-D Less than 0.01%, 1KHz)
5. Distortion: 0.0025% (+4dBu1KHz)
6. Loss attenuation:-0.5dB at 600 load; 0.1dB at 10K load
Colour:Black
Material:Metal

Package Contents:
1 * 8-channel Audio Isolator

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
