TA500A Digital Tachometer Valve Lockable Non

TA500A Digital Tachometer Valve Lockable Non Description

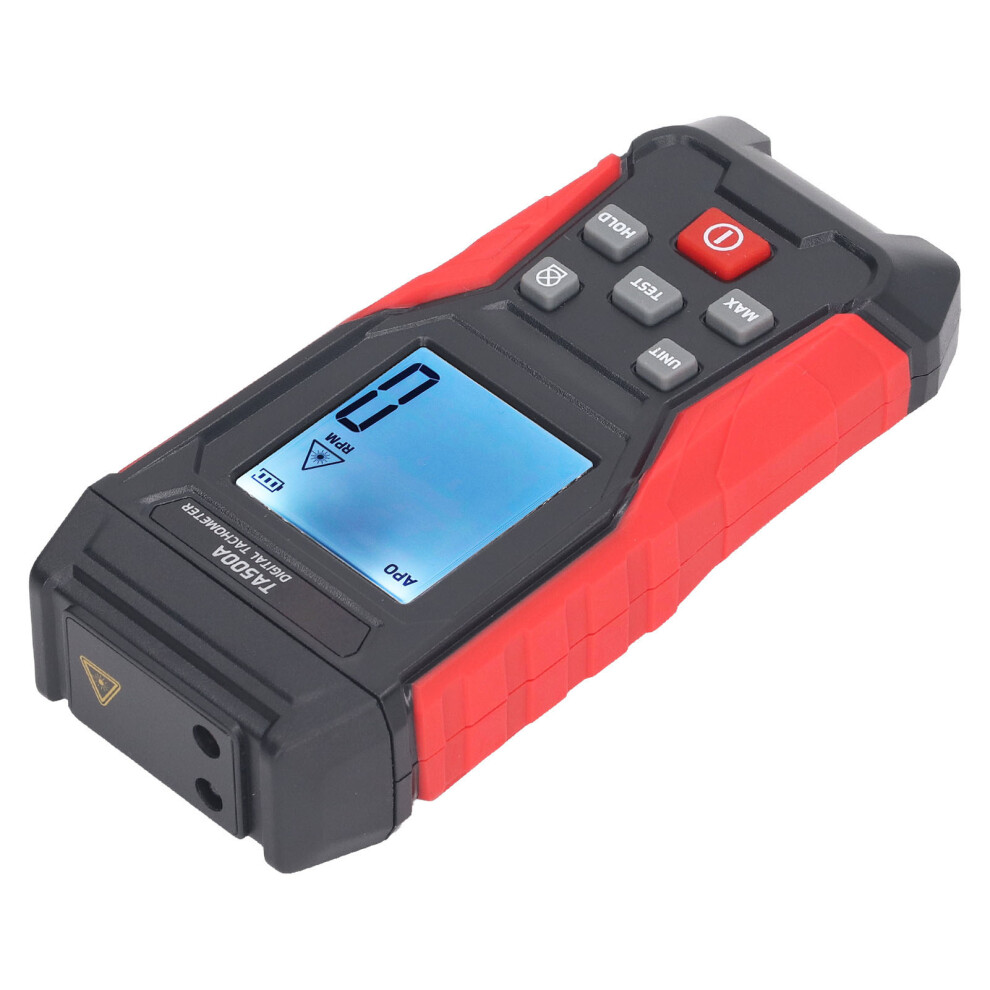

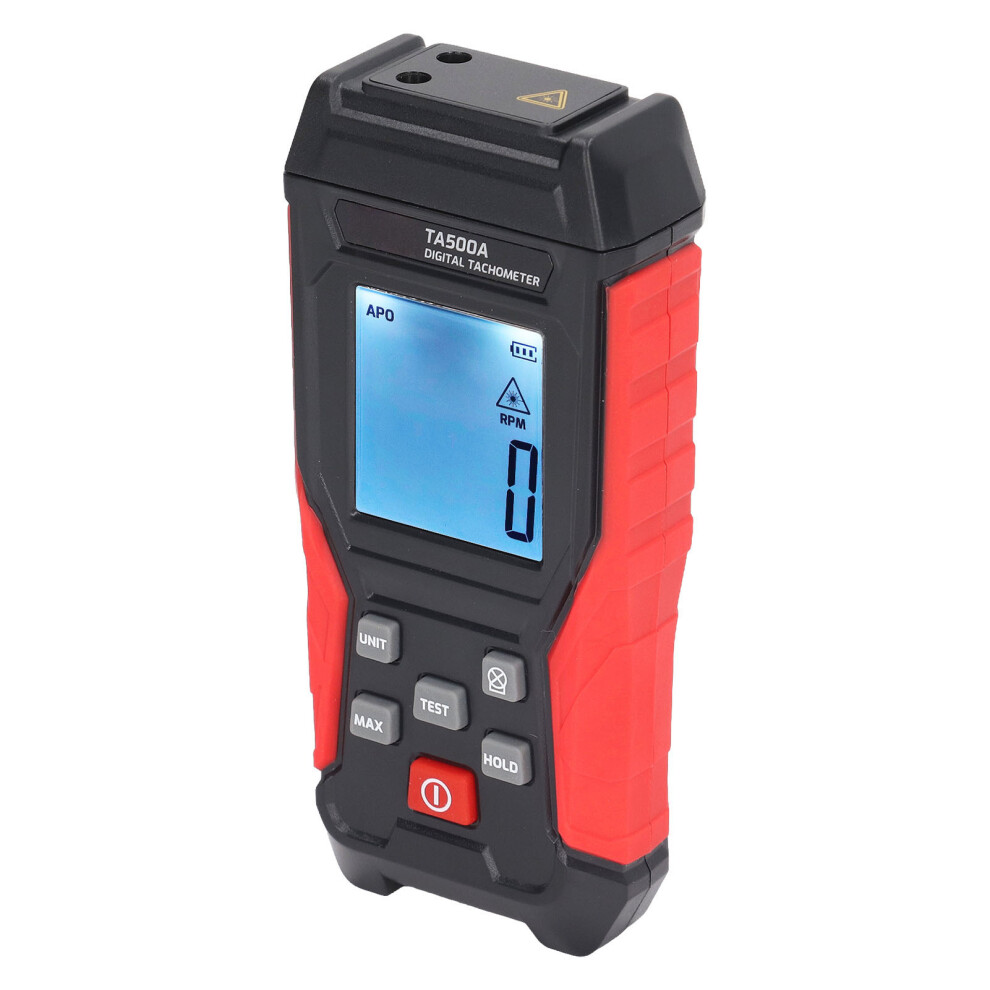

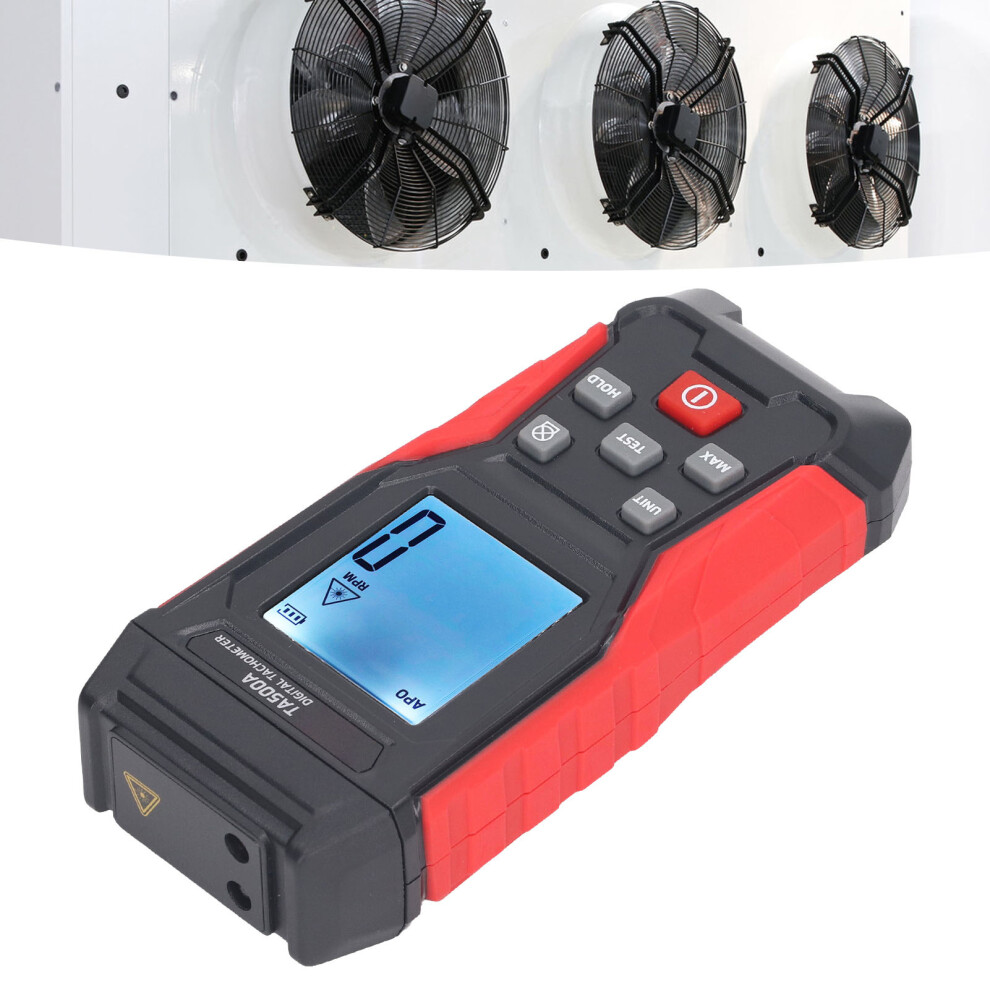

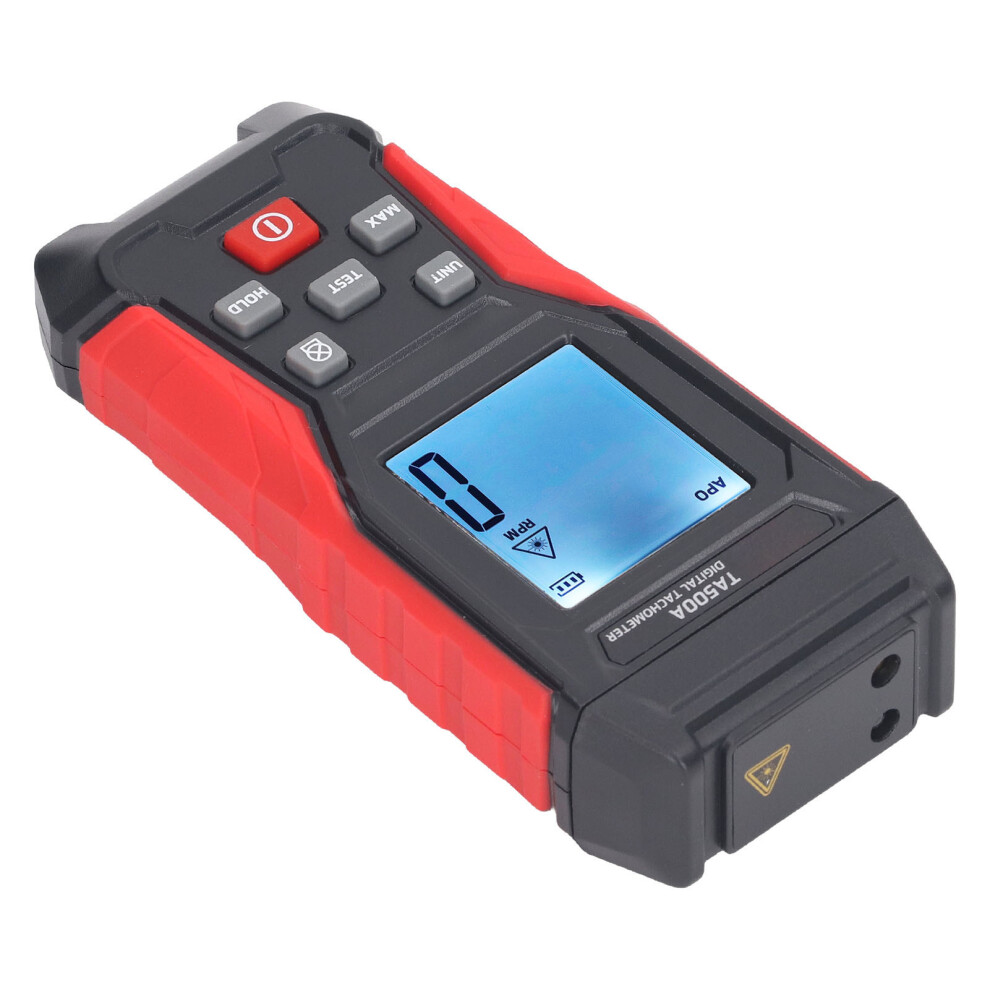

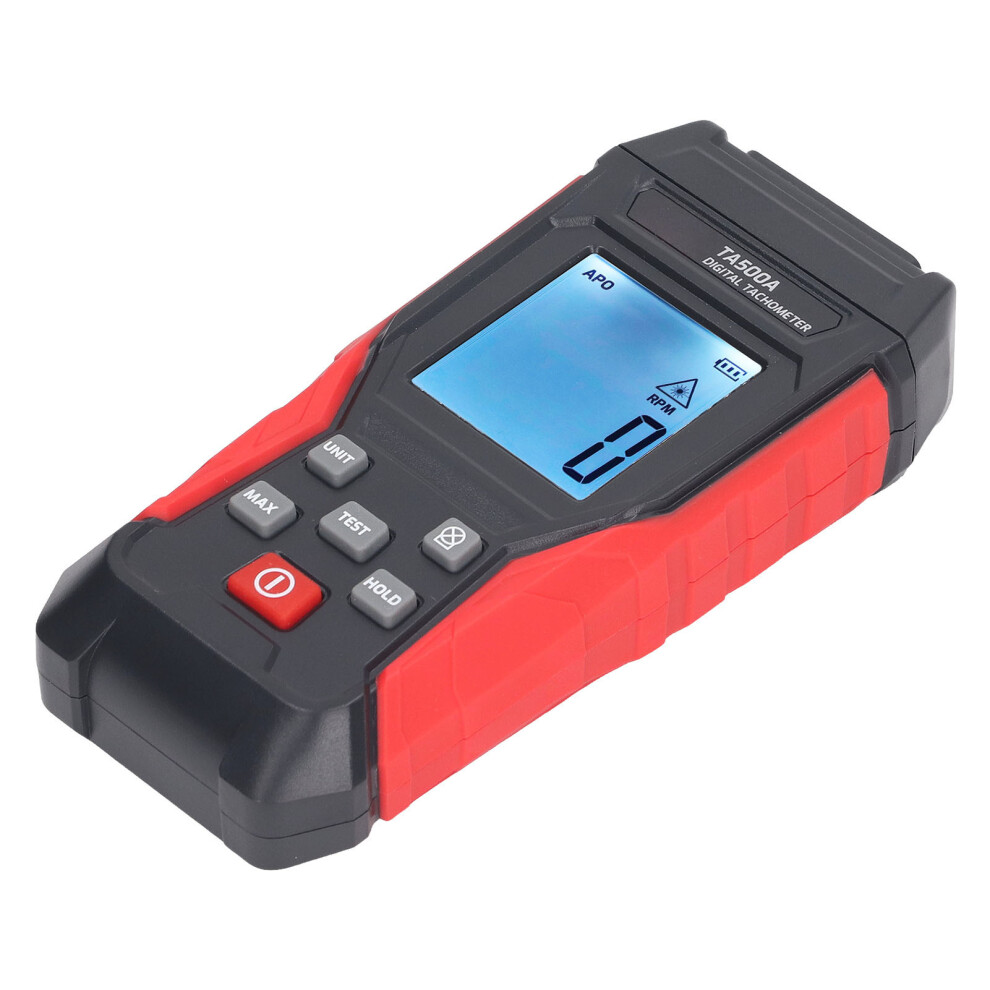

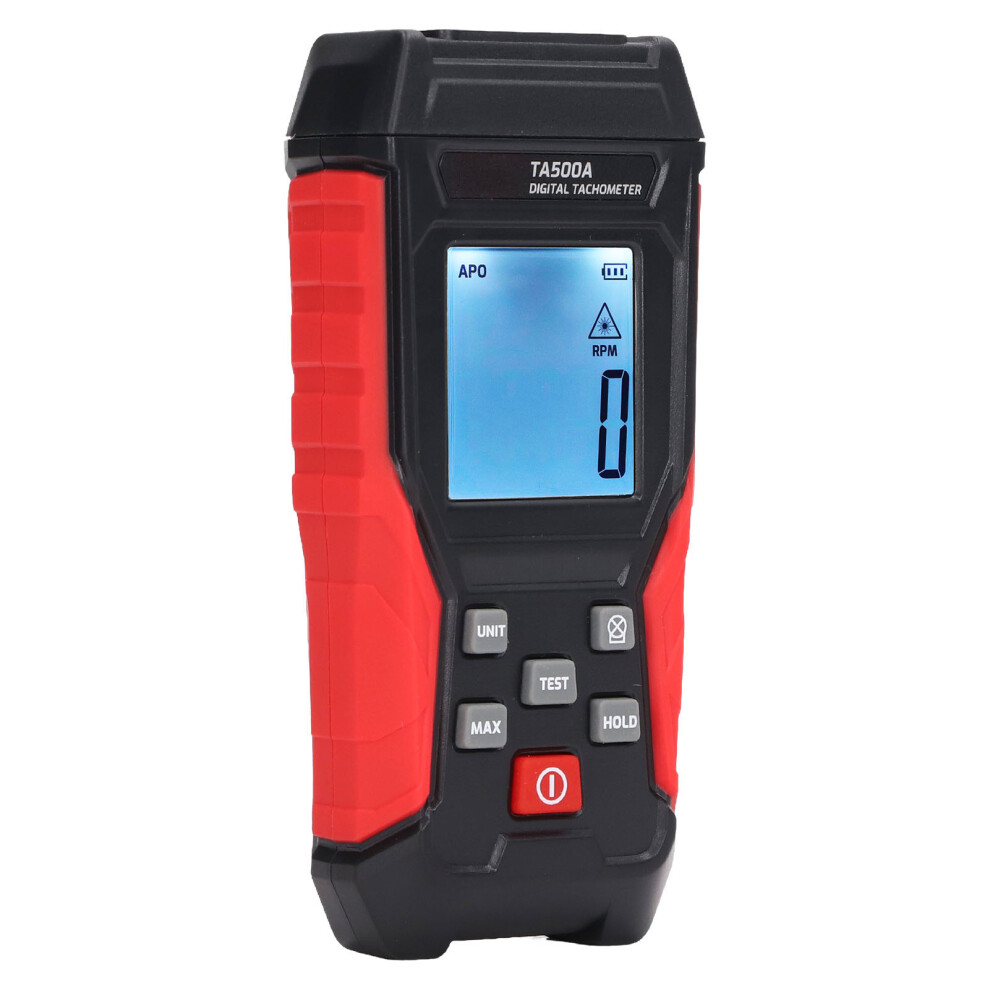

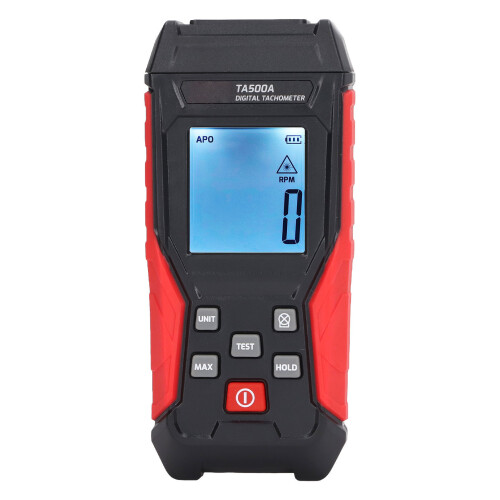

TA500A Digital Tachometer Valve Lockable Non Contact Portable RPM Meter 3 to 100000RPM

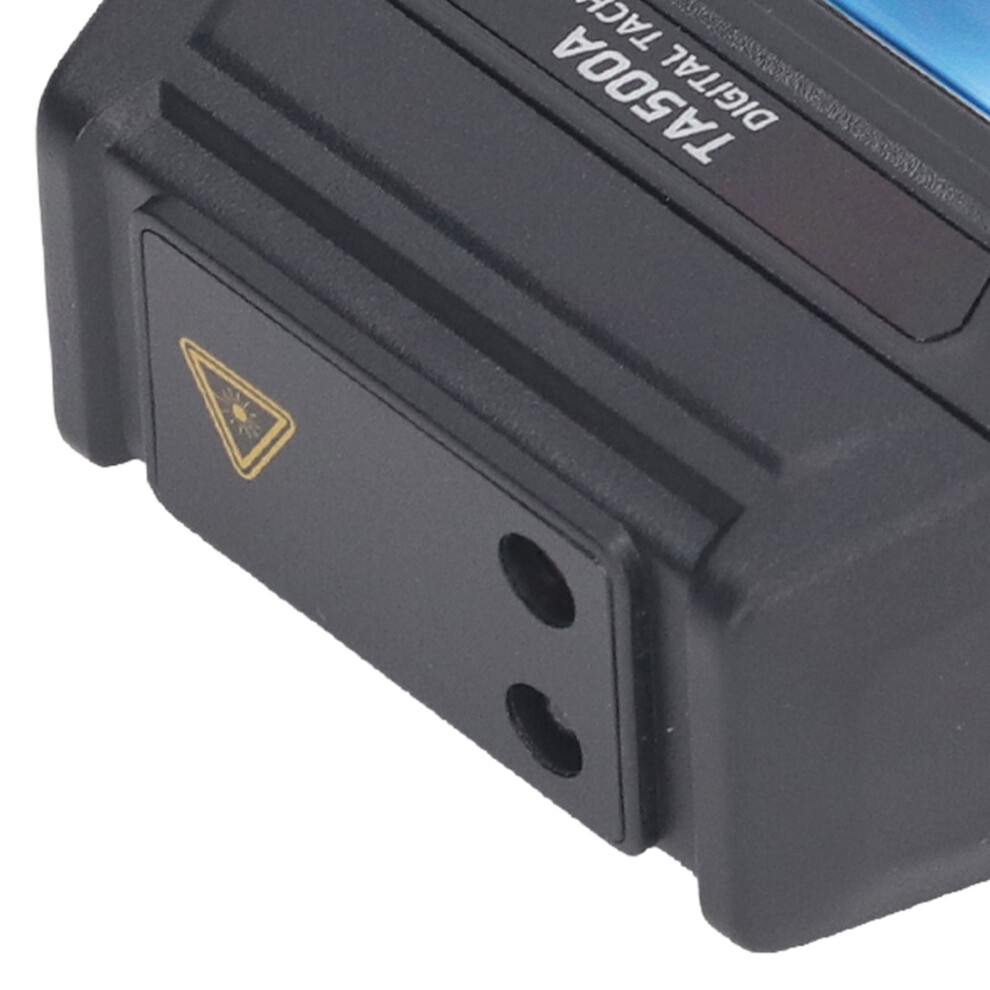

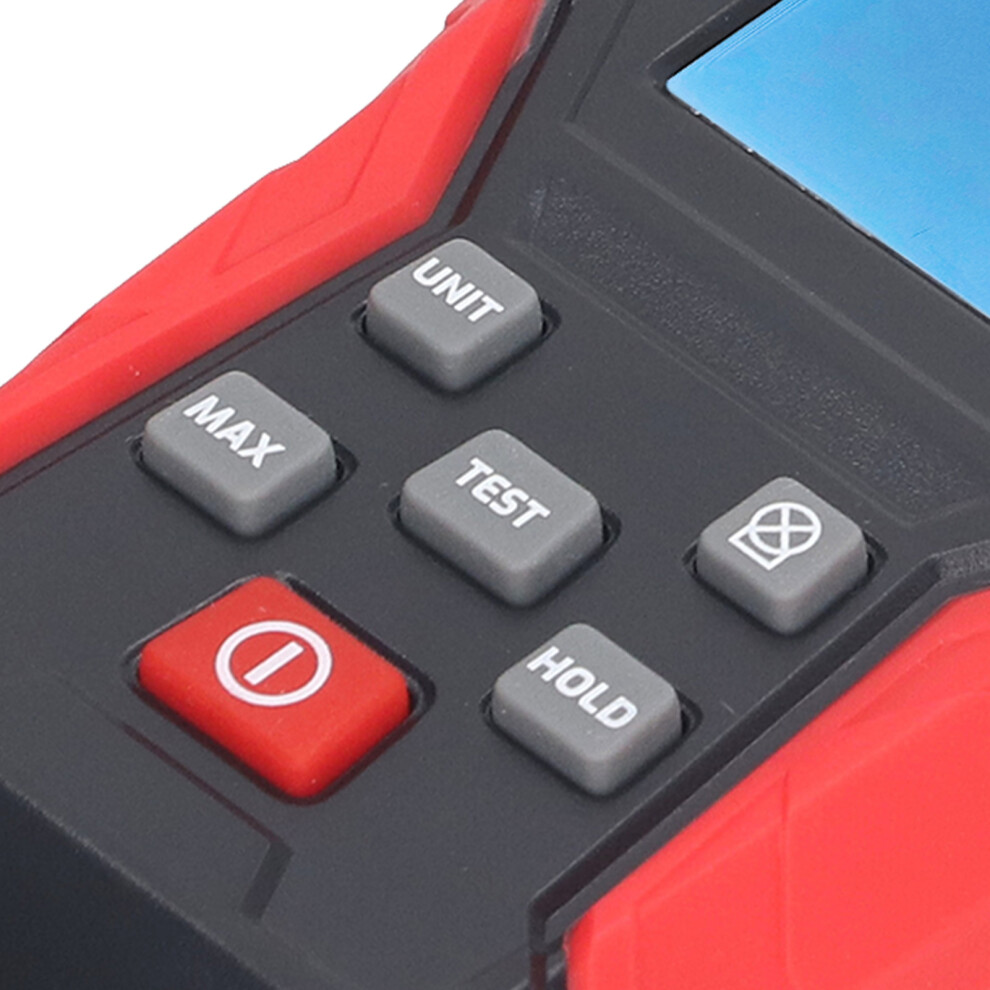

1、EASY TO USE: Press the TEST key lightly to activate the infrared beam perpendicular to the tested object; Aim the beam at the rotating reflective strip and keep the distance between the two within 500mm. 2、SEMICONDUCTOR SENSOR: Measuring effective distance from 50mm to 500mm; Measuring range 3 to 100000RPM. Sampling time, 0.8 seconds (above 60 rpm). 3、VALUE LOCKABLE: Lock the maximum, minimum, and real time values during the measurement process; Gently press the MAXIMUM button to lock the maximum value; Press the MAXIMUM button again to lock the minimum value. 4、EASY CARRYING: With a small size and being lightweight as well, the tachometer can be easily carried for different scenes to use. 5、ABS MATERIAL: Made of premium ABS material, the meter is wear resistant, scratch and impact resistant, ensures a long term use.



Item Type: Digital Tachometer Mode: TA500A Material: ABS Measurement Method: Non contact (photoelectric measurement) Measurement Range: 3 to 100000RPM Accuracy: (0.05% FS+1 RPM) Resolution: RPM Less Than 10000: 0.1 RPM Greater Than or Equal to 10000: 1 Speed Display: 6 digit display, maximum 999999 Measurement Effective Distance: Approx. 50 to 500mm / 1.97 to 19.69in Sampling Time: 0.8 seconds (above 60 rpm) Automatic Shutdown: 15 minutes (can be manually turned off) Operating Environment: -10 to 50 , maximum 80% relative humidity, indoor altitude less than Approx. 2000m / 6561.7ft Storage Environment: -10 to 50 , maximum 70% relative humidity (with battery removed) Battery: 1.5V AAA battery x 2 (without battery)



1 x Digital Tachometer 2 x Reflective Paper 1 x Manual
