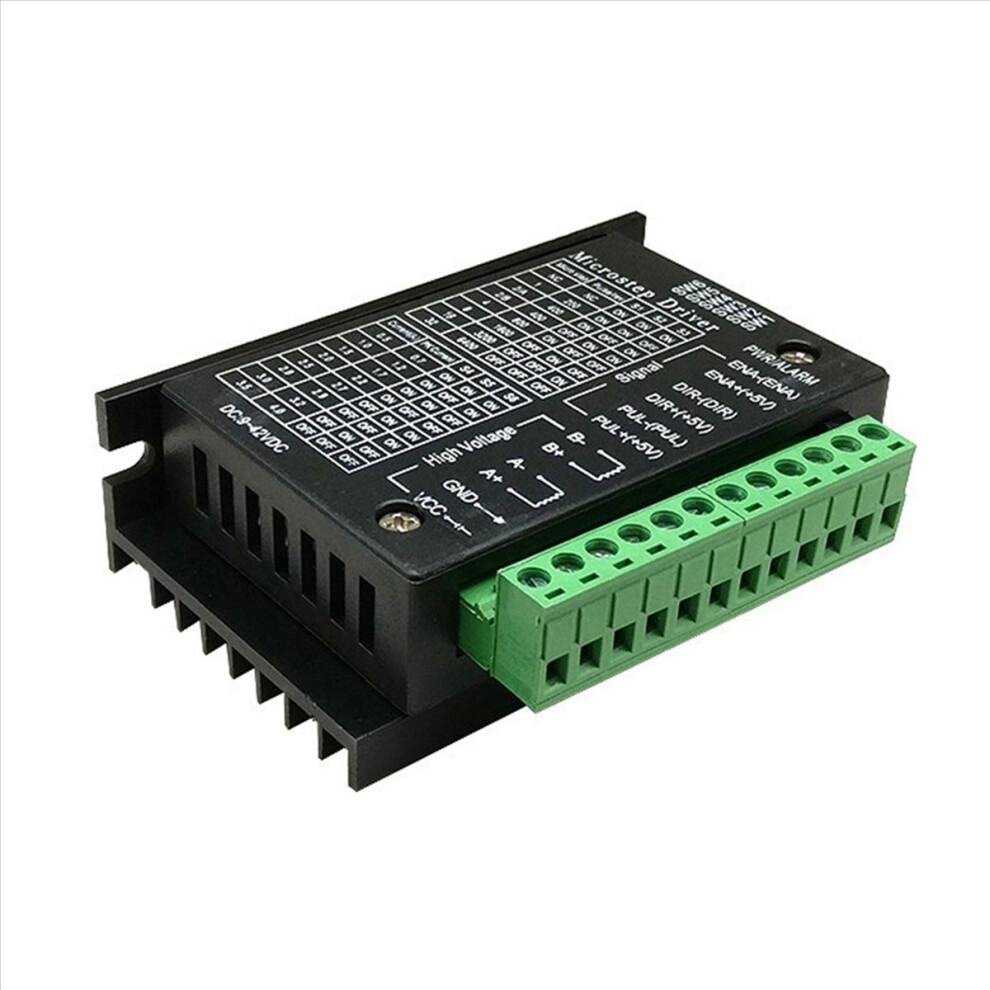

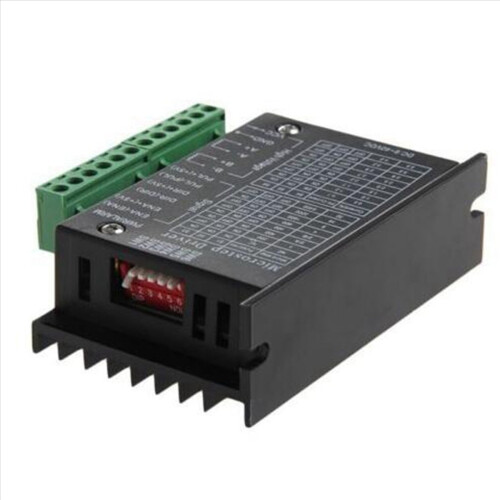

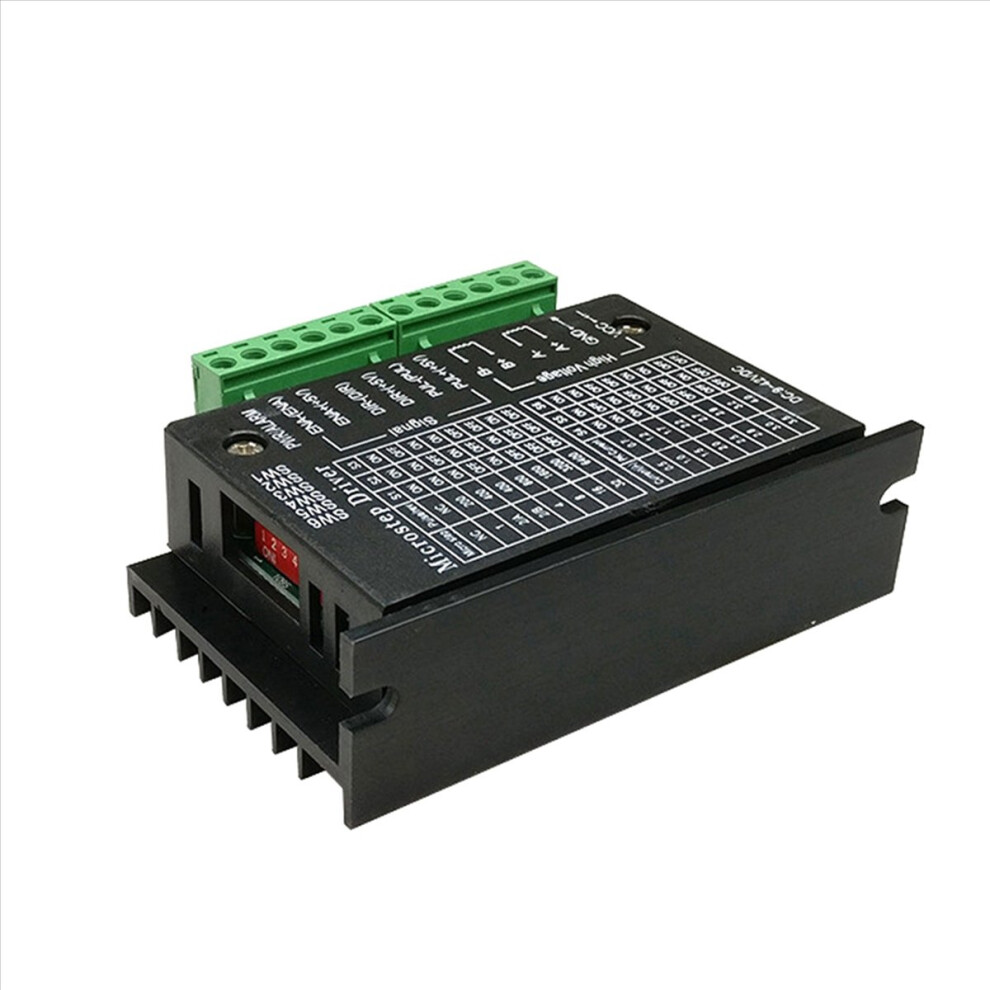

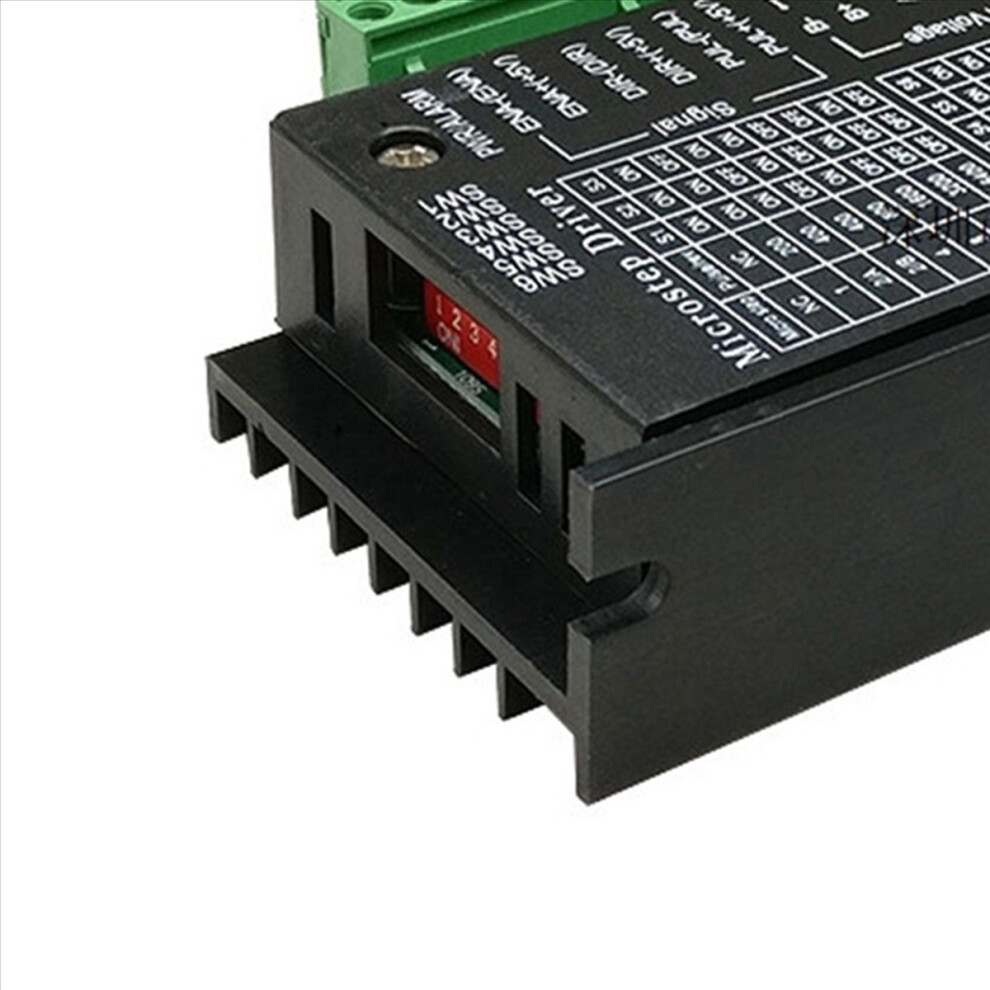

TB6600 Driver Upgrade 32 Subdivision 42/57/86 Stepper Motor Driver

TB6600 Driver Upgrade 32 Subdivision 42/57/86 Stepper Motor Driver Description

1. 9V-42V DC Power Supply; Standard Common Anode Single Pulse Interface
2. H-Bridge Bipolar Constant-Phase Current Drive; Offline Maintenance Function
3. Eight Output Currents Up To 4.0A; Semi-Enclosed Chassis Can Adapt To More Harsh Environments
4. 6 Subdivision Modes With A Maximum Of 32 Subdivisions; Provides Energy-Saving Semi-Automatic Current Locking Function
5. Input Signal High-Speed Photoelectric Isolation; Built-In Temperature Protection And Over-Current Protection

This Driver Is An Upgraded Version Of TB6600. The Subdivision Is Increased To 32 Subdivisions, Which Is Suitable For High Subdivision Applications.
Applicable Stepper Motors:42, 57, 86 Type 2-Phase 4-Phase (4 Wires, 6 Wires, 8 Wires)
Type:Stepper Motor Driver
Note:Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Not Affect The Use
Colour:As Shown
Material:ABS

Package Contents:
4 x Stepper Motor Driver

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
