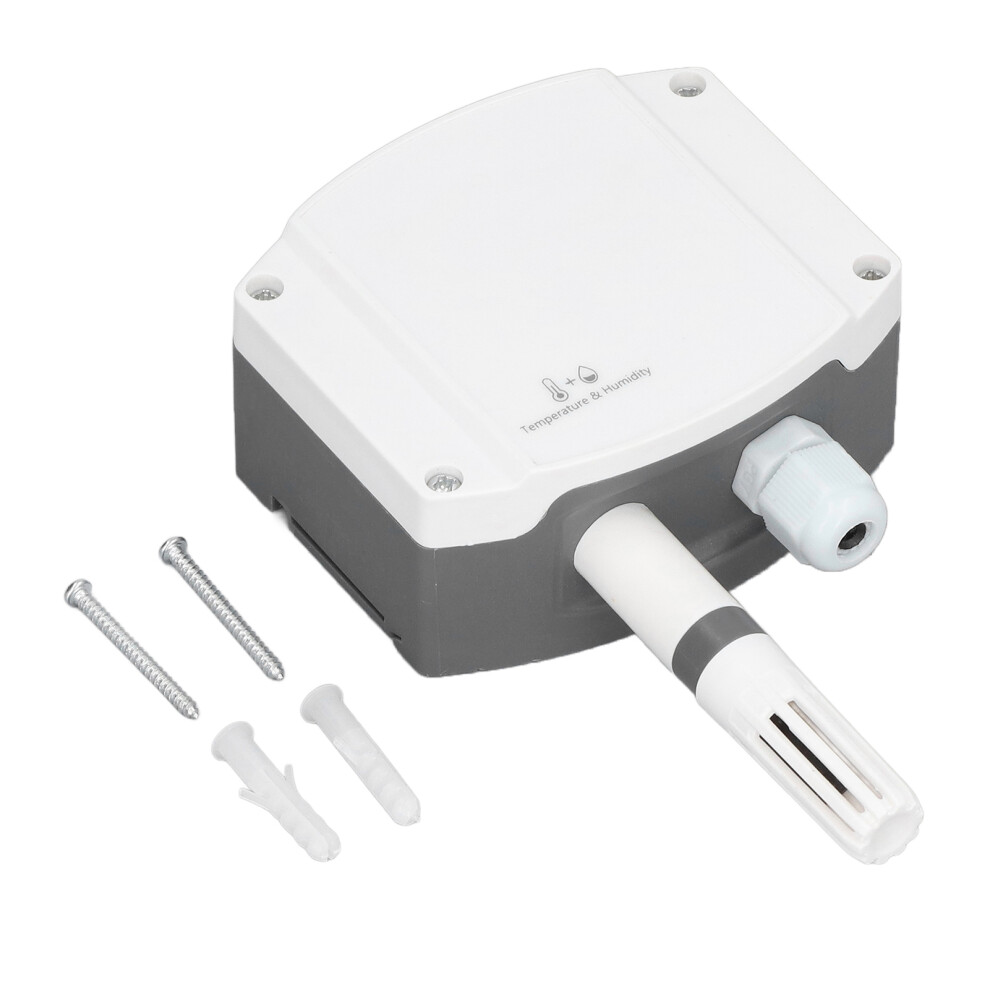

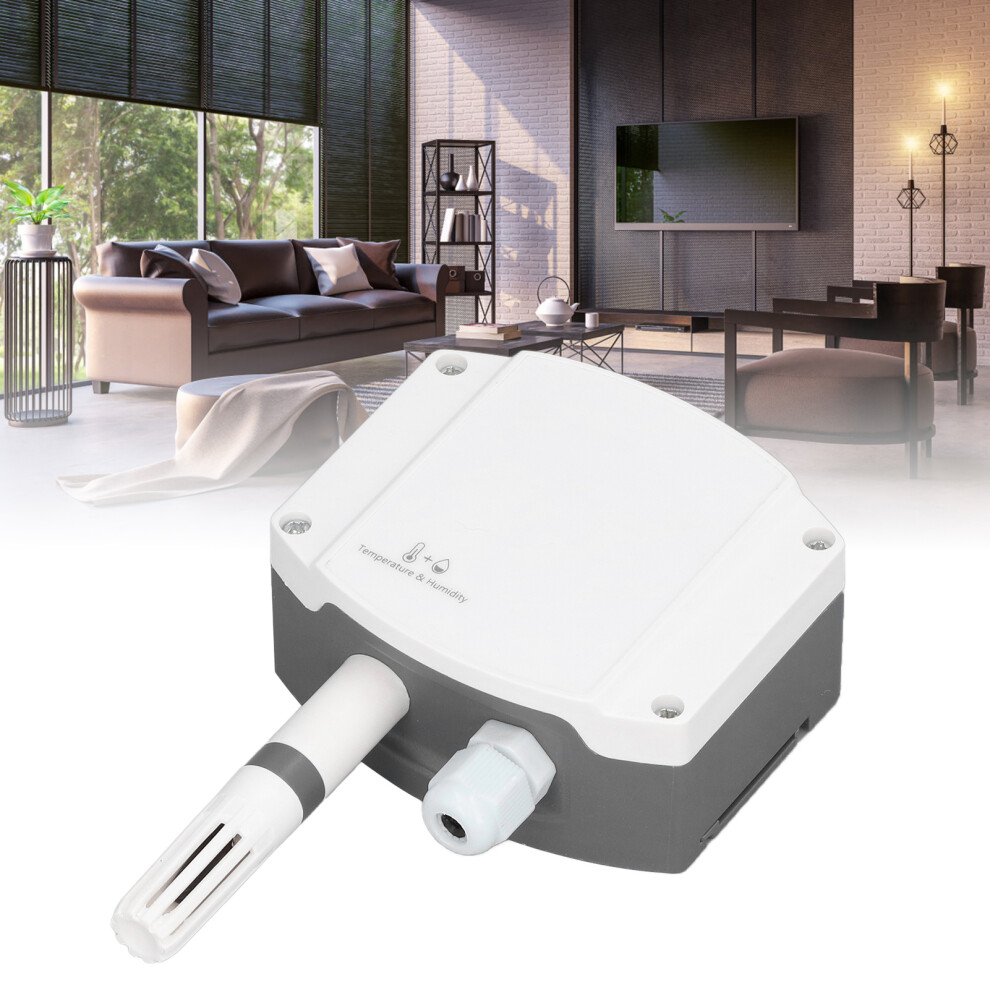

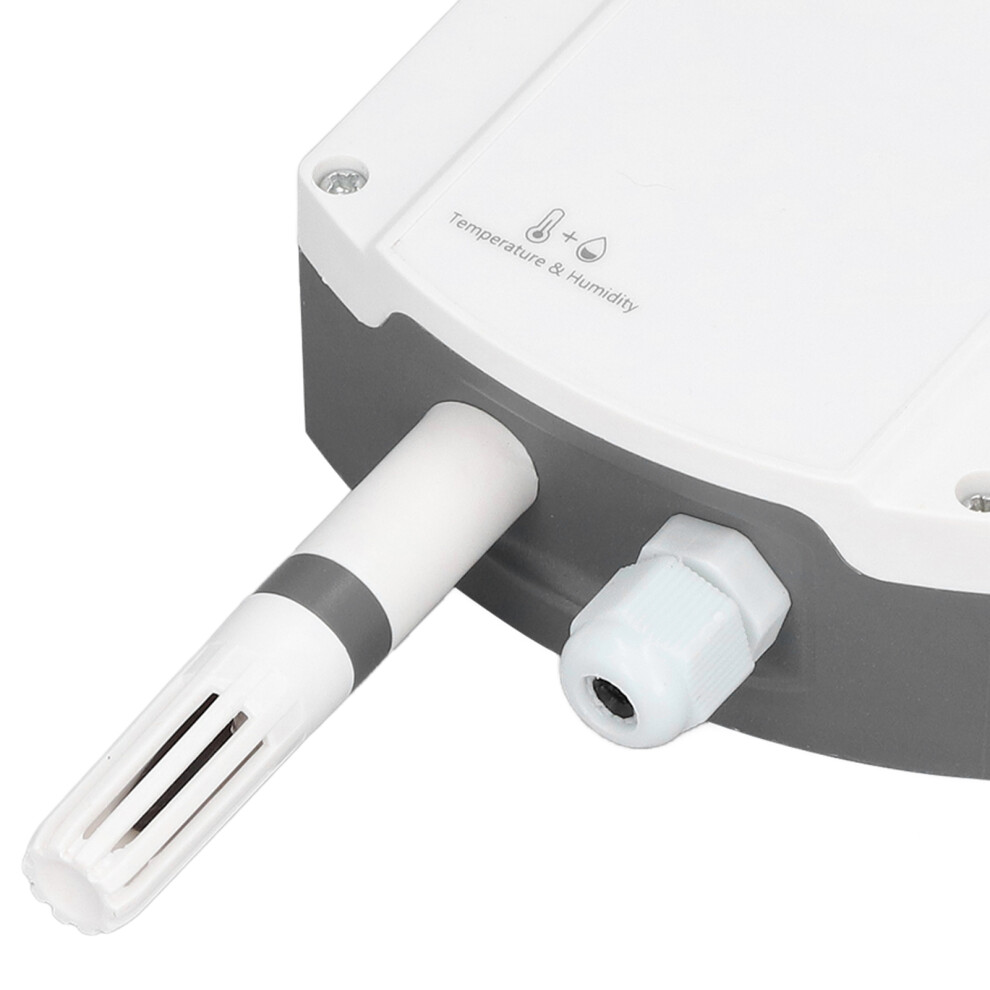

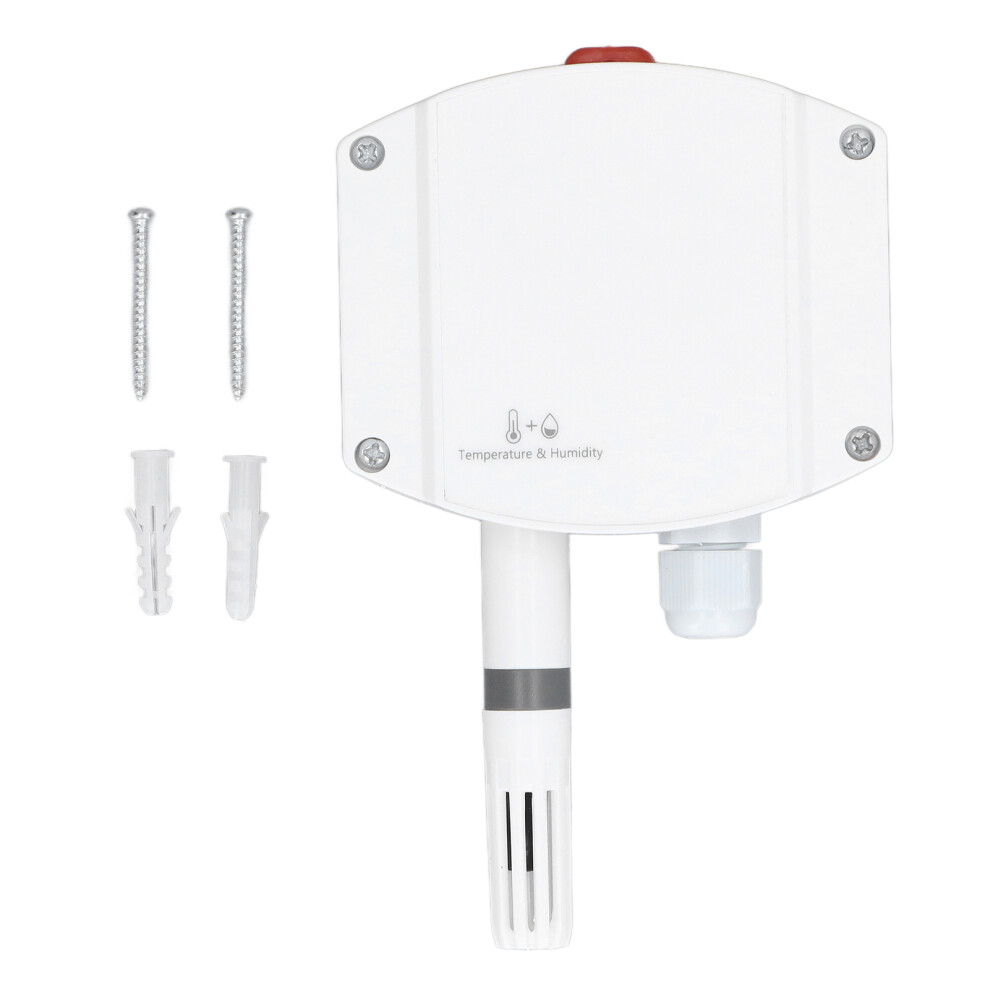

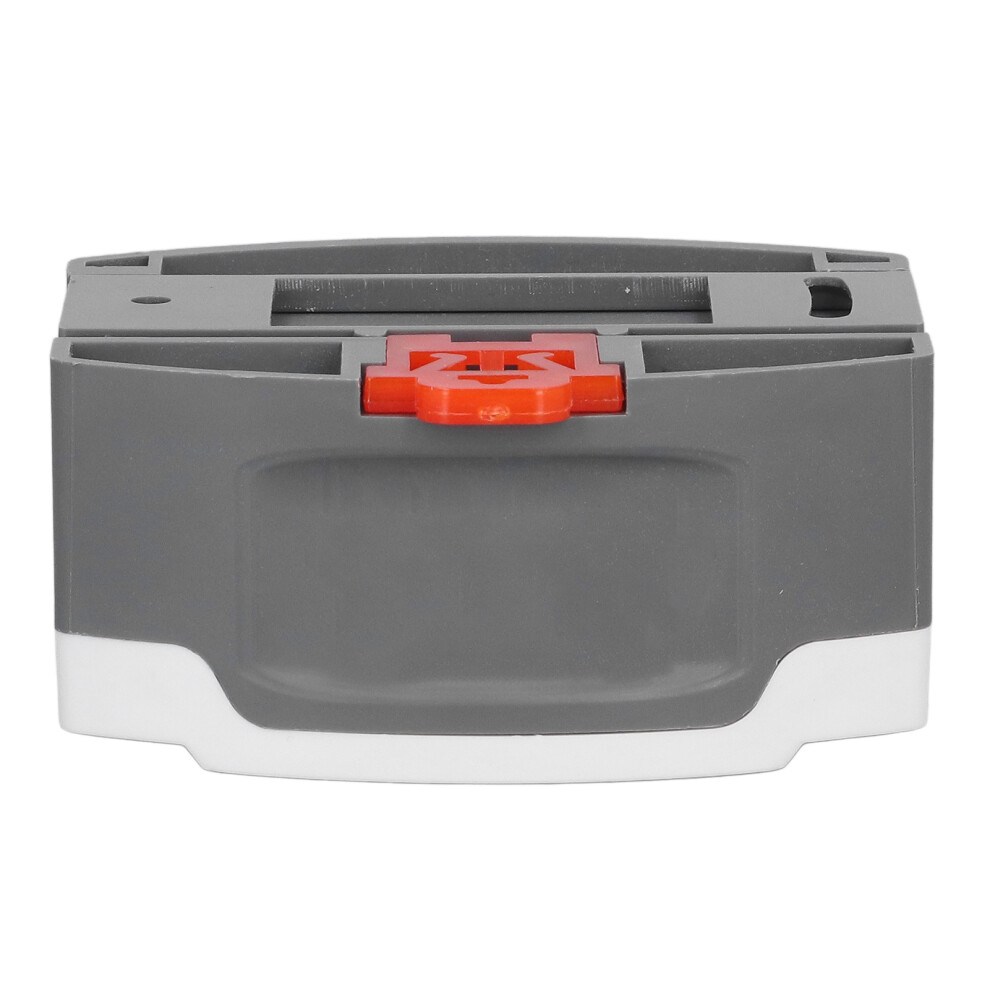

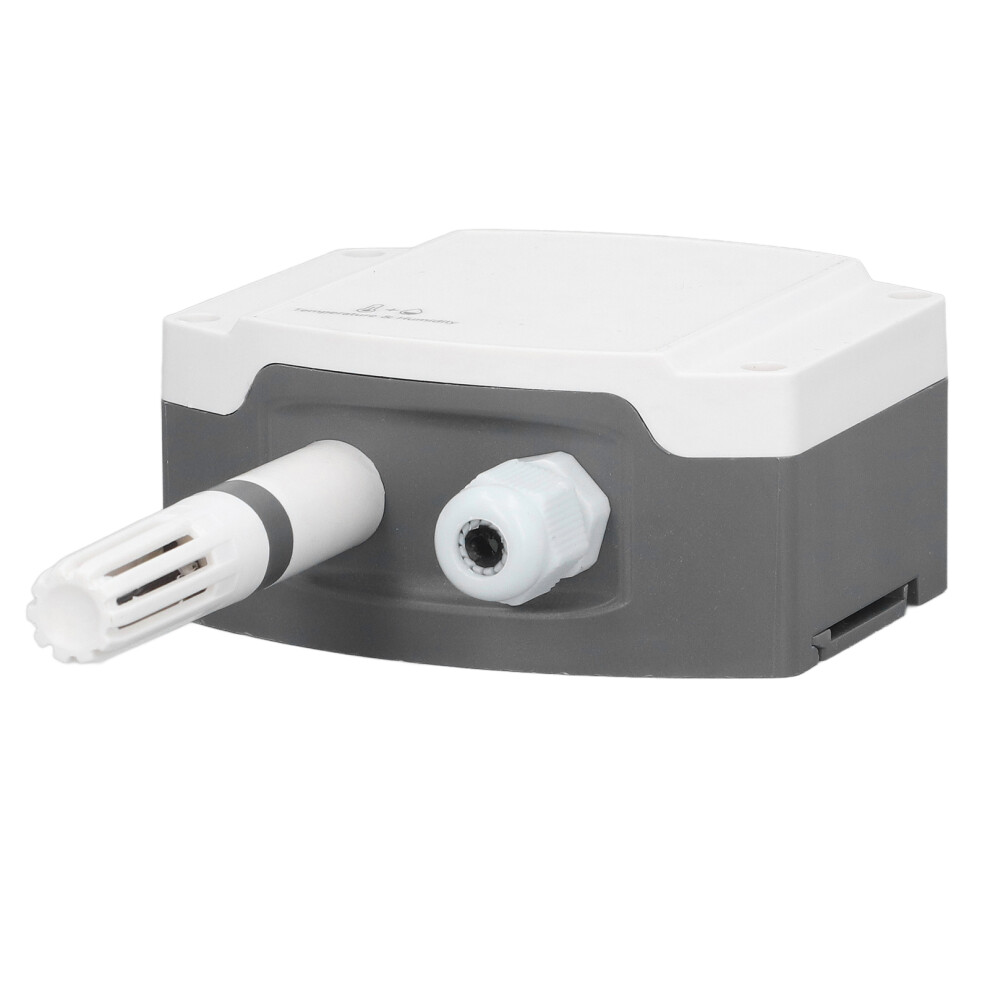

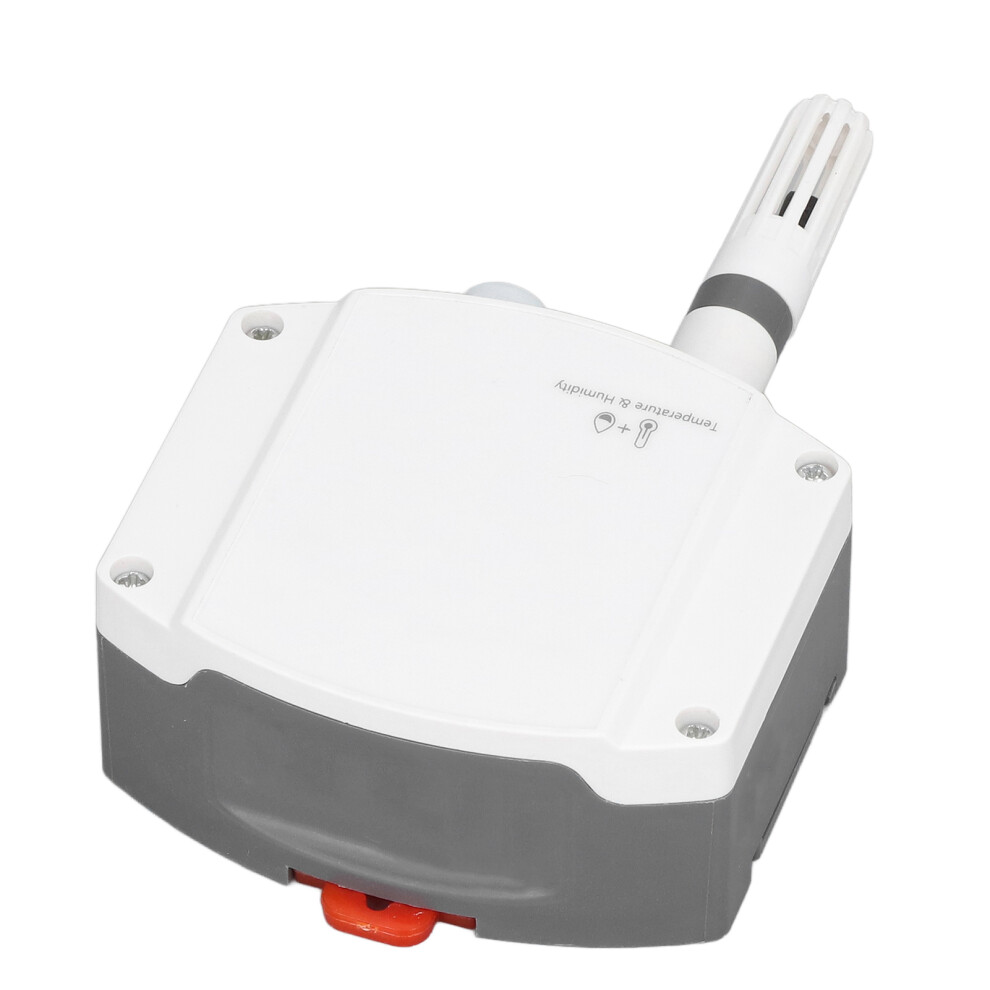

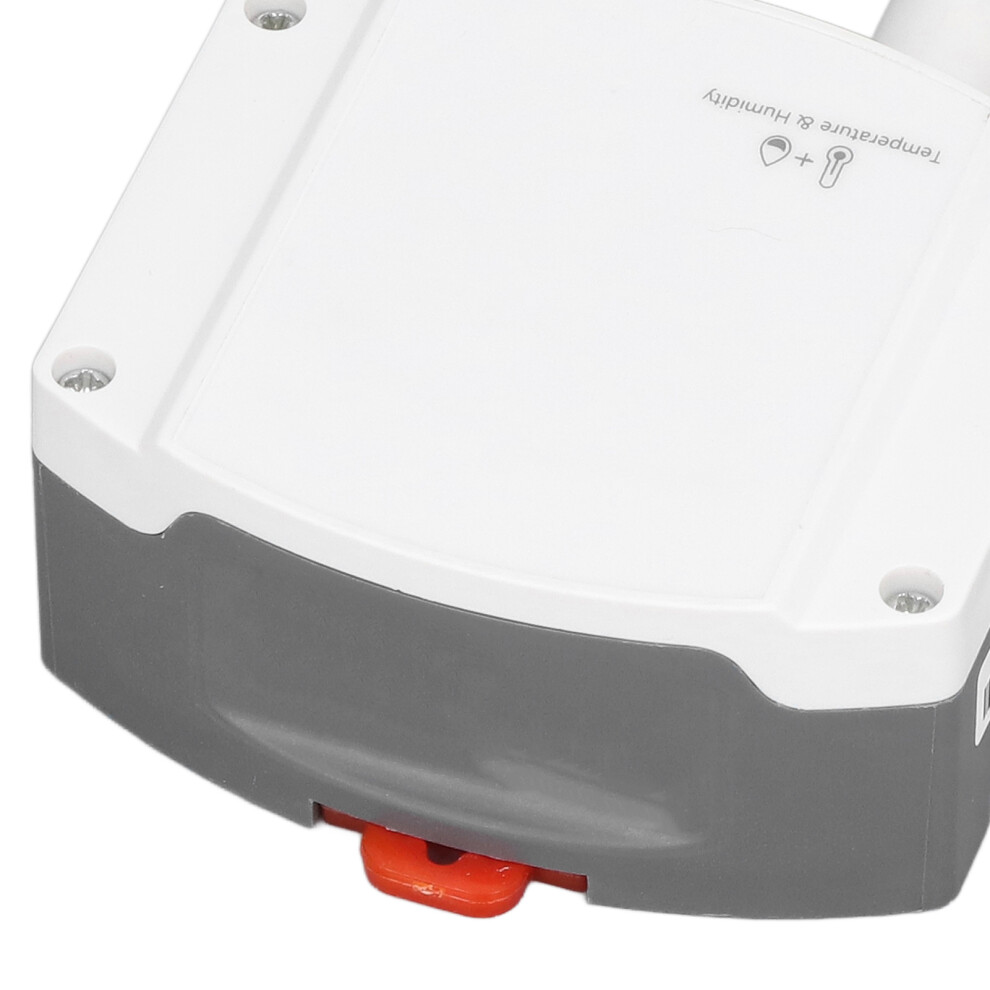

Temperature Humidity Transmitter High Accuracy Wall Mounted Meter Sensor 0~10V Analog

Temperature Humidity Transmitter High Accuracy Wall Mounted Meter Sensor 0~10V Analog Description

Temperature Humidity Transmitter High Accuracy Wall Mounted Meter Sensor 0~10V Analog

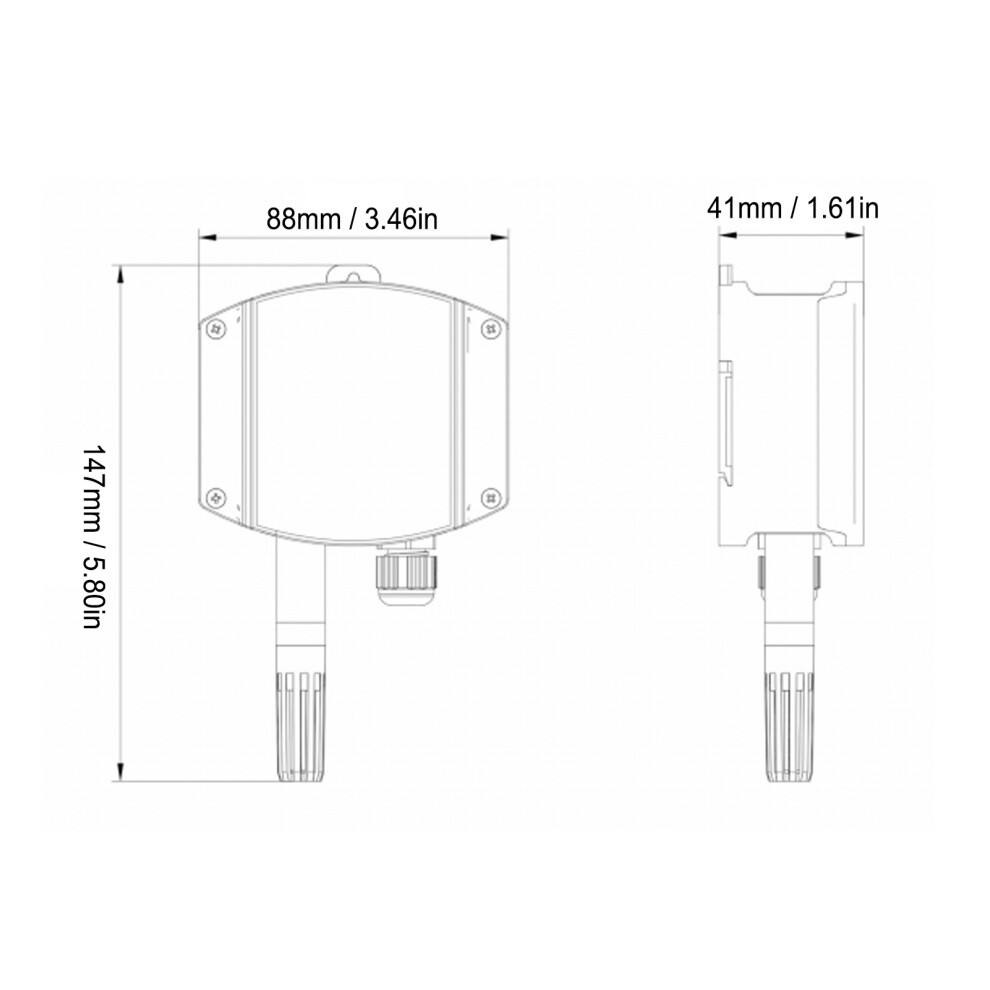

Item Type: Temperature Humidity TransmitterProduct Size: Approx. 147 x 88 x 41mm / 5.79 x 3.46 x 1.61in
Dust Proof Protection Grade: IP65
Output Interface Wiring: The standard configuration of the device is to have 2 independent analog outputs
Material: ABS
Weight: 157 g / 5.5 oz(approx.)
Specific Wiring:ItemCircuit identificationDescriptionPower supplyVCCPositive powerGNDNegative power / negative signalOutputTHPositive temperature signalRHPositive humidity signalParameter:
DC power supply (default)
DC 24V
Maximum power consumption
Current output
1.2W
Voltage output
1.2W
A accuracy
Humidity
2%RH(60%RH, 25)
Temperature
0.4(25)
B accuracy
Humidity
3%RH(60%RH,25)
Temperature
0.5(25)
Temperature range
-40~+120,default -40~+80
Humidity range
0%RH-100%RH
Transmitter circuit working temperature and humidity
-20~+60, 0%RH~95%RH(non condensing)
Probe operating temperature
-40~+120, default-40~+80
Probe working humidity
0%RH-100%RH
Long term stability
Humidity
1%RH/y
Temperature
0.1/y
Response time
Humidity
8s(1m/s wind wpeed)
Temperature
25s(1m/s wind wpeed)
Output signal
Voltage output
 0~10V
Load capacity
Voltage output
Output resistance250Ω
Current output
600Ω

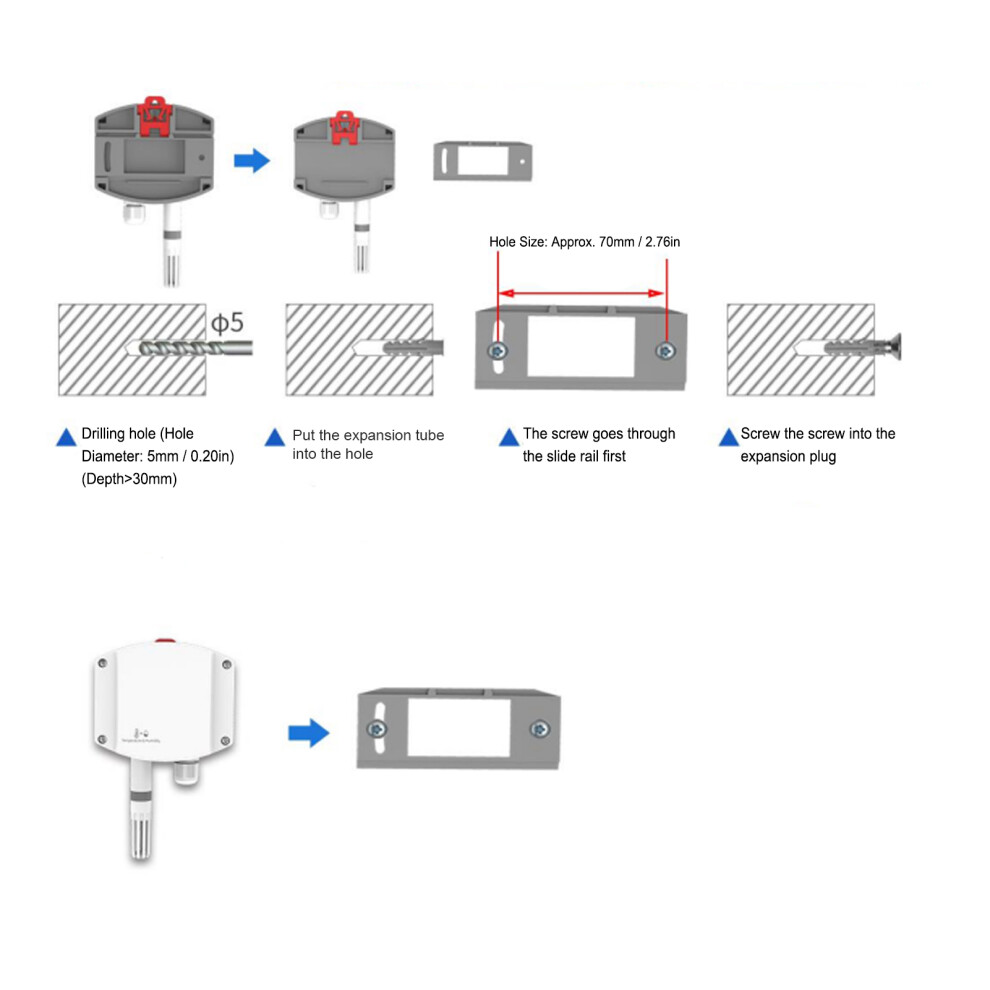

Hole Size
Approx. 70mm / 2.76in
Parameter settings
Modify directly through software settings or buttons
Product Selection:
RS-
Other standards
WS-
Temperature humidity transmitter sensor
V10-
0~10V voltage output
Common Problems and Solutions:
No Output or Wrong Output Possible Causes:
1. The wrong range corresponds to the PLC calculation error. For the range, please refer to the technical specifications in the first part.
2. The wiring method is incorrect or the wiring sequence is wrong.
4. The distance between the transmitter and the collector is too long, causing signal disorder.
5. The PLC acquisition port is damaged.
6. Equipment damage.
