TFmini-S Lidar Single-Point Micro-Type RangingFinder Module for 4.5-6V UART Interface TFminiUpgraded

TFmini-S Lidar Single-Point Micro-Type RangingFinder Module for 4.5-6V UART Interface TFminiUpgraded Description

Major Applications: Traffic Monitoring, Obstacle detection, Level measurement, Smart device, Security and obstacle avoidance, Drone altitude holding and terrain following, Machine control and safety sensors, Distance measuring instrument

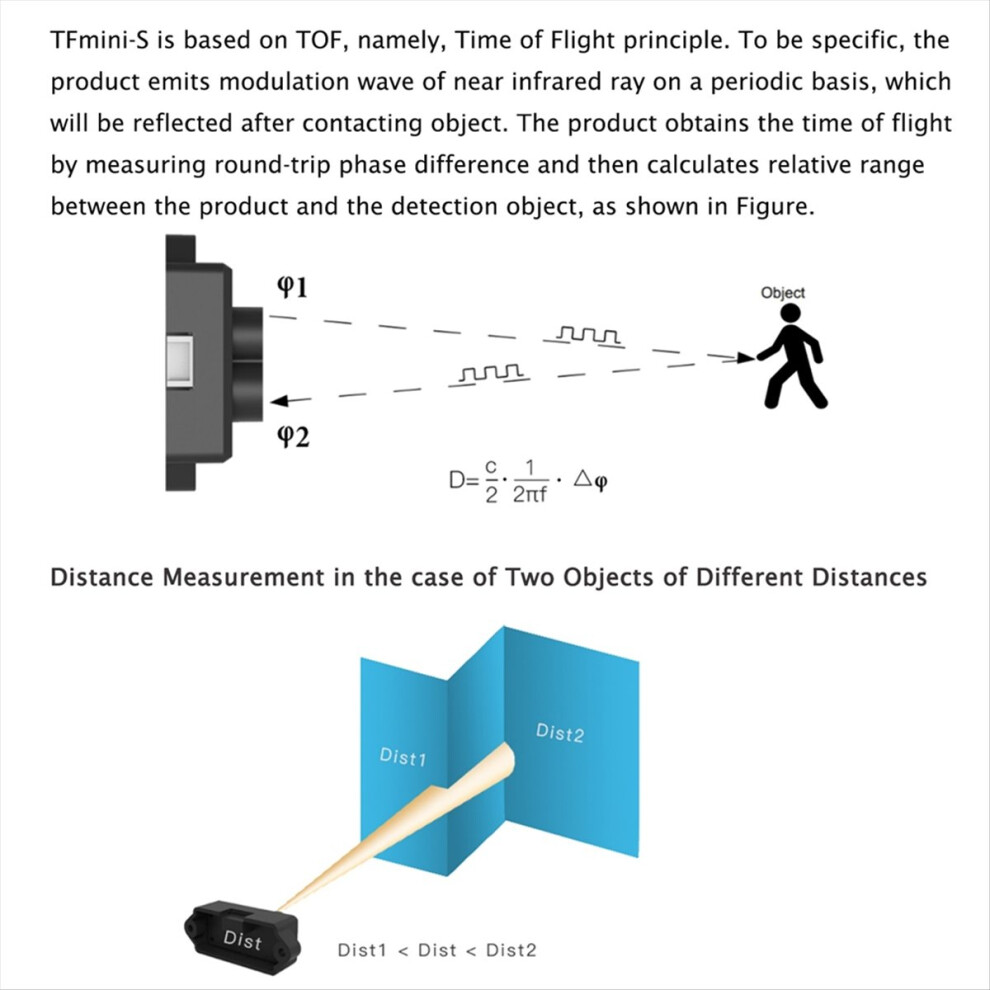

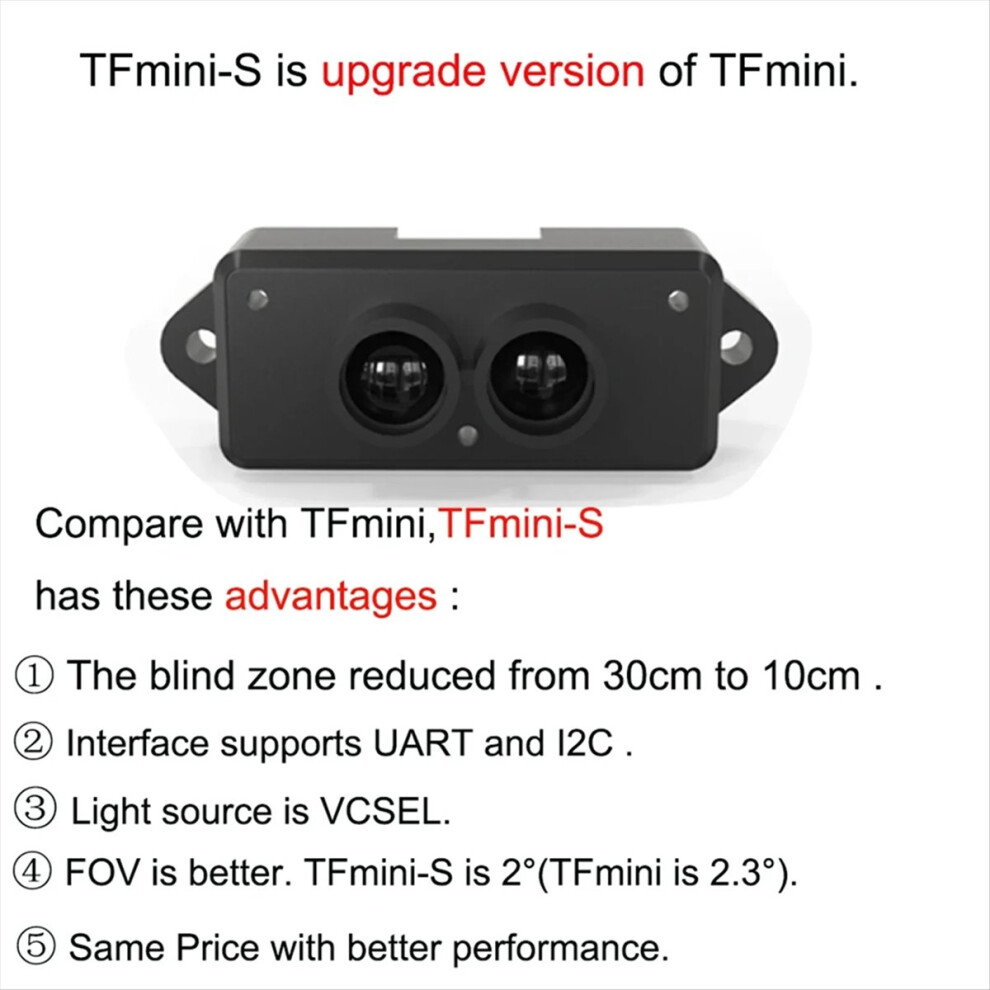

TFmini-S is the improved version of TFmini, it is a single-point micro-type ranging module and could be widely used in the integrated application of drones, UAVs, Robots and industrial equipments. It is based on ToF (Time of Flight) principle and integrated with optical and electrical designs, so as to achieve stable, precise, high sensitivity and high-speed distance detection.

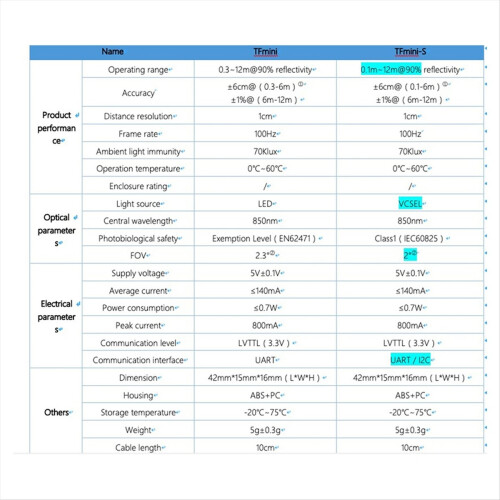

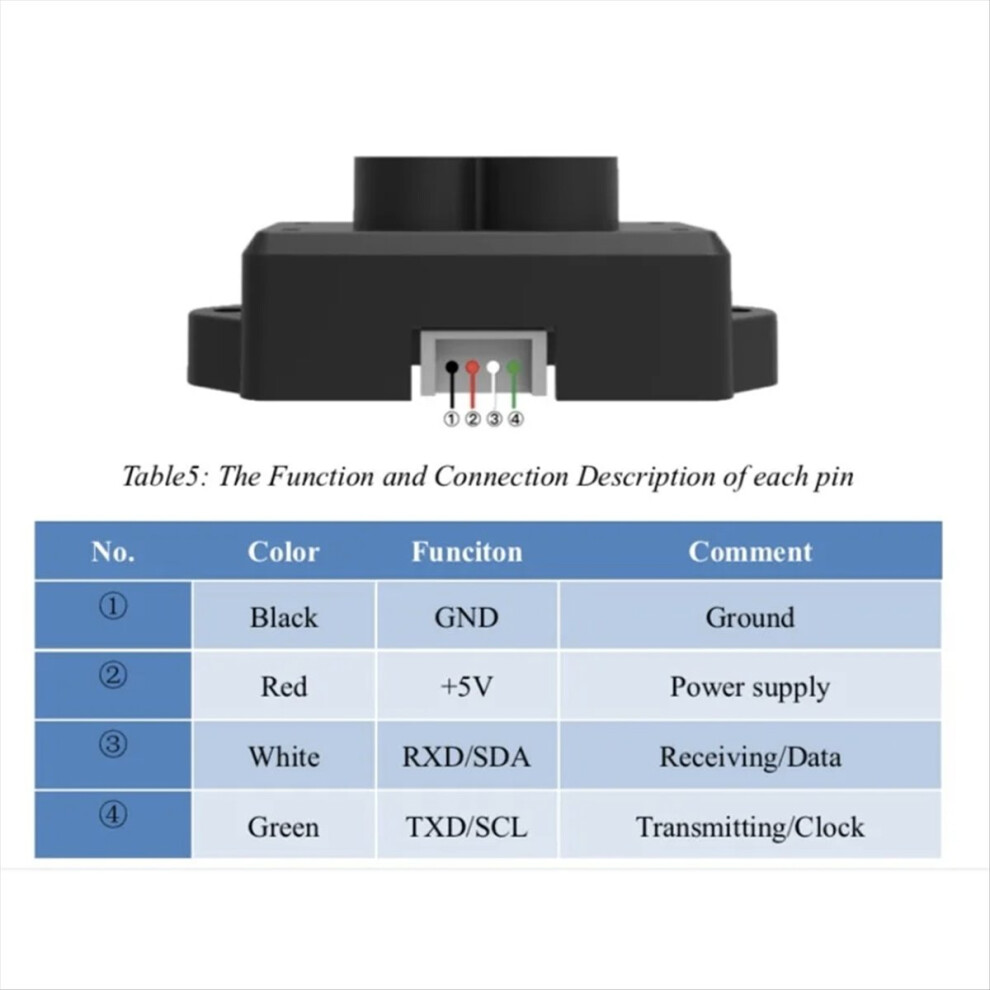

Communication interface:UART/
Electromagnetic Compatibility(EMC):EN 55032 Class B

Operating Range:0.1-12m
Maximum operating range at 10% reflectivity:5m
Applicable voltage range:4.5-6V
Average power consumption:0.12W
FOV:2
Baud rate:115200
Data bit:8
Stop bit:1
Parity bit:0
Minimum resolution ratio:5mm

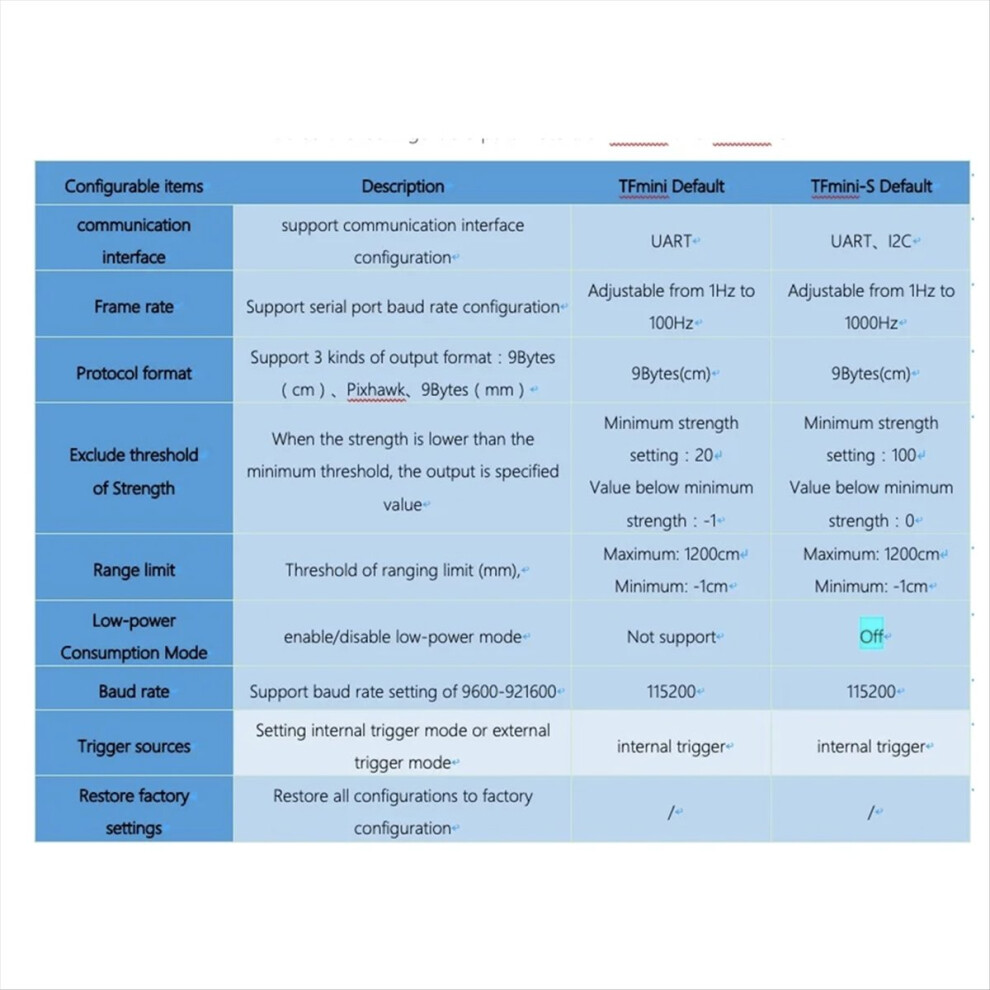

Frequency:100Hz(1-1000Hz adjustable)
Light source:VCSEL
Wavelength:850nm
Operating temperature:20-60
Light sensitivity:70,000lux
Accuracy:1% (less than 6m),2% (6m-12m)

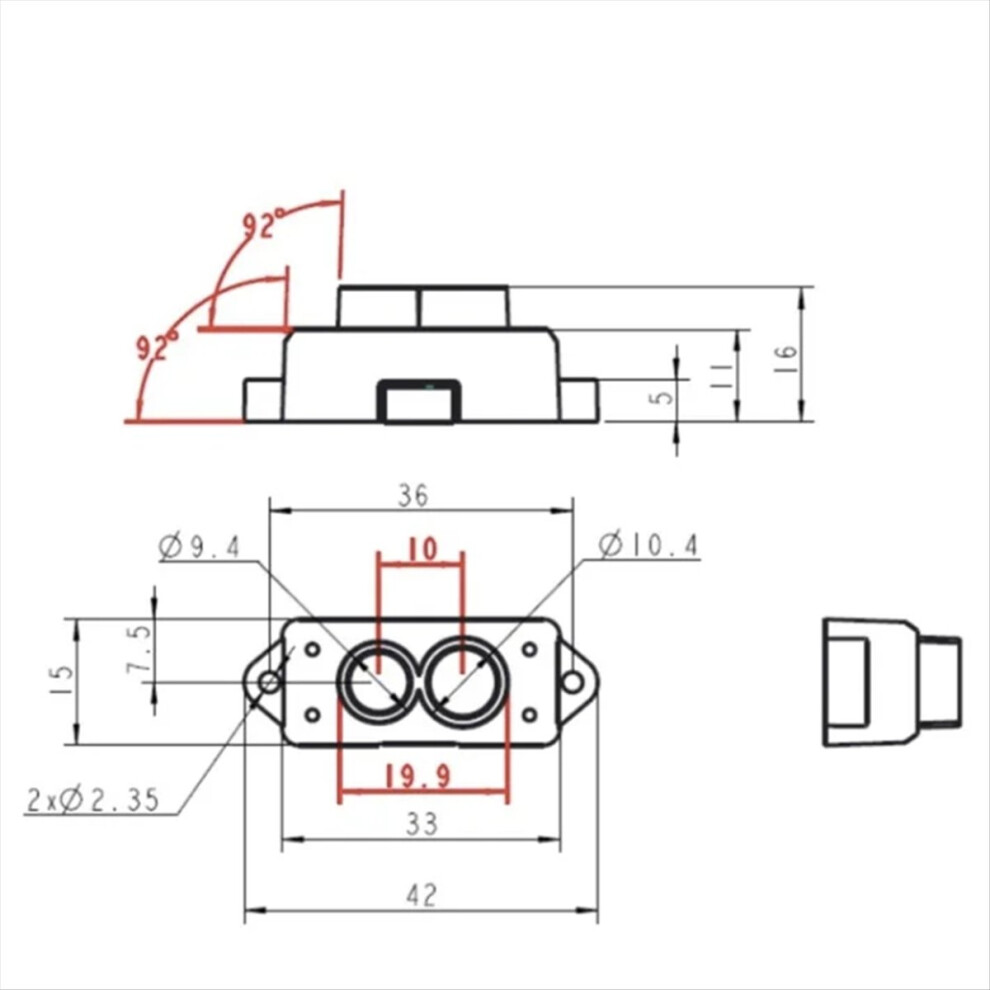

Size:42mmx15mmx16mm
Weight:6.1g
FAQ
Q1: Is TFmini-S available with 3.3V or other power supply voltage?
A1: Sorry, it is for the time being. The Standard power supply of TFmini-S is 5V0.1V.
Q2: TFmini-S heat up after operating for a while. Is it broken?
A2: This is the normal operating condition of the product. The temperature of the chip and circuit board slightly up after a continuous operation, which is a normal case.
Q3: Can TFmini-S be connected with for or for for use?
A3: Yes, it can. TFmini-S adopts serial communication protocol so that it can connect to any control board supporting serial port communication.
Due to different product batches, the appearance , which does not affect the use.
Colour:As Shown
Material:PC

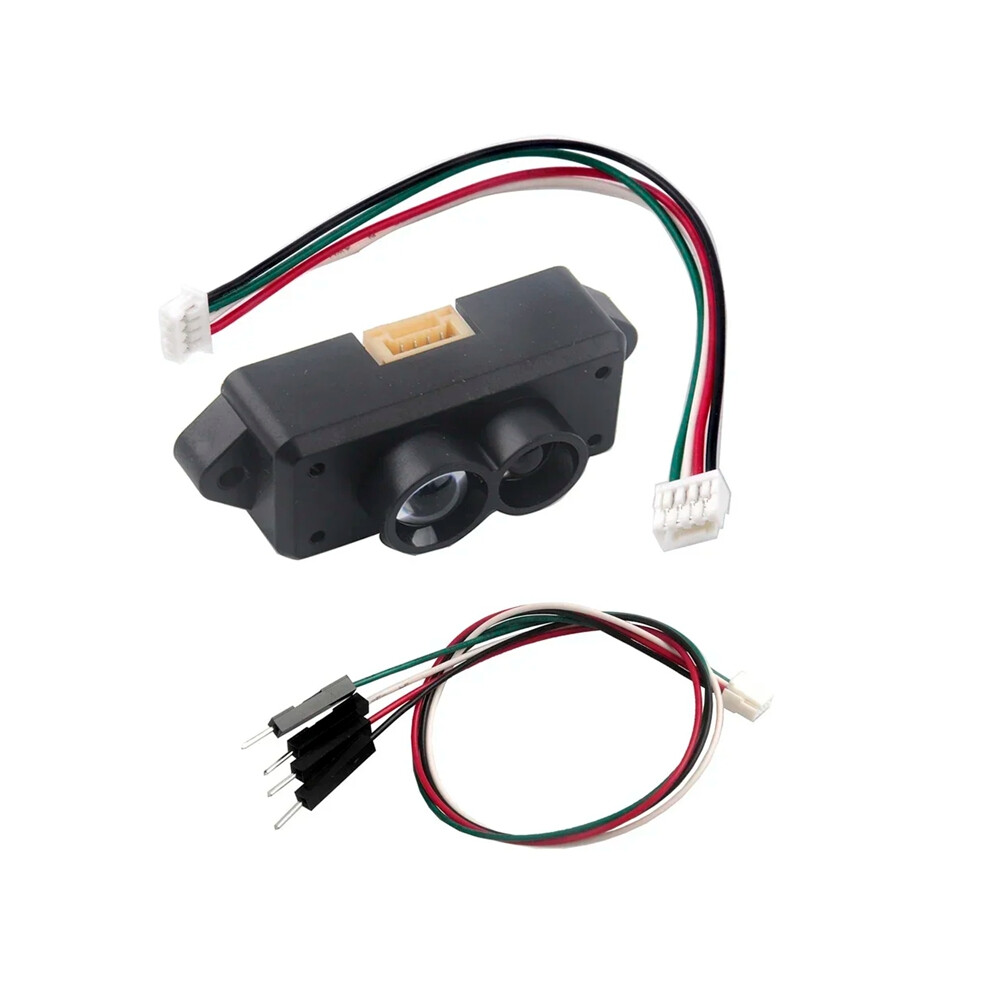

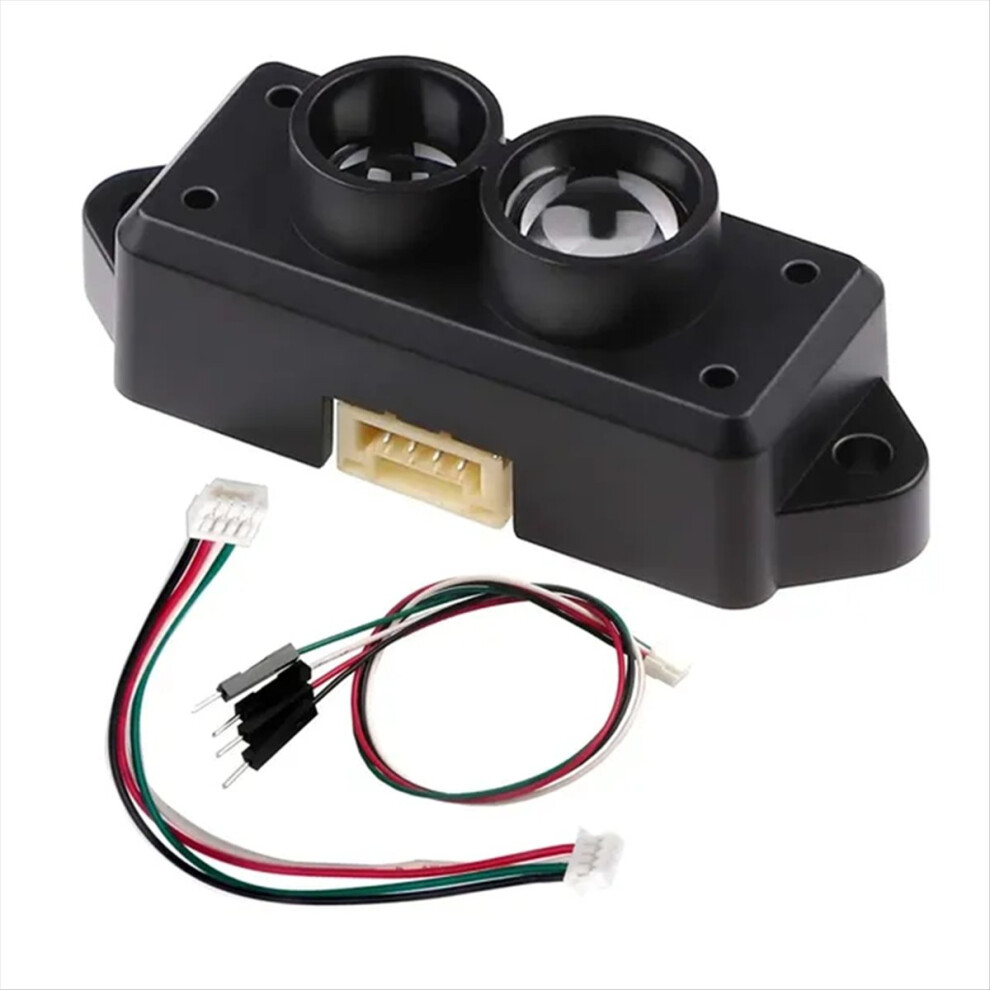

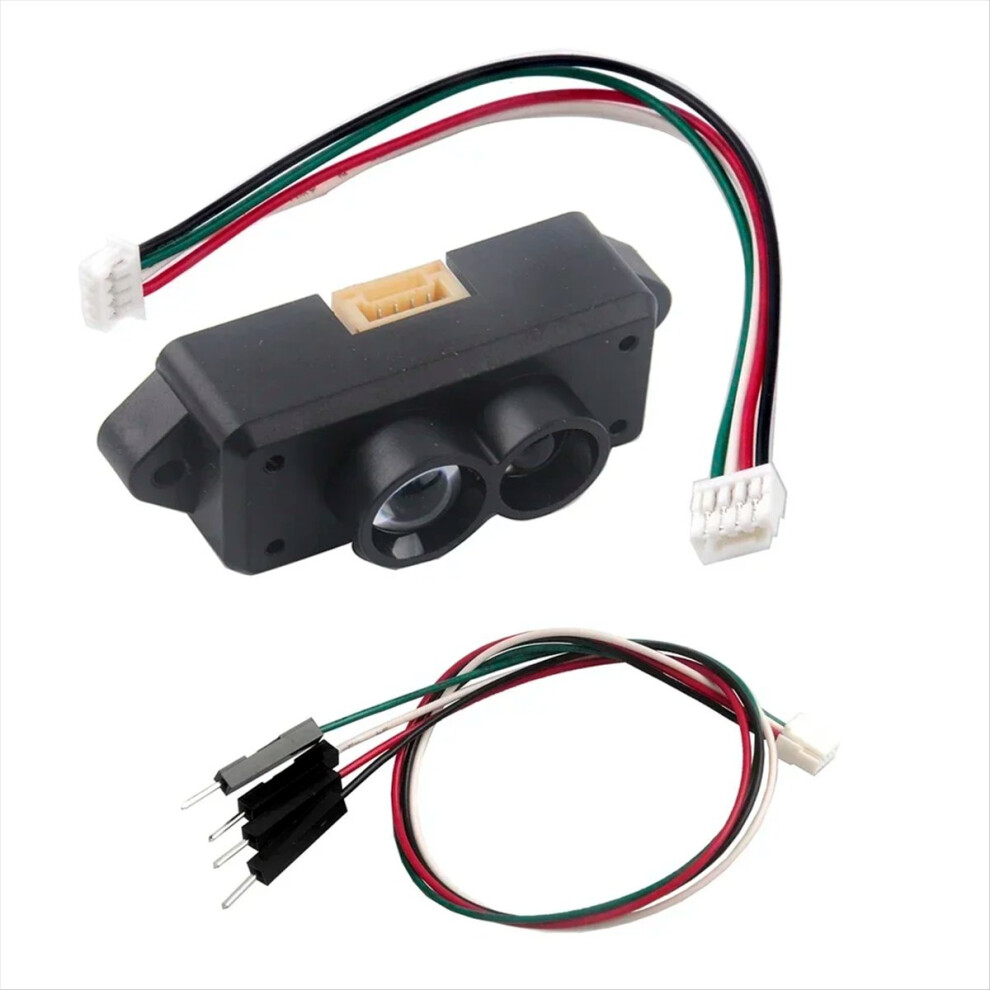

Package Contents:
1 * TFmini-S Lidar Single-Point Micro-type Ranging Finder Module
2 * Cable

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
