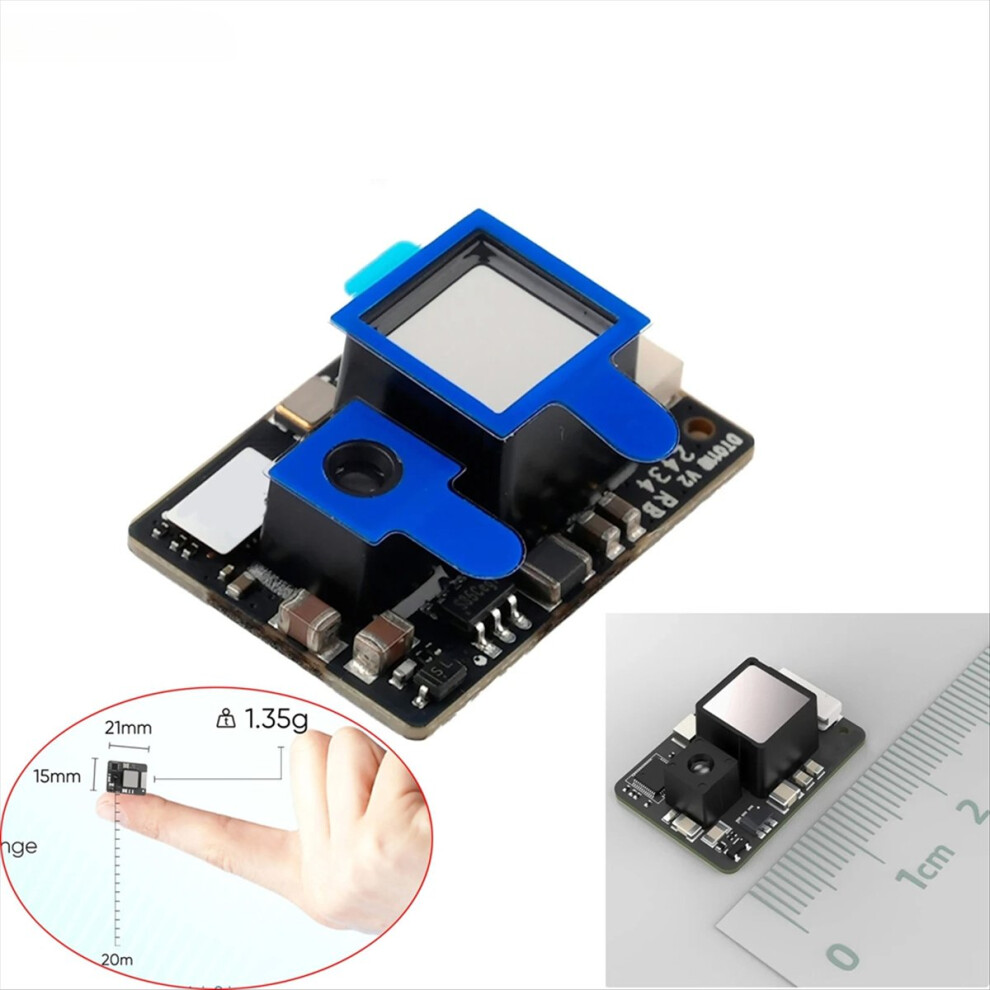

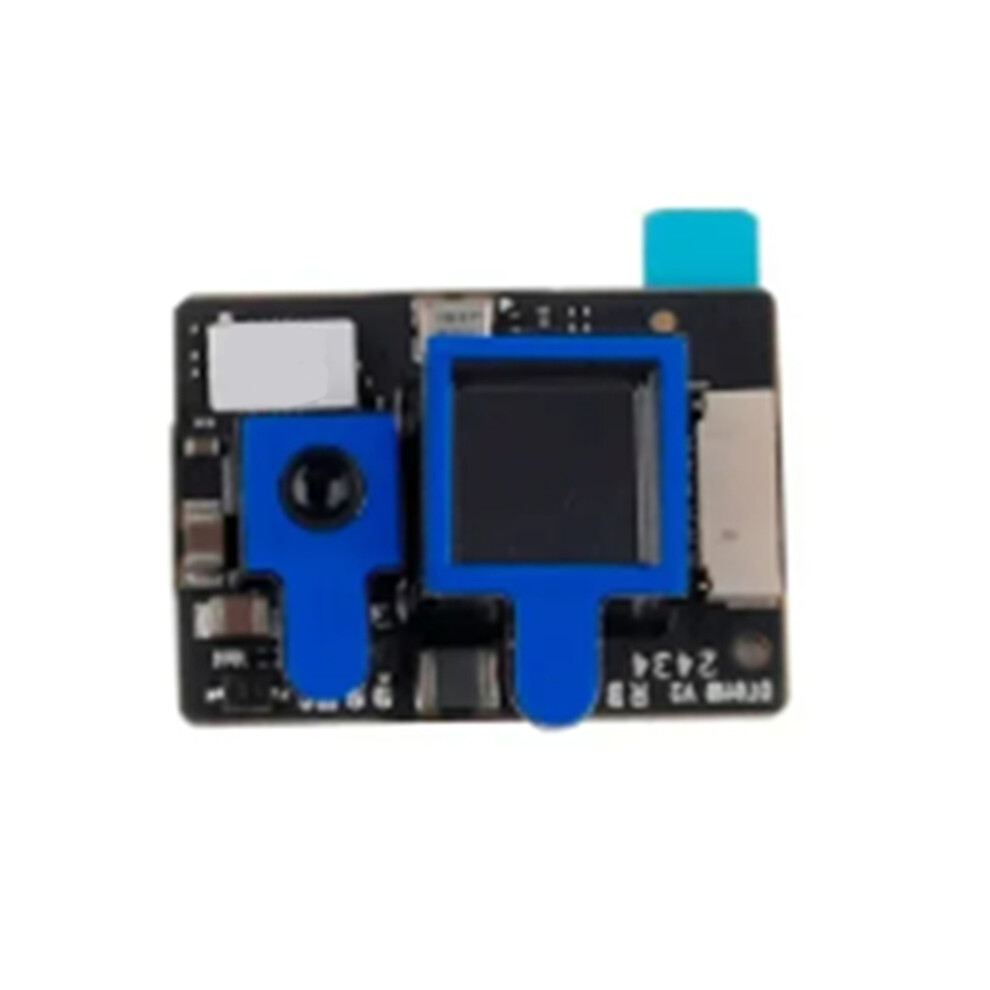

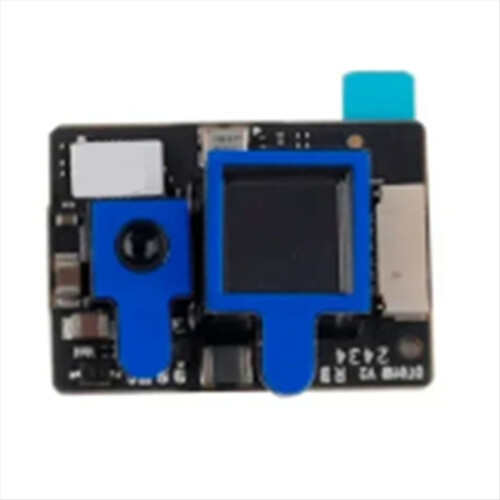

TFS20-L 20Meters UART IIC Miniature Micro-Type Single Point LiDAR Sensor Module Distance MeasurementModule for Drone

TFS20-L 20Meters UART IIC Miniature Micro-Type Single Point LiDAR Sensor Module Distance MeasurementModule for Drone Description

Miniaturized Single-Point LiDAR Module: The TFS20-L is a fully integrated single-channel dToF ranging mini-module that incorporates a highly sensitive infrared-enhanced SPAD sensor, with a range of up to 20m. Utilizing a fully integrated SPAD chip solution, histogram statistical algorithm, and a fast TDC architecture, it achieves high- distance measurement while offering sunlight resistance of 15m@100Klux, along with a reflectivity correction feature.
Compact size: High performance, With a compact size, design, accurate and long-range measurement capabilities, and excellent distance measurement performance even under strong ambient light, it is an excellent choice for miniature dToF applications.
Feature-rich Diverse applications: The TFS20-L integrated power module operates on a single 3.3V power supply and features built-in temperature compensation. It supports I²C and UART interfaces, making it easy to integrate and use. With its compact and reliable optical packaging, it is suitable for a wide range of applications, including consumer drones, service robots, and the Internet of Things.

Color:As Shown
Material:PC

Package Contents:
1 * Module
1 * Cable

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
