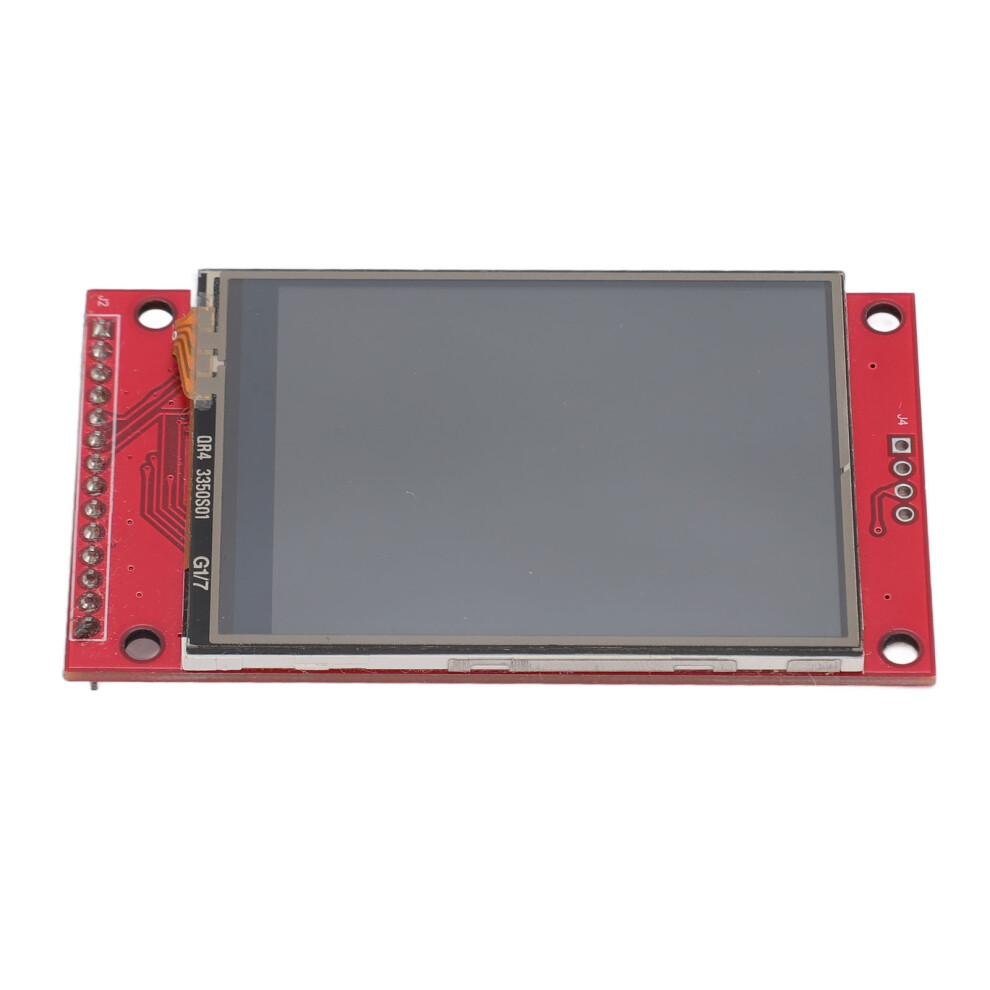

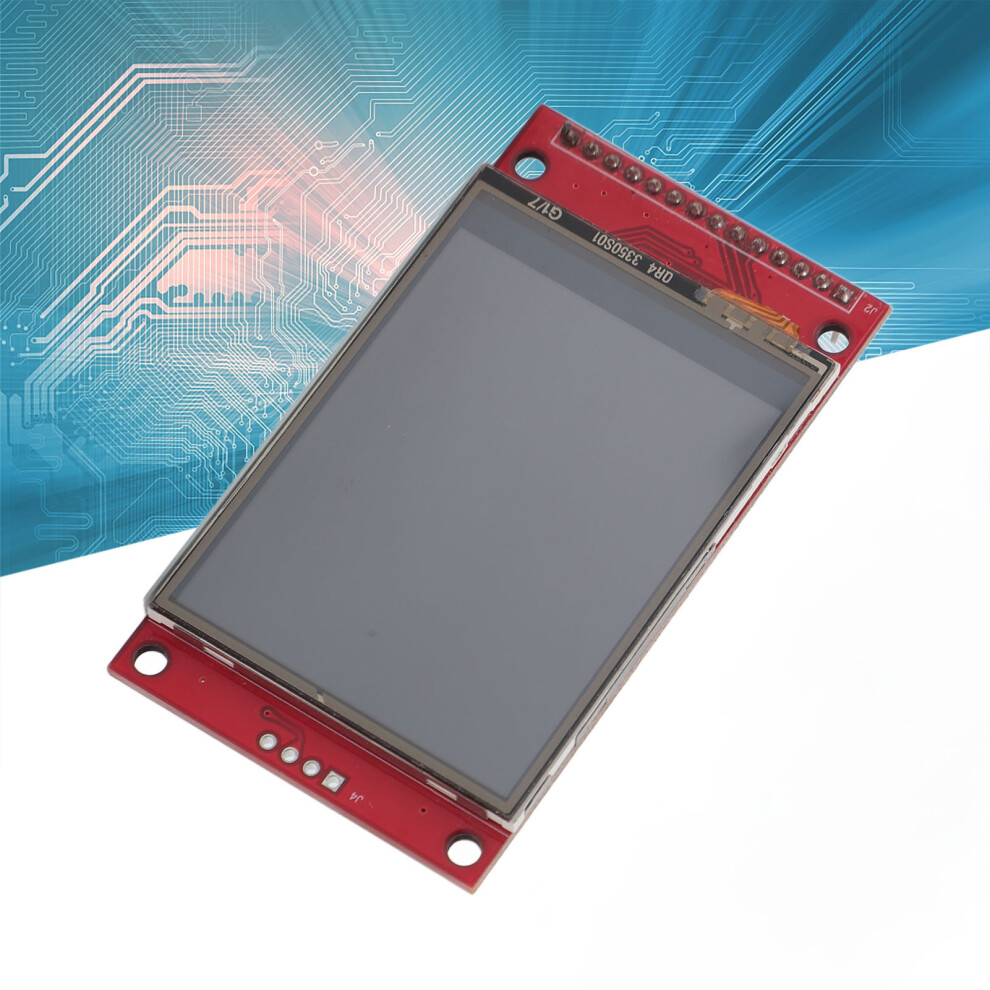

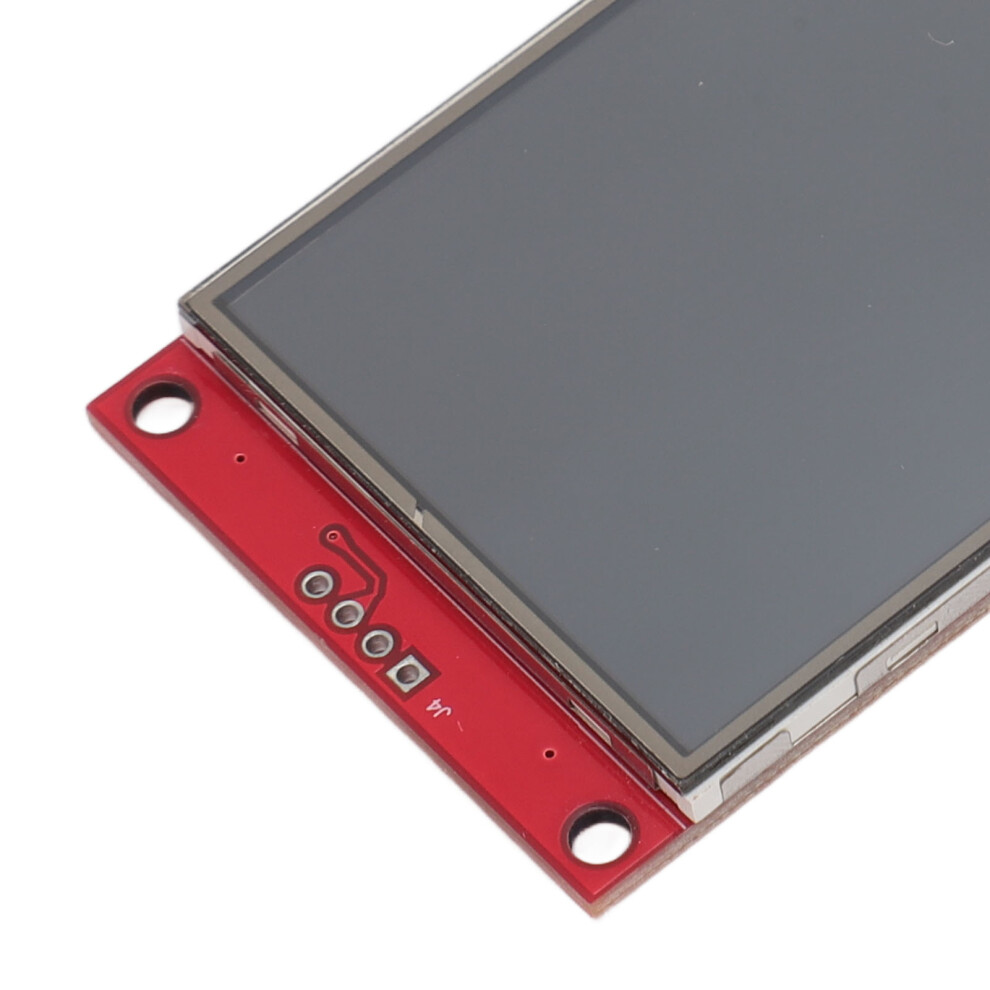

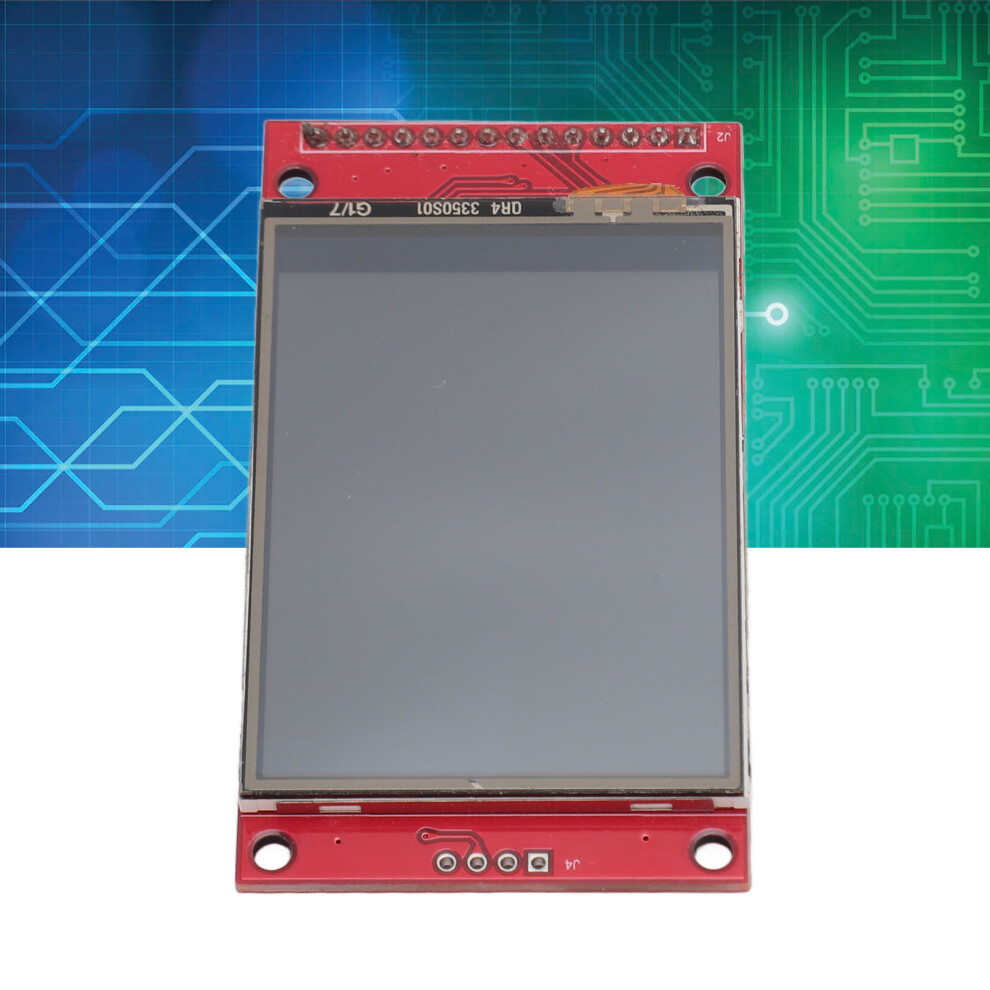

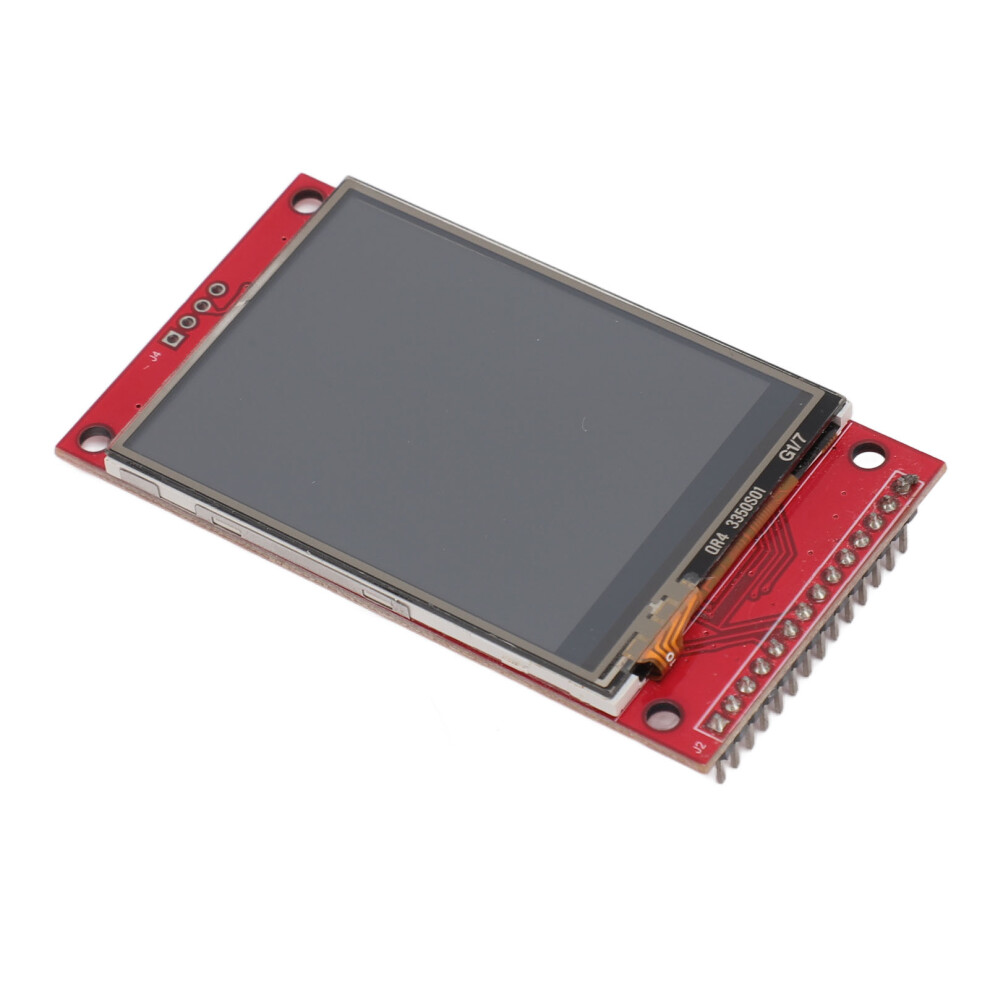

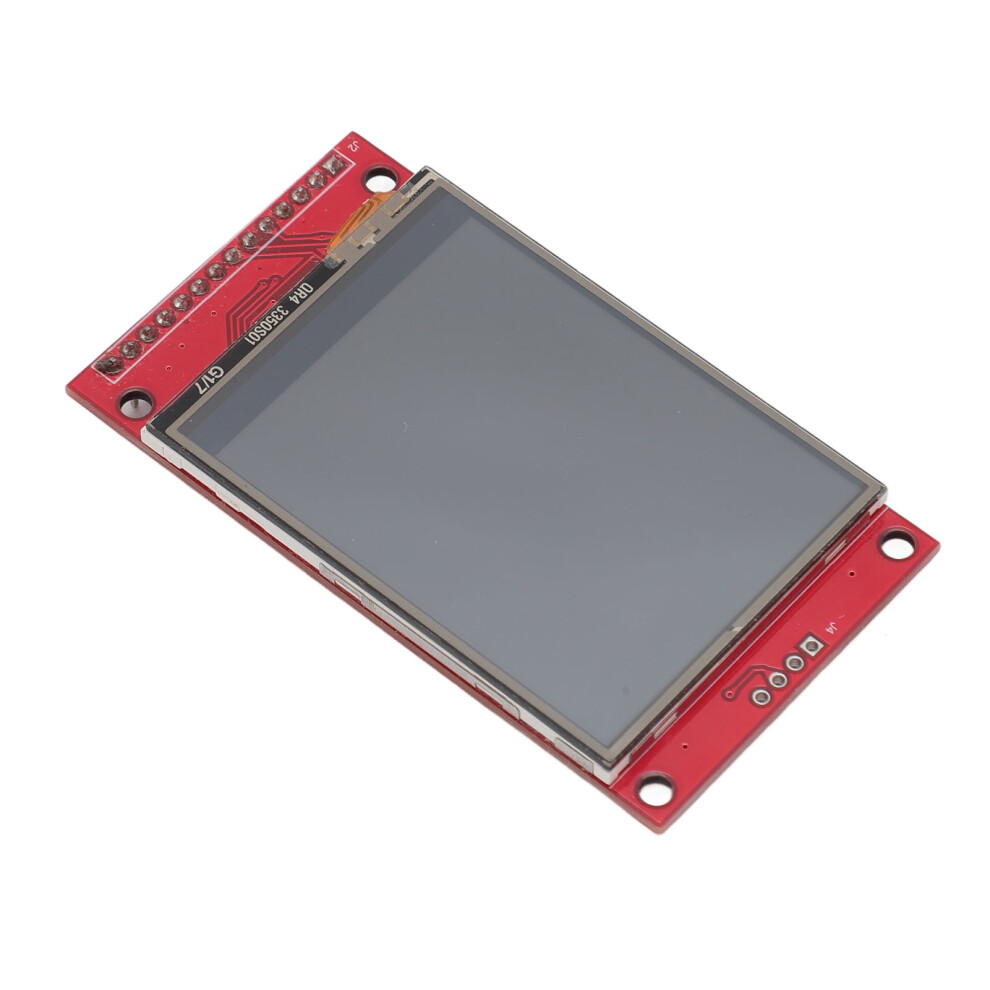

TFT LCD Screen Module 2.4 Inch 240x320 SPI Serial

TFT LCD Screen Module 2.4 Inch 240x320 SPI Serial Description

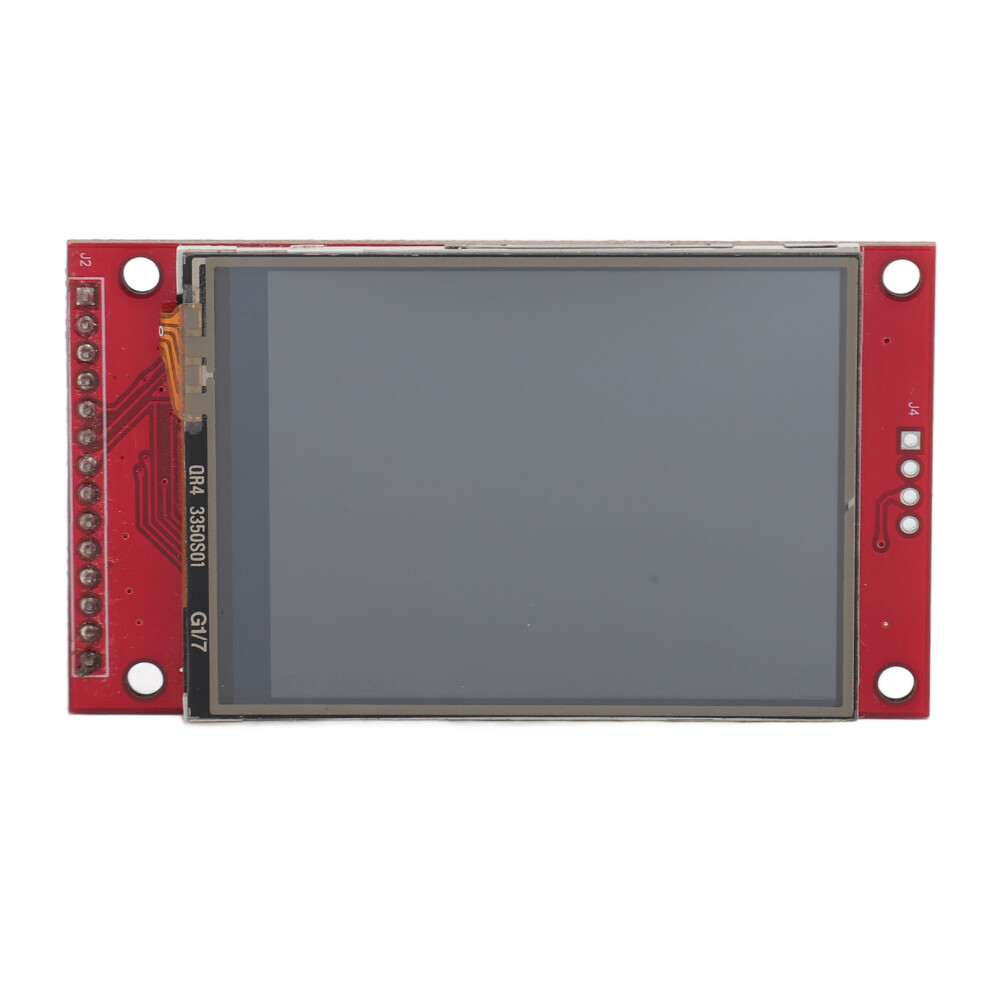

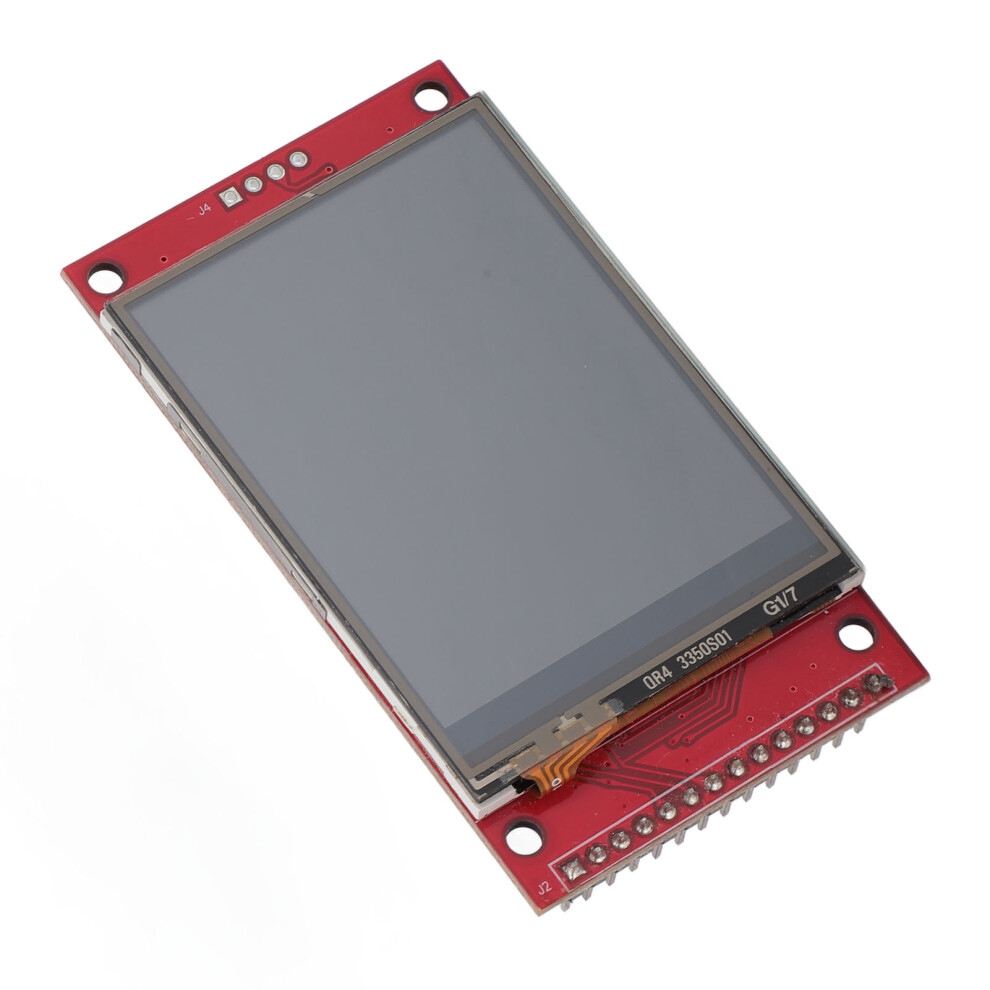

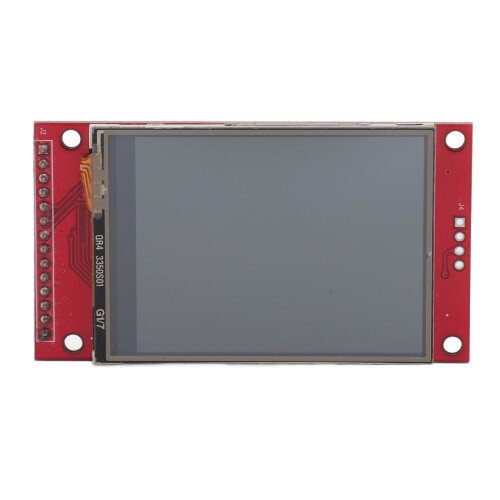

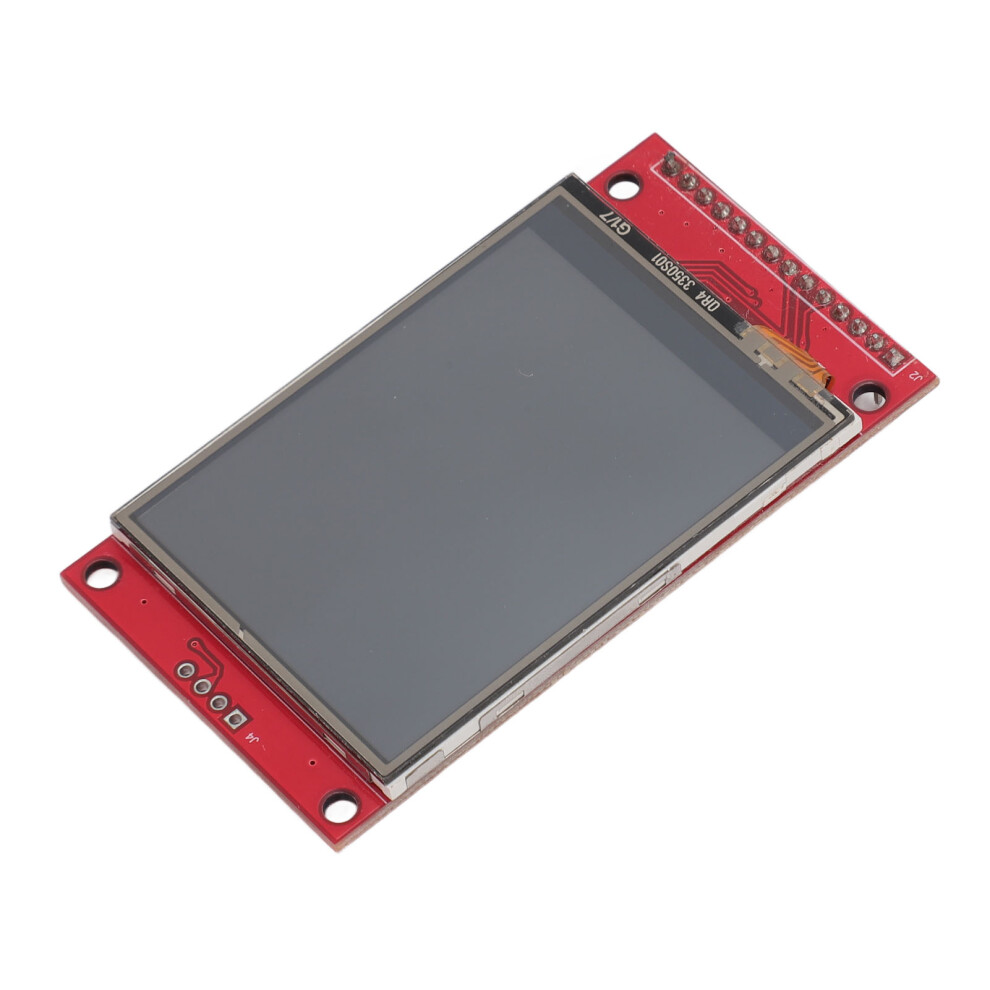

TFT LCD Screen Module 2.4 Inch 240x320 SPI Serial Port ILI9341 Chip TFT LCD Display for Control Replacement



1、2.4 Inch LCD Module: This TFT LCD screen module adopts 2.4 inch RGB color LCD display with the resolution of 240x320. 2、Serial Peripheral Interface: This TFT LCD display uses serial peripheral interface bus, with inbuilt ILI9341 driver IC and power IC. 3、Storage Card Slot: This 2.4in TFT LCD screen module is equipped with storage card slot for easy expansion of experiments. 4、Touch Screen Function: This TFT LCD screen supports touch screen function, with inbuilt stylus, which is more convenient for users to use. 5、Suitable for R3: This TFT screen display is suitable for R3 controller board, which will improve your project operation.

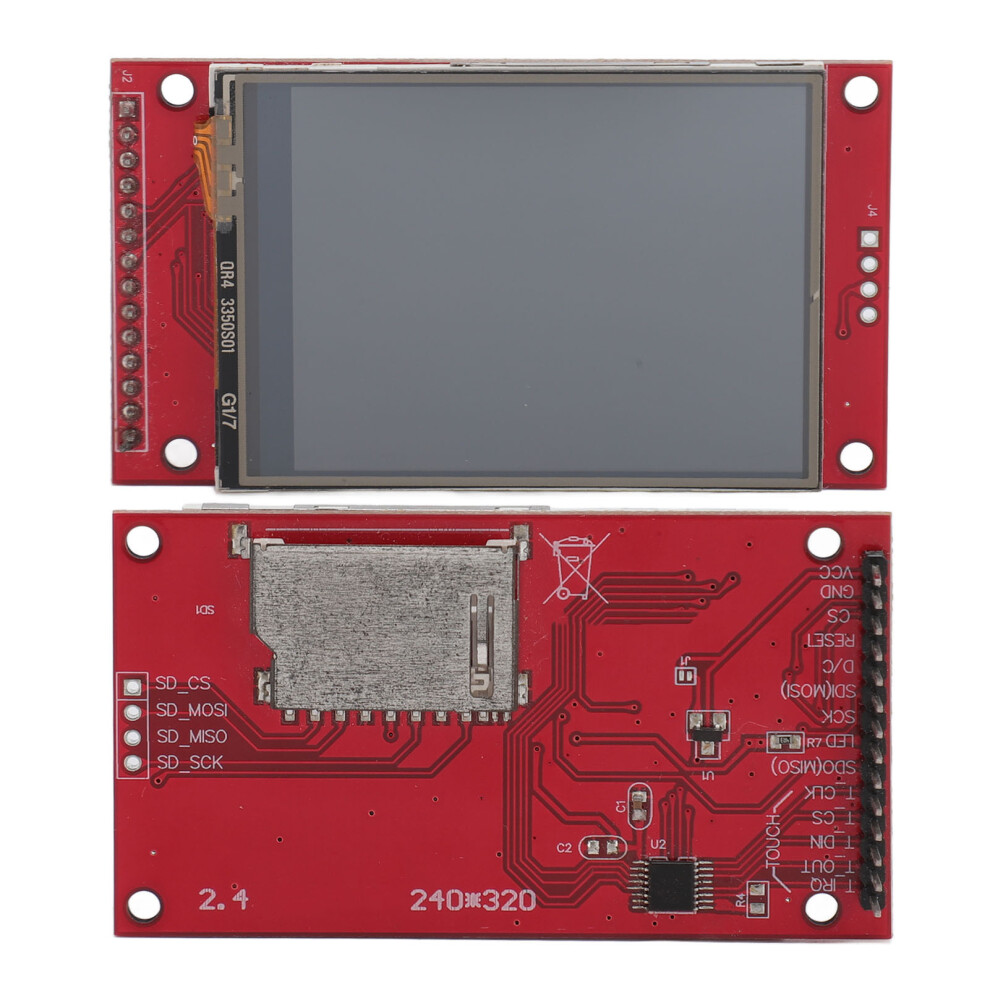

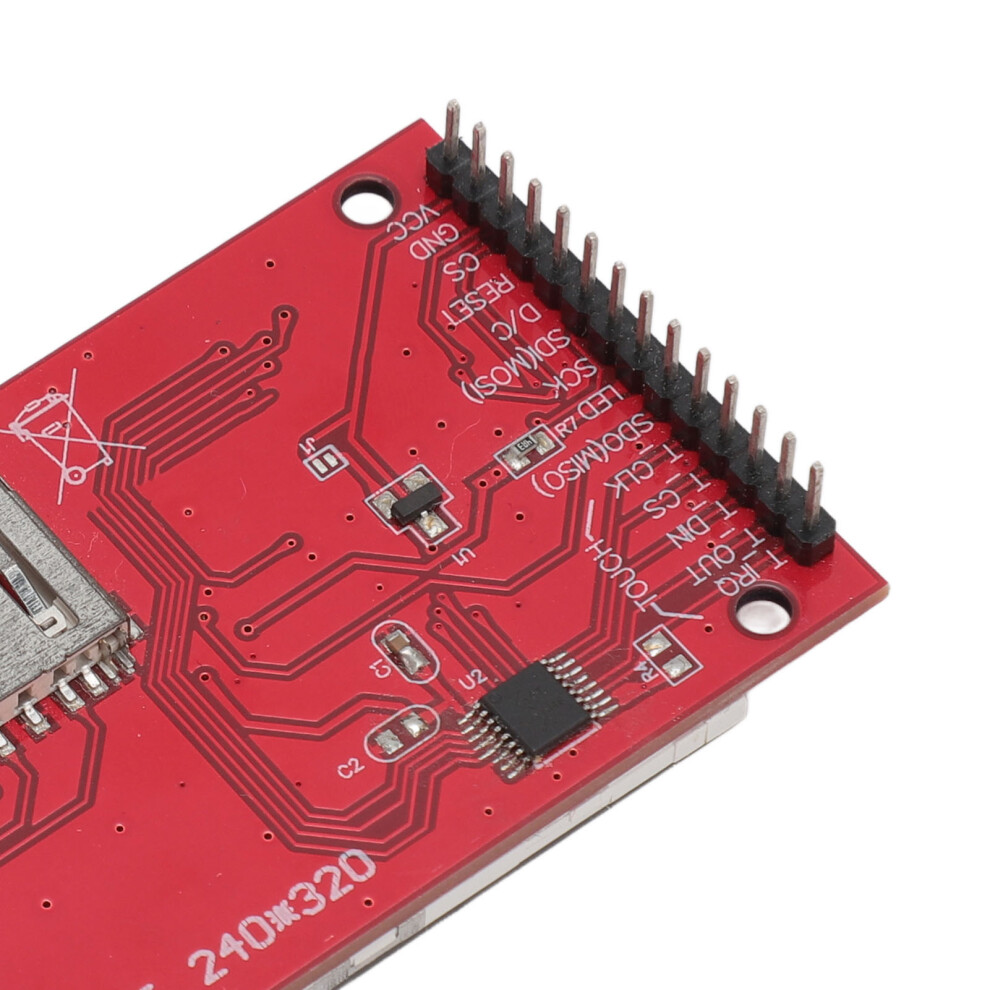

Item Type: TFT LCD Screen Module Material: TFT Driver Chip: ILI9341 Resolution: 240x320 (PX) VCC: Power Input (3.3V to 5V) GND: Power Source CS: LCD Chip Selection RESET: The LCD Reset DC: LCD Bus Command/Data Selection SDI(MOSI) : LCD SPI Display Bus Data Input SCK: LCD SPI Display Bus Clock Signal LED: LCD Backlit Control (High Level On) SDO(MISO): LCD SPI Display Bus Data Input And Output T CLK: Touch Panel SPI Bus Clock Signal T CS: Touch Panel SPI Bus Chip Selection T DIN: Touch Panel SPI Bus Data Input T OUT: Touch Panel SPI Bus Data Output T IRQ: The Touch Panel Interrupts IRQ Signal



1 x TFT LCD Screen Module
