Thermal Conductive Pad 8.5W/ PTM7950 Phase Change

Thermal Conductive Pad 8.5W/ PTM7950 Phase Change Description

new and high quality
PTM7950 is a super highly thermally conductive Phase Change Material (PCM) in both pad and paste formats. It is designed to minimize thermal resistance at interfaces, maintain excellent performance through reliability testing, and provide scalable application at a competitive cost.
PTM7950, based on a novel polymer PCM system, exhibits excellent interface wetability during typical operating temperature ranges, resulting in extremely low contact resistance.
PTM7950 is a proprietary material that provides superior reliability (pass 150C baking 1000 hours, T/C-B 1000 cycles) and maintains low thermal impedance (Less than 0.04Ccm2/W @ no shim), making the PTM7950 series desirable for high performance integrated circuit devices.
Product Use: Clamping pressure and temperature are suggested to achieve a minimum bond line thickness of the thermal interface material, typically less than 1.5 (0.038mm) for best performance.

The material must go through the phase change temperature to exhibit entitlement performance.
Different batches may have different appearances, but not affect the use
Thermal Impedance: 0.04C-cm2/W
Thermal Conductivity: 8.5W/
Thickness: 0.25mm
End of Line 0.04C-cm2/W
Bake 150C, 1000 h 0.04C-cm2/W
Double 85, 1000h 0.04C-cm2/W
Temperature Cycling "B"(-55C to +125C, 1000 cycles) 0.045C-cm2/W
Colour:Gray
Material:PCM

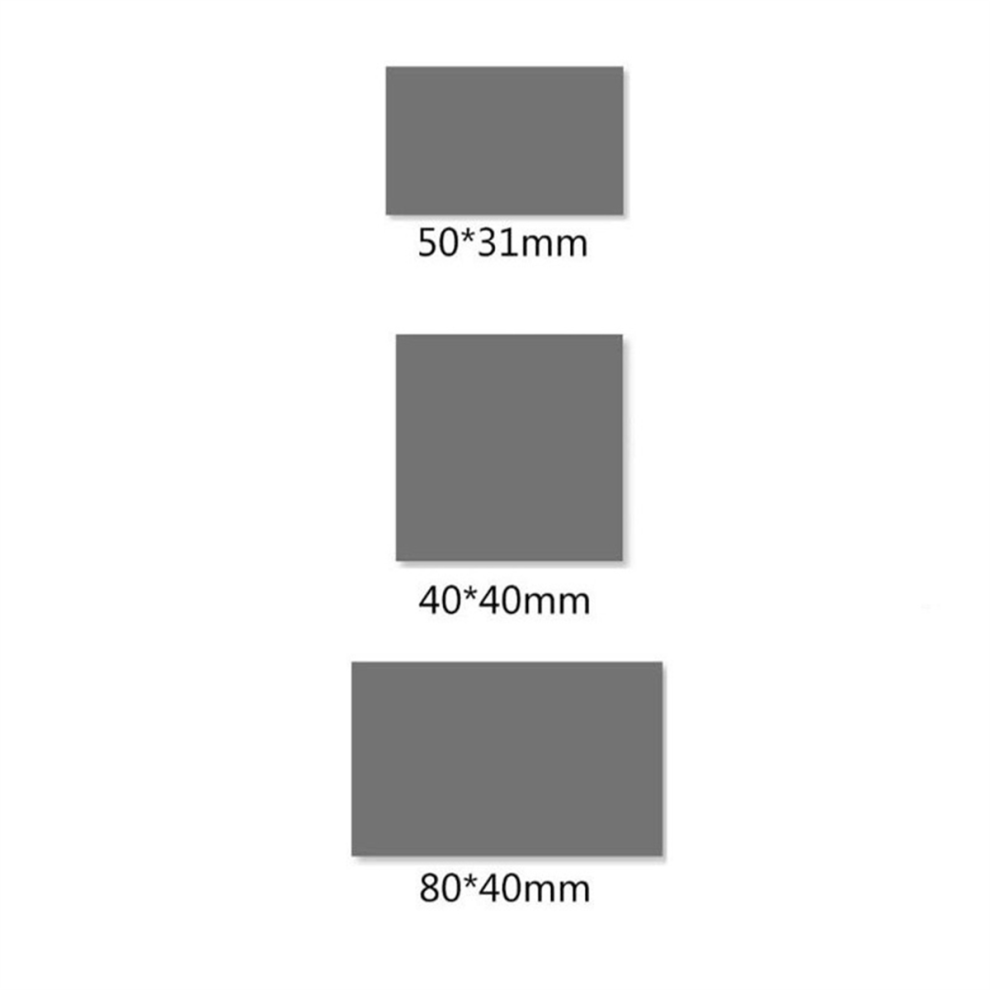

Size:80x40mm

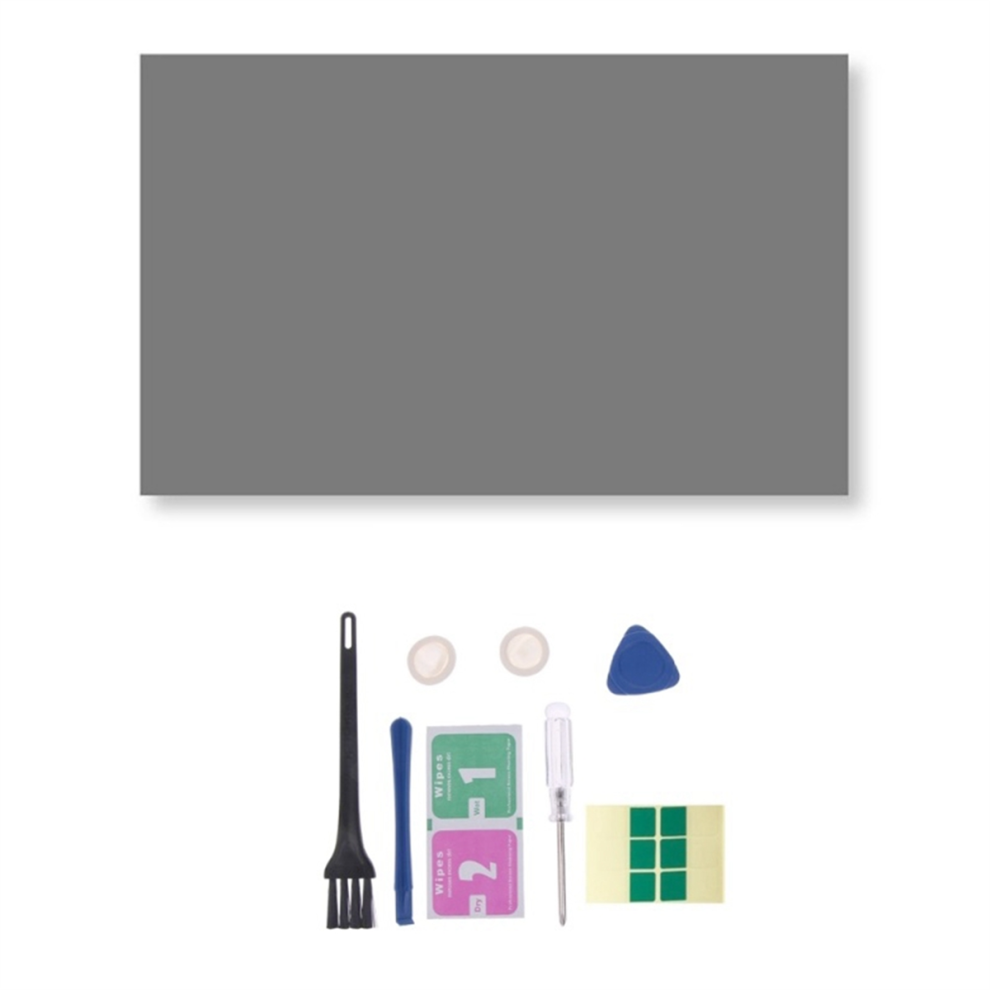

Package Contents:
1 x PTM7950 Thermal Pad
1 set x installation accessories (the color of the installation accessories is random, don't accept the specified )

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
