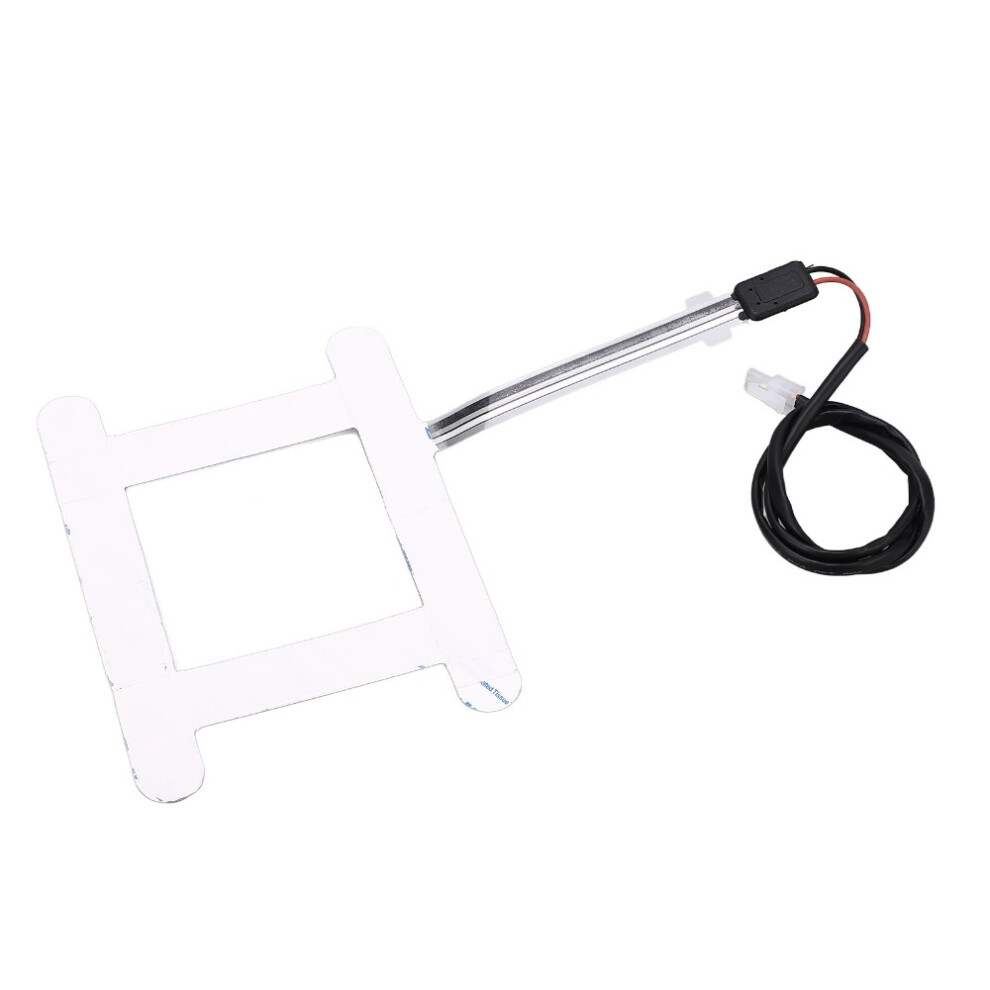

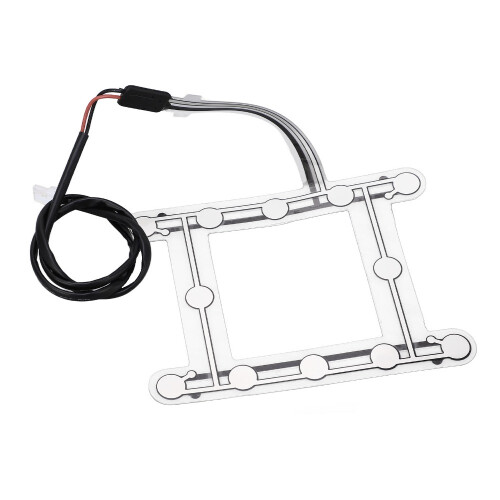

Thin Film Safety Pressure Sensor 50V Occupancy Detection Pressure Reminder Seating Pressure Sensor

Thin Film Safety Pressure Sensor 50V Occupancy Detection Pressure Reminder Seating Pressure Sensor Description

Thin Film Safety Pressure Sensor 50V Occupancy Detection Pressure Reminder Seating Pressure Sensor

High-concerned chemical : None

Type : Transmission Pressure Sensor

Origin : Mainland China

-MAIN USE: As part of the passive safety system, the seatbelt acts as the primary barrier between passengers, other occupants, and harsh interior objects to minimize injury.

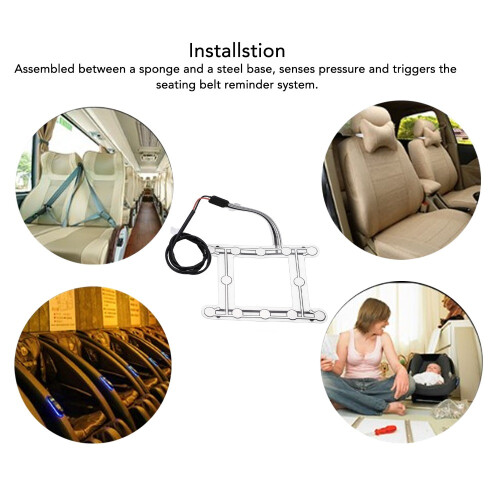

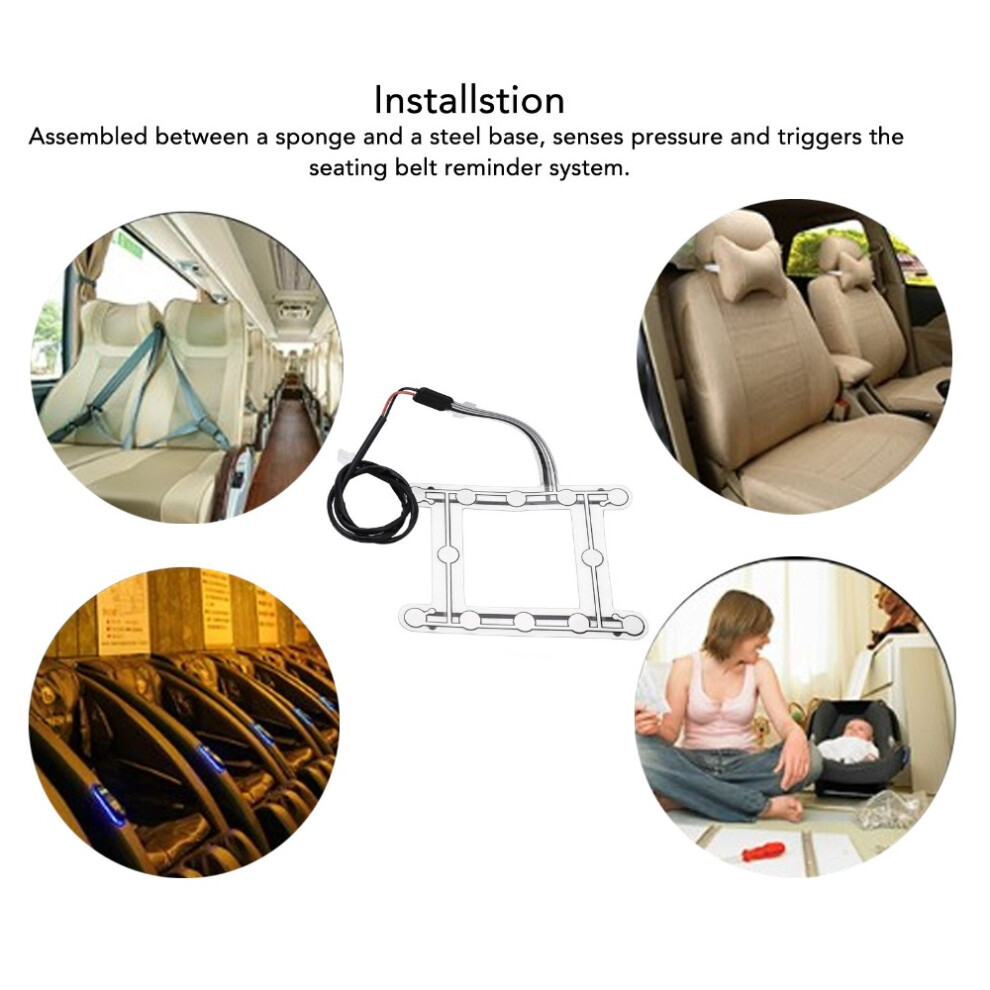

-INSTALLATION: Assemble the sensor between the sponge and steel base to let the seatbelt reminder detect pressure and activate.

-SAFETY ENSURANCE: Rear occupants are detected by seatbelt reminder sensors, providing maximum safety for car riders.

-PRACTICAL USE: If a passenger doesn't buckle up, the in car seatbelt reminder triggers a warning light or alarm.

-ABS MATERIAL: This pressure sensor is made of ABS plastic wear/impact, with stable and prompt response.

Specification:

Item Type: Safety Belt Pressure Sensor

Material: ABS

Maximum Driving Voltage: Less than or equal to 50V

Working Current: Less than or equal to 100mA

Base Material Withstand Voltage: 2kDVC

Rebound Time: 6ms

Insulation Resistance: Greater than or equal to 100M ohm

Normal Working Temperature: - 40 to 85

Function Description:

1. Membrane switch;

2. When no one is sitting in the seating, the sensor is disconnected, that is, the resistance is greater than 10M ohm

3. When the seating is occupied, the sensor is connected, i.e. the resistance is less than or equal 150 ohm

Note:

1.Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

2.Please allow 1-3cm(0.39-1.18in)inch measuring deviation due to manual measurement. thanks for your understanding.

Package List:

1 x Safety Belt Pressure Sensor
