TIMCO Self-Drilling Wing-Tip Steel to Timber Light Section Silver Drill Screw - 4.2 x 32

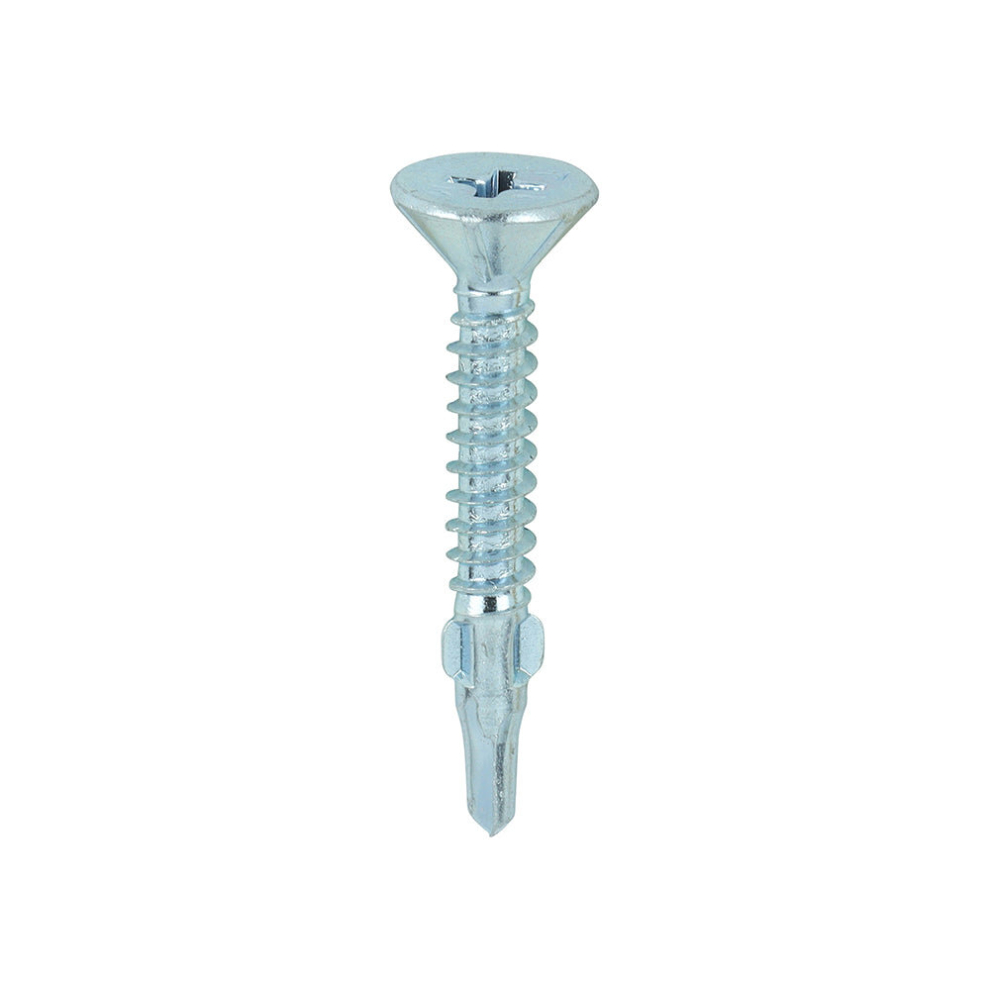

TIMCO Self-Drilling Wing-Tip Steel to Timber Light Section Silver Drill Screw - 4.2 x 32 Description

Specifically designed to attach wood to light section steel (Max. 3mm). Coarse self-tapping thread with wings designed to ream out the timber, so the screw can achieve Max. R.P.M. without burning out. When the wings hit the metal they will break off to permit the thread to self-tap into the metal.

Corrosion Rating1 - Clean, dry & low humidity environmentsDescriptionSpecifically designed to attach wood to light section steel (Max. 3mm). Coarse self-tapping thread with wings designed to ream out the timber, so the screw can achieve Max. R.P.M. without burning out. When the wings hit the metal they will break off to permit the thread to self-tap into the metal. Drill Tip Angle degree110Drill Tip Length mm13.00Drill Tip Width mm3.90Driver Bit SizePH2Effective Thread Length mm10FinishZincHead Dia. mm9.50Head Height mm5.00Head TypeCountersunk with RibsIncluded ItemsPH2 S2 Bit (Qty 1)Length mm32MaterialCase & Core Hardened Carbon SteelMax Drilling Thickness mm3.0Max Fixture Thickness mm14Max Torque Nm6Pack Dimensions L x W x H mm92 x 72 x 58Pack Weight kg0.600Point TypeSelf-Drilling No.3Product CodeLW32BRec RPM1,000 - 1,800Recess TypePhillipsSize mm4.2 x 32SubstratesSteel, TimberThread Dia. mm4.2Thread TypeCoarse Self-TappingTo Suit Timber mm12Wing Tip Width mm5.00
