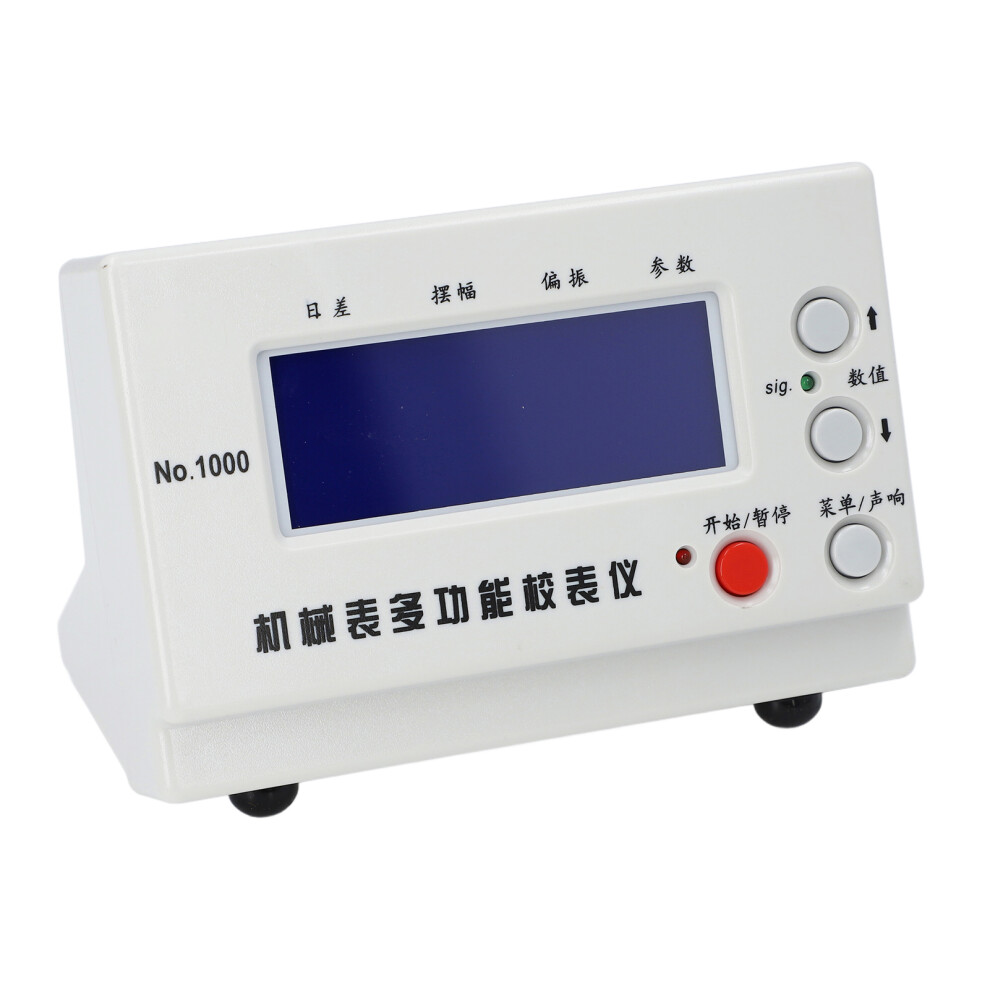

Timegrapher No.1000 Multifunctional Watch Tester 100-240V

Timegrapher No.1000 Multifunctional Watch Tester 100-240V Description

1、High Precise Testing: No.1000 watch timing machine automatically calculates rate, amplitude, beat error, etc, providing accurate data for testing mechanical watches. Measures day difference, amplitude, polarization, and lift angle. 2、Automatic Detection: Equipped with a high definition LCD screen, the watch tester adjusts to the best signal level when testing different watches, ensuring data accuracy. Supports measuring day difference 999 sec/day, digital swing amplitude from 1, and more. 3、Wide Measurement Range: Allows for measuring day difference 999 sec/day, digital swing amplitude resolution 1, measurement range from 100‑360, polarization resolution 0.1 millisecond, providing extensive and precise measurement options. 4、Versatile Timing: Choose from sampling periods of 2, 4, 6, 8, 10, 20, 30, 60 seconds for accurate results. The corresponding average value for each period serves as the watch's accuracy value. 5、Multiple Power Supply Options: Supports 100‑240V AC and 12V mobile power supply, ensuring stable detection in various environments. Automatically adjusts signal level based on watch type, supports automatic and manual beat selection, easy and convenient to operate.
Item Type: Watch Timegrapher
Material: ABS
Color: White
Measurement Range: Daily difference in speed for mechanical watches, amplitude, beat error, line display of watch timing.
Frequency Count: Can automatically select the beat of common watches, or manually select the beat of less common watches.
Daily Difference Measurement: Display numeric 999 seconds/day, within the measurement range displayed as 1 second/day.
Amplitude Measurement: Display numerically, with a rate of 1, measurement range 100-360 (lift angle will affect amplitude, range is 30-70. Under normal circumstances, the swing amplitude of the watch should not exceed 330)
Measurement Time for Average Values: 2s, 4s, 8s, 12s, 20s, 30s, 60s.
Beat Error (Frequency Error) Measurement: Numeric unit is milliseconds; resolution is 0.1 milliseconds, measurement range is 0.0-9.9 seconds.
Lift Angle: The measurement range for the lift angle is 30-70, and the factory setting is 52.
Measurement Positions: 1-6 positions.
Operating Environment: 0 -50, Relative Humidity: 0-80% RH.
How to Use:
Product Instructions:

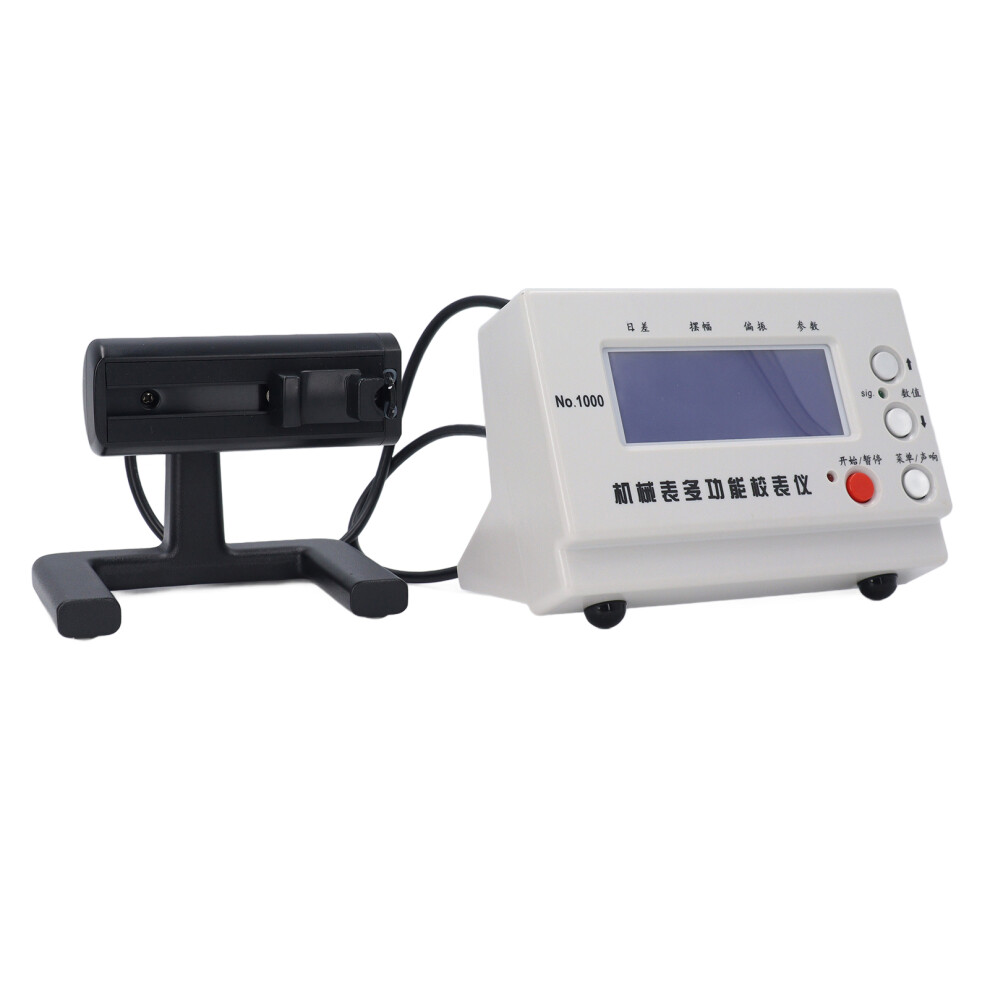

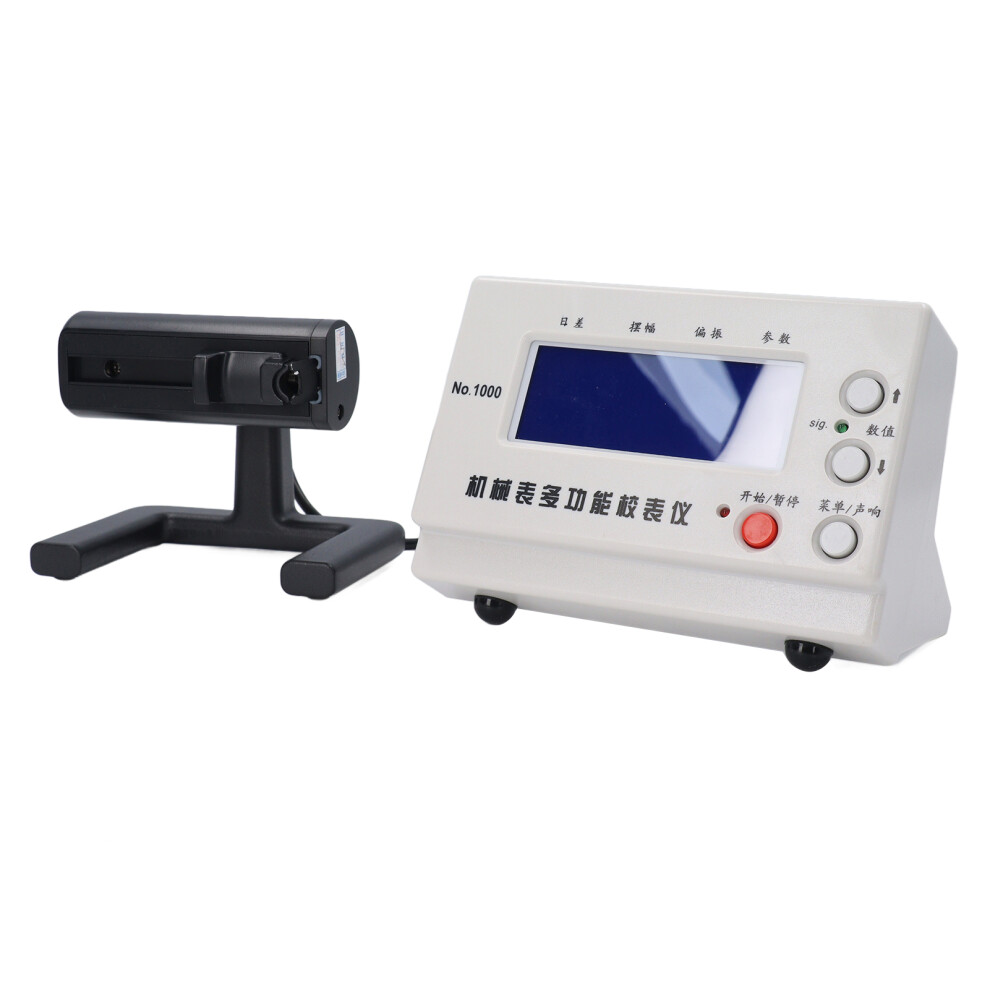

After connecting the power supply and the sensor, the instrument enters the test mode; place the watch on the sensor, the watch's crown should be against the metal piece. The test position can be arbitrarily switched. After switching, your hand should leave the sensor and watch. If the green signal light is flashing, it has received the watch signal.
Key Instructions:
1. Start/Pause Button
Press the Start/Pause button once before adjusting any parameters of the instrument. Press the Start/Pause button once, the instrument stops running, the green light goes off, and the red LED light is on, you can adjust the parameters. After adjusting, press the Start/Pause button again, the red LED light goes off, the green light is on, the instrument returns to normal testing, and the previous data and screen display will be refreshed.
2. Menu/Sound Button
Press the Menu/Sound button directly during the instrument testing to turn the sound (speaker) on or off. When the instrument is paused, press the Sound/Menu button once to enter the menu item, press the Sound/Menu button again to select the menu, and press the button to change the parameters of the selected menu.
3. Numeric Button
4. Numeric Button

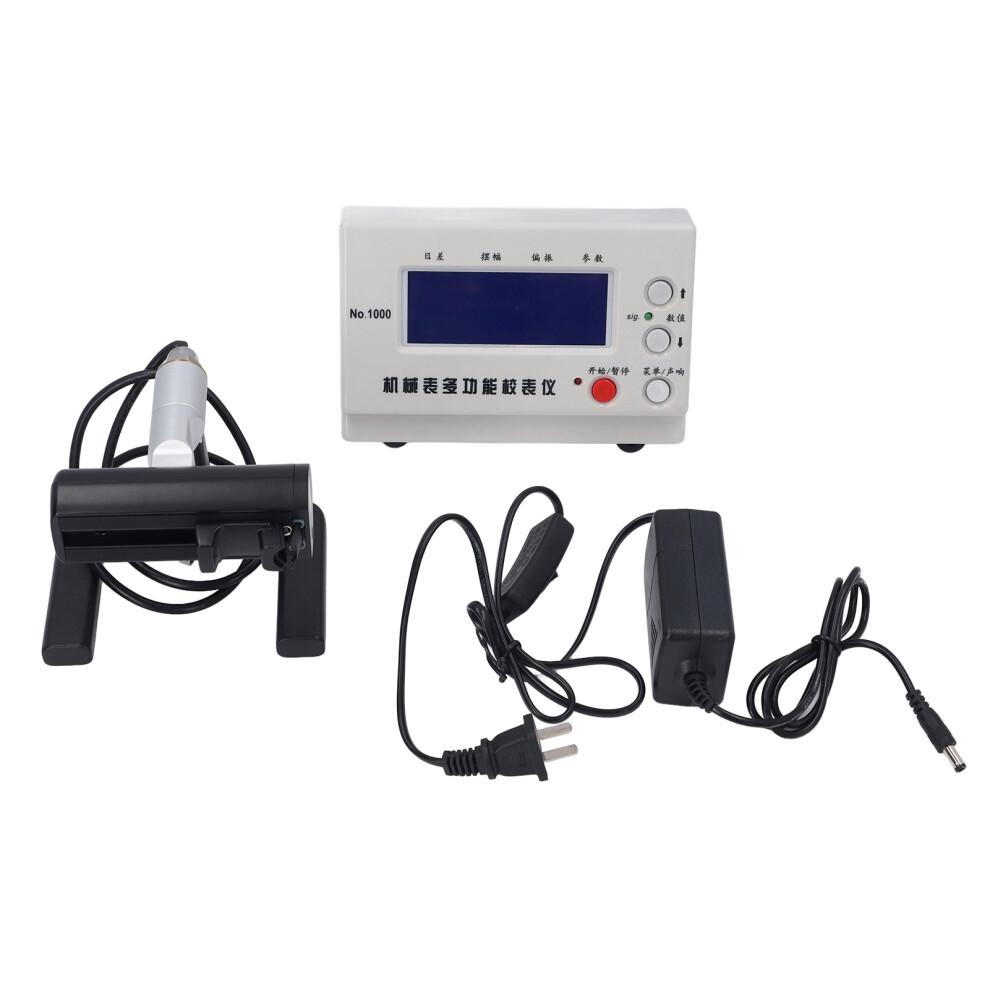

1 x Watch Tester
1 x Power Adapter
1 x User Manual
1 x Testing Stand
