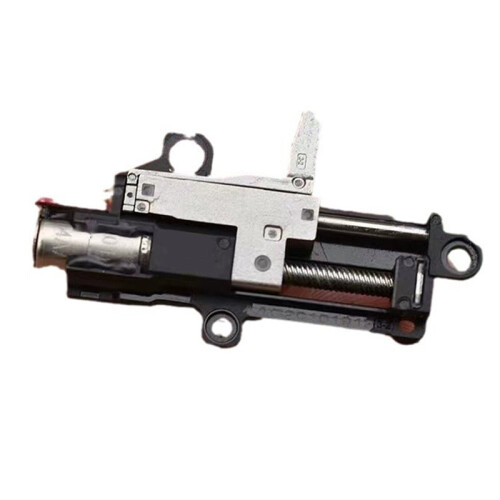

Tiny 5mm/4.3mm Planetary Gear Stepper Motor Micro 2-Phase 4-Wire Stepping Motor Linear Metal Screw Slider Model B

Tiny 5mm/4.3mm Planetary Gear Stepper Motor Micro 2-Phase 4-Wire Stepping Motor Linear Metal Screw Slider Model B Description

Phase: 2 - This micro stepper motor operates a two-phase system, ensuring precise and controlled movement for applications requiring exact positioning. Ideal for integration in compact spaces due to its miniature size.
Type: HYBRID - Combining the best features of both permanent magnet and variable reluctance stepper motors, this hybrid motor offers higher performance in terms of step resolution, torque and speed.
Certification: CCC - this stepper motor meets all the necessary safety and performance standards required for sale and use.
Origin: this stepper motor is built with high-quality materials and engineering expertise, ensuring reliability and durability in demanding applications.
Listing Title: Tiny 5mm/4.3mm Precision Planetary Gear Stepper Motor Micro 2-Phase 4-Wire Stepping Motor Linear Metal Screw Slider Camera - This motor is perfect for precise movements in small-scale projects, including cameras and other sensitive equipment.

Description/Features:

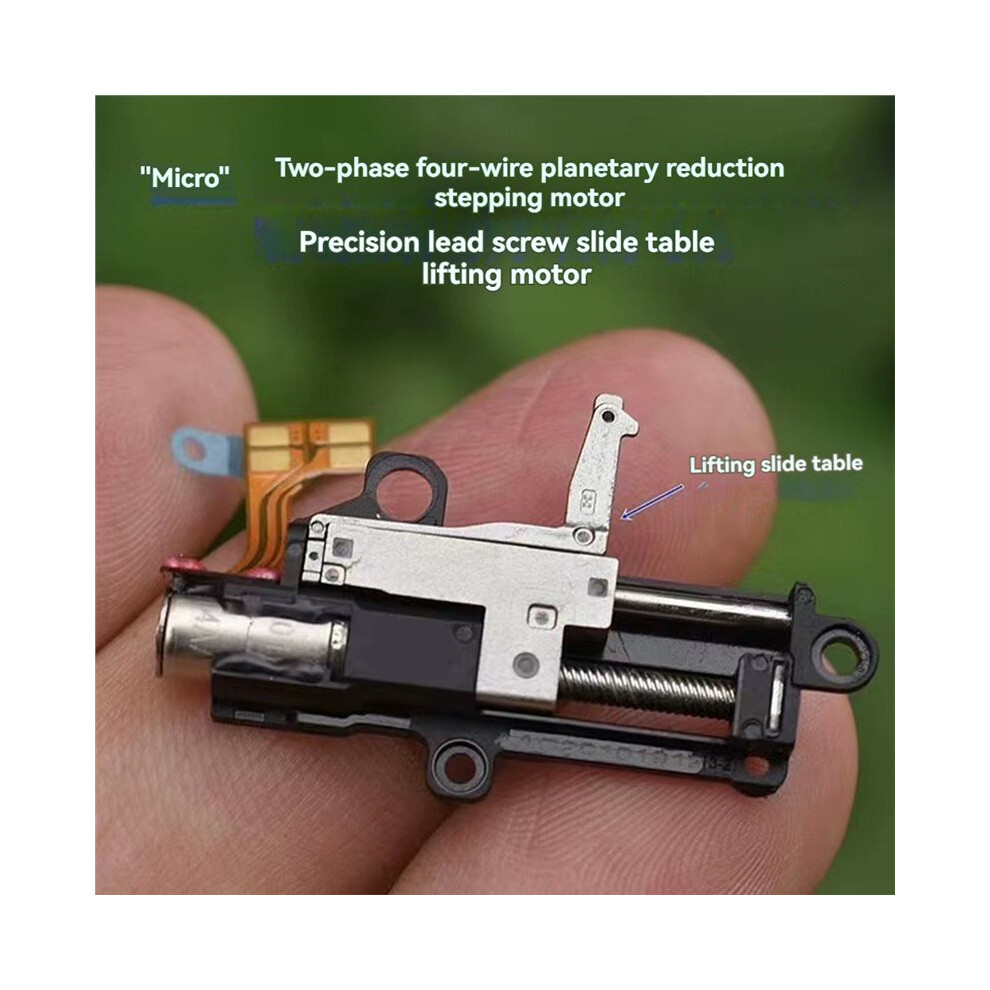

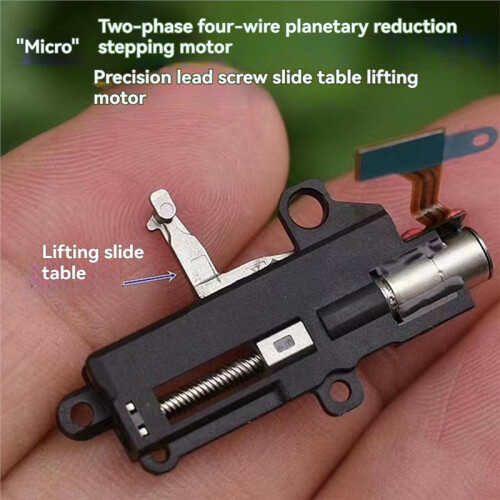

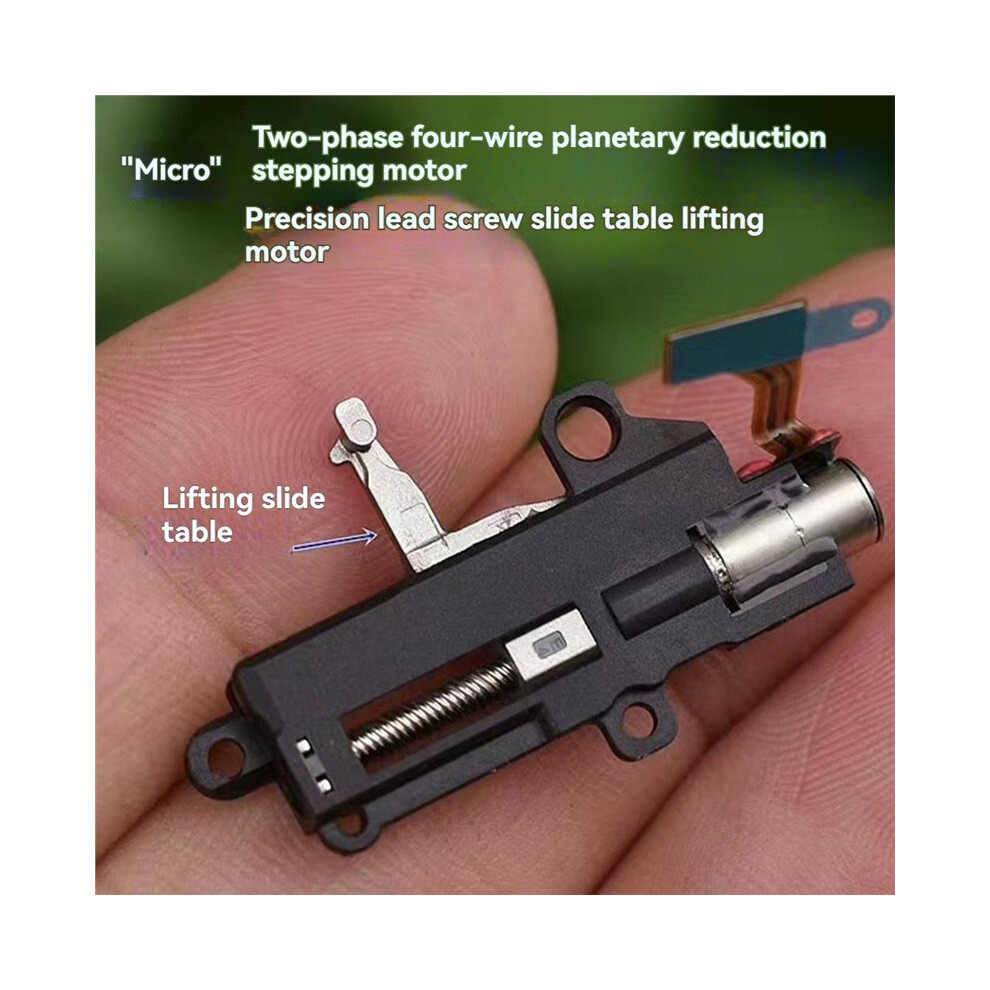

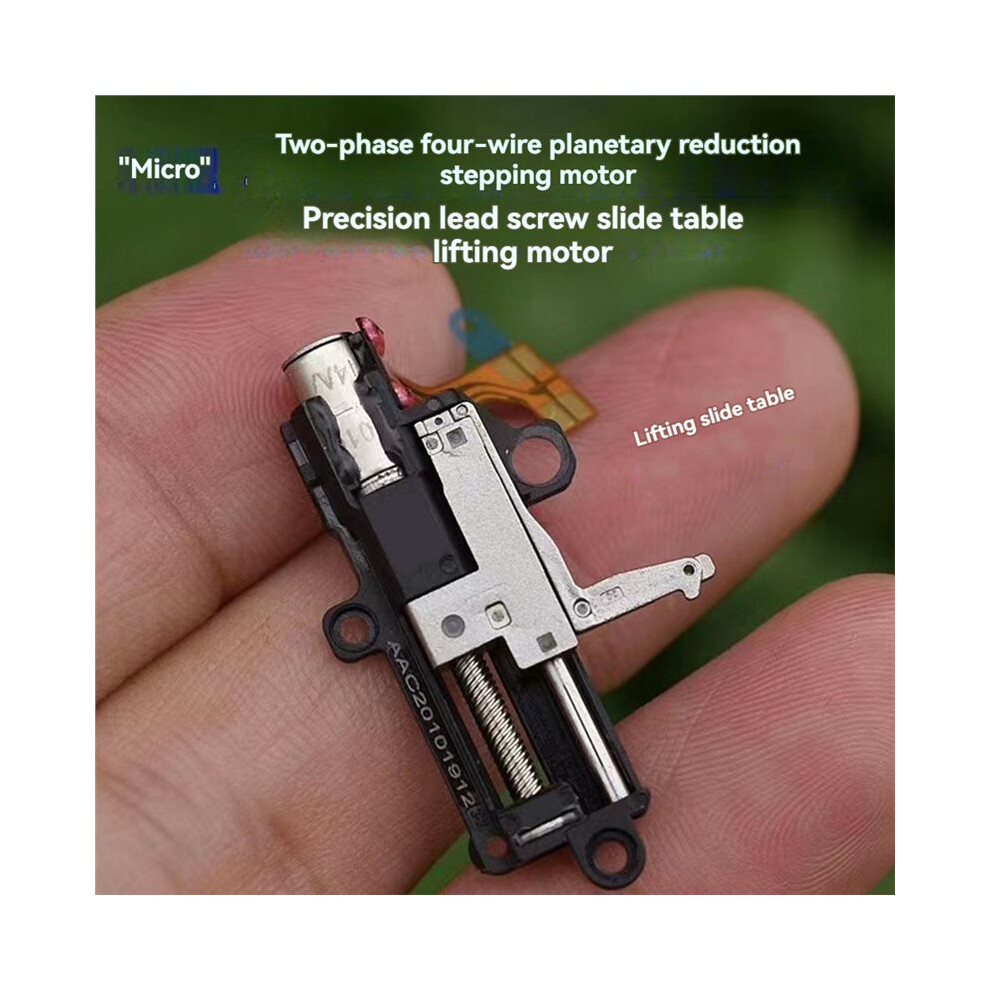

Introducing our latest micro two-phase four-wire stepper motors, equipped with a precision planetary gearbox for superior control. These motors are designed specifically for mobile phone lens adjustments, featuring a metal slide driven by the motor's pole to achieve precise and down movements. Each motor is complemented by a super miniature bearing at the top of the screw, ensuring smooth operation.

Specifications:
Motor Type: 2-phase 4-wire stepper motor

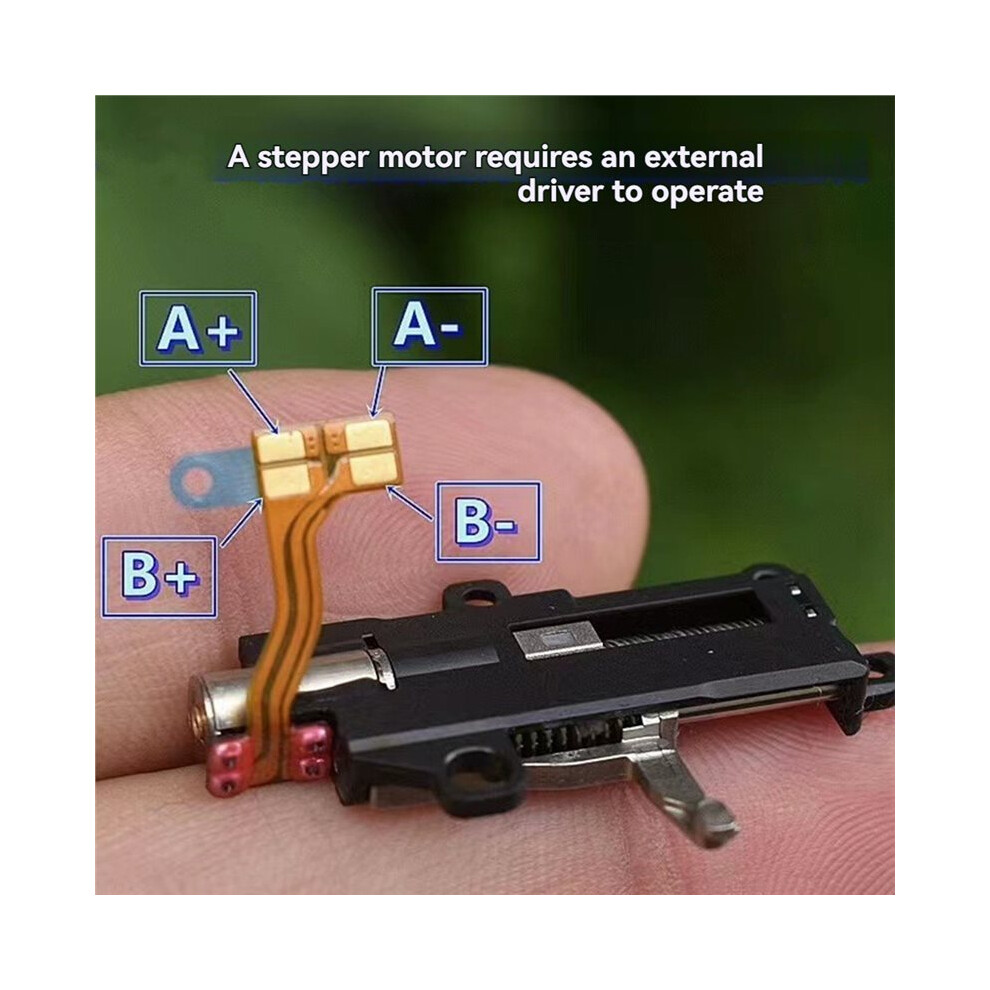

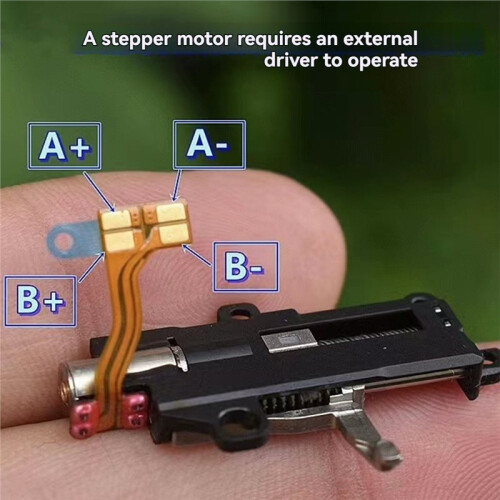

Additional Requirements: Requires stepper driver and pulse signal for operation

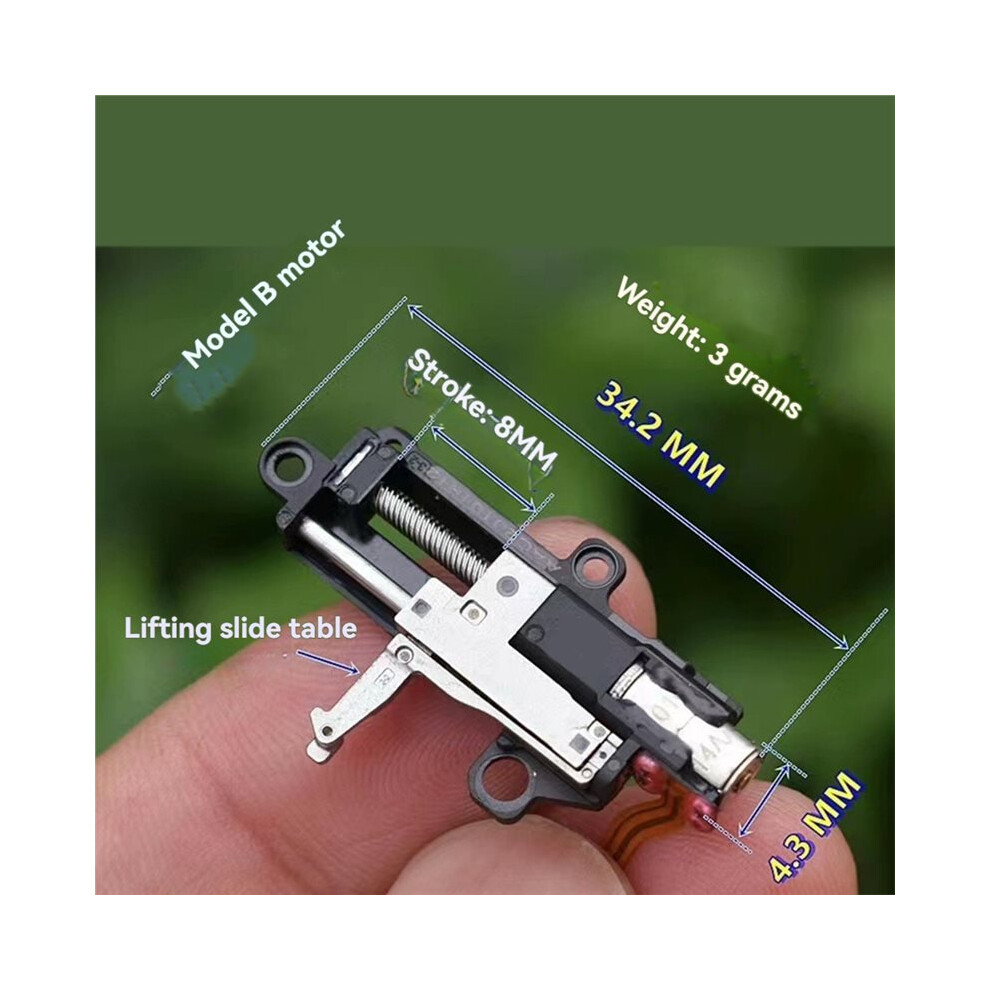

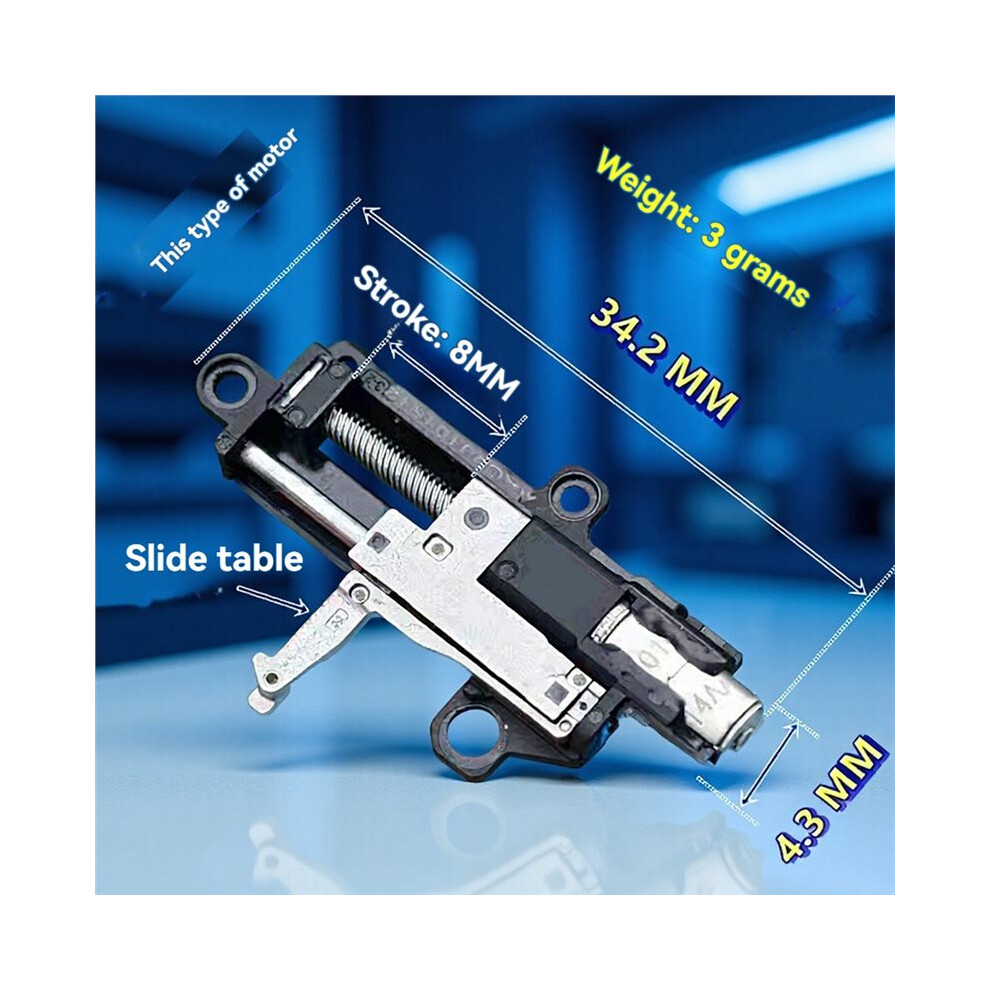

Model B:
1. Motor Diameter: 4.3mm
2. Motor Height: 8.3mm
3. Motor Phase Resistance: 10 ohms
4. Short Circuit Current @5V: 390mA
5. Slider Stroke: 8mm
6. Pulses for Full Stroke: 1750 (0.0046 mm per pulse)
7. Weight: 3g
Color: Black
Material: plastic
