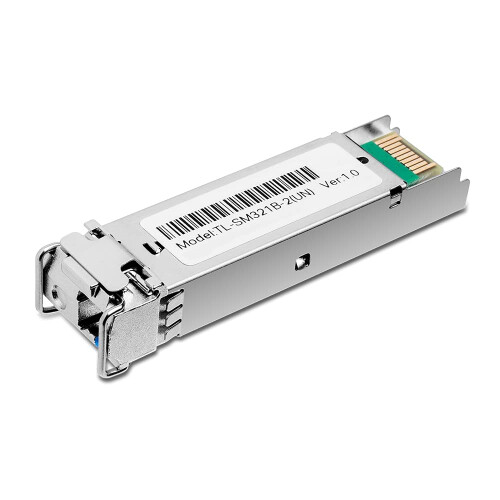

TL-SM321B-2, Bidirectional 1000Base-BX WDM-SFP Module

TL-SM321B-2, Bidirectional 1000Base-BX WDM-SFP Module Description

TP-Link TL-SM321B-2, Bidirectional 1000Base-BX WDM-SFP Module

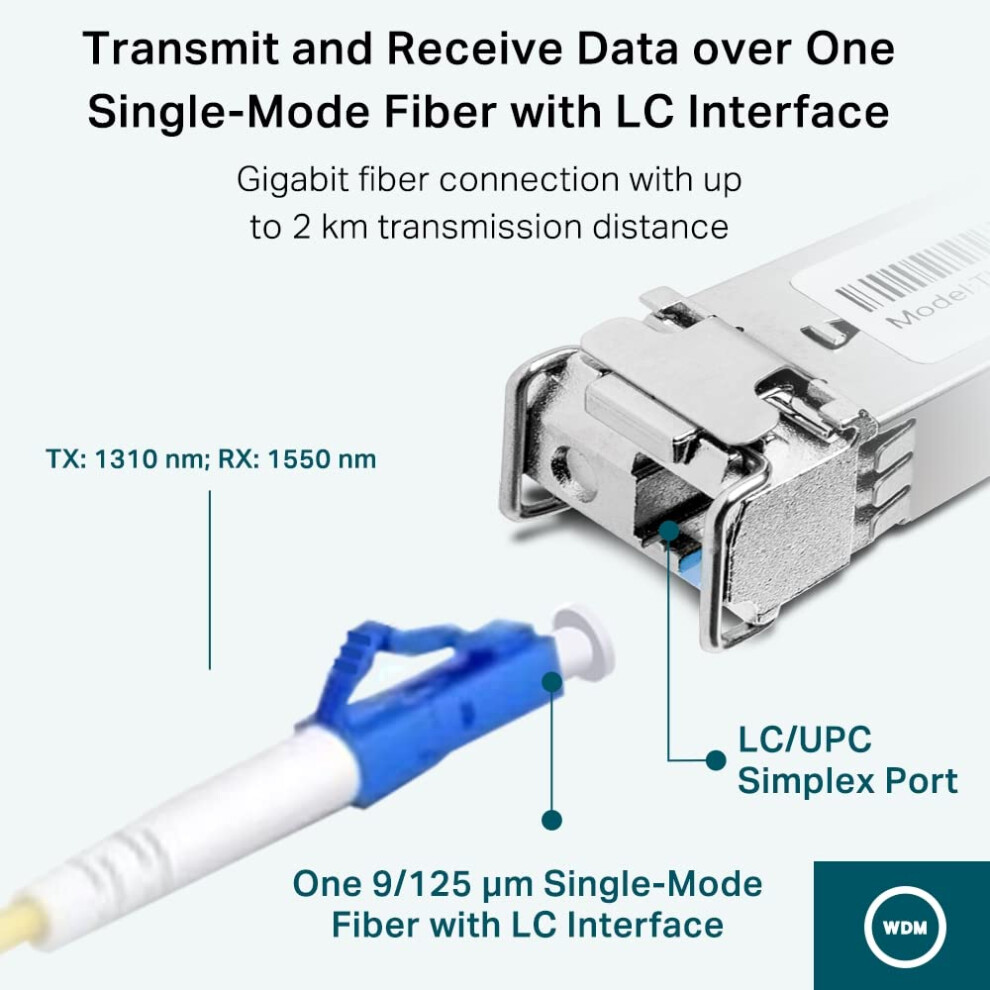

SFP module TL-SM321B-2 from the TP connection was developed in accordance with the little one.
Pluggable multi-source agreement (SFP-MSA). As a two-way optical
Transmitter receiver WDM uses TL-SM321B-2, has LC two-way connector integrated
Optical interface and data connection up to 2 km in 9/125 µm SMF (single way
fibre).

TL-SM321B-2 also includes the function of digital diagnostic monitoring (DDM), which is
Compatible with SFF-8472. DDM supports real-time transmitter receiver monitoring
Time and display parameters including the transmitter receiver current that sends /
optical power and operating temperature.

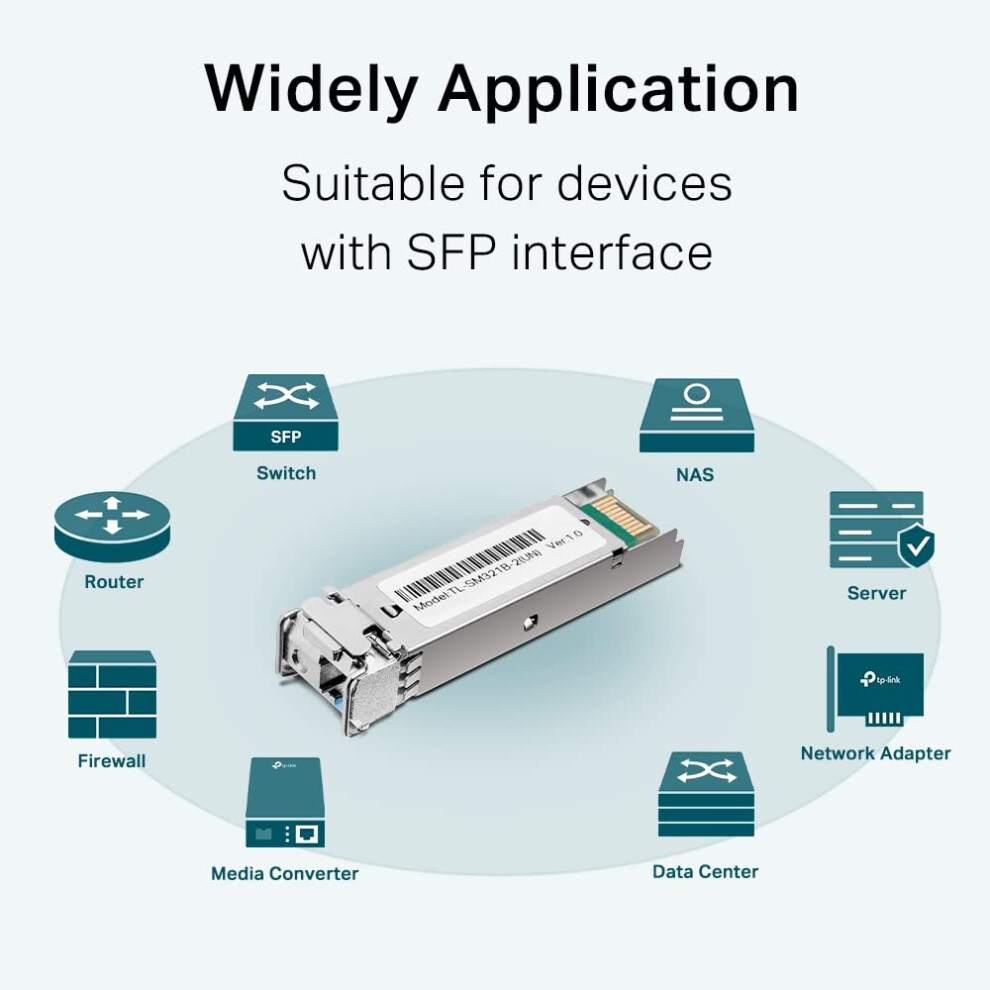

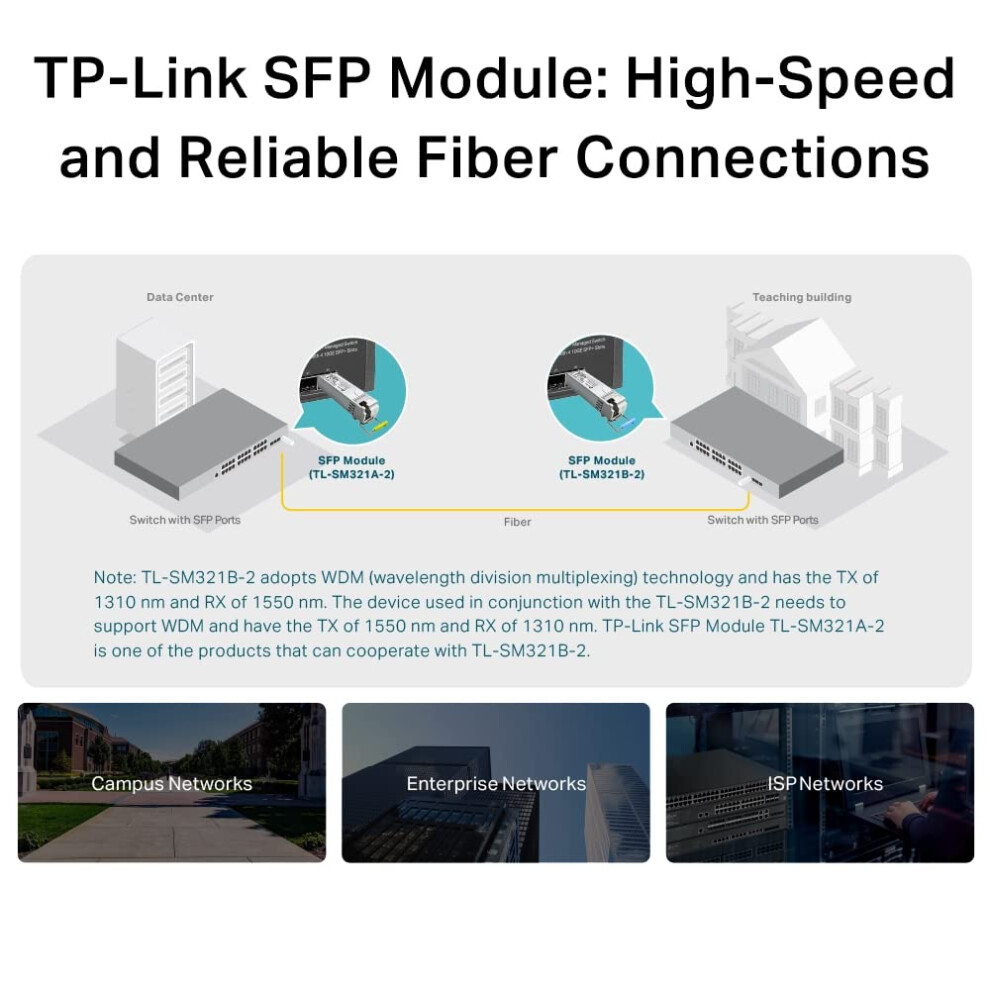

TL-SM321B-2 of the TP connection is used in practice for optical networks on it
Short and medium distances and offer fast and stable gigabit optical
Connections for switches, routers, servers and similar devices.

Key Benefits

* Accepts the last standard 1000Base-BX
* Transmission distance up to 2 km in 9/125 µm SMF (single - wise fibre).
* Compatible with the small form pluggable multi-source agreement (SFP-MSA).
* Supports digital diagnostic monitoring (DDM).
* Supports occupational exchange.

Specification

* Digital DDM diagnostic monitoring: Yes
* SFP-MSA: Yes
* Possibility of replacement in operation: Yes
* Standards and protocols: IEEE 802.3, TCP / IP
* Wavelength: TX: 1310nm, Rx: 1550nm
* Power supply: 3.3 V.
* Safety and emissions: FCC, CE
* Cable: single core fibre.
* Thread type: single process 9/125 µm
* Max. Cable length: 2 km.
* Data transfer rate: 1.25 Gbps
* Port type: LC Simplex
* Operating temperature: 0-70C (32-158F)
* Storage temperature: -40-85C (-40-185F).
* Operating humidity: 10-90% RH, non-compacting
* Storage humidity: 5-90% RH, non-compacting

Brand: TP-Link
Model: 448600
Color: Schwarz
Manufacturer: TP-Link
Release Date: 1 October 2020
