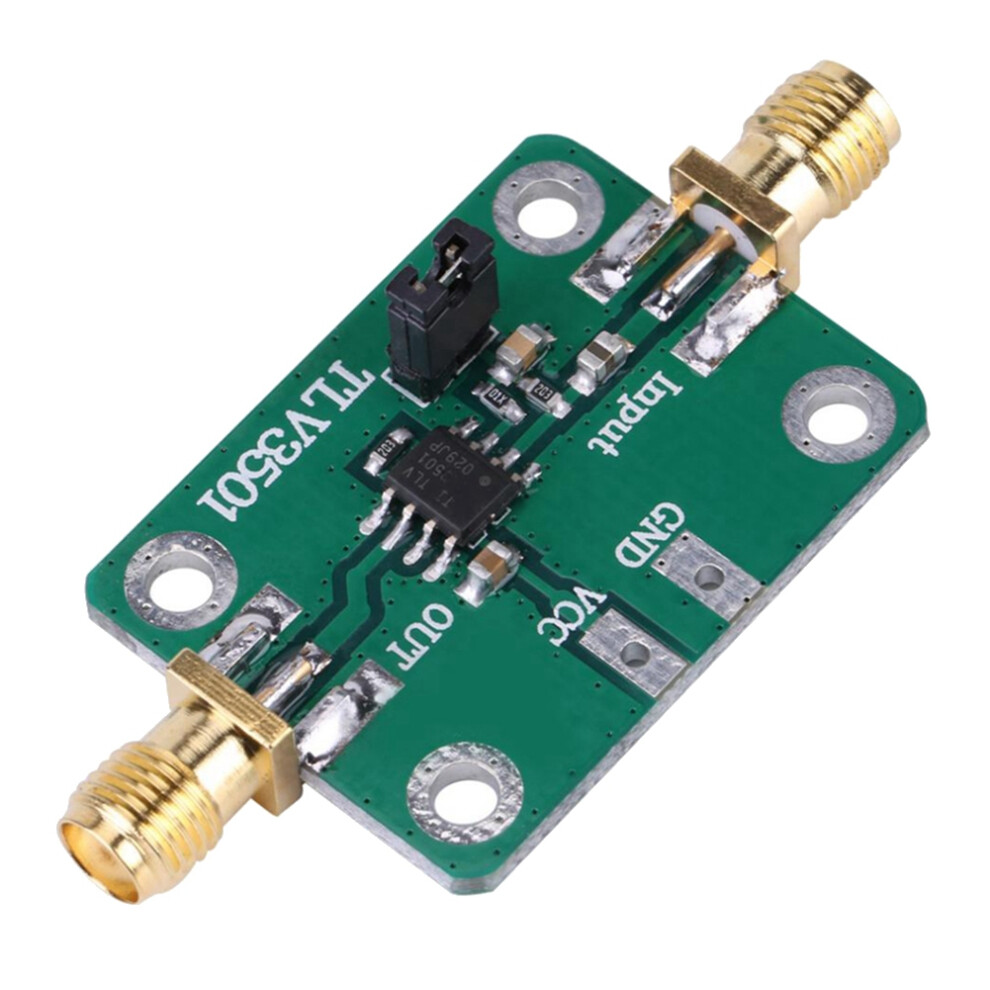

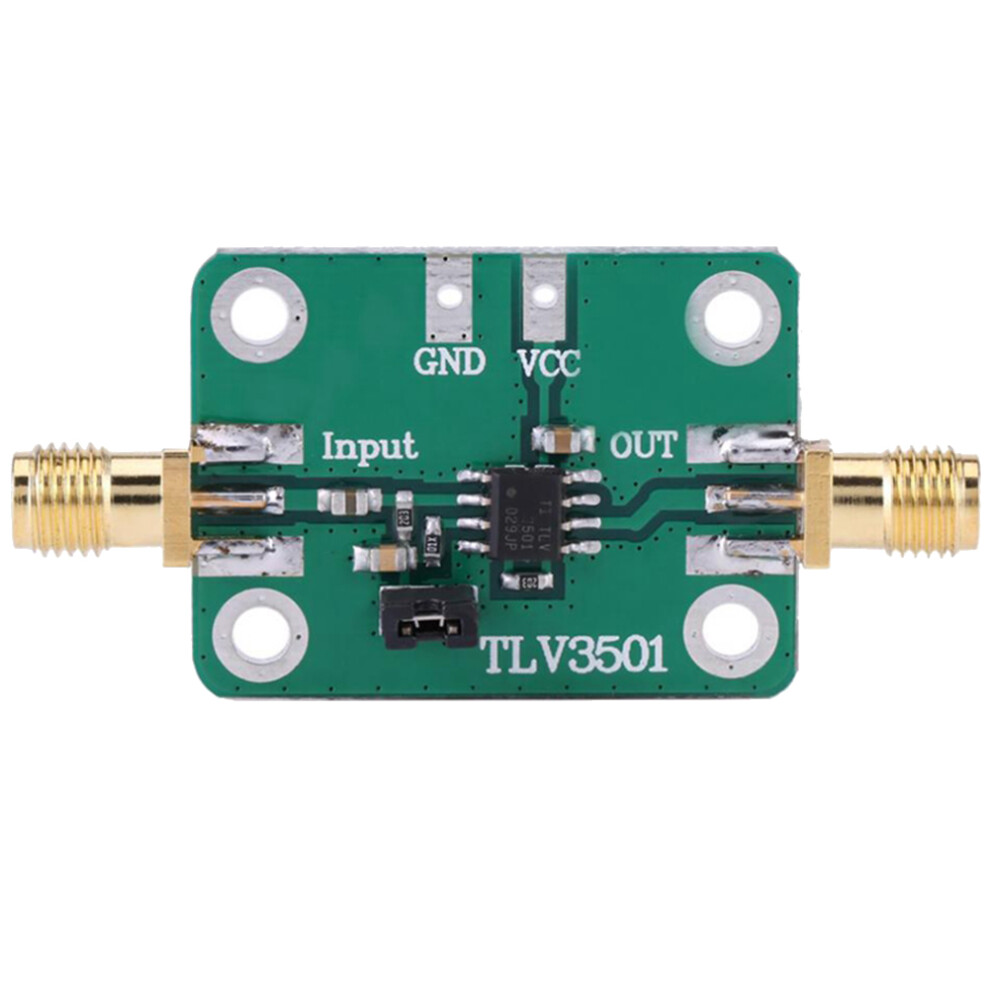

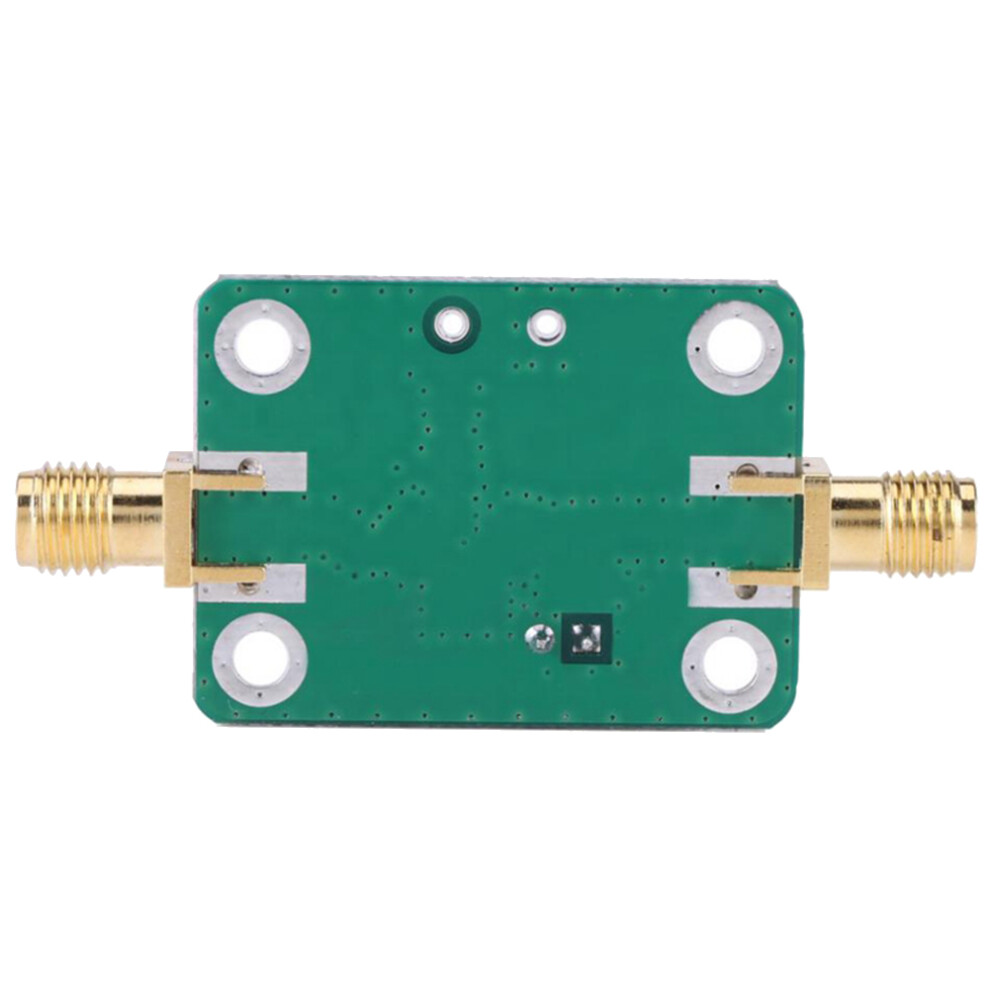

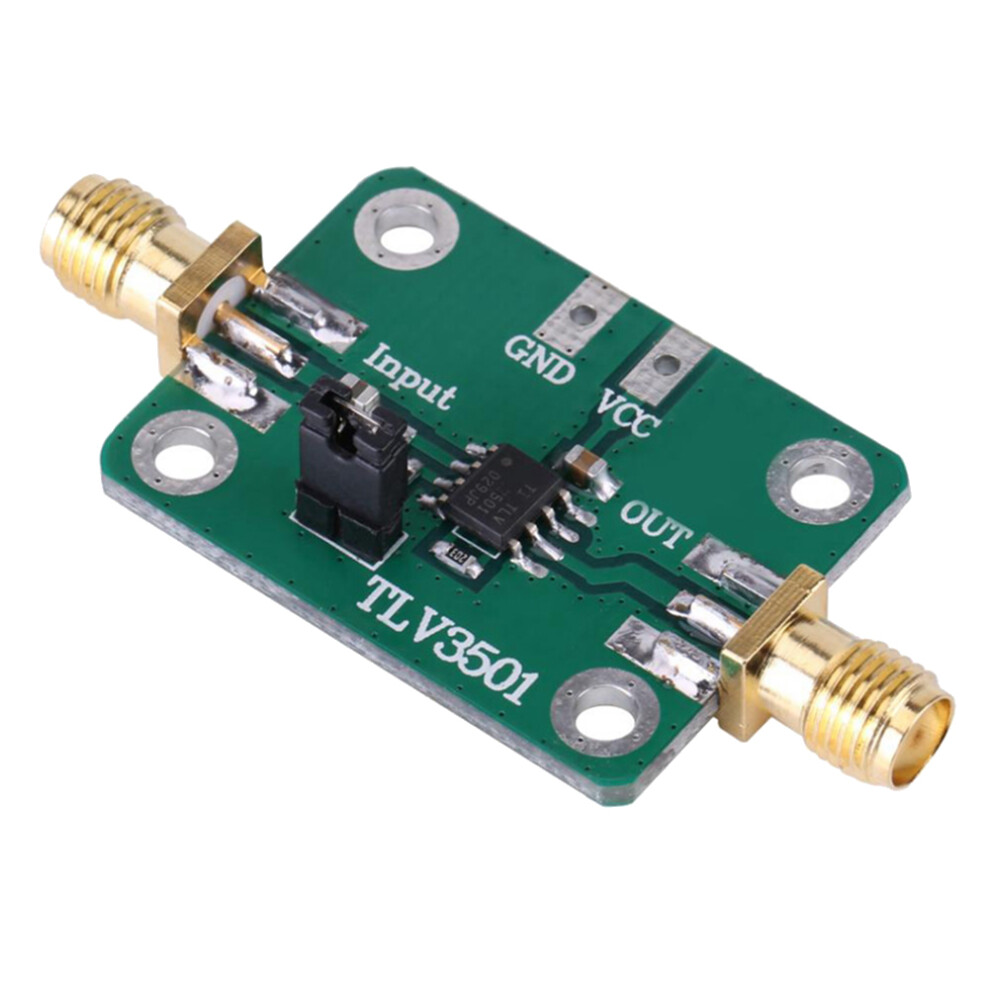

TLV3501 Single High Speed Comparator Frequency Meter Front Shaping Module DC 2.7-5V Counter SMA

TLV3501 Single High Speed Comparator Frequency Meter Front Shaping Module DC 2.7-5V Counter SMA Description

Features: 1.TLV3501 is a single high-speed push-pull output comparator: delay is 4.5ns, supply voltage: + 2.7V to + 5.5V.
2.This module can be for a wide range of voltage signal shaping period: as the frequency, phase difference time domain measurements and other front-end conditioning module.
3.Rail-to-rail output :can directly a CMOS or TTL logic.
4.Without threshold setting: the sine wave, wave and triangular wave can be transformed into wave, which can be used easily without debugging.
5.At the same time: it has great extensibility, just change a small amount of the original.

Descriptions:
1.Compact design, easy to install.
2.Uses the high quality material: stable and reliable performance.
Specifications:
Supply voltage: 2.7-5VDC
Input voltage: 8-1000mV (effective value)
Output level: rail to rail output, can directly TTL / CMOS level
Input frequency: 1Hz-120 MHz, Min.1Hz
Interface shape: SMA female head (external screw hole)
Input impedance: 20 K ohm
Product Use:
Sine wave
The zero crossing comparator
Universal comparator
Colour:green
Material:metal+pc
Size:about 5 x 2.5cm

Package Contents:
1 x High speed waveform comparator

Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
