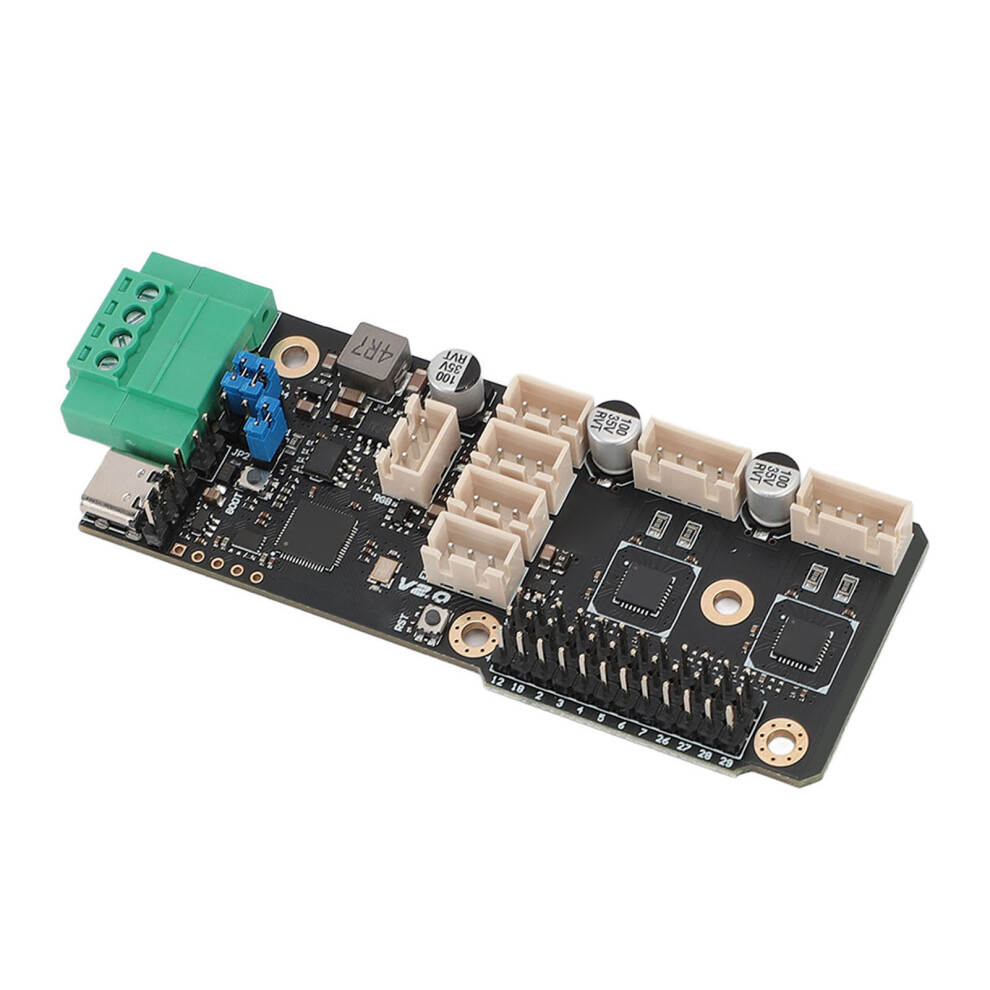

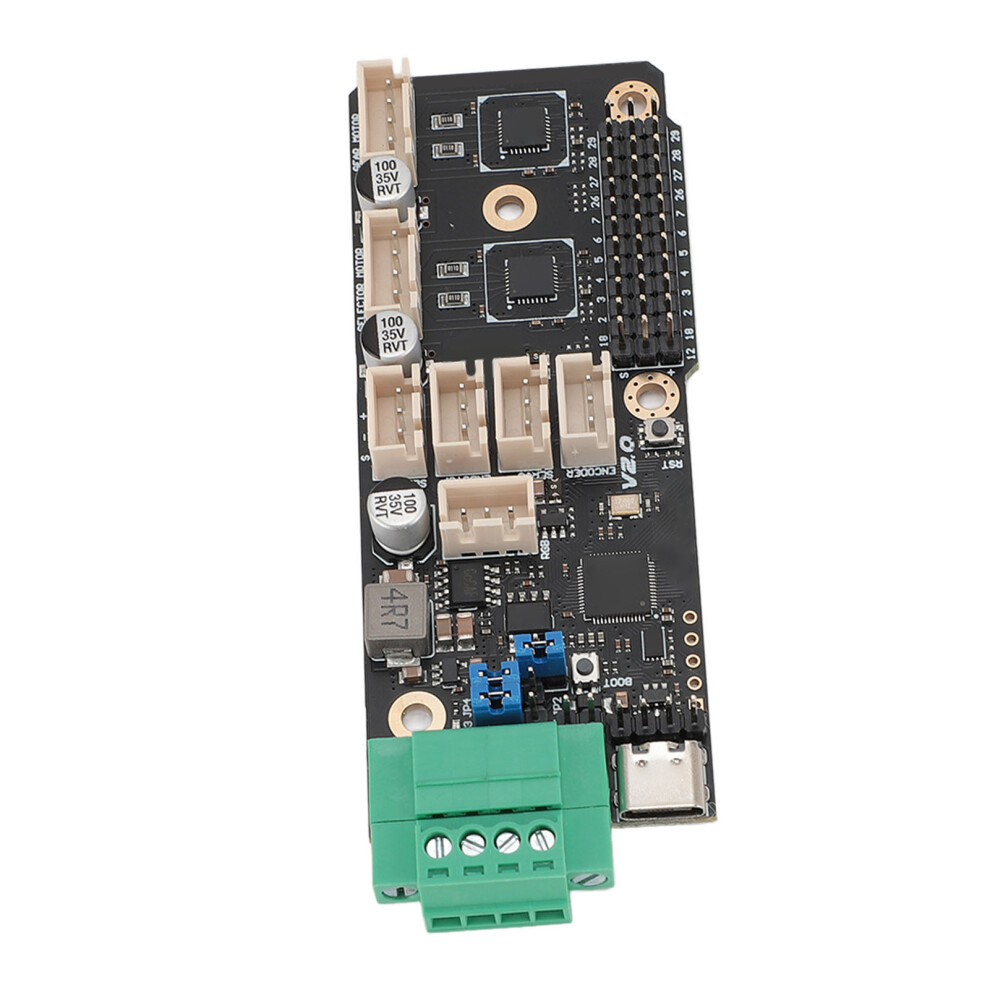

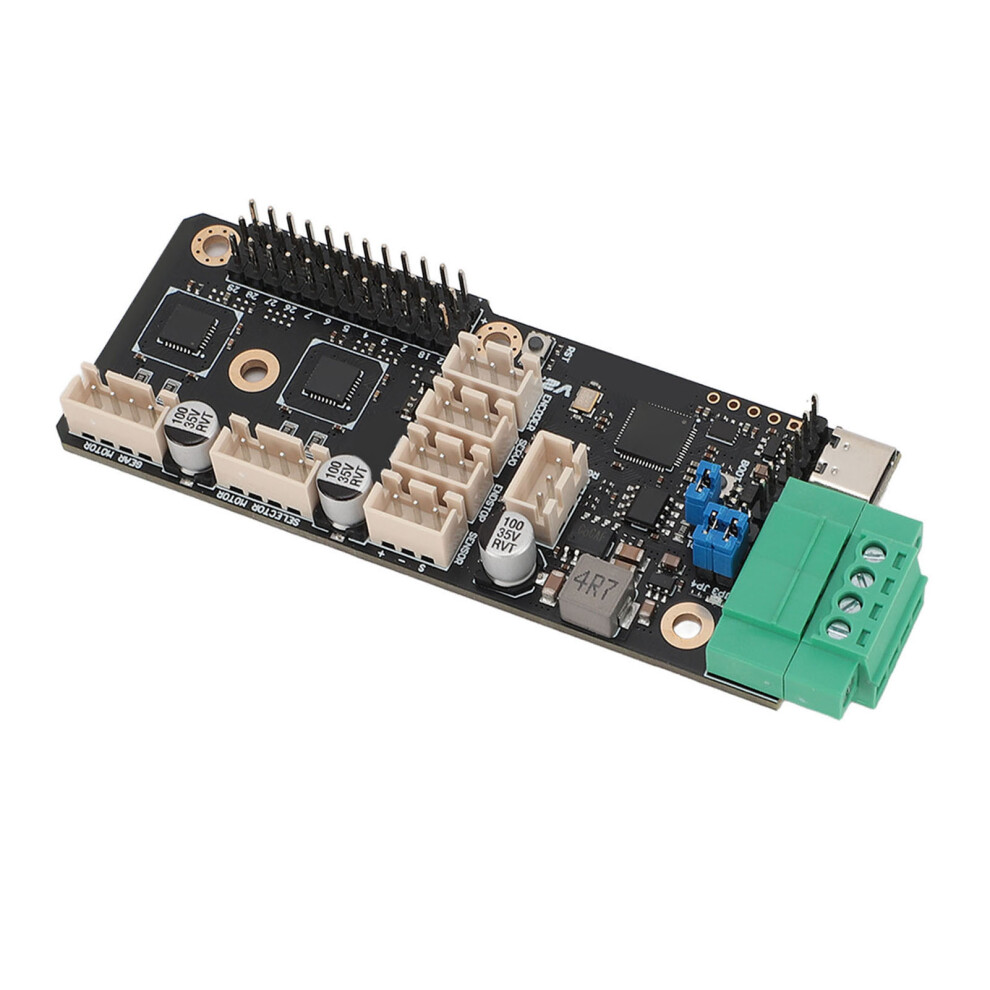

TMC2209 CANBUS USB C V2.0 Mainboard for Voro ERCF V2.0 Feeder

TMC2209 CANBUS USB C V2.0 Mainboard for Voro ERCF V2.0 Feeder Description

1、Compatibility: The ERB V2.0 motherboard is compatible with for Voro ERCF V2.0 Enraged Carrot Feeder, offering versatility for dual stepper motor control applications. 2、Enhanced Performance: This is a multi color control board for 3D printing machines based on RP2040, mainly used for Enraged Rabbit V2 printers. On the basis of V1, the CANBUS connection was added, and the terminal connection method and layout were re adjusted. 3、Integrated Functions: Featuring 2 x TMC2209 drivers and integrated heat sinks, the motherboard also includes optional USB and CANBUS interfaces for enhanced connectivity and functionality. 4、Convenient Connectivity: The 4 pin connectors allow for quick and easy insertion and removal, used for power and USB and CAN connections, ensuring convenient maintenance. 5、Simplified Installation: Support for 5V RGB and steering gear, the ERB V2 motherboard offers simple and straightforward installation procedures, convenient and safe.
Item Type: 3D Printer Motherboard
Material: PCB
Drivers: 2 x TMC2209
Input Voltage: 28V (maximum)
Interface: CANBUS, USB C
Application: for Voro ERCF V2.0 Enraged Carrot Feeder

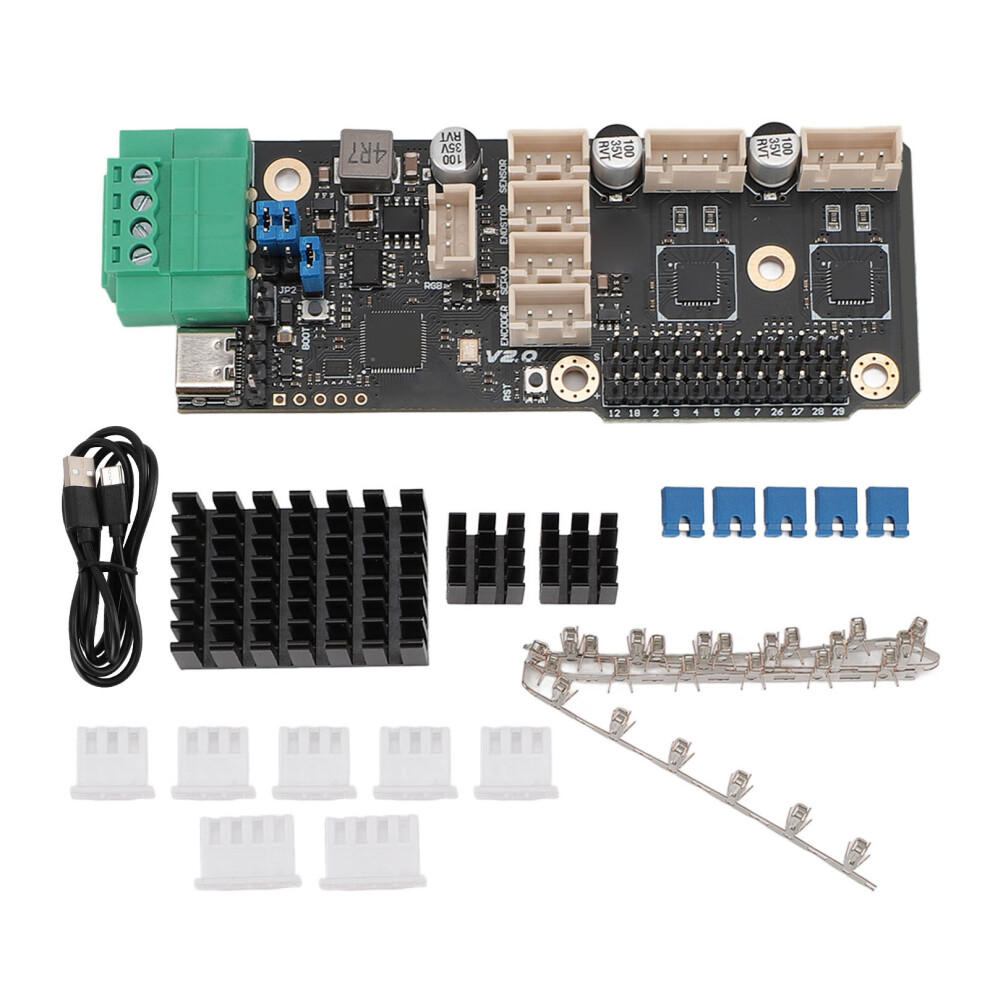

1 x Mainboard
3 x Heat Sink
1 x USB C Cable
1 x Accessory Pack
