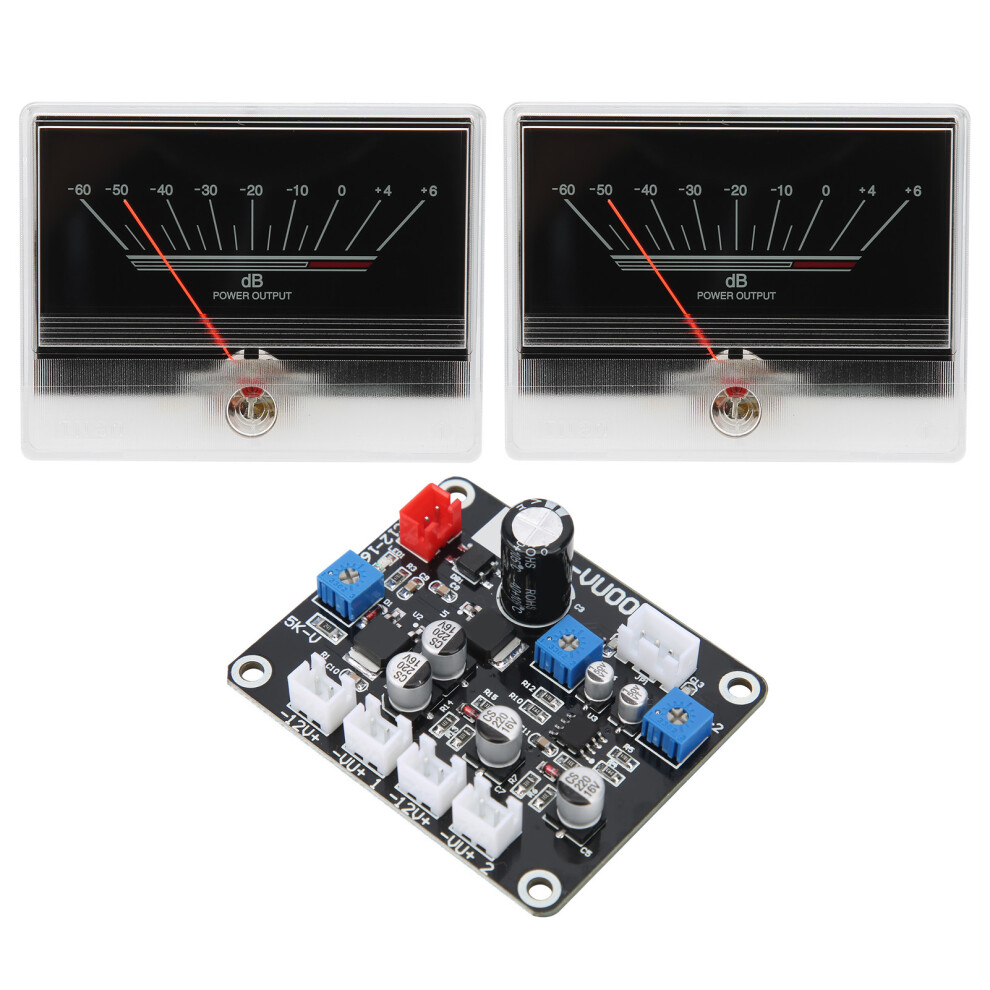

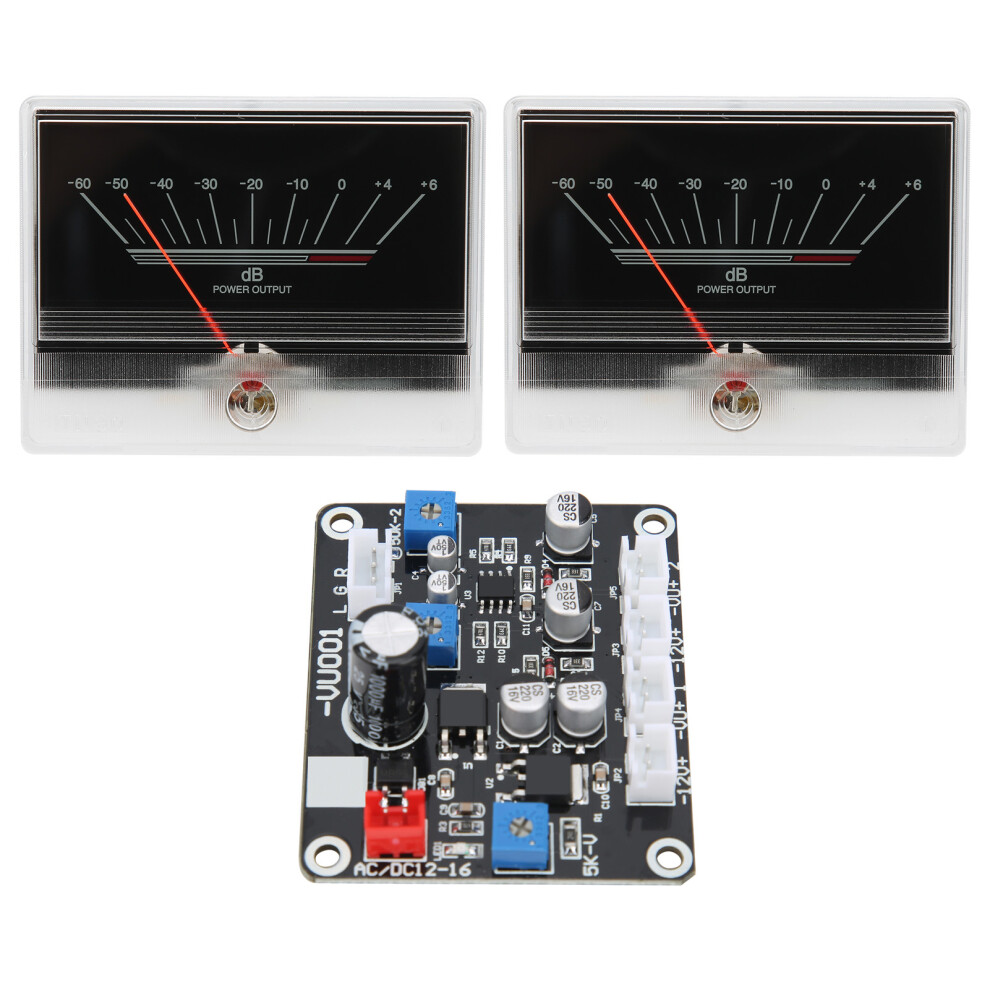

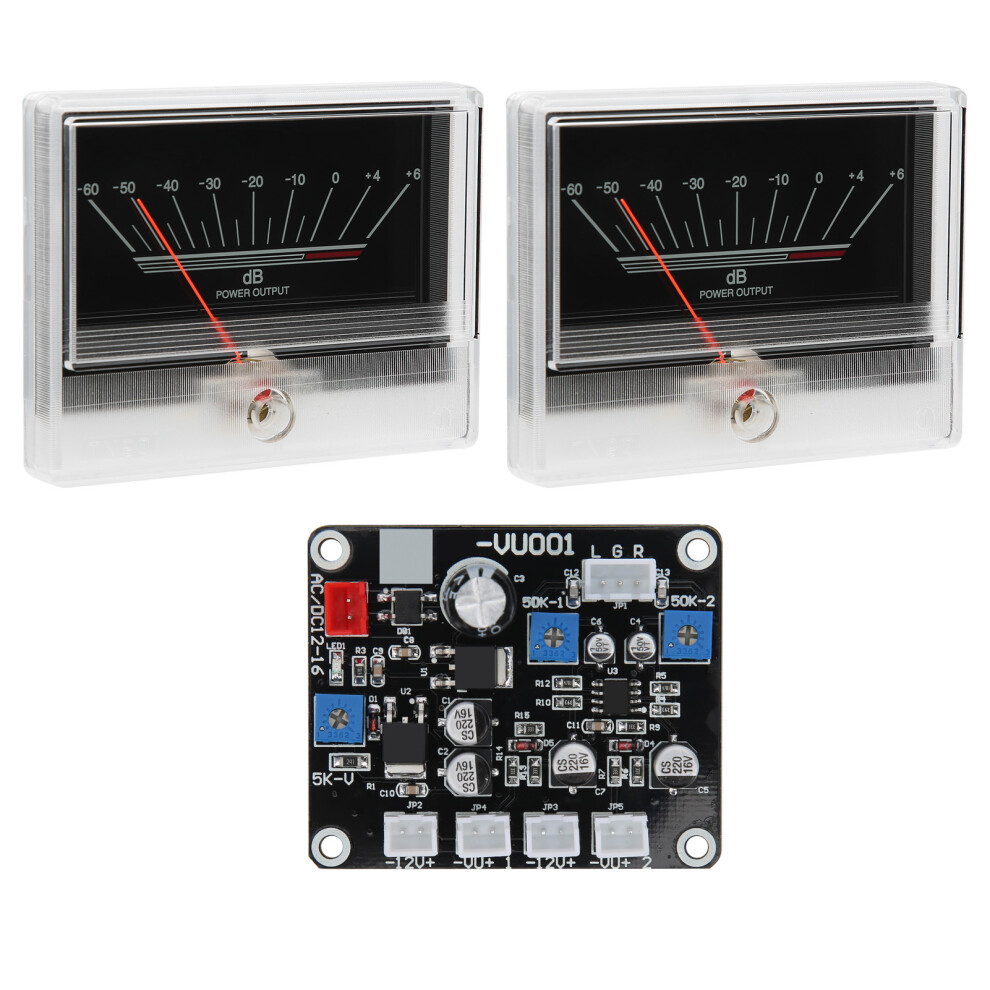

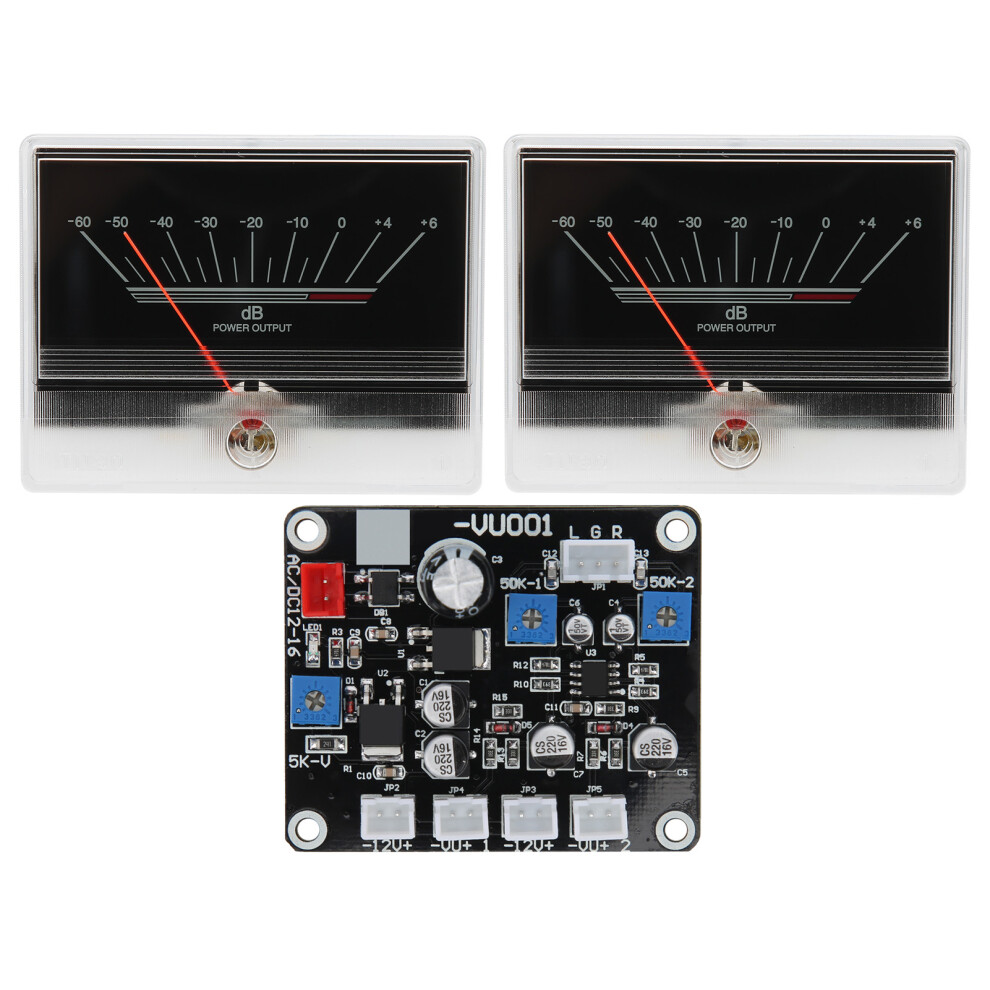

TN-90A-S0538 960uA High Accuracy VU Meter DB Amplifier with Backlight

TN-90A-S0538 960uA High Accuracy VU Meter DB Amplifier with Backlight Description

1、2 VU meters and 1 driver board, you don't have to worry about finding suitable drivers and wiring problems, you can easily get started. 2、One driver board can control 2 VU meters and 2 potentiometers with a clear division of labor. 3、The backlight brightness and the amplitude of the pointer swing can be adjusted to facilitate recording without distortion. 4、With backlight, it can read clearly in dim environments, suitable for DIY, home audio, car audio conversion, etc. 5、Made of high-quality ABS and PCB materials, wear-resistant and durable, not easy to damage.
Item Type: VU Meter
Material: ABS+PCB
VU Meter:
Maximum Current Sensitivity: 960uA10%
Internal DC impedance: 650Ω10%
Insulation resistance: >50MΩFriction: 1mm
Pointer length: Approx.44/1.73in1mm/0.04in from the needle end to the axes
Pointer Width: Approx. 0.45mm/0.018in0.05 mm/0.002in
Meter Installation Position: Vertical
Backlight Board: Transparent with Backlight 3V 20mA
Driver Board:
Power Supply: AC/DC 12-16V 5W
Signal Input: 0.775V
Backlight Power Output: 1.25V-11V 50mA
Size: Approx. 50 x 60 x 25mm/2 x 2.4 x 1in

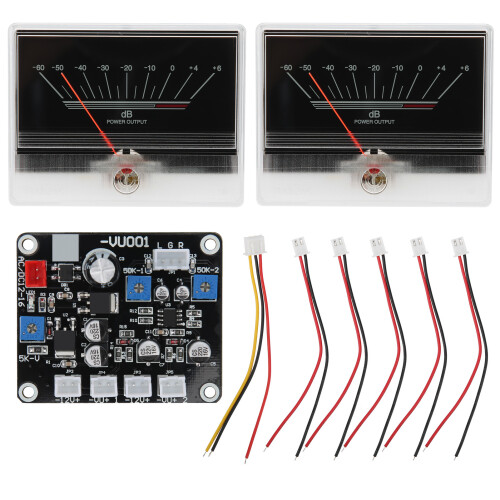

2 x VU Meter
1 x Driver Board
6 x Flat Cable
